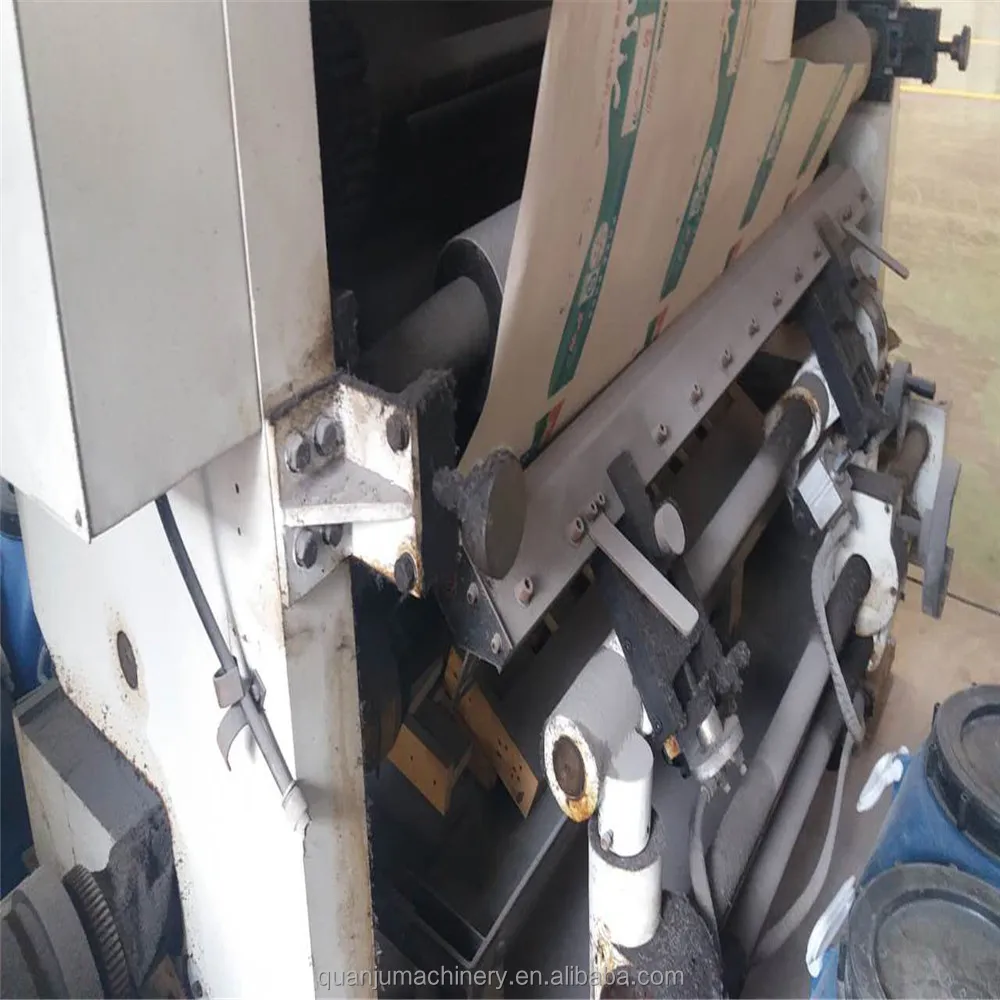

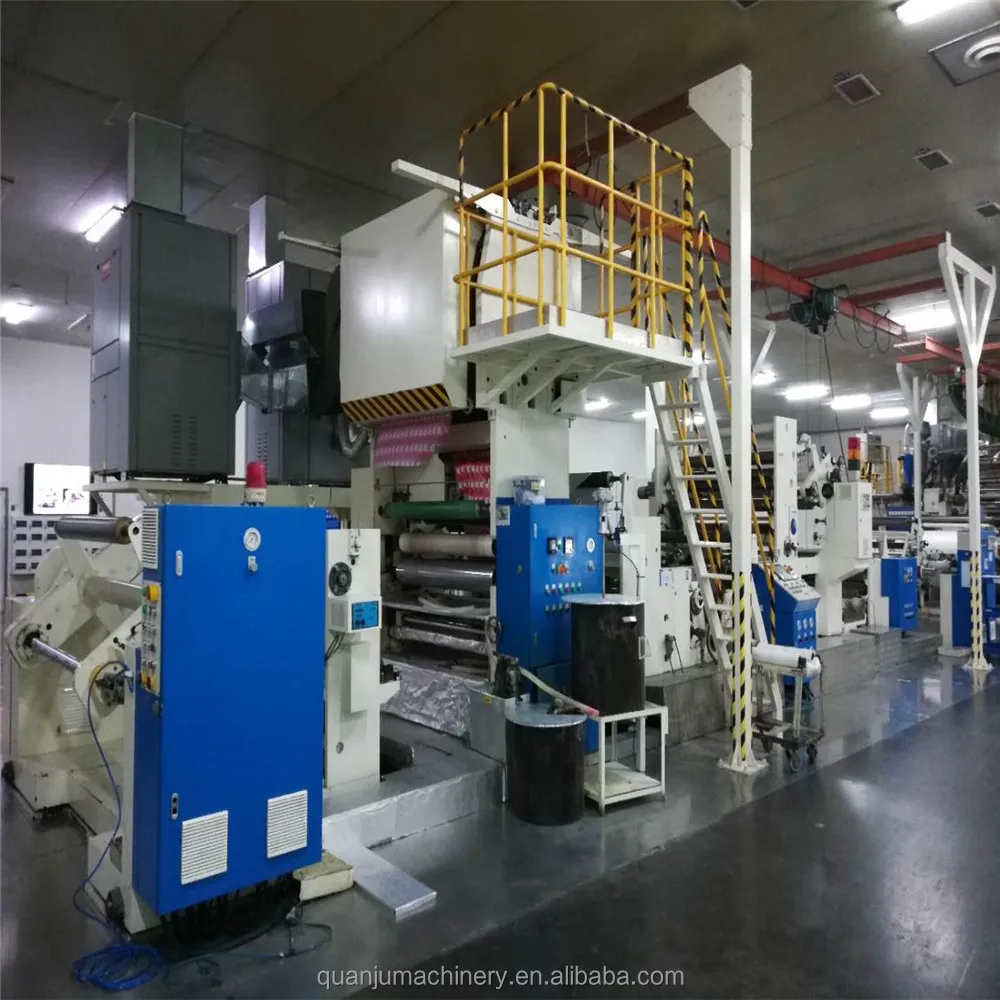

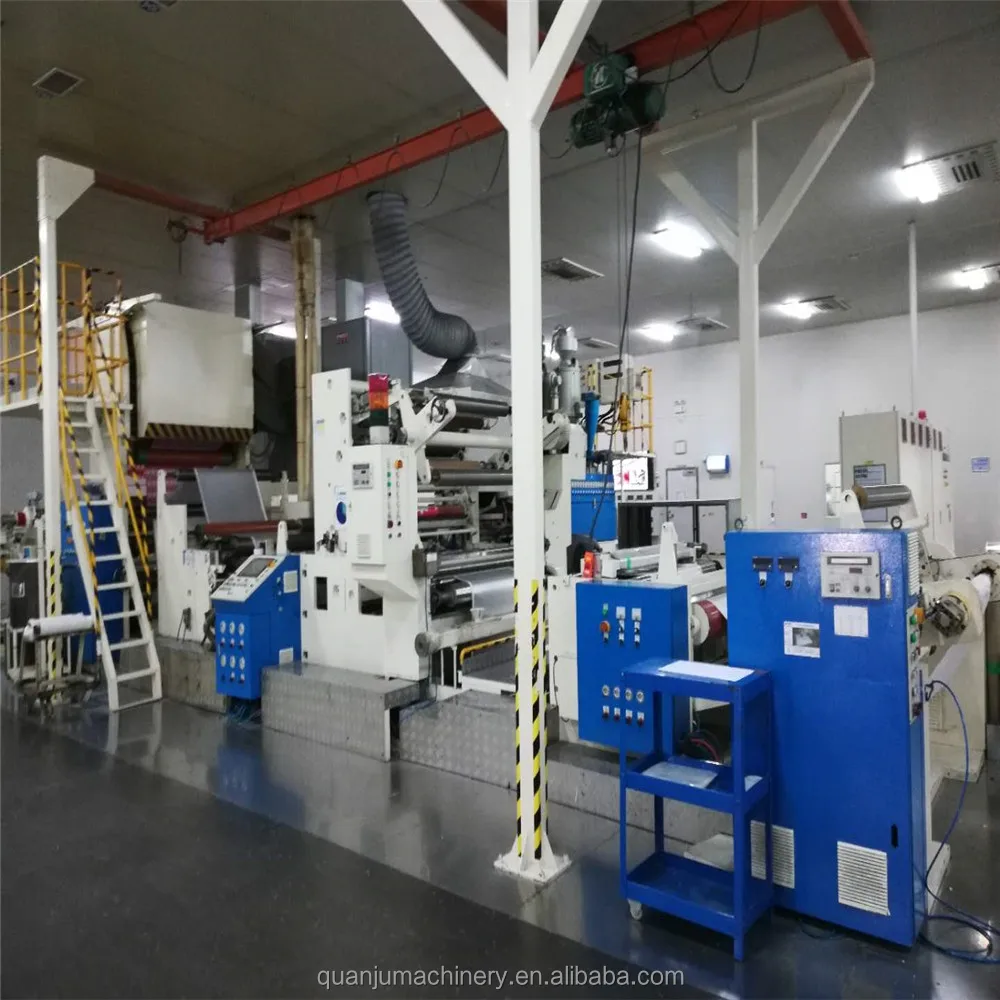

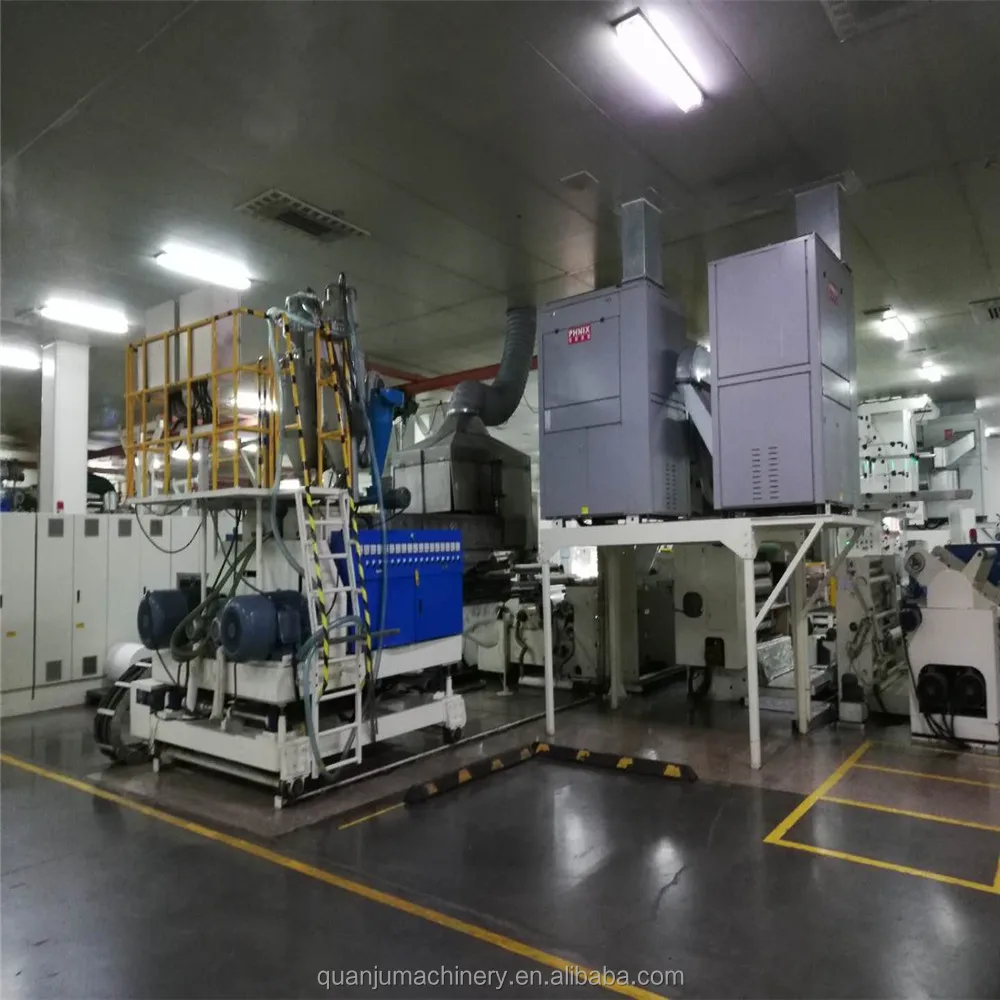

Used High Speed Extrusion Lamination Coating Plant Laminating Machine

EXC F-type Single-head Co-extrusion Laminating Machines Description:

Machine specification: 1450mm

Effective width: maximum1350mm

Machine speed: 200m/min

Extruding machine: with 2 sets HL-90 or HL-100 extruder with principle of energy dynamic equilibrium for economizing on the energy

Extruding power: 37～45kw

Extrusion output: maximum 200kg/h or 280kg/h

Used resins: resin such as LDPE, LLDPE, PP, EVA, EAA, EMA, EMAA

Coating thickness: 10～40μm，single layer thickness 5～30μm

Evenness of thickness: ≤±5%

Unwinder diameter: maximum ф800mm or ф1000mm

Base materials: BOPP, BOPET, BOPA, thin paper(50～200g/m2)

Sandwich materials: CPE, CPP, MCPP, MPET, aluminum foil, paper

AC agent & Oven mode: gravure roll coating with scraper, 4m oven

Sandwich unwinder diameter: maximum ф680mm

Rewinder diameter: maximum ф800mm or ф1000mm

Tension control: automatic tension control，maximum tension 40kg

Electrical control mode: operated by MMI, extrusion thickness automatically controlled by computer, the whole machine is in linkage control state

Transducer: AC digit vector control frequency convertor (import)

Workshop requirement: Length 19m×Width 11～13m×Height 4m

Manufactured in 2009

EXW Anhui:73000$
