3mm Thickness Implant Titanium Femur Plate
- Category: Titanium Sheets >>>
- Supplier: Shaanxi Yunzhong Industry Development Co. Ltd.
Share on (60745165638):
Product Overview
Description
3mm Thickness Orthoped Implant Titanium Femur Plate
Product Description
Product name type | Titanium foil/Titanium plate/Titanium sheet/Titanium strip/Titanium coil |
Titanium Type | Commercially Pure(CP) / Titanium in alloyed |
Titanium Grade | Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333 BT1-00 BT1-0 BT4-0 |
Width | 50-3000mm |
Length | Cut available |
Technique | Hot Rolled / Cold Rolled |
Thickness | 0.02~70mm |

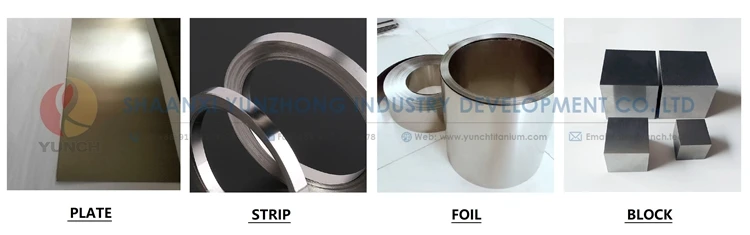

Shape | Plate/Sheet/Coil sheet |
Standard | ASTM B265 / ASME SB265/ AMS 4911 /ASTM F67 / ASTM F136/ISO 5832-2 / ISO 5832-3 |
Condition | R(Hot Working) Y(Cold Working) M(Annealed) |
Application | Aviation,Navigation,Petrochemical,Industrial,Qquipment manufacturing,Medical,Automobile as well sports |
| Chemical composition |
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Remain |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Remain |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Remain |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Remain |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | Remain |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | Remain |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Remain |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | Remain |
| Tensile requirements |
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| kis | Mpa | Kis | Mpa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
Why Choose Us
WHY YUNCH
1. The headquarters of the company is located in "titanium valley" in baoji city, shaanxi province.
2. Supplying solutions customers from more than 50 countries in the americas, Europe, Middle East, Africa and Asia Pacific
3. The products are widely used in oil refining, navigation, chemical industry, industry, paper making and pharmaceutical, 3D printing, water purification, environmental protection, aerospace, medical treatment, sports, electronics and other fields.
4. With the business philosophy of "higher quality, higher efficiency and better service", we provide high-quality service and fully implement the enterprise spirit of "do what you say".
5. Our company has passed the ISO9001:2015 certification, and our products have passed the SGS and TUV certification
Core Products
- Tungsten:W1,W2. 99.95%, 99.995%,Plate, rod, wire, tube
- Molybdenum:99.95%, 99.995%,Plate, rod, wire, tube
- Tantalum:Plate, rod, wire,tube, foil
- Niobium:Plate, rod, wire, tube,foil
- Zirconium:Plate, rod, wire, tube
- Nickel :Plate, rod, wire, tube
- Hafnium:Plate,rod,wire, foil
Company Information
FAQ
Q: How long is your delivery time?
A: If the goods are available, it is usually 3-5 days. If the goods are out of stock, then 7-10 days.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free but you will afford the shipping cost.
Q: What is your payment terms?
A: Payment ≤1000USD, 100% in advance. Payment >1000USD, 30% T / T in advance, the balance before delivery.
Q:How do you insure the quality?
YUNCH:We send mill cert for the products with delivery.And we also can do TPI(Third party inspection)on the products if neccessary.
