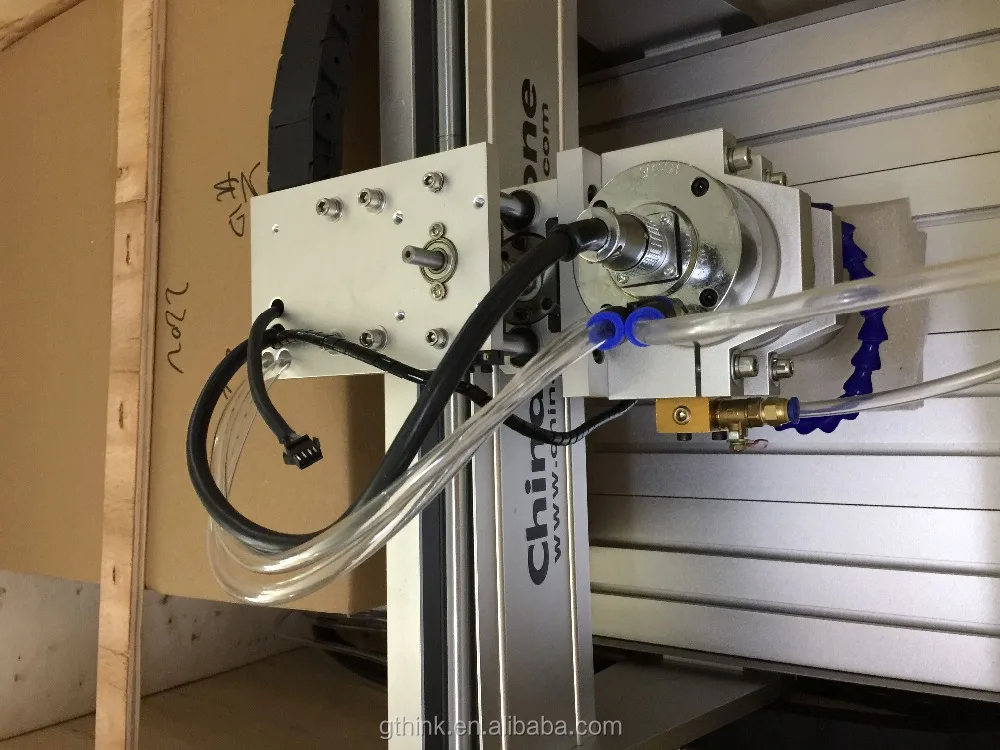

Mini Metal CNC 6040 3 axis Milling Router Machine with coolant system
- Category: >>>
- Supplier: Shenzhen Gthink Tech Co. Ltd.
Share on (60745236944):
Product Overview
Description

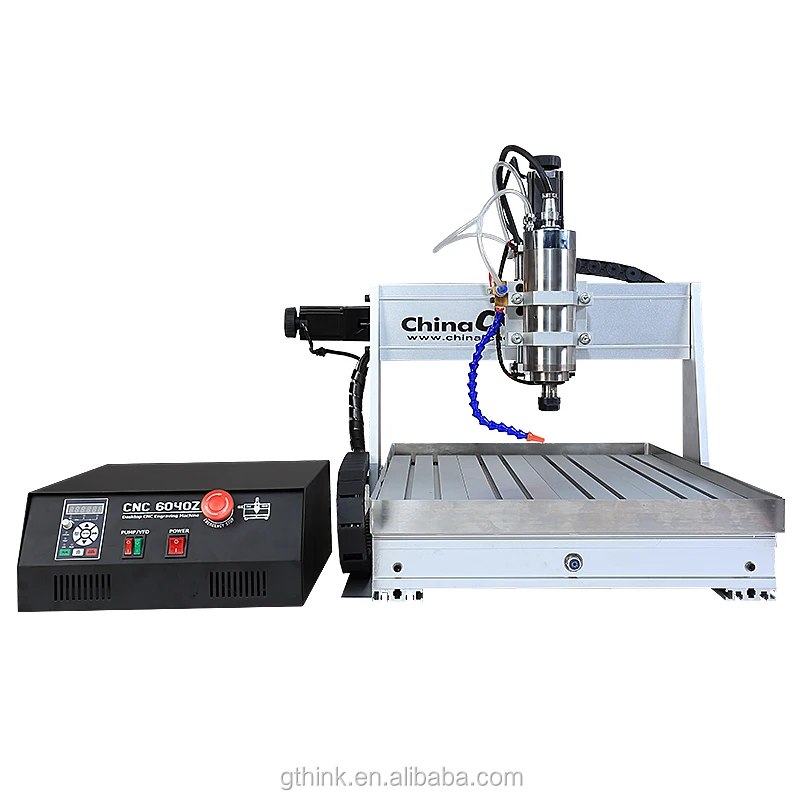

Mini Metal CNC 6040 3 axis Milling Router Machine with coolant system
Product Description
Brief introduction
A. What area it can used for?
CNC 6040 4 axis 1.5KW router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.
B. What materials it can used for?
It can work for Wood, acrylic,plastic,Jade, PCB ,PVC,Aluminum, Copper, Acetate Sheet, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.

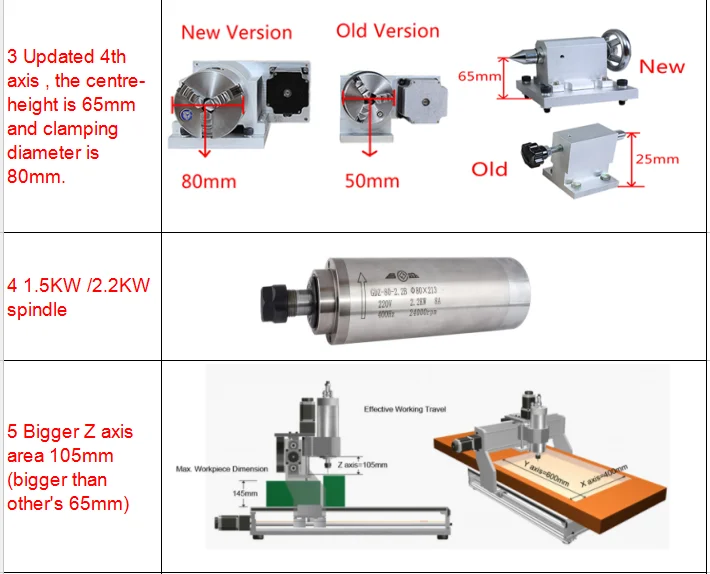

Features of Our CNC 6040:
Other features:
1. Independent power supply for mainboard, prolong using life.
2. With strong aluminum alloy frame materials.
3. Cover plates reducing pollution for the screws and shafts.
4. steady and strong support structure Spindle motor knob.
5. Independent power supply for mainboard, prolong using life.
6. Use with a computer which connets with a cable (parallel or usb cable).
Customers need to prepare G codes,then lead it to the MACH3 or USB software and start to run the machine.
Specifications
Effective working travel | 400(X)mm*600(Y)mm*105(Z)mm | |
Shape dimension | 920*690*640mm | |
Work table dimension | 742mm*480mm | |
Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | |
acceptable material thickness | ≤145mm | |
Driving units | X/Y/Z axis | SFUR1605-DFC7-P0 ball screw |
Sliding units | X axis | Dia.20mm chrome plate shafts |
Y axis | Dia.16mm chrome plate shafts | |
Z axis | Dia.13mm chrome plate shafts | |
Stepping motor type | 57 two-phase 3A 150N.cm | |

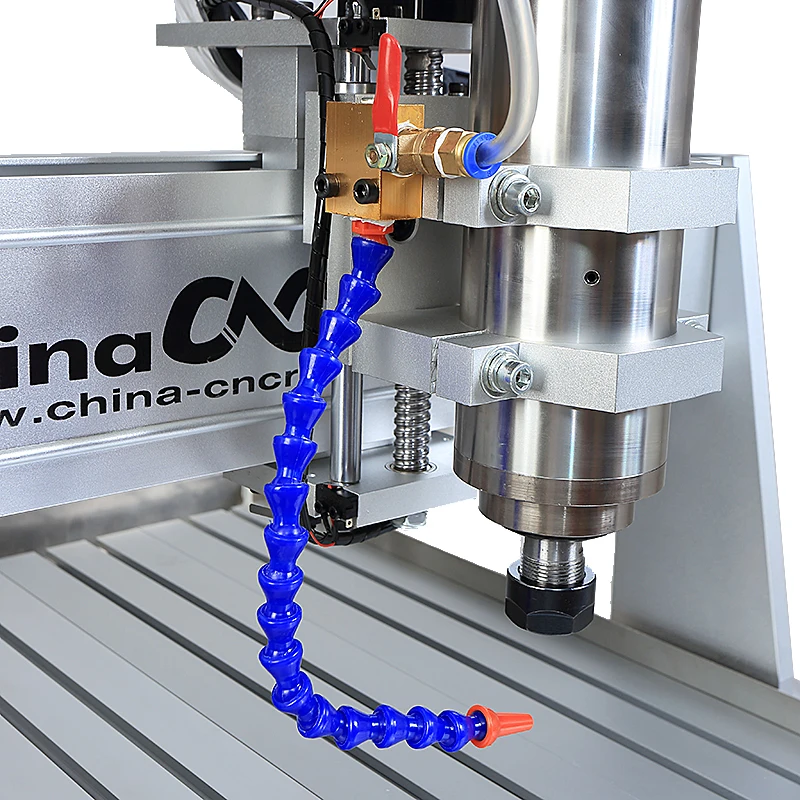

Spindle motor | Brand new 1500W water cooling spindle, 24000RPM | |
Principal axis collet | ER-11 1-7mm | |
Repeat accuracy | 0.05mm | |
Spindle precision | radial beat accuracy 0.03 mm | |
Software environment | MACH3 Support windows 8 | |
Maximum speed | 0-4000mm/min | |
Control unit | E100S2R2B + JMC542 3axis drive board | |

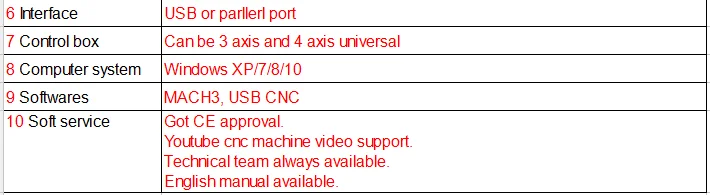

Computer connection | USB port and Parallel port | |
Command code | G code, or any MACH3 support format file | |
Protection | Emergency stop button | |
Operating Voltage | AC220V/110V | |
Accessories | Pump, Auto checking tool , cutter, same as accessories photo | |
Warranty | 1 Year | |
Package size | 89CM*67*72CM | |
Gross weight | 85KG | |

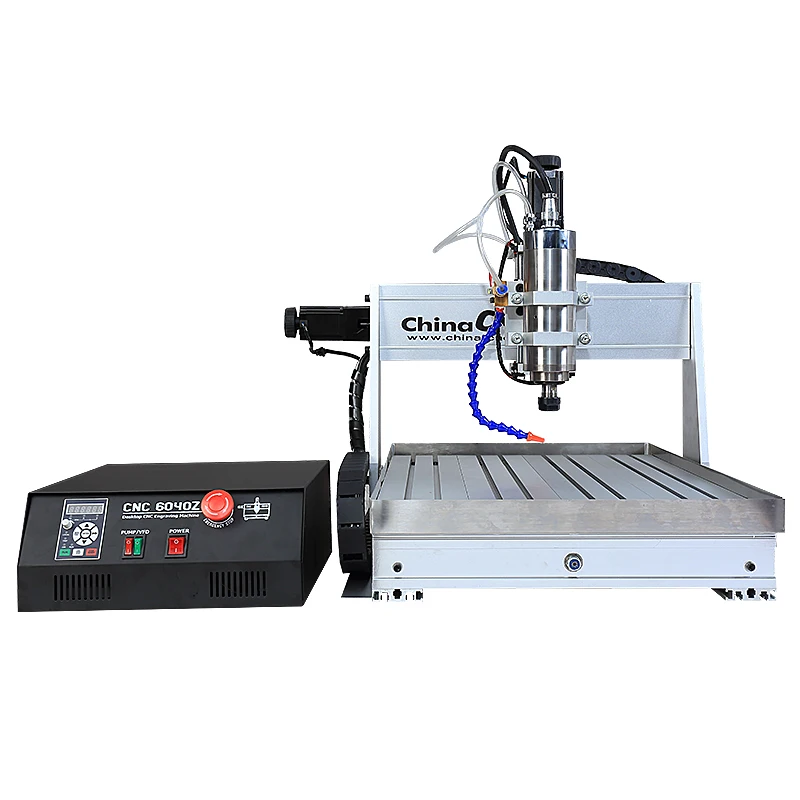

Detailed Image

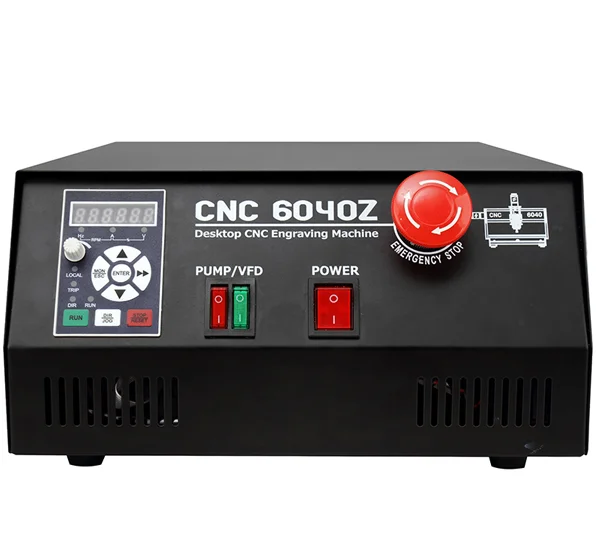

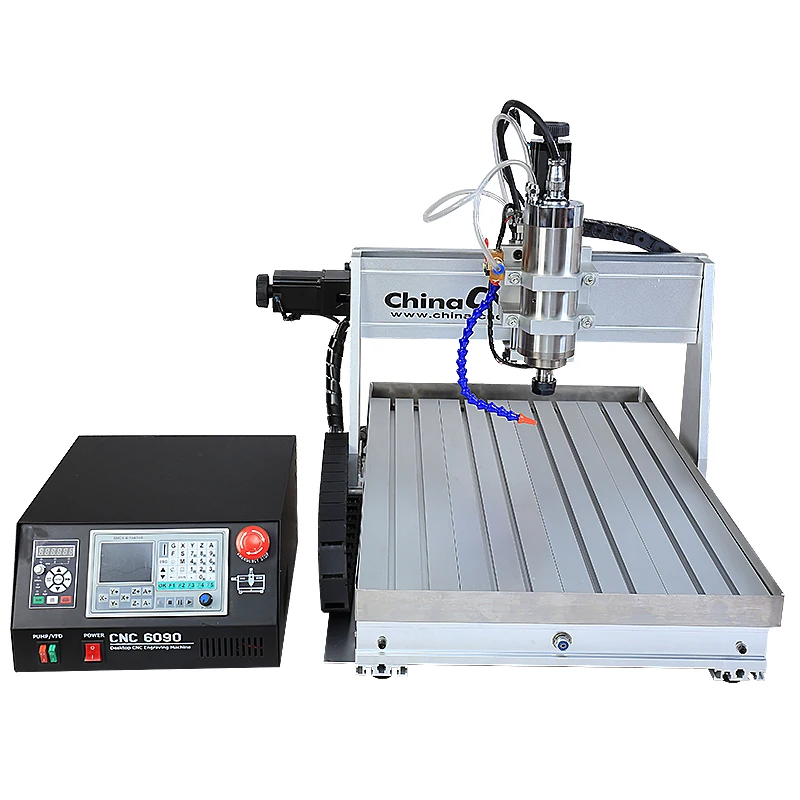

Attention: We have 3 kinds of controllers,Type 1 is the cheapest,Type 2 no need computer,Type 3 is the most convenient and most stable one,but more expensive.This link is for Type 1 controller,Please feel free to ask us details if need other types controllers.
Factory Photos
Machine will be tested well before shipment
Packaging & Shipping

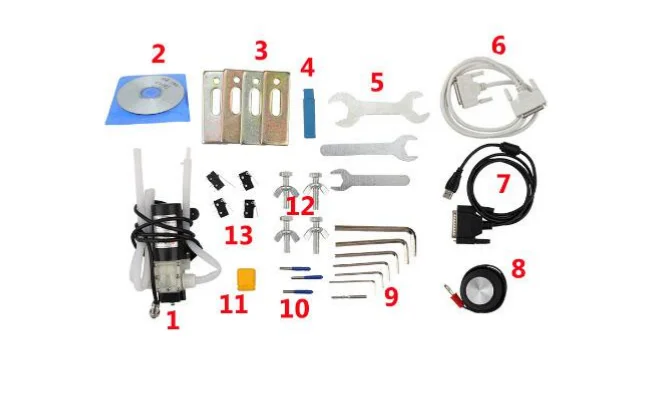

Packing List:
1 water pump *1
2 CD (software)*1
3 Fixed briquetting *4
4 milling bit *1
5 clamp tool *3
6 parallel cable *1
7 USB cable *1

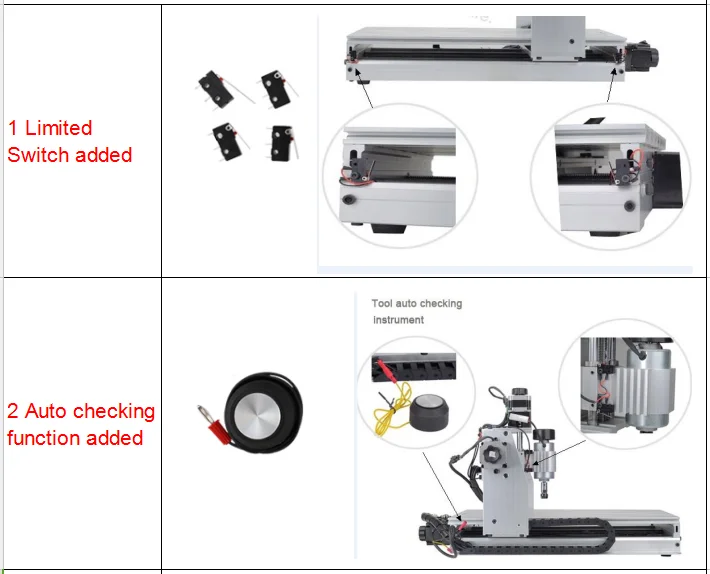

8 auto-checking tool *1
9 clamp tool *6
10 engraving bit *3
11 collet 3.175 *1
12 screws *4
13 limited switch *4

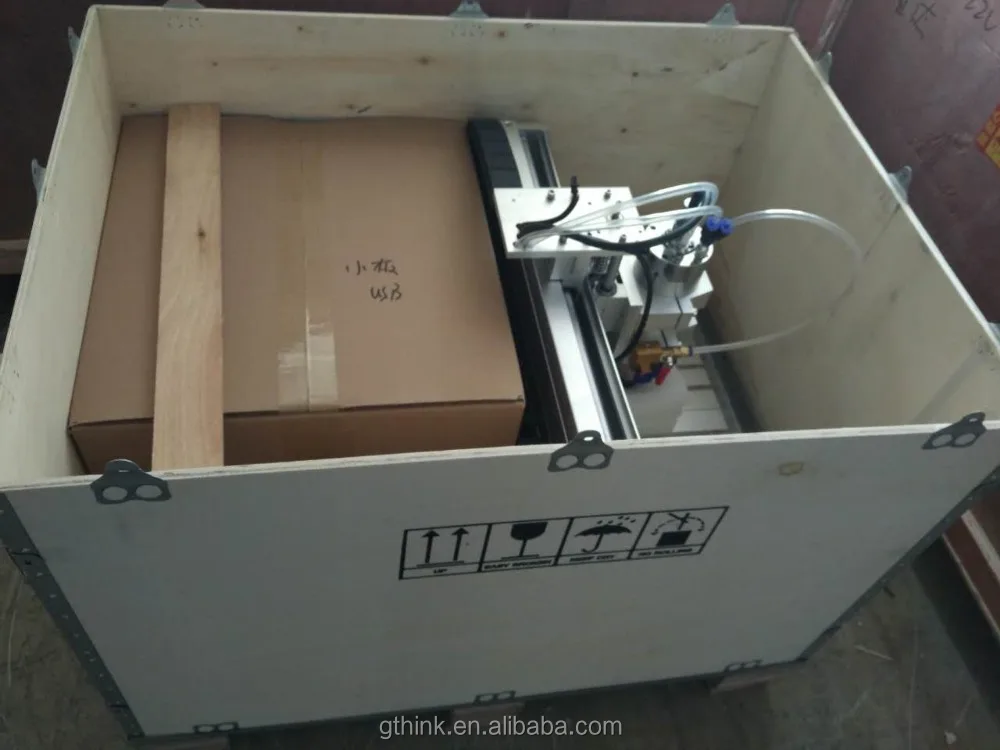

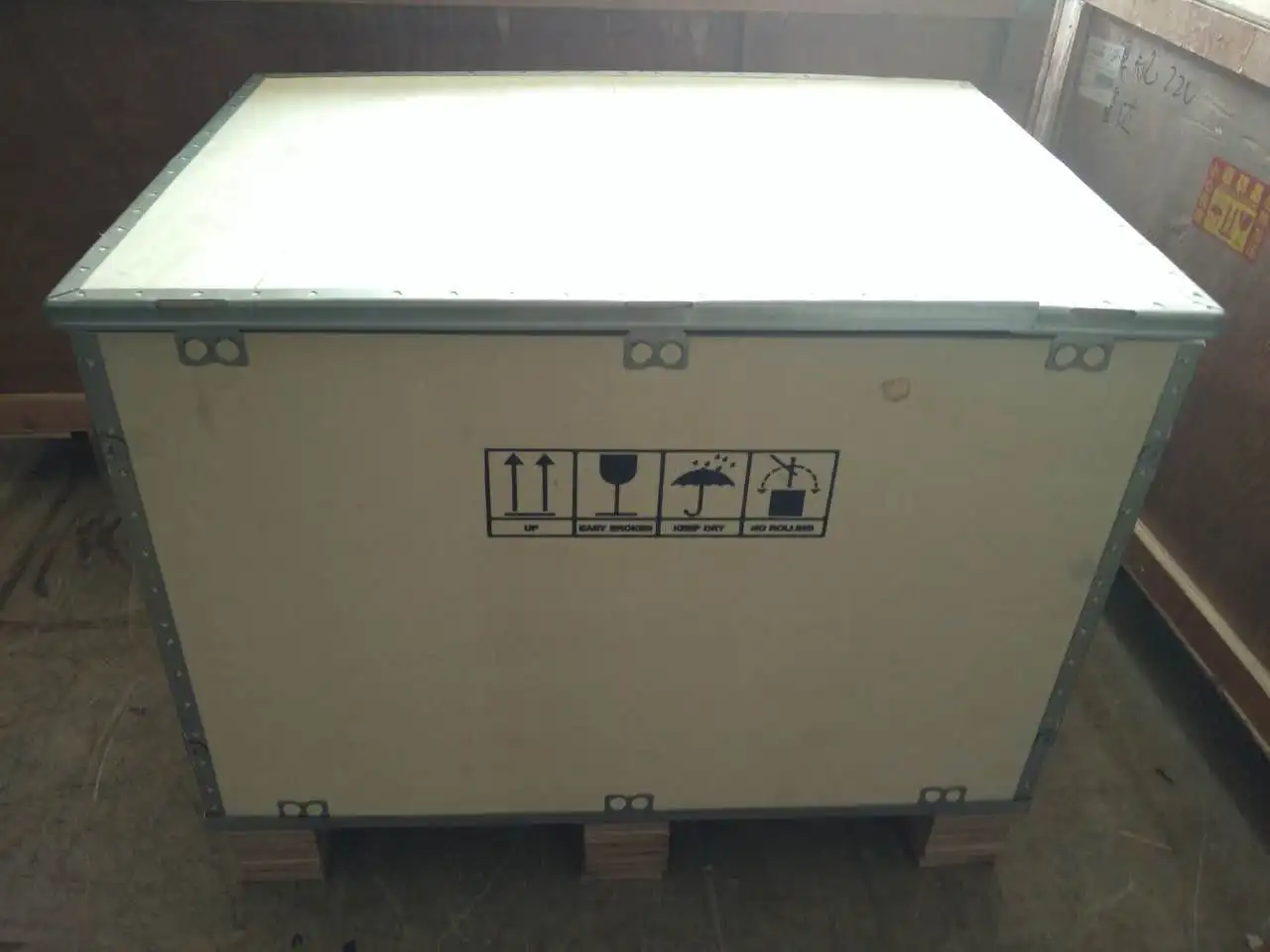

1. Wooden box box .
2. Package size:88*66*70cm,weight 85KG,Wooden box.
Shipping Methods:
1. 1)Express(door to door):DHL/Fedex/TNT / EMS / Post Air Mail etc.
2)Air/Sea Shipment: Please provide us your air port information.
2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.
3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place.
Shipment Time:
1. For samples within 1-3 workdays
2. Wholesales Orders : 2-5 workdays according to different quantities
3. OEM orders:7-10 days after receiving your sample confirmation and payment.
