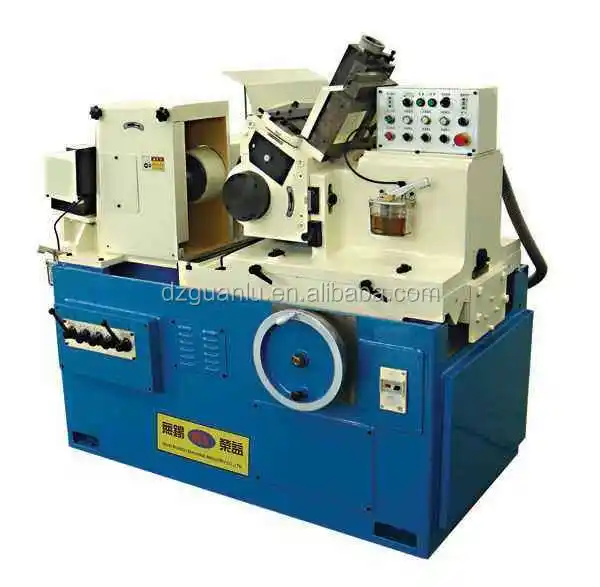

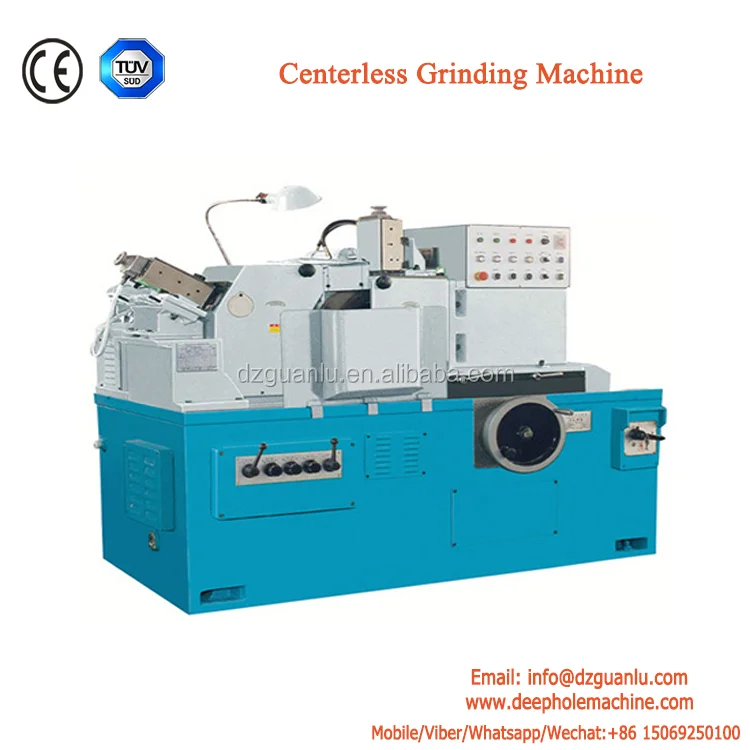

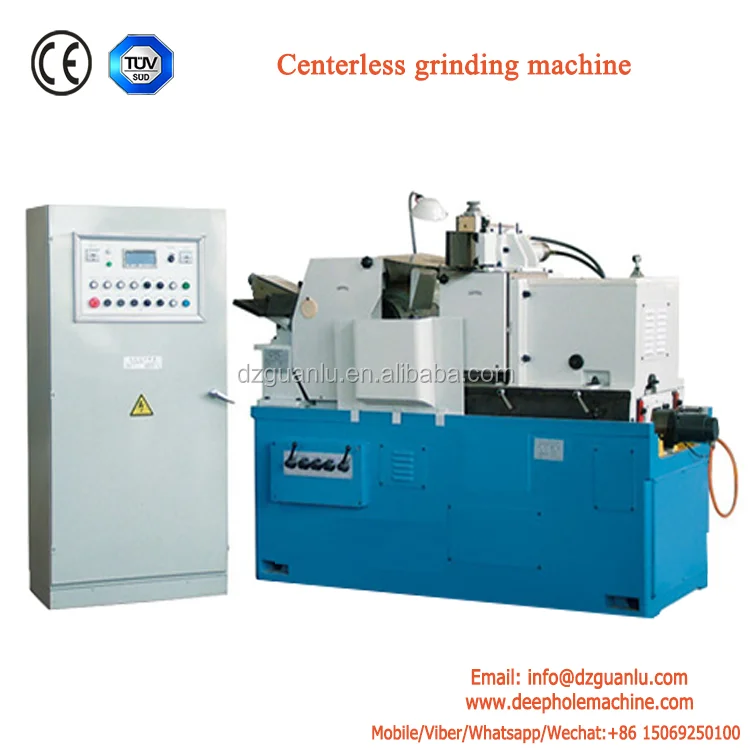

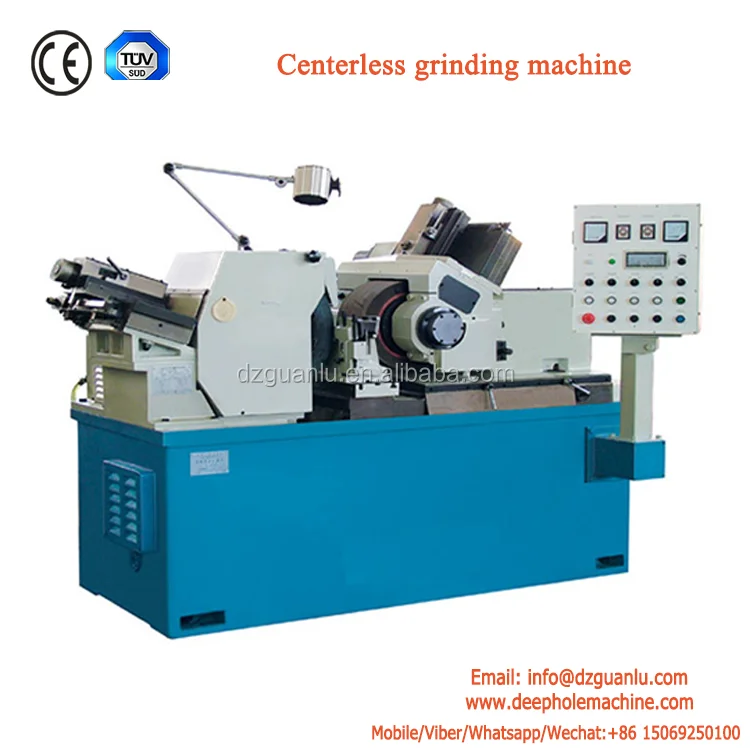

Automatic Centerless Round Pipe Grinding Machine For Aluminium Polishing

Machine mainly features:

• The grinding wheel is a cantilever type structure, and the grinding wheel spindle adopts a multi-plate type long-axis moving pressure oil film bearing


• The regulating wheel is a double-support structure, and the  adopts a multi-piece short-shaft dynamic pressure oil film bearing.


• The spindle is lubricated by independent lubricating oil and has a constant temperature device.


• The feed guide of the guide wheel adopts a flat V type slide guide. The feed of the guide wheel is fed by the ball screw step motor, and the minimum feed rate is 0.001mm


• The guide wheel adopts AC frequency conversion.


• The dresser uses the ball screw rod to exchange frequency conversion and stepless speed regulation.


• The cooling system uses a magnetic roll tape filter.

Grinding accuracy:

Machine mainly Parameters:

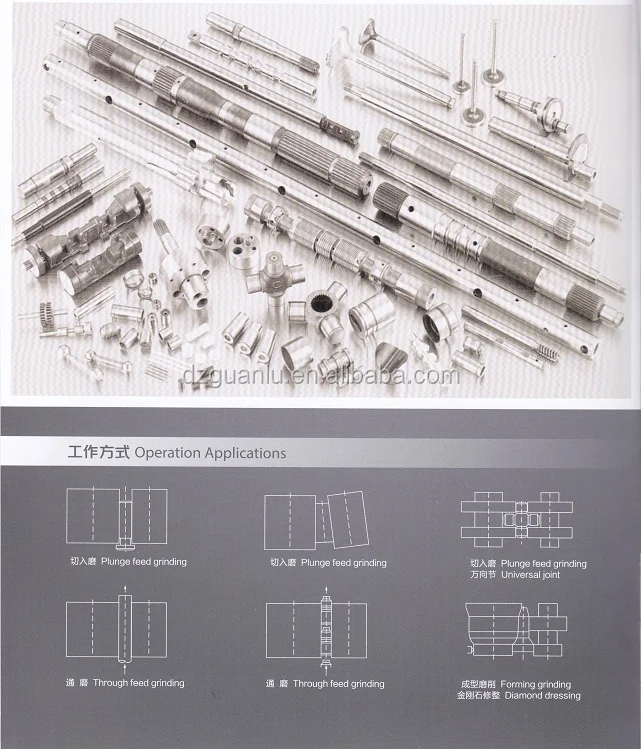

Grinding example :

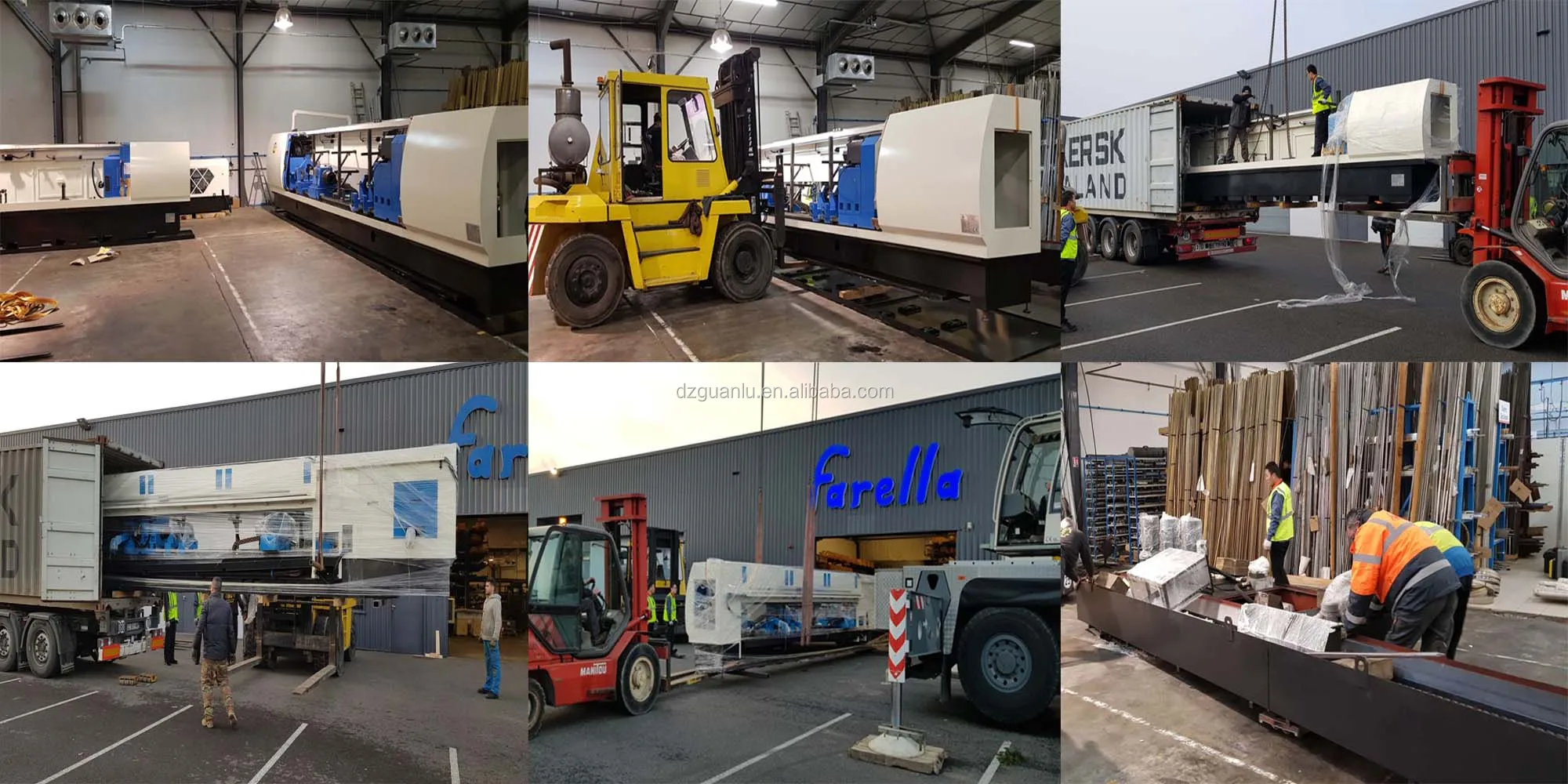

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.

Dezhou Guanlu Precision Machinery Co., Ltd. located in Dezhou, Shandong, is a professional manufacturer of deep hole drilling machine (gun drilling machine), deep hole boring machine, deep hole drilling and boring machine, deep hole honing machine, deep hole skiving roller and burnishing machine as well as their relative accessories, such as gun driller sharpen device, BTA deep hole indexable drill head, deep hole boring head, deep hole pressing head and so on. Our company can also offer the customized deep hole machine solutions according to the customers' requirement.

In order to equips suitable deep hole machine tools for our customers, we have workshop to manufacture the cutting tools and accessories. So customer can inform the exactly deep hole diameter and workpiece dimension, we can provide the cutting tools and accessories to them accordingly.

Welcome to visit our factory. And thanks for choosing our deep hole machinery

Any question about centerless grinding  machine, feel free to ask me!
