Wanjie Plug in terminal block 3.5mm 3.81mm WJ15EDGK 3.5/3.81
- Category: Terminal Blocks >>>
- Supplier: Cixi Wanjie Electronic Co. Ltd.
Share on (60745270045):
Product Overview
Description
Wanjie Plug-in terminal block 3.5mm/3.81mm
Product Description
Material
| Screws | M2.0 Steel Zn plated |
| Clamp | Phosphor bronze,Ni plated |
| Cage | Brass,Ni plated |
| Housing | PA66 UL94V-0 |
Electrical
| Standed | UL IEC |
| Rated voltage | 300V 250V |
| Rated current | 8A 7A |
| Wire range | 28-16awg 1.5mm2 |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ,DC500V |
| Withstanding voltage | AC2000V/1Min |
Mechanical
| Temp.range | -40℃-+105℃ |
| Max.soldering | *250℃ for 5 Sec |
| Torque | 2.04kgf-cn/0.2Nm/1.77Lbin |
| Strip length | 6-7mm |

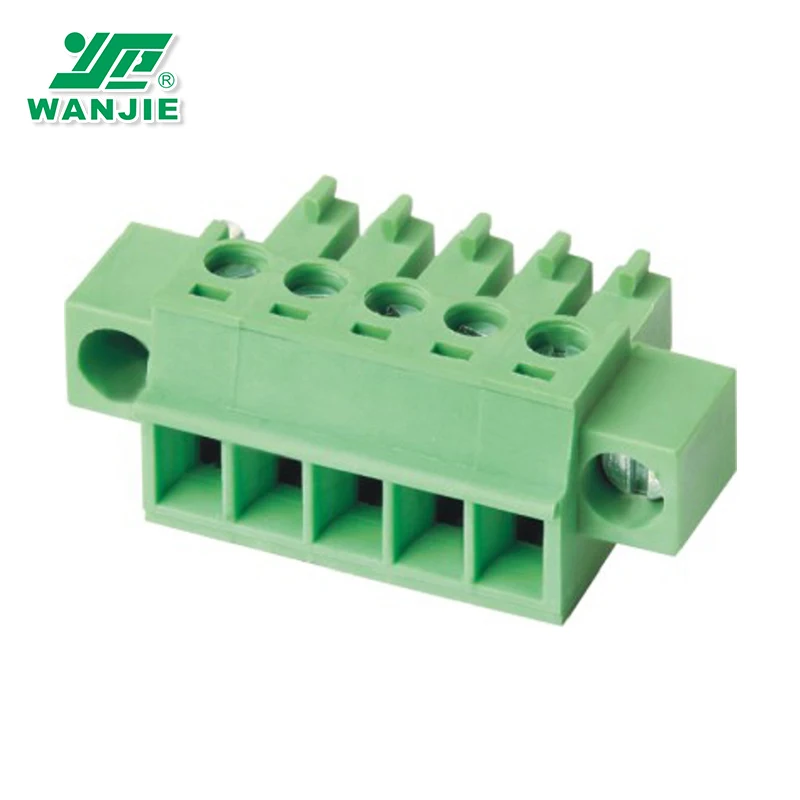

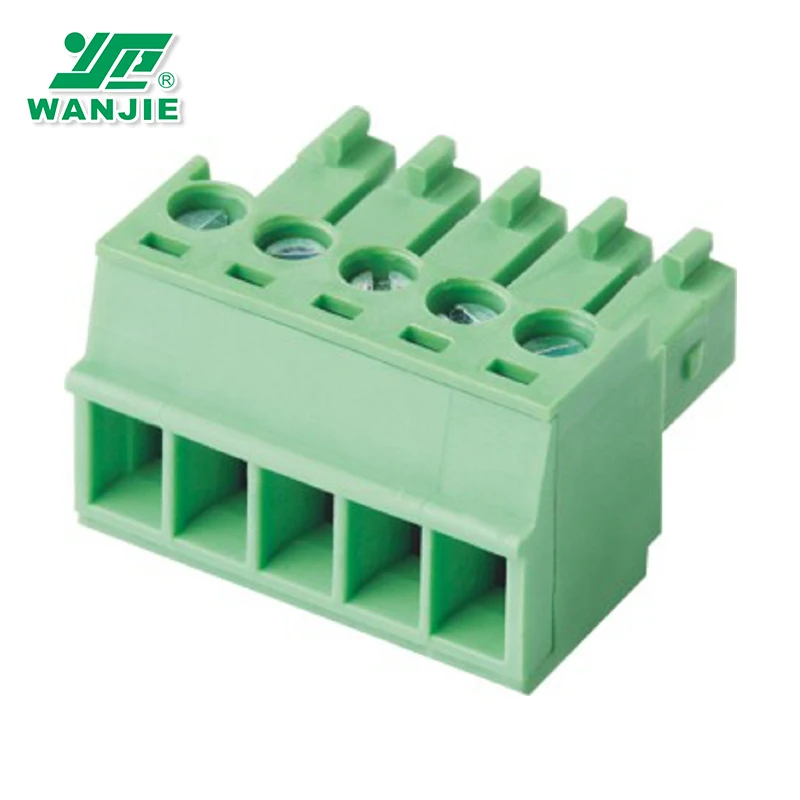

WJ15EDGK-3.5/3.81:

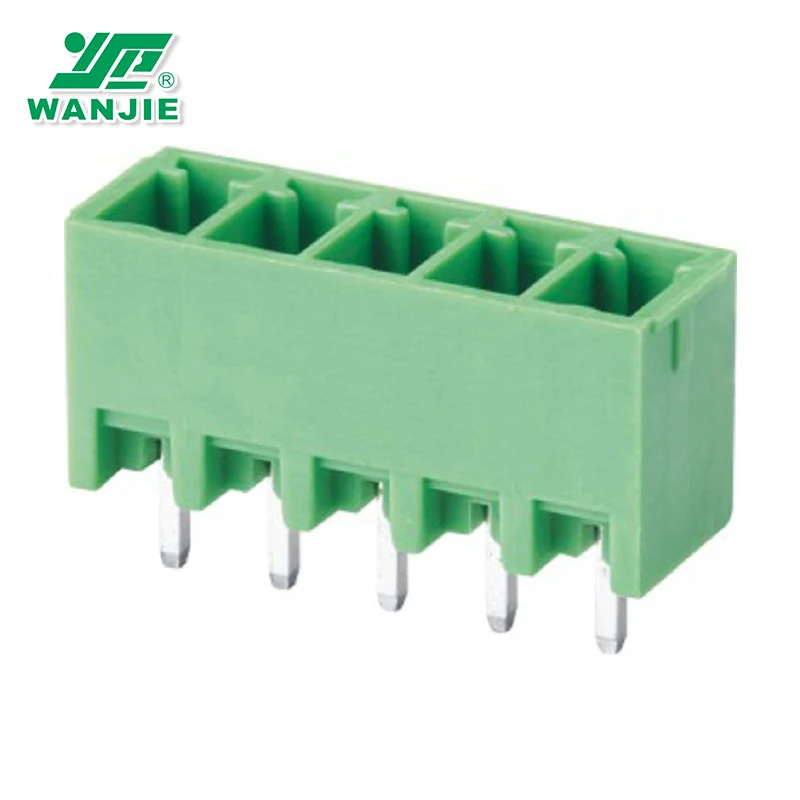

WJ15EDGVC-3.5/3.81:

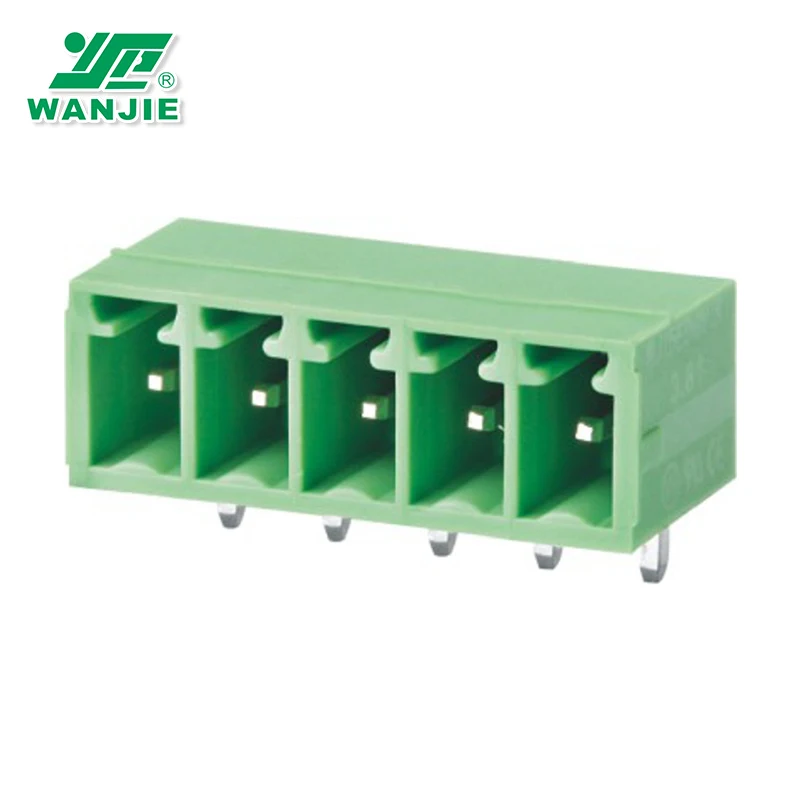

WJ15EDGRC-3.5/3.81:
