Introduction

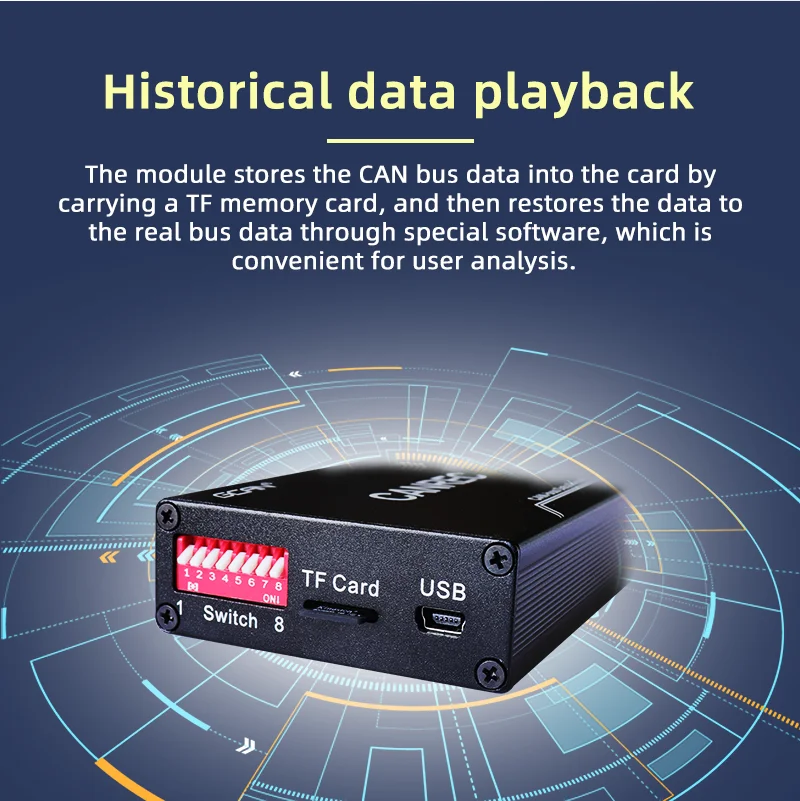

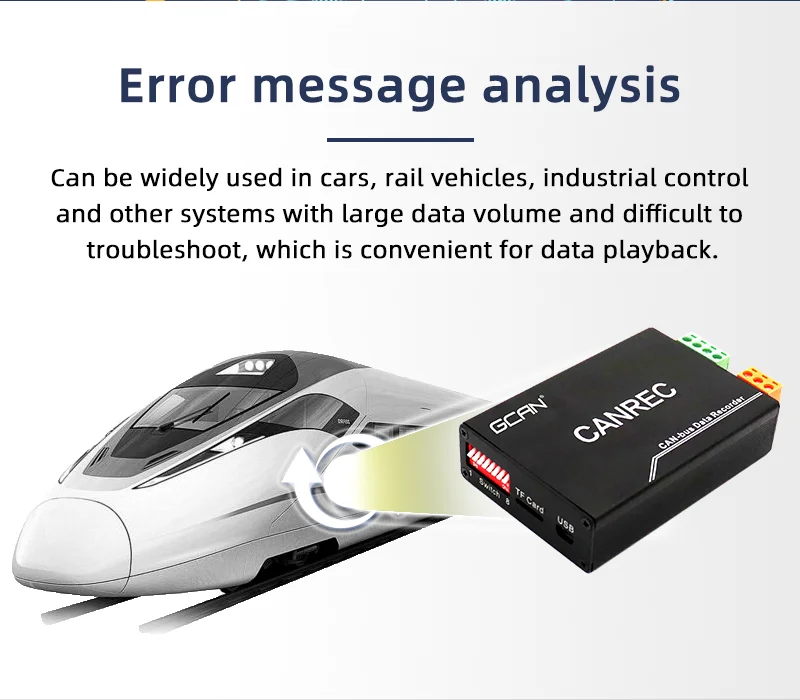

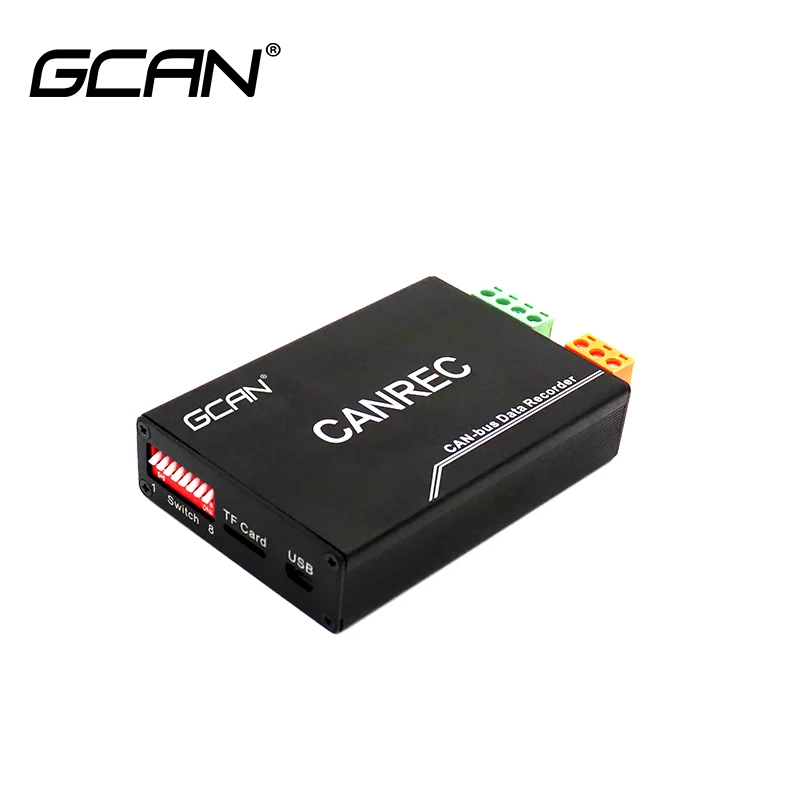

The GCAN-401 is a CAN-Bus storage, used for saving CAN-Bus data. This module can save the real-time data, whose function is to realize to collect history CAN-Bus data and analyze fault message.

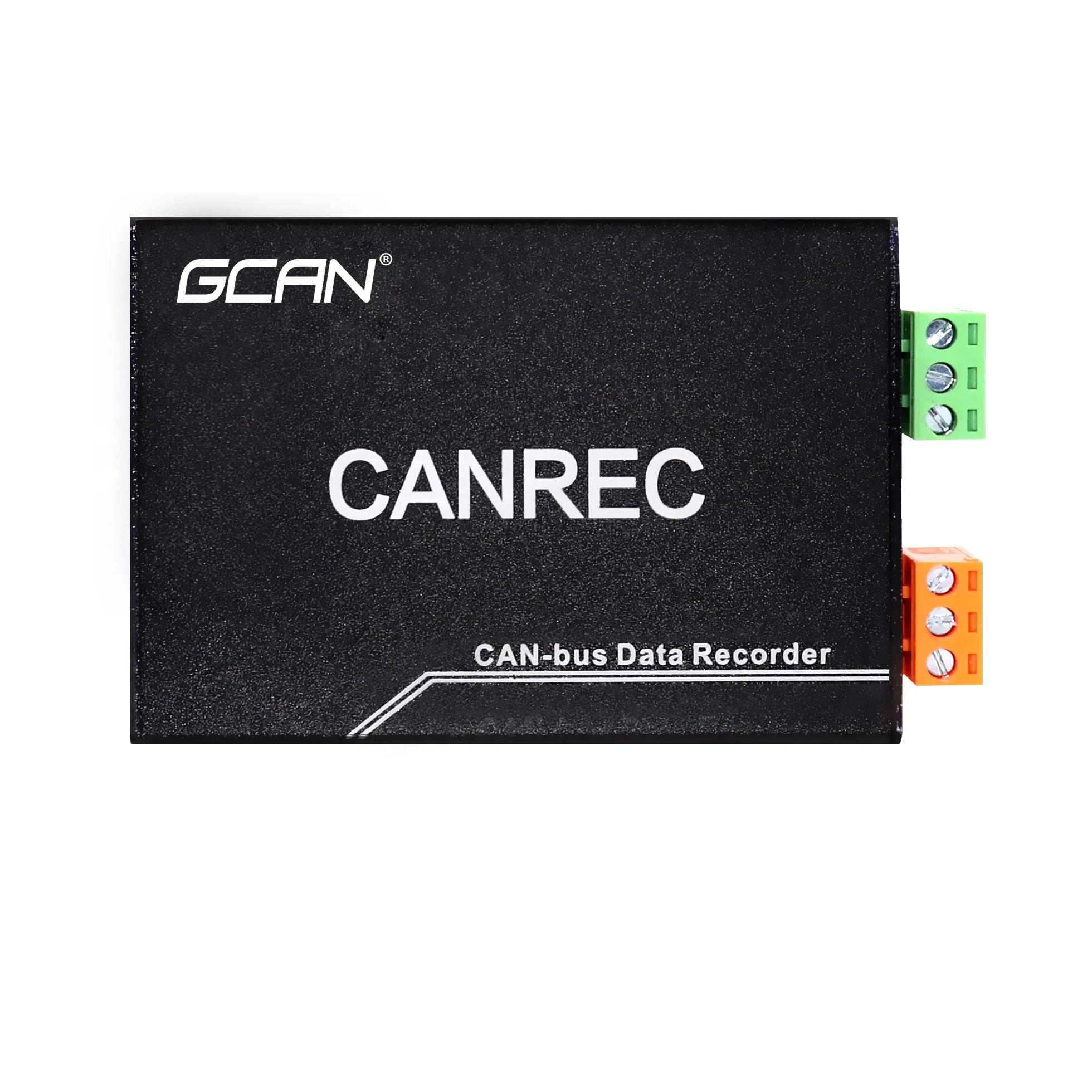

Detailed Images
Attributes | Attribute value |

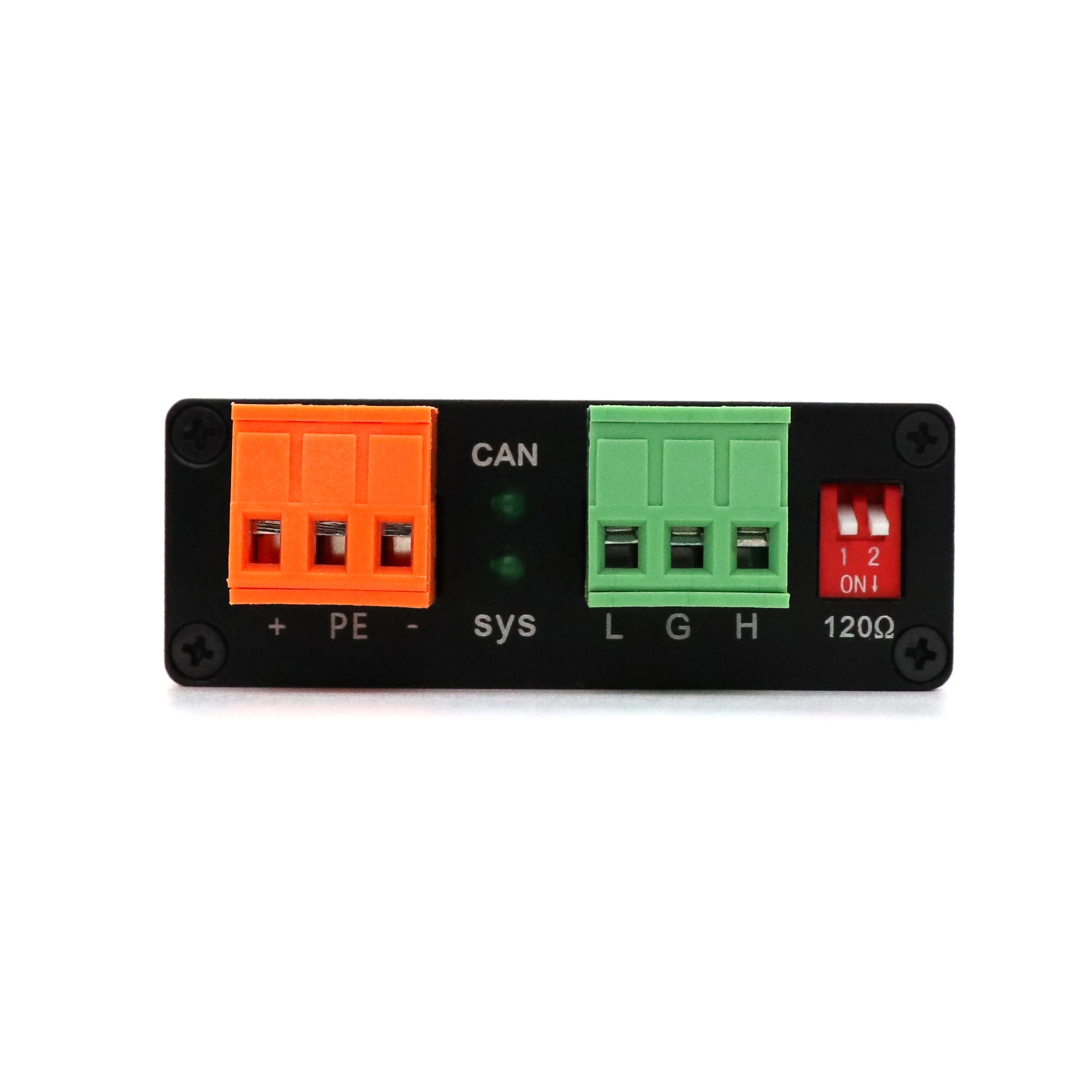

Interfaces | one CAN-Bus channels with OPEN3 terminal |
Processor | High speed 32-bit industrial grade processor |
Electrostatic discharge (ESD) Immunity level | Contact Discharge±2KV, Air Discharge±15KV |
Fast transient Burst Impedance Level | ±1KV |
Surge immunity level | ±1KV |
Protocol | Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898 |
Protection module | Integrate with electrical isolation protection module |
Support communication baud rate | 5Kbps~1Mbps |
Supply external power | DC+9~30V |
Current | 20mA, 24V DC |
Electric isolation, insulation level | DC1500V |
Receive maximum data flow | 14000 FPS |
Working temperature | -40~ 85℃ |

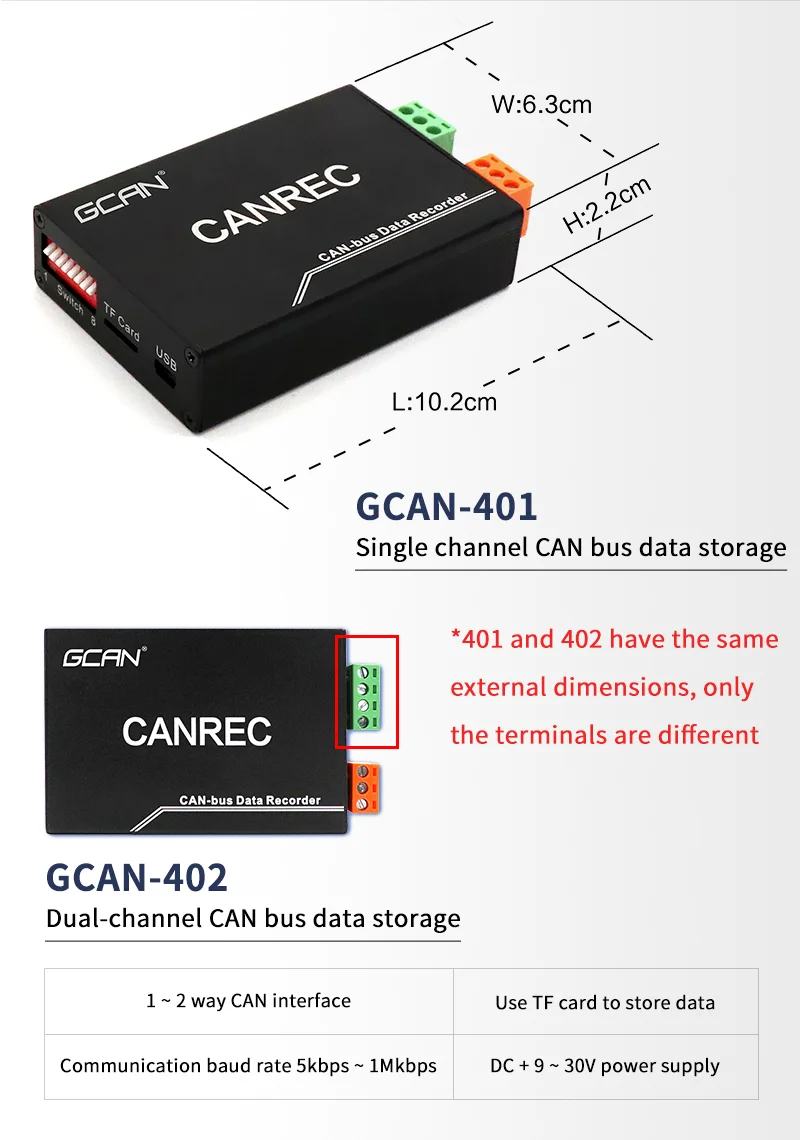

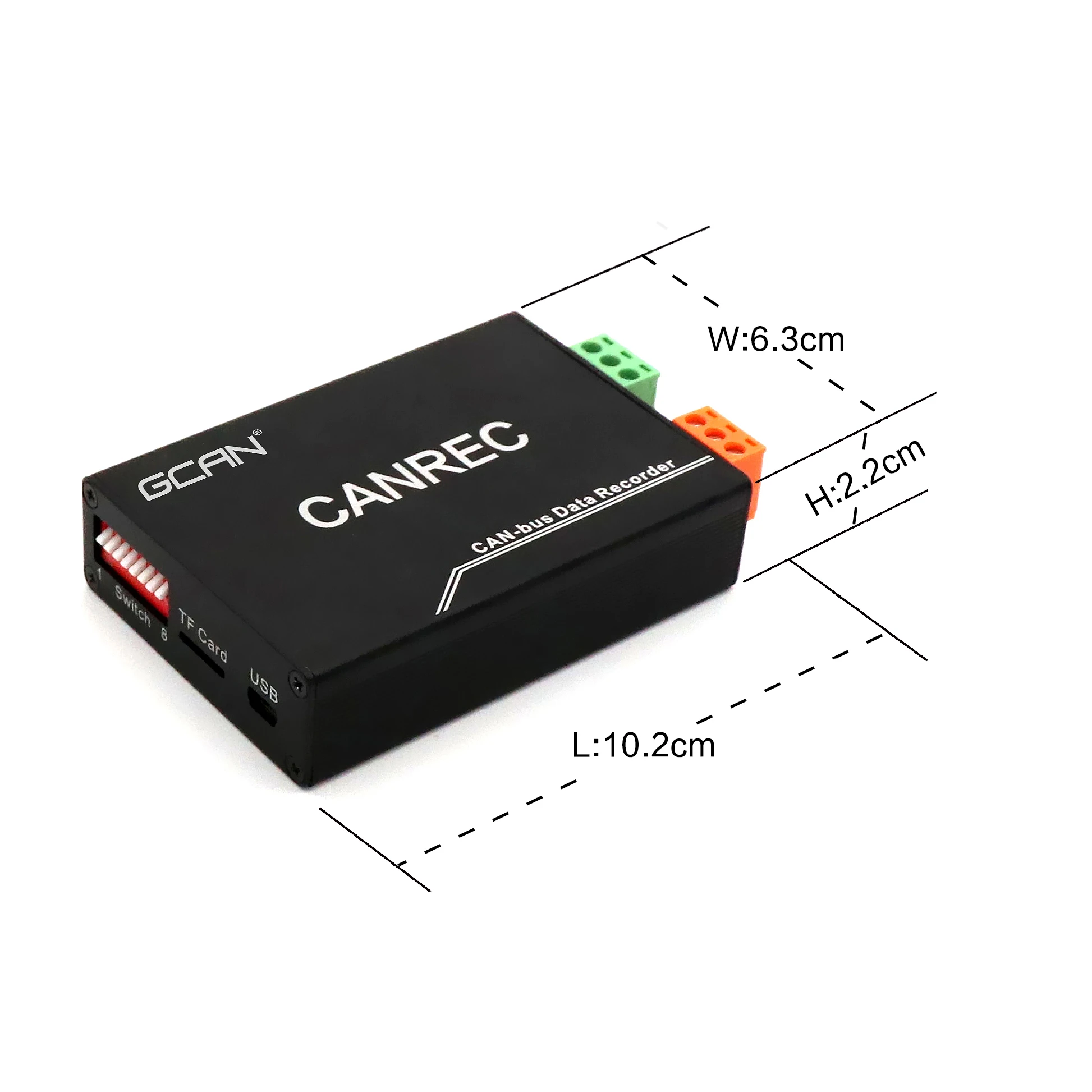

Size | 102 * 63 * 22mm |
Features
This module has integrated with system clock and document system. You can save and manage the data by the day, create a new document by date, and the data on the same day save to corresponding document automatically.This module will create a new document every minute on the same day and save the receiving data to corresponding document.

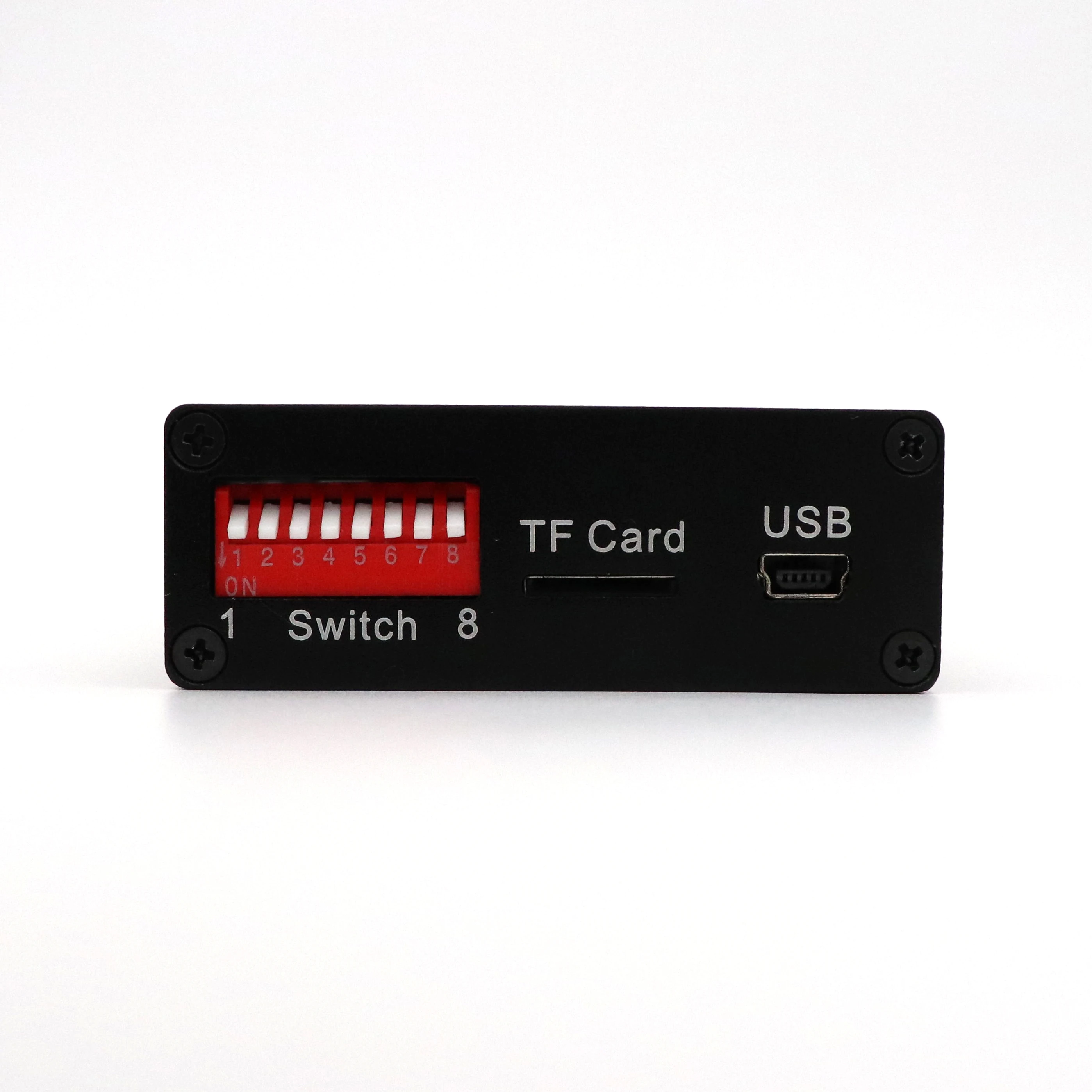

Note: GCAN-401 only support maximum capacity 32G document system as TF storage card of FAT32 format, if you don't use the TF storage of FAT32 format, need reformat storage card to FAT32 format, but reformat storage card clearing all data, please act cautiously.

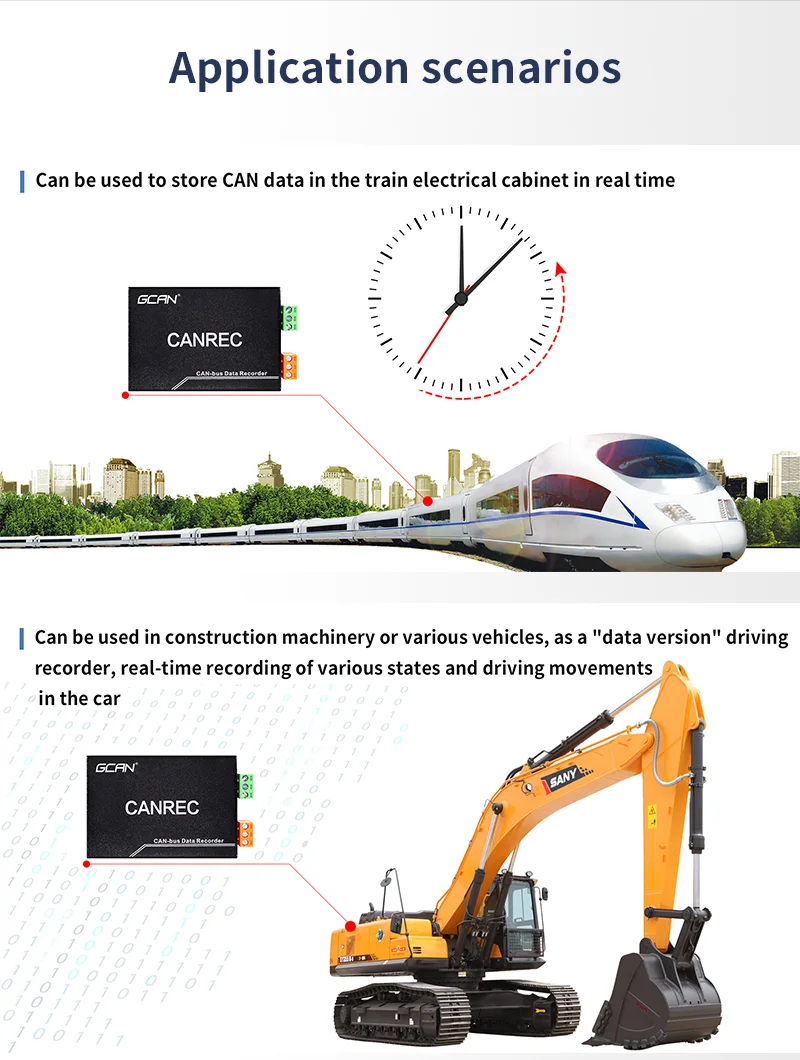

Function & Application
This module has integrated with system clock and document system. You can save and manage the data by the day, create a new document by date, and the data on the same day save to corresponding document automatically.
This module will create a new document every minute on the same day and save the receiving data to corresponding document.
Note: GCAN-401 only support maximum capacity 32G document system as TF storage card of FAT32 format, if you don't use the TF storage of FAT32 format, need reformat storage card to FAT32 format, but reformat storage card clearing all data, please act cautiously.
Packing & Delivery
Packing
1. Standard package. Carton
2. Customized design
Delivery Time
2~5 days after receipt of your payment.
