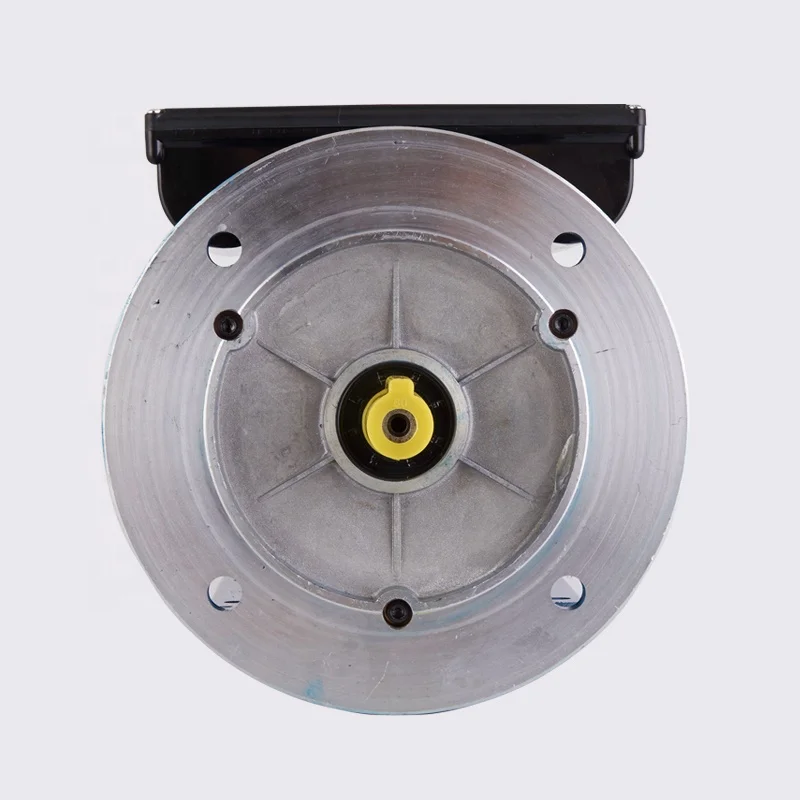

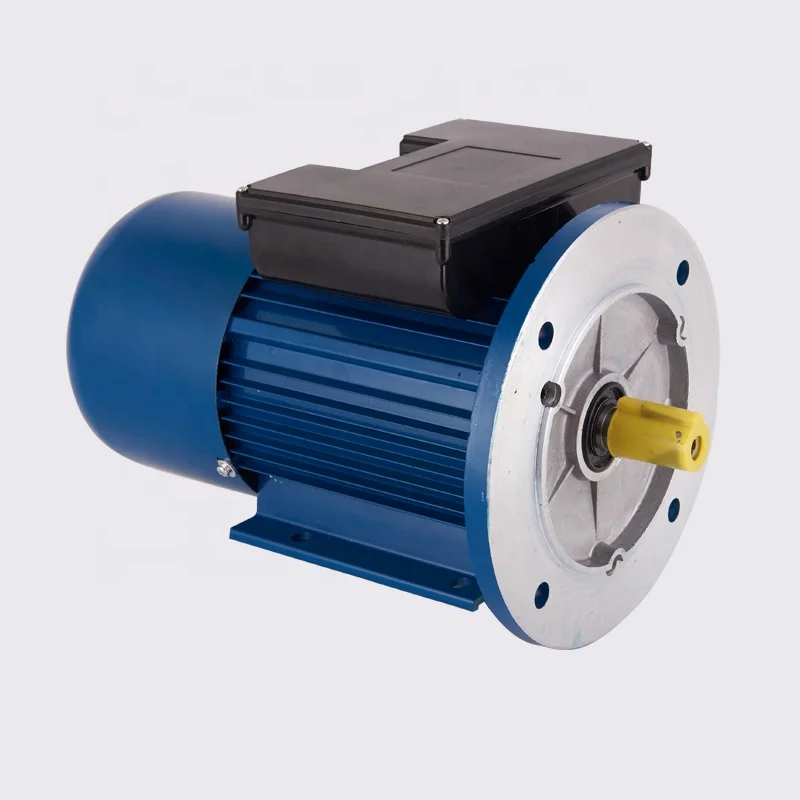

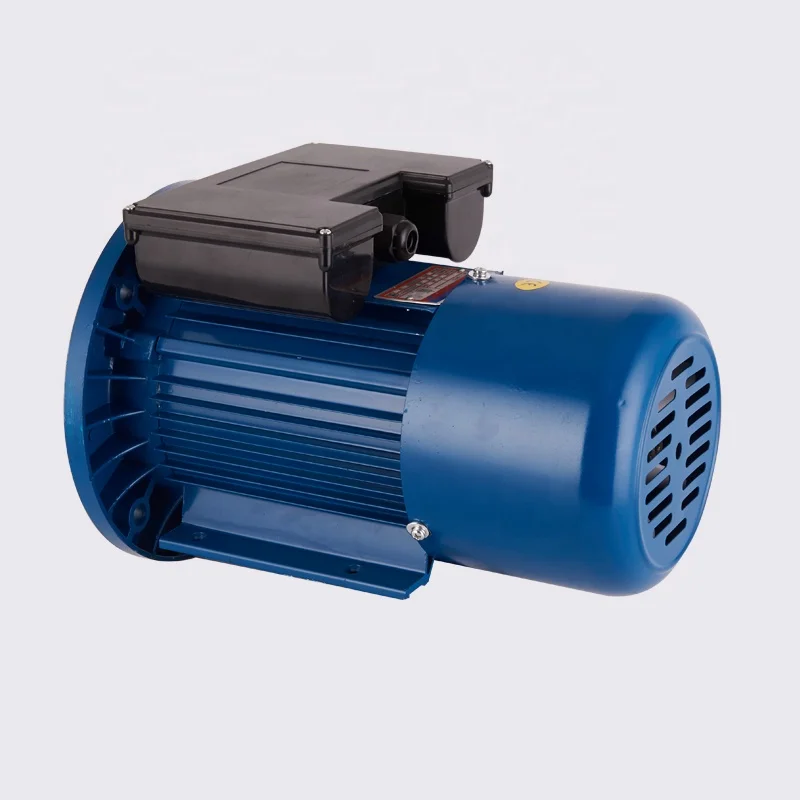

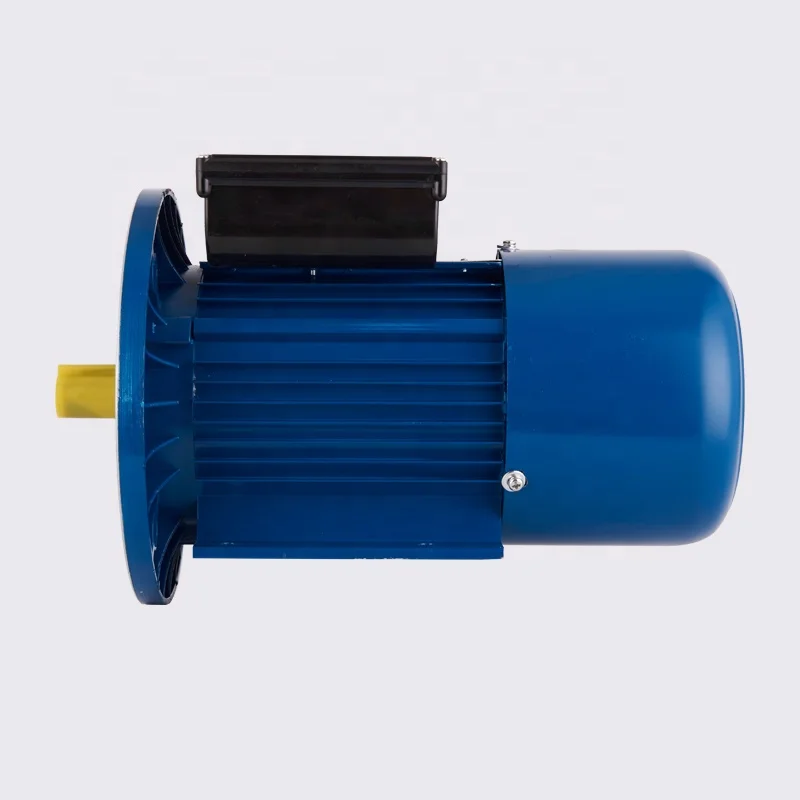

YLD single pole changing two speed capacitor motor

Product Overview

Description

YLD series  single phase pole-changing and two-speed asynchronous motor



brief:



    YLD series  single-phase motor is specially  designed for European market, whose terminal box is located an the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the IEC standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance. Our motor is really competitive in the world market.













Detail information:
1.  Frame zizes :     71mm-90mm

2.  Rated power:     0.09/0.12kW-0.65/1.1kW

3.  Rated voltage:    110v  220v 230v  240v

4.  Frequency:         50Hz   60Hz

5.  protection class: IP44 IP55 IP56

6.  Insulation class:  E B F  ( special:  H  )

7.  Materials:            cast iron or aluminum

8.  cooling method:  IC411

9.   Mounting types:   IMB3

10. Operating mode:  S1

11. Flange  size:        B3  B5 B14 B35

12.    E F F:               EFF2

13.  Poles :               6/4

14.   color:            blue    silver   and   custome

15  Ambient temperature: -35 oC < IT  < 40 oC

16.Relative humidity(RH): not higher than 90%

17.The altitude should be lower than 1,000m above the sea level

18.special motors can be designed according to customers' requirements

19.Export markets:  Europe    North America     The Middle East     Africa       East Asia                                                 Southeast Asia         South America

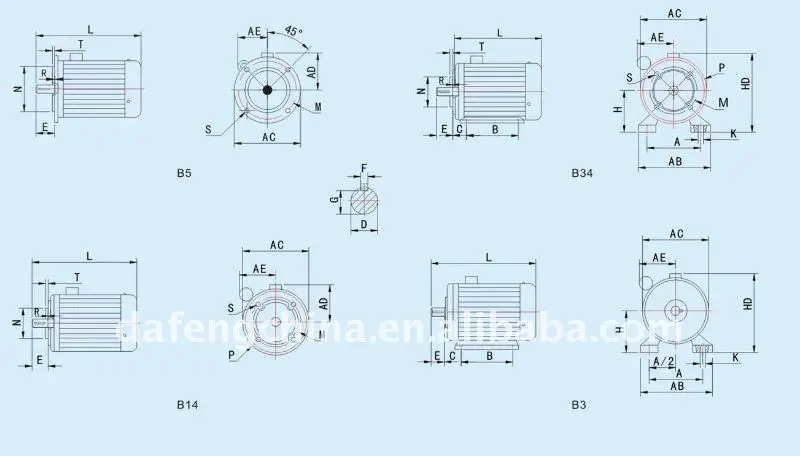

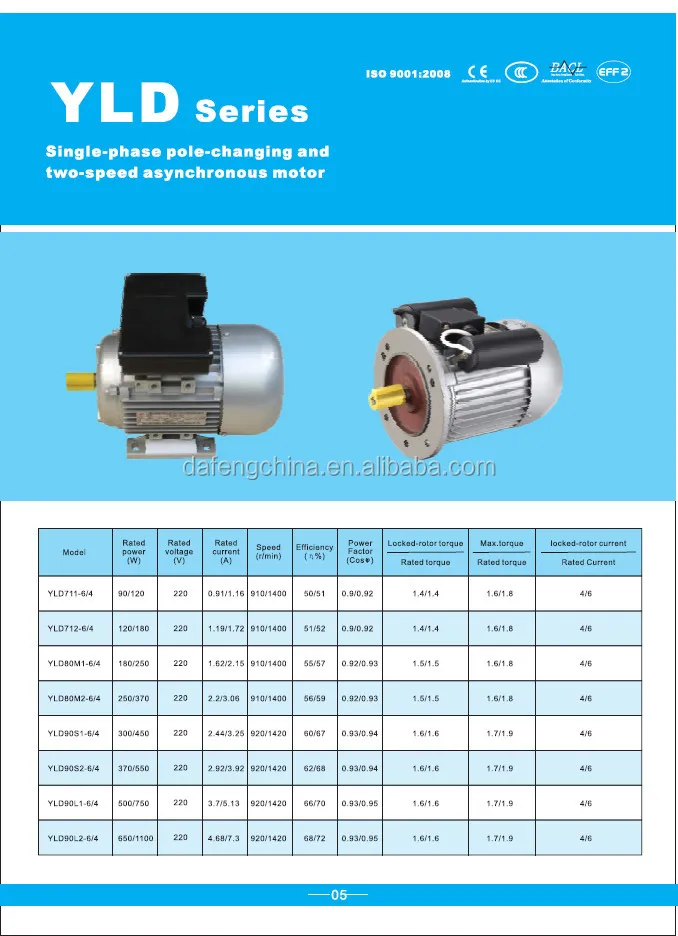

 The  technical  data  are shown below.

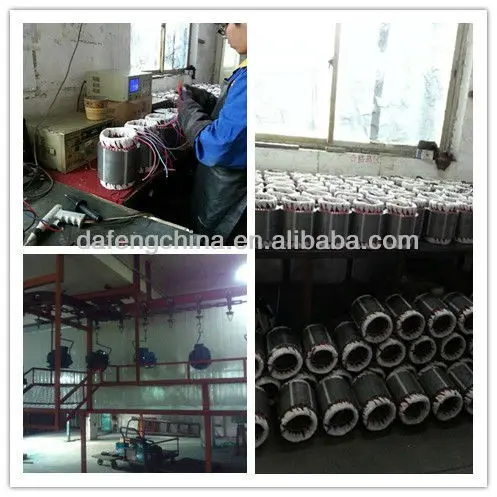

Factory Display

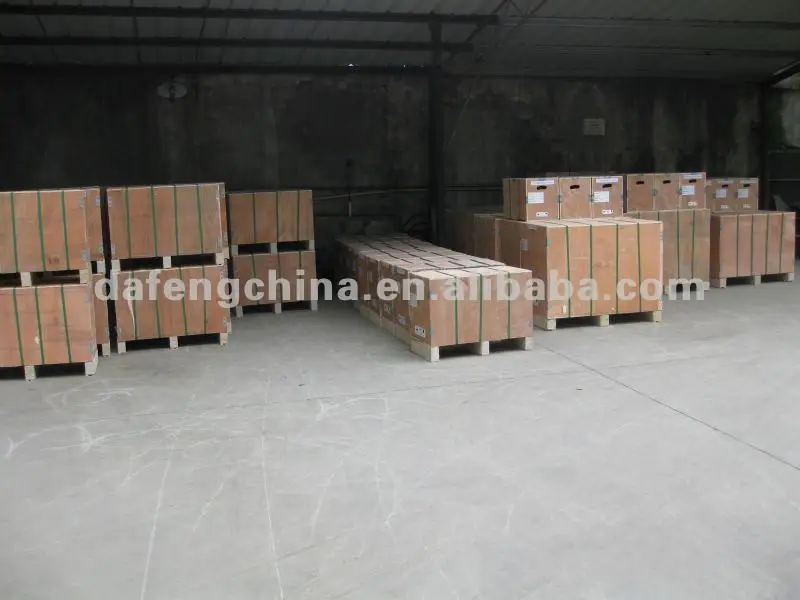

  Product display     Packing &loading

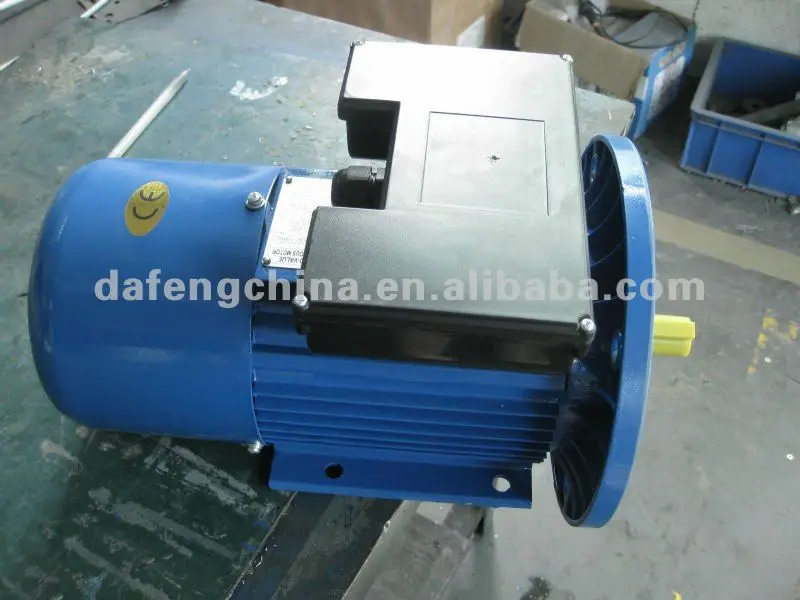

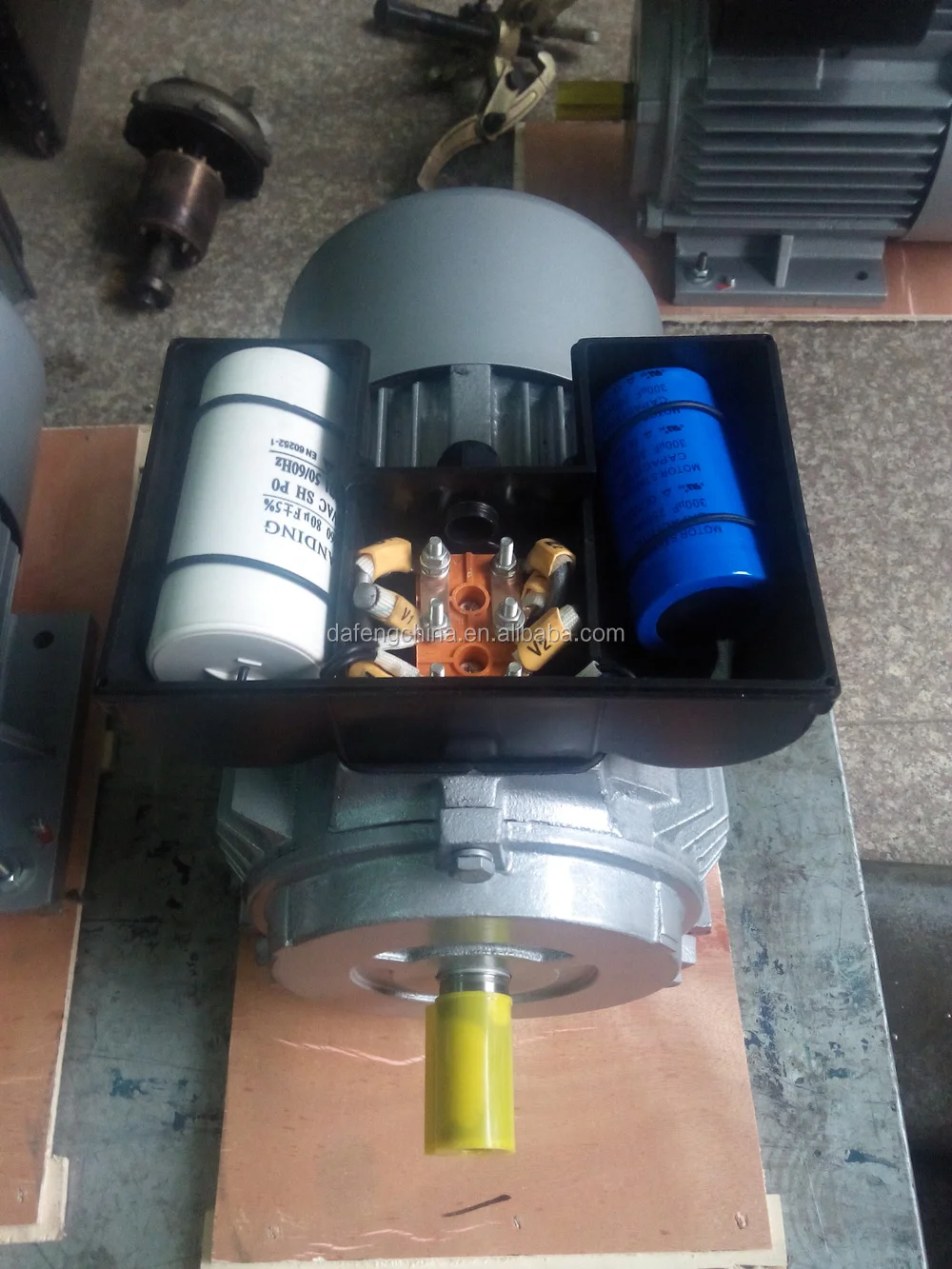

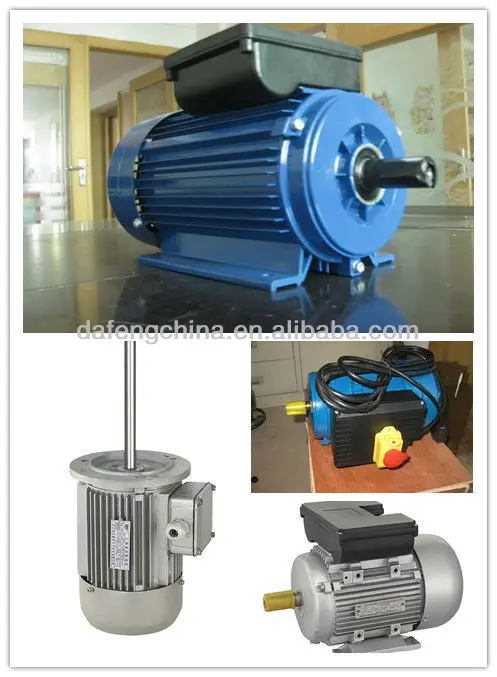

 product display























Certification
