F female to PAL male
US $0.05
RP SMA Connector End Launch Jack .062 Thickness
- Category: D-Sub Connectors >>>
- Supplier: Zhenjiang Voton Machinery Co. Ltd.
Share on (60745298045):
Product Overview
Description
Product Description
- RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
- We focus on coaxial assemblies
- Our custom RF cable assemblies are built-in and shipped worldwide
- RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
- RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
- RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
- If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department

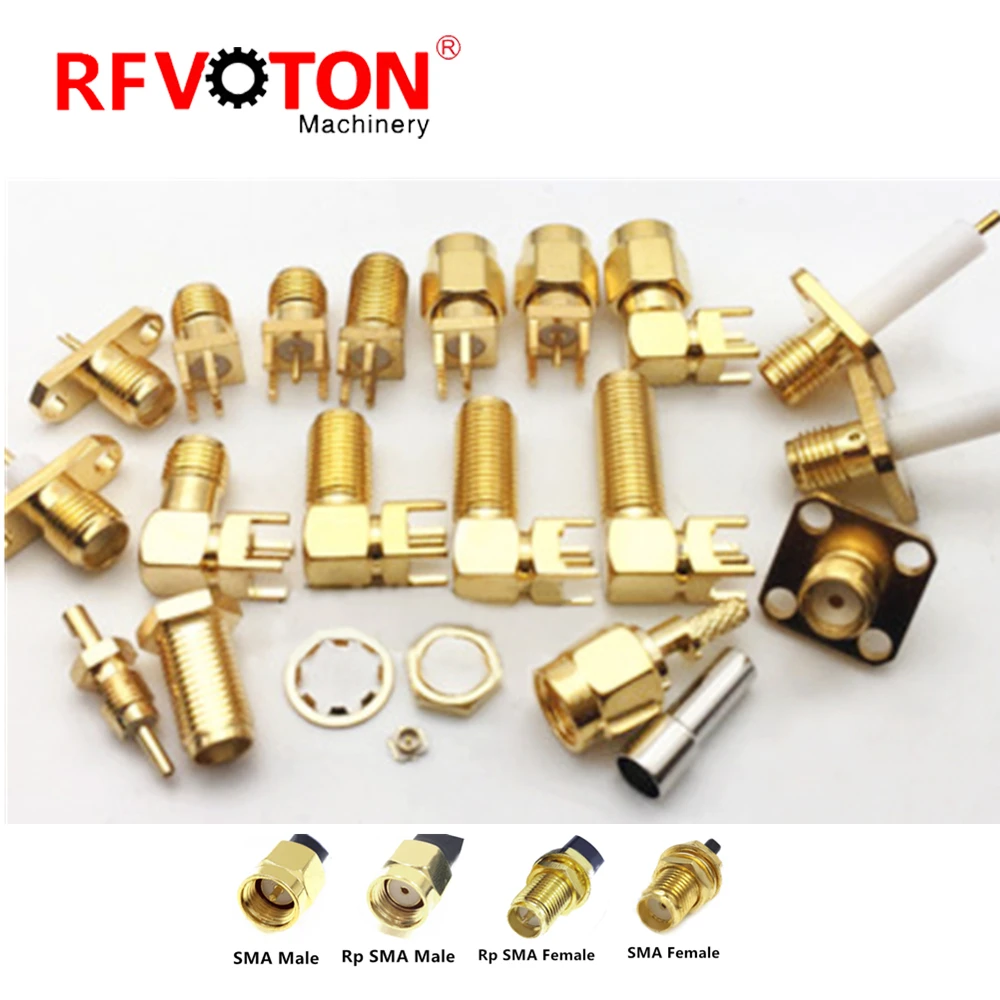

Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.

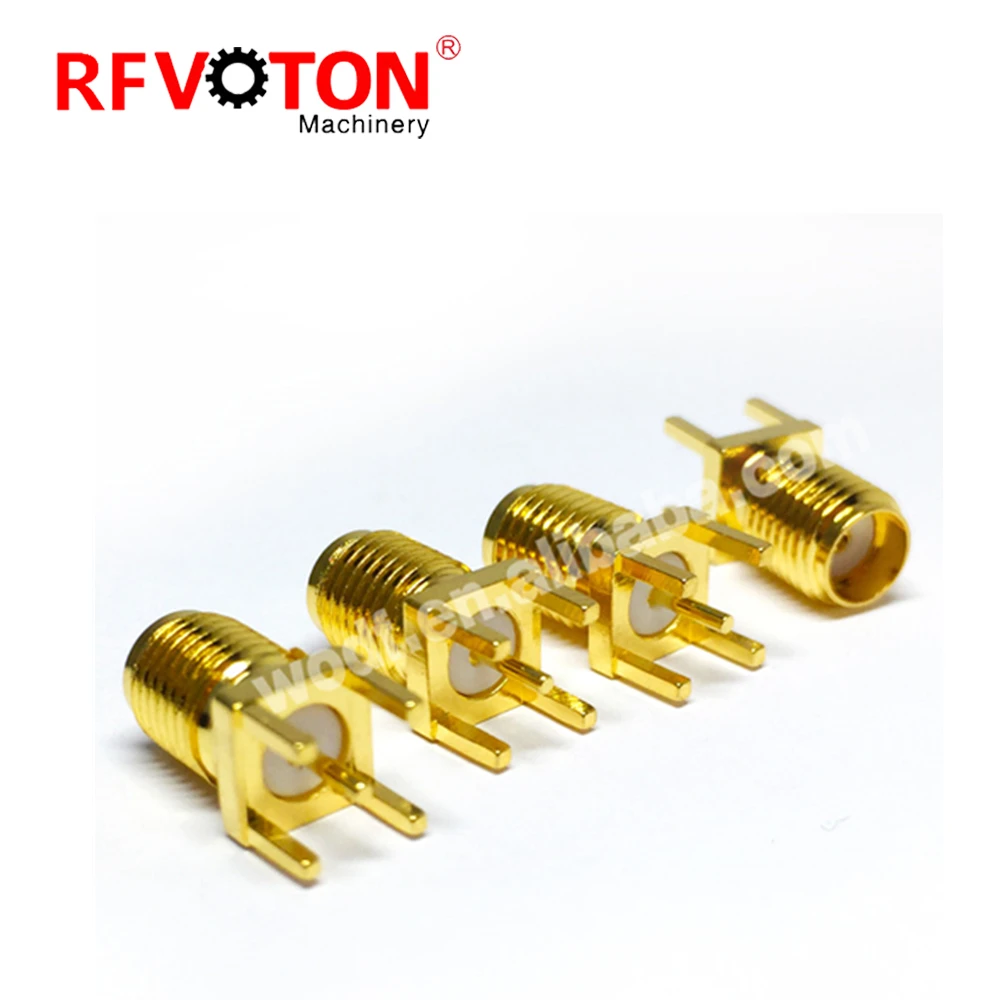

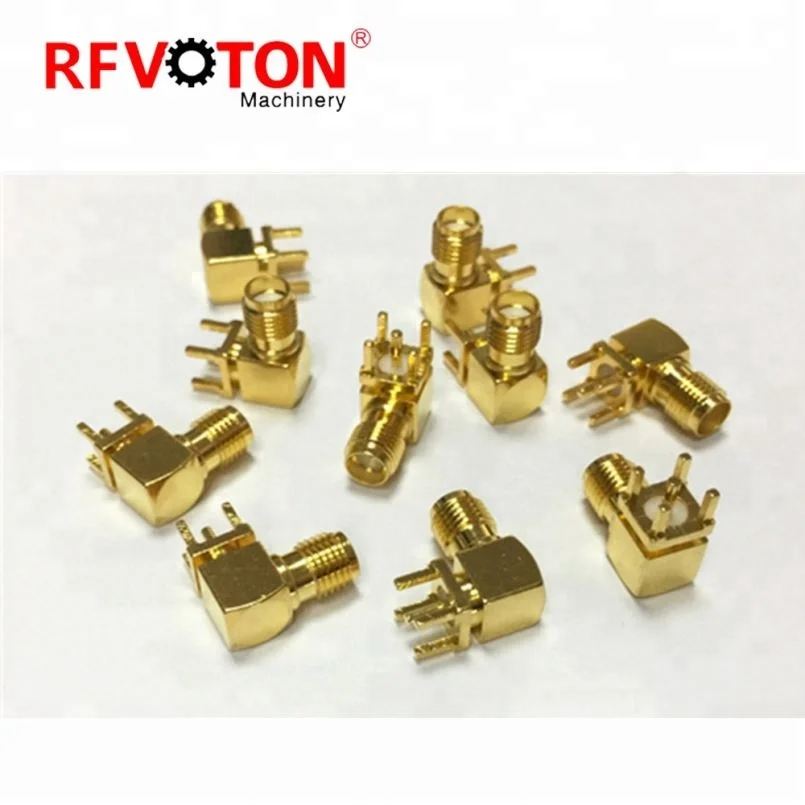

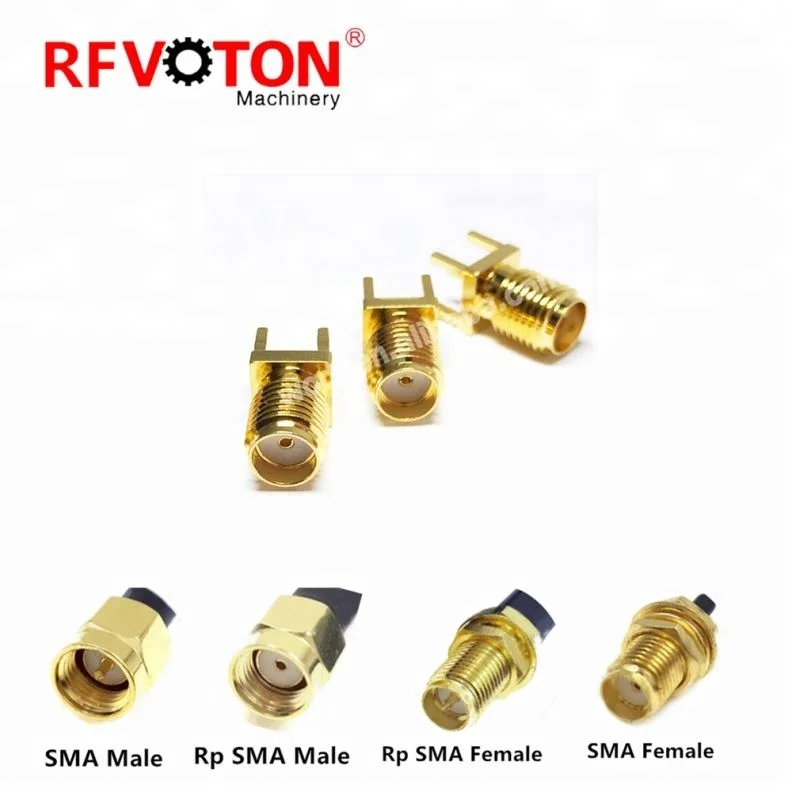

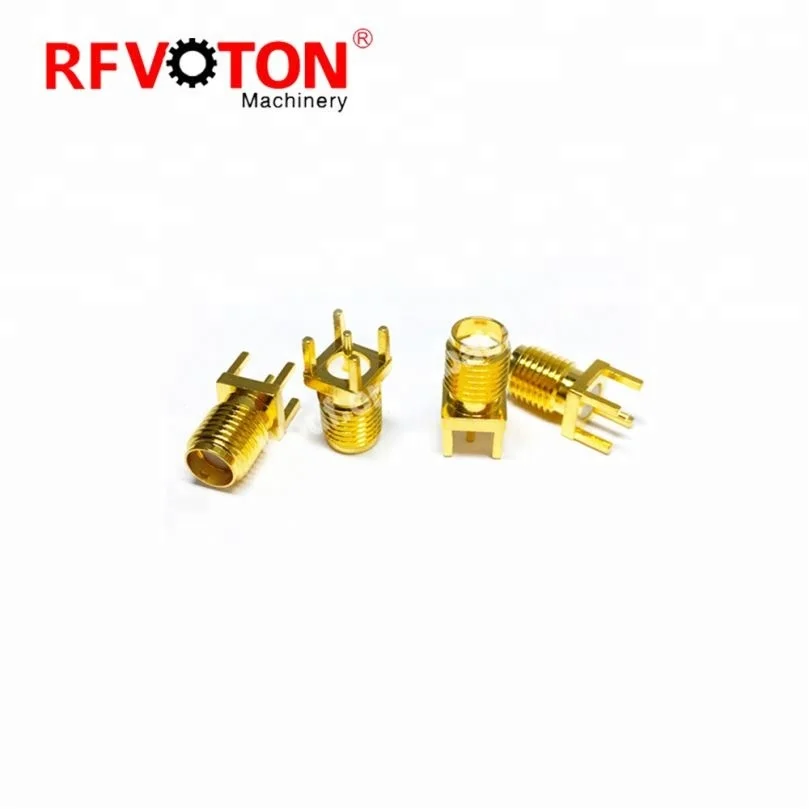

- RP SMA Connector End Launch Jack .062 Thickness
-
-
Temperature range
-40~+85°C
Vibration
100m/s2 (10~500Hz)
Impedance
50 OHM
Frequency Range
DC – 11GHz
Working Voltage
2700V max
Break-down Voltage
4000V rms @ sea level
Contact resistance
≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contactAverage power
3KW max
Insulation resistance
≥10000M OHM
VSWR
≤ 1.10
Durability (mating)
≥500 (cycles)
Material & Plating
Body
Brass
Nickel plated / Alloy plated
Inner Pin
Brass
Gold plated
Resilient Contact
Beryllium Copper
Gold plated
Socket Contact
Beryllium or tin bronze
Gold plated
Insulator
PTFE
Crimp Ferrule
Copper alloy
Nickel / Gold plated
O-ring sealing
Silicone Rubber
APPLICABLE STANDARD sma end launch
MIL-C-39012;
CECC 22110;
IEC 60169-15.
Company Information
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM. sma end launch
Certifications
Quality Control
Packaging & Shipping
Our Services
What we could do for you are: sma end launch
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

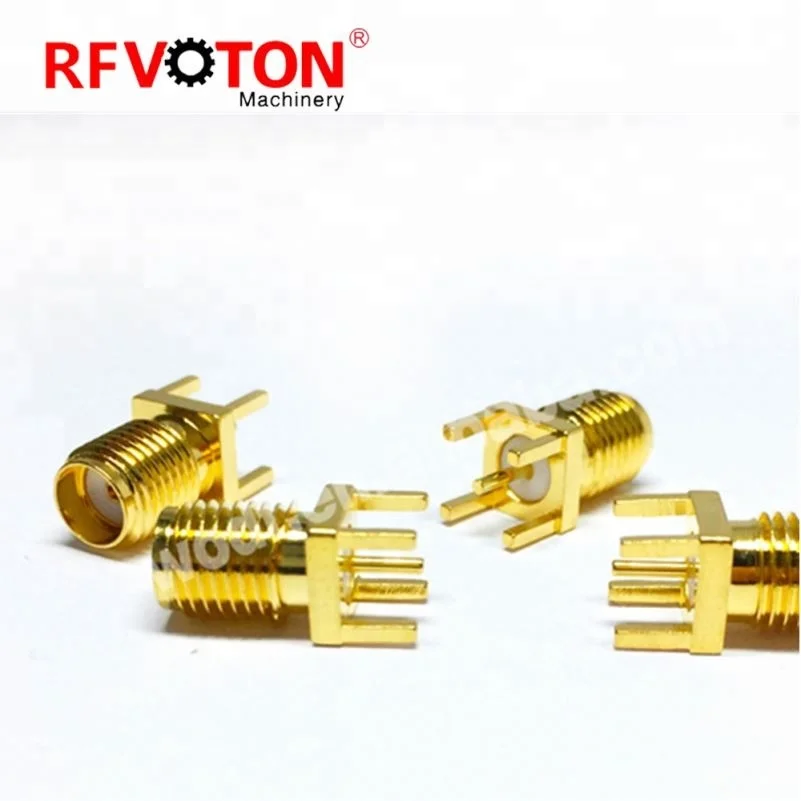

RP SMA Connector End Launch Jack .062 Thickness
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
FAQ
Q:what's your company MOQ? |
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate. |
Q: What's your delivery time? |
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production. |
Q: Can your company accept customize? |
| A: Welcome OEM & ODM. |
Q: How do you solve after sale service? |
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you. |
Q: Can you send a sample for us to develop? |
| A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order. |
