Shandong Tengfei Mechanical and Electrical Technology Co., Ltd located at the foot of the famous Mountain Tai, our company near the Beijing to Shanghai high-speed, Beijing to Fuzhou High-speed, 104 State Road. We are a integrated science and technology joint-stock enterprises, and we can design,manufacture,install,commission gypsum board and gypsum powder and gypsum block machine ourselves. At present, our company have the ability to design and manufacture gypsum board production line with annual capacity from 2 Million M2 to 50 Million M2, gypsum block production line with annual capacity from 100,000 M2 to 1.5 Million M2, gypsum powder production line and phosphogypsum powder production line and FGD gypsum powder production line and fluorine gypsum powder production line with annual capacity from 30,000 tons to 500,000 tons, and we also can produce PVC laminated gypsum board equipment and gypsum board light frame equipment.
Annual
capacity(m2)
Day capacity(sheet)
1200*2400*9mm
Drier
layer
Heating system
Control
system
Fuel
2 Million
2000
4
Heat ex-changer
(vertical Air-blow)
PLC
Coal, gas,
oil .etc
3-4Million
3000-4000
6
PLC
5-8Million
5000-8000
8
DCS computer
control
10-15Million
10000-15000
10
20-50Million
20000-50000
12
Heat ex-changer(Horizontal Air-blow)
Product Overviews

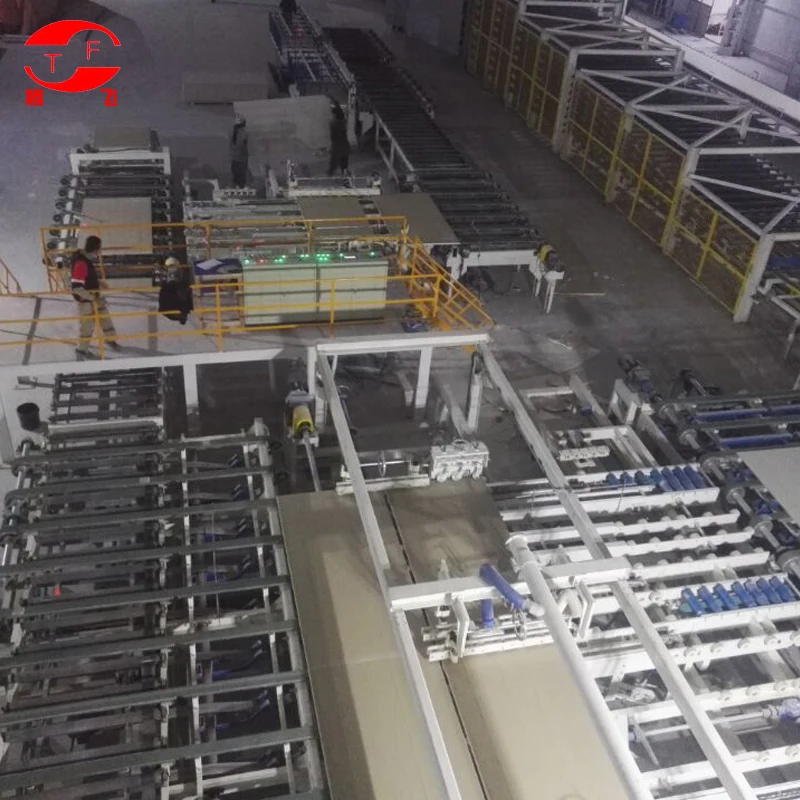

Gypsum board manufacturing plant adopts advanced technology. We adopts the horizontal flow, vertical airflow heat exchanger heating system, the raw material feeding system and edge cutting and edge sealing and edge grinding and recycling system and stacking system are all controlled by computer. All the whole line is full automation. 1 .Raw material supplying system Raw material is transported and lifted to feeding hopper, after measurement it comes to vertical mixer. Face and back paperboard are lifted to each shelf. They are tensioned with special tension unit. Mixed material from vertical mixer falls down to back paperboard, then formed into shape and covered with face paperboard, after last flattening the semi finished plasterboard is completed.
2.Mixer It will mix the raw material completely. Vesicant and starch and powder and water will be blended in the mixer.

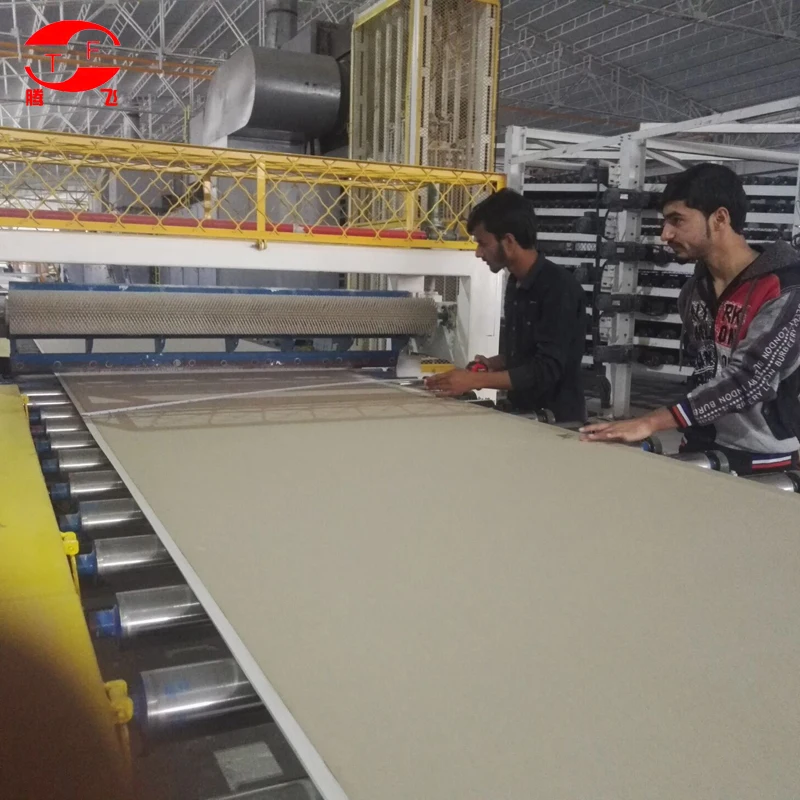

3.Conveying system Semi-finished plasterboard from formation section is automatically edge trimmed into continuous palsterboard, conveyed to concreting station and automatically cut.

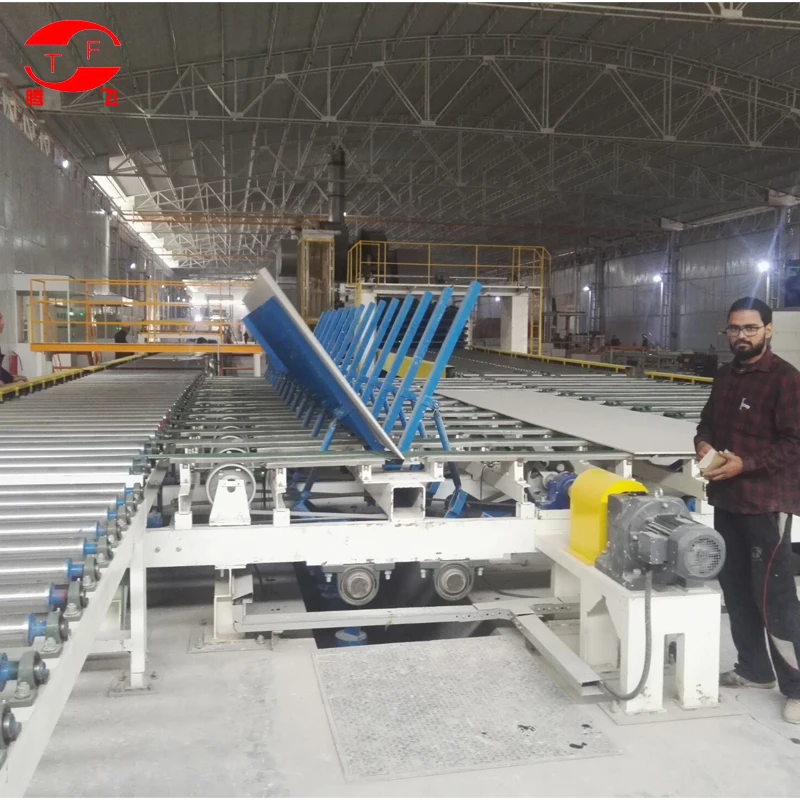

4. Transferring system Transferring section Concreted plasterboard automatically transferred and cut in middle, saving raw material. 5. Drying system Plasterboard Transferred automatically into drying room which has shelves 5-storey or 6-storey supporting 2 lapped sheets, with 50m, 60m, 70m, and 90meters length range.

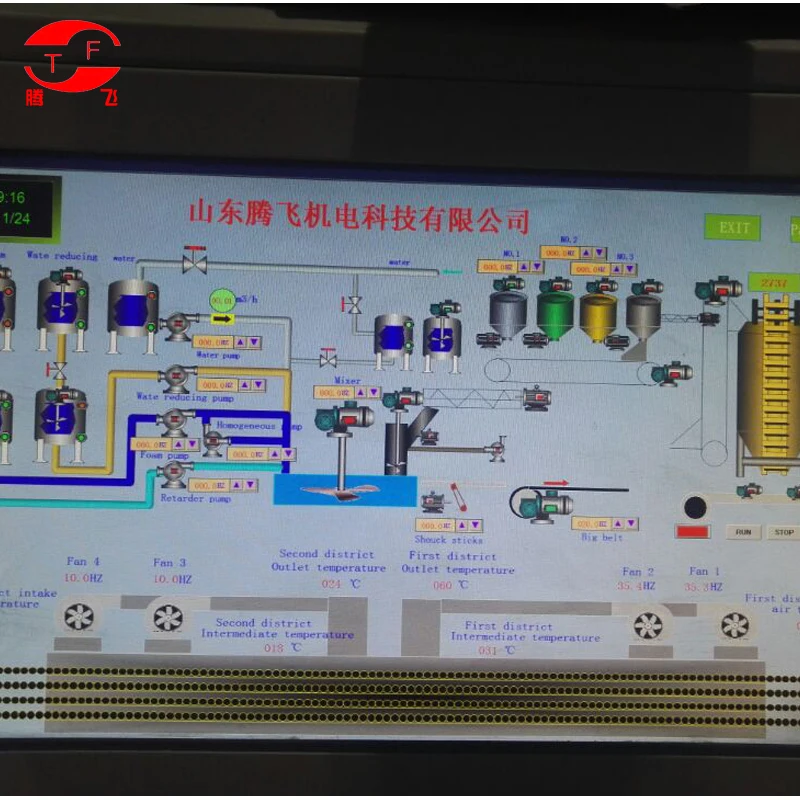

6. Stacker system Automatically cut into dimensions you pre-set to avoid defect product occurrence and higher efficiency. 7. Gypsum board controlling system
