Chrome Steel LMEF16UU Linear Bearing Motion 16*26*36mm LMEF16UU
- Category: >>>
- Supplier: Nanjing Shengkaite Bearing Co. ltd
Share on (60745365709):
Product Overview
Description

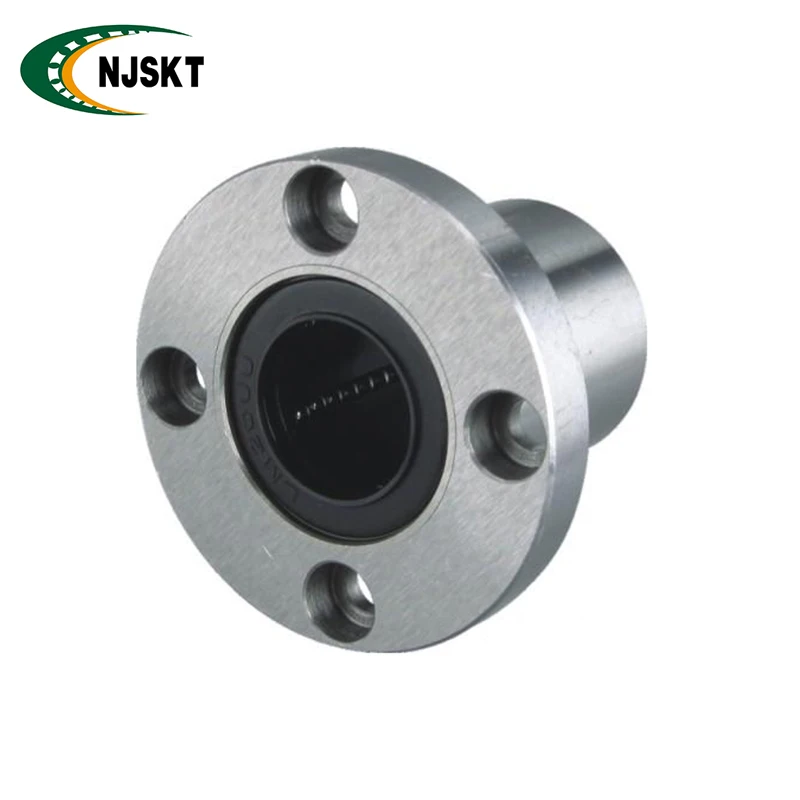

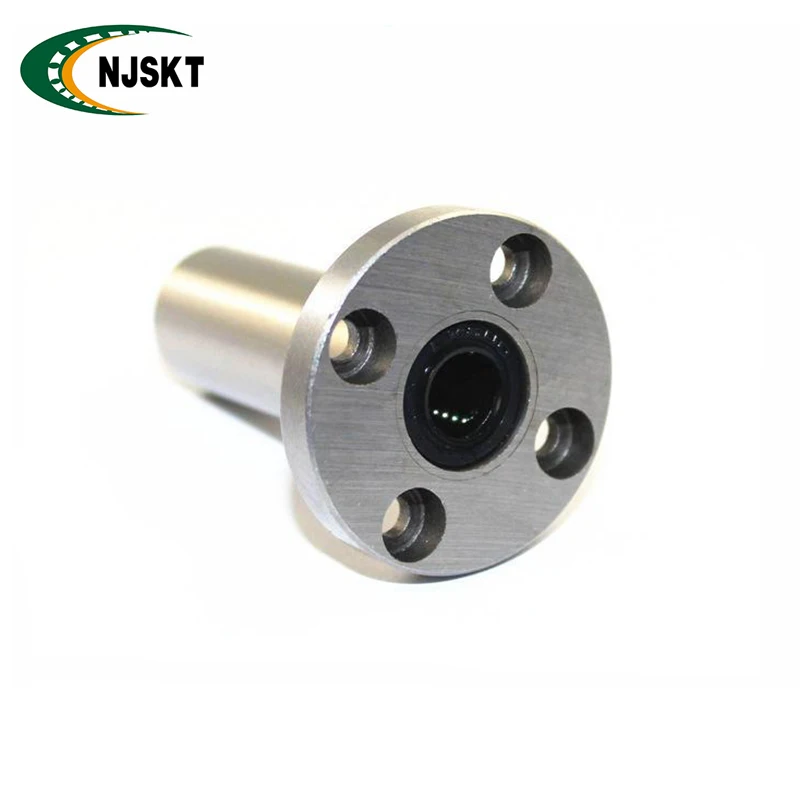

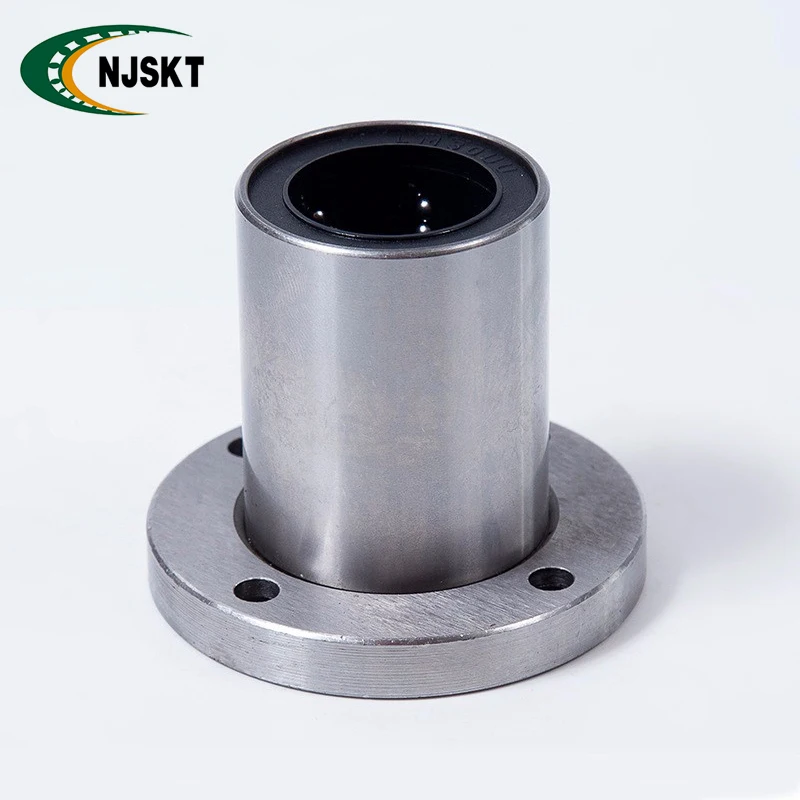

Chrome Steel LMEF16UU Linear Bearing Motion 16*26*36mm LMEF16UU
Product Description
| Name | linear ball bearing |
| Bearing No. | LMEF16UU linear ball bearing |
| Material | Chrome Steel |
| Brand | NJSKT |
| Service | OEM Customized Services |
| Certificate | ISO9001 |
| Size | 16*26*36mm |
| Precision | P0 P2 P4 P5 P6 |
| Vibration Level | V1,V2,V3,V4 |
| Clearance | C2,C3,C4,C5 |
| Application | Printing Machinery/3D |
| Sample Policy | sample cost needed and freight collected. We will reduce this part expense from the total value when place order. |
| Package | 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; |
| 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets | |
| 3. As the customers' requirement | |
| Delivery | 4-9 days if have stock, 9-30 days after order confirmed(depend on the total amount |
| Service | As a 100% manufacture we can supply you technical support We will follow up on our customers' feedback and suggestions after every delivery and we make every effort to solve their problems in order to ensure their satisfaction. |
We can manufacture these bearings according to customer's drawings and samples |
Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement
Features of Linear Bearings:
Linear bearing often used with quenching line transmission shaft, a systerm for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.
Application of Linear Bearings:
Axis machine tools, presses , tool grinder, automatic gas cutting machine, printer, card sorting machines, food packaging machines and other industrial machinery sliding parts ect.
Related poducts
Product model number
| MODEL NO. | |
| LM linear bearing | LM 3UU, LM 4UU, LM 5UU, LM 6UU, LM 8UU, LM 10UU, LM 12UU, LM 13UU, LM 16UU, LM 20UU, LM 25UU, LM 30UU, LM 35UU, LM 40UU, LM 50UU, LM 60UU, LM 80UU, LM 100UU, LM 120UU, LM 150UU |
| LM Open Series linear bearing | LM 10OPUU, LM 12OPUU, LM 13OPUU, LM 16OPUU, LM 20OPUU, LM 25OPUU, LM 30OPU, LM 35OPUU, LM 40OPUU, LM 50OPUU, LM60OPUU, LM 80OPUU, LM 100OPUU, LM 120OPUU, LM150OPUU |
| LB linear bearing | LB 6UU, LB 8UU, LB 10UU, LB 12UU, LB13 UU, LB16UU, LB 20UU, LB25UU, LB 30UU, LB 35UU, LB 40UU, LB 50UU, LB 60UU, LB 80UU,LB 100UU, LB120UU, LB 150UU |
| LM E Linear bearing | LME 5UU, LME 8UU, LME 12UU, LME 16UU, LME 20UU, LME 25UU, LME 30UU, LME 40UU, LME 50UU, LME 60UU, LME 80UU |
| LM L linear bearing | LM 6LUU, LM 8LUU, LM 10LUU, LM 12LUU, LM 13LUU, LM 16LUU,LM 20LUU, LM 25LUU, LM 30LUU, LM 35LUU, LM 40LUU, LM 50LUU, LM 60LUU |
| KH type linear bearing | KH 0622PP,KH 0824PP, KH 1026PP, KH 1228PP, KH 1630PP, KH 2030PP, KH 2540PP, KH 3050PP, KH 4060PP, KH5070PP |
| Stell Cage Linear Bearing | LM 12GA, LM 16GA, LM 20GA, LM 25GA, LM 30GA, LM 12M, LM 16M, LM 20M, LM 25M, LM30M |
| SDM series Stell cage linear bearing(As same as Ease SDM series) | SDM 16, SDM 20, SDM 25, SDM 30, SDM 35, SDM 40, SDM 50, SDM 60, SDM 80, SDM 100, SDM120, SDM150 |
| SK Linear bearing | SK 10, SK 12, SK 13, SK 16, SK 20, SK 25, SK 30, SK 35, SK 40 |
| SHF Linear bearing | SHF 10, SHF 12, SHF 13, SHF 16, SHF 20, SHF 25, SHF 30, SHF 35, SHF 40 |

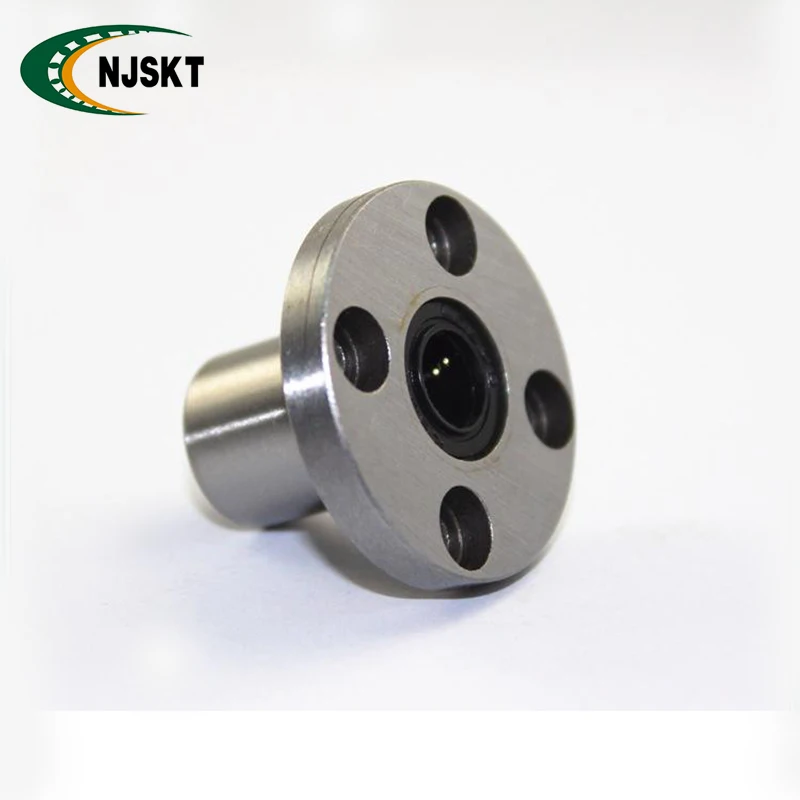

| Flange type linear bearing | LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU,LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU,LMF80UU, LMF100UU |
LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU | |
LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU, LMT20UU,LMT25UU,LMT30UU | |
| Linear guide units | SC (SMA) series,SC..L series,SC..S series SCJ series SCE,SCE..L,SCE…S series |
| Support units | SBS series, TBS series, SME, SME..S series TBR,TBR..S series |
Company Product
We are a professional Bearing manufacturer in China( OEM &ODM factory ).Our products that selling as below:
Company Information
Nanjing ShengKaiTe Bearing Co., Ltd., was founded in May 2008, registered trademark for NJSKT, mainly producing Tapered Roller Bearings, Pillow Block Bearing, Automobile Hub Bearings, Agricultural Machinery Bearings, Angular Contact Ball Bearings, Spherical Roller Bearings, Cam Follower Needle Roller Bearings,Eccentric Bearings etc and Agent for HIWIN, CPC, PMI etc. on a commission basis, the minimum width of them is 3mm, and the maximum width of them is 85mm , having adequate stocks in ball and roller guide rail series.
Packaging & service
Payment
- T/T ,L/C, Western Union,PayPal, Credit Card
Shipping
- For Small orders and short size (80mm-2500mm),we send by express UPS,DHL,FEDEX, or EMS,China Post with Thracking number
- For Big quantity and long size(3000mm-4000mm), we will ship by sea.
Sample
- Free sample after deposit,or sample cost at buyer's cost(refundable)
Service
- Before-Sales:
1.Providing guidance for bearing type selection ,choosing the optimal desidn,reducinH the customer cost and esuring the operating performance of equipment
2.Hlping customers design bearing applications and providing overall solutions
3.Reducing operating cost for customers
- In-Sales:
1.Providing customers with transportation arrangements and related service
2.Assisting customers in handling icoming inspection.
- After-sales:
1.Providing customers with trainings about bearings installation,operation and maintenance
2.Ensuring the stable operation of equipment,improving
3.Providing bearing failure analysis
