Hand Push asphalt crack repair machine Road crack sealing machine

Product Overview

Description

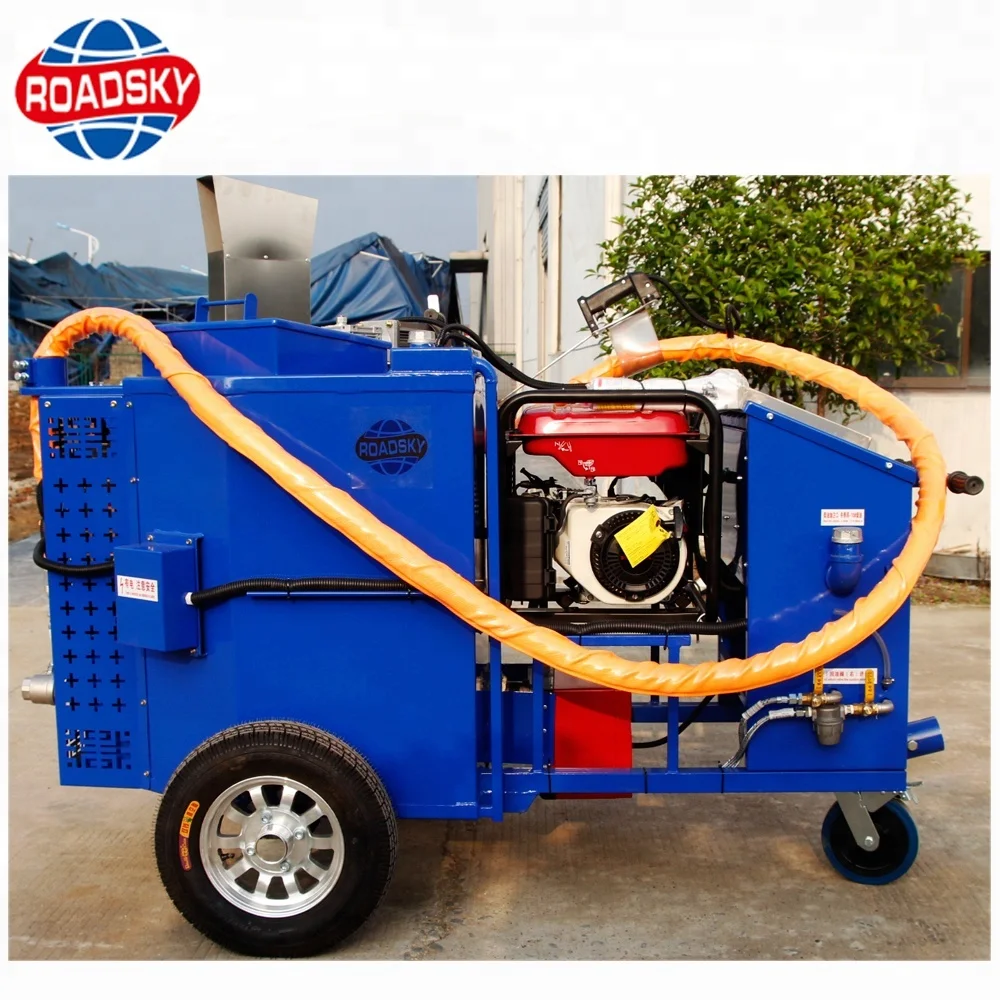

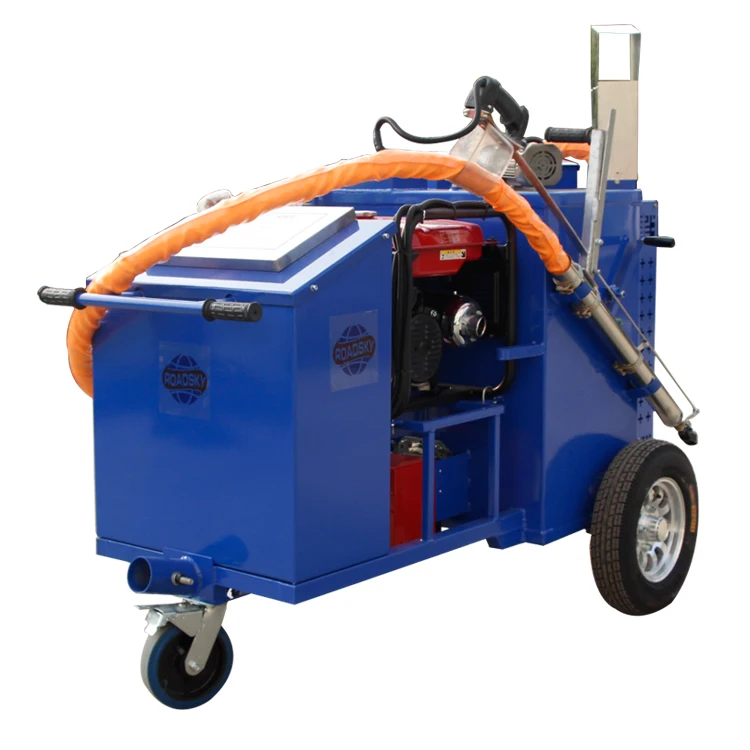

Hand Push Asphalt Crack Sealing Machines

Product Description:

RS-100/RS-200 asphalt crack sealing machine is mainly used for irregular cracks of asphalt pavement,concrete pavement, bridge expansion joints, sewer, gas pipe buried and paving road links waterproof processing.



Specifications:

Model	RS-100	RS-200
Size(L*W*H)	2150*1250*1460mm	2150*1300*1450mm
Weight	500kg	700kg
Volume	100L	200L
Heat Condition Oil Volume	45L	45L
Shaft Length	Standard4.5m(6moptional)	EL3600CX/2.8KW
Generator Set	ER2500CX	ER2500CX
Control System	ECC	ECC
Heating Source	Diesel Combust	Diesel Combust
Molten Material Time	45minutes	45minutes
Sealing Speed	0-25m/min	0-25m/min
Applicable Material	Asphalt, crack sealing material	Asphalt, crack sealing material
Ferry Way	Trailer Type	Trailer Type
Pattern of Movement	Hand Push	Hand Push

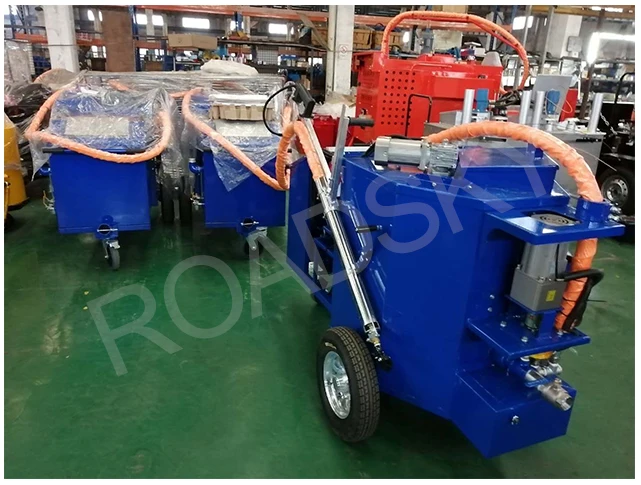

Main Parts:

Features:

1. Small body, strong function, light weight, convenient operation, easy to move for construction;

2. Heat conduction oil indirect heating material,circulation heat preservation, imported diesel engine as heating source, the material is heated evenly, intelligent sensor detect temperature automatically , make the material not charring,in-variance,shorter melting time, economic, safety and environmental;

3. Whole journey electrical heating discharge hose, free cleaning, fully bending degree, maximally meet the demand of the transverse and longitudinal crack in construction,to ensure the biggest construction area;

4. Whole journey electronic control ,the heating temperature, discharge tube heating,burning machine working,asphalt pump working, fuel status,and so on are all real-time displayed, realize the integration of electronic automatic control;

5. International famous brand gasoline generator, provides a stable and efficient output for the whole machine , works stably and reliably;

6. Humanization design of cracking sealing gun handle,equipped electronic control on the gun handle, the handle can remote control asphalt pump, avoid wasting, healthy and clean;

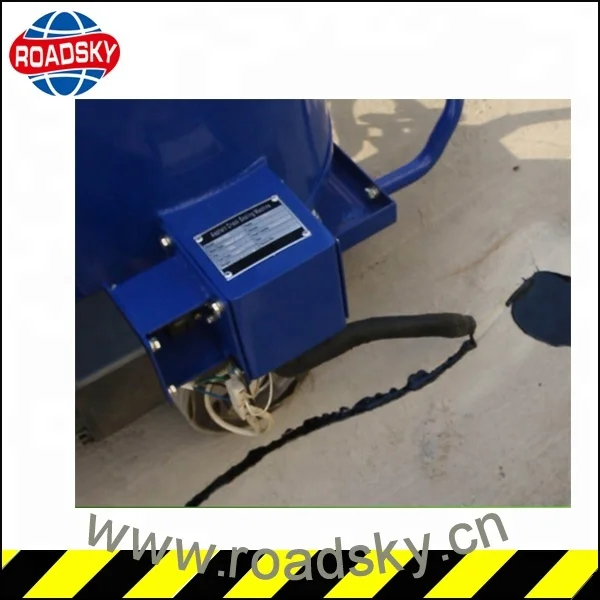

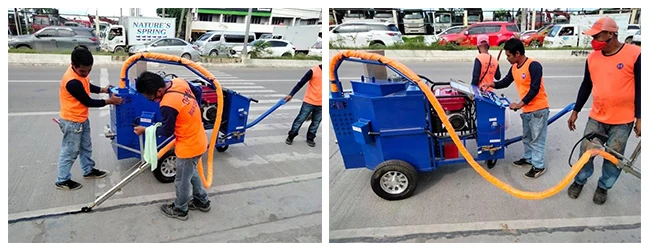

On-site Show:

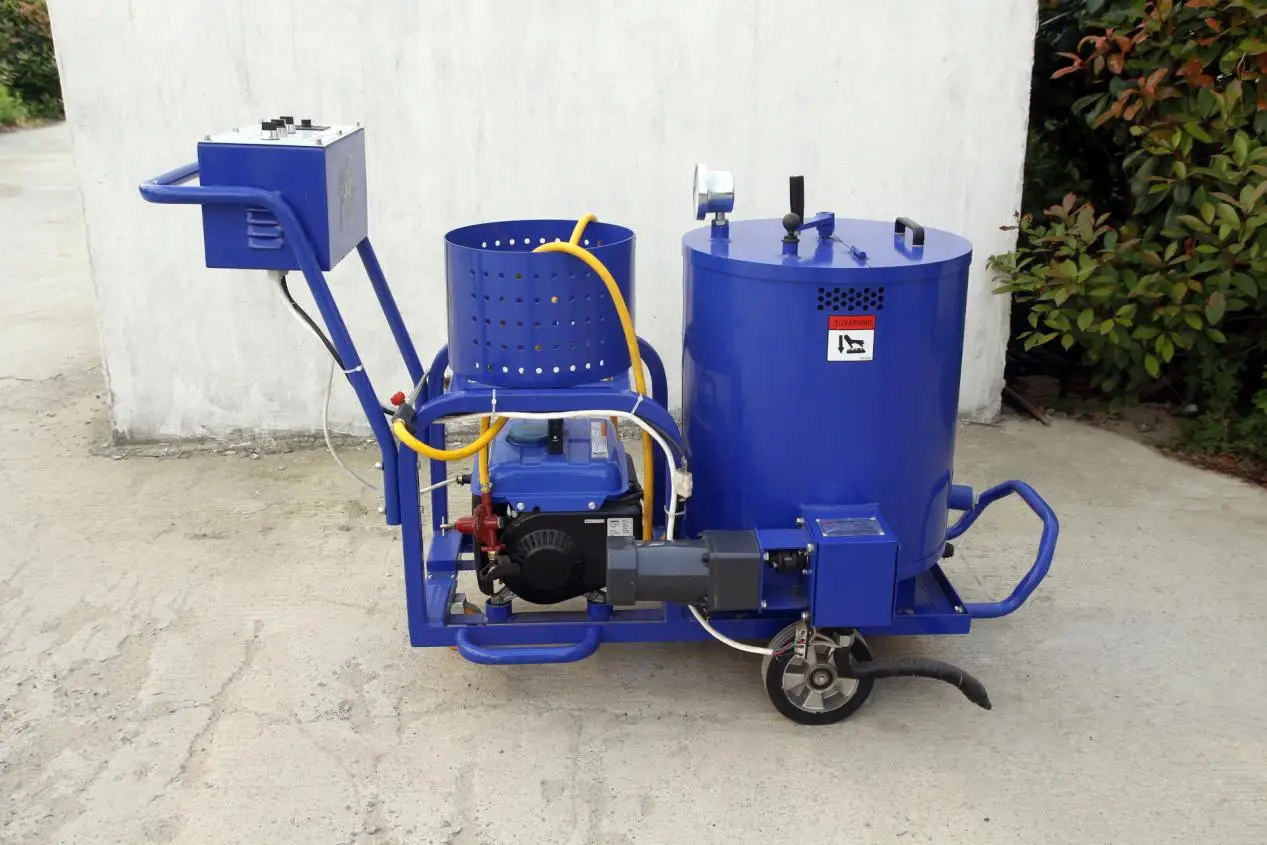

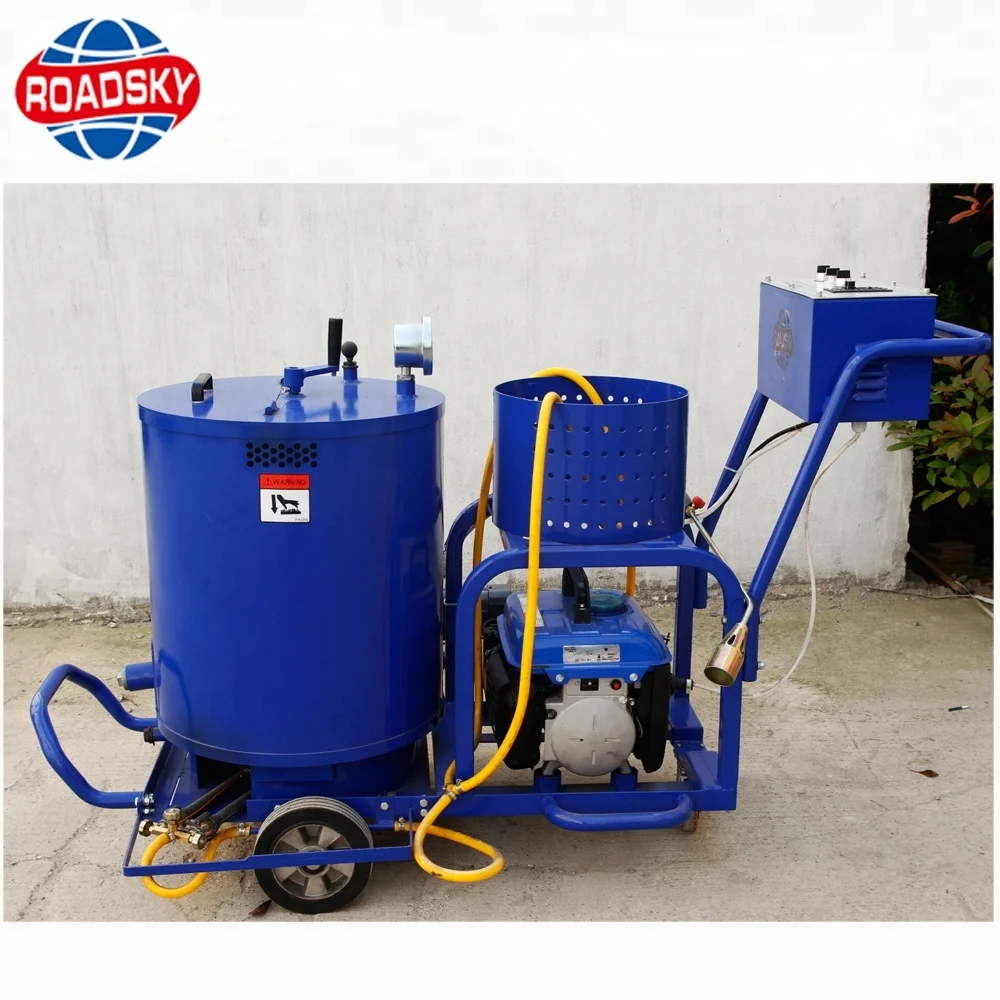

RS-60 asphalt crack sealing machine is deal for repairing in roads, pavements, driveways, concrete foundations, parking lots and other asphalt or concrete surfaces. It’s also suitable of sealing joints of concrete plates and sealing after road excavation works.

Specifications:

Model	RS-60
Generator Model	YAMAHA ET-1
Power	0.9KW
Walking Mode	Hand Push
Material Tank Volume	60L
Fuel Type	Liquefied Gas
Heating Medium	Conduction Oil
Ejection Speed	Adjustable
N.W	165kg
Packing Size	1500X800X1250mm

Features:

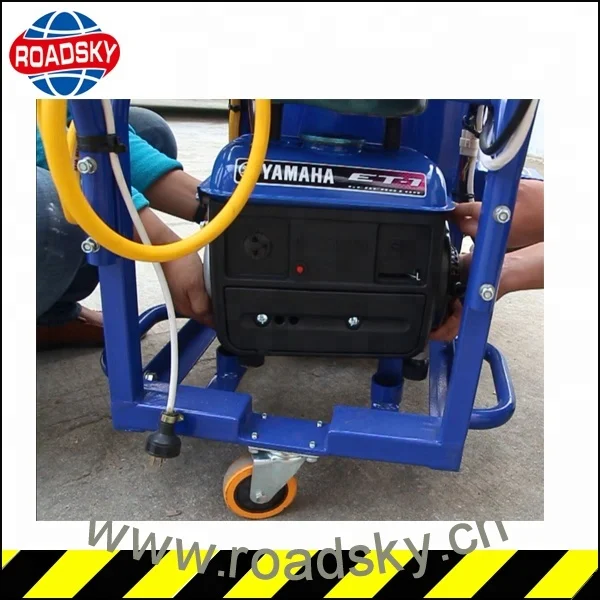

1. Famous brand electric motor, stable performance, YAMAHA Generator.

2. Liquefied gas heating, easy to operate, concrete road crack sealing machine.

3. Large asphalt tank.

4. All the working process heating without blocking.

Main Parts:





RS-350

Specifications:

Filling material capacity	350L
Heating time	30~40min
Temperature control range	0~240℃
Output capacity	adjustable
Engine group	6KW
Walking mode	electric drive (driving type)
Burner	Imported Italian 445T1 diesel burner from Lia Road, with high combustion efficiency, safety and environmental protection
Constant temperature control	SLA-5000 intelligent digital temperature controller, automatic constant temperature control
Electric heating tube	7 meters electric heating discharge hose
Hot melt kettle	Equipped with a safety device with a thermal oil jacket 350 litre hot melt kettle, and equipped with a safety valve for full circulation, heating faster and more evenly
Size	4000*1560*2160mm
Weight	1000kg

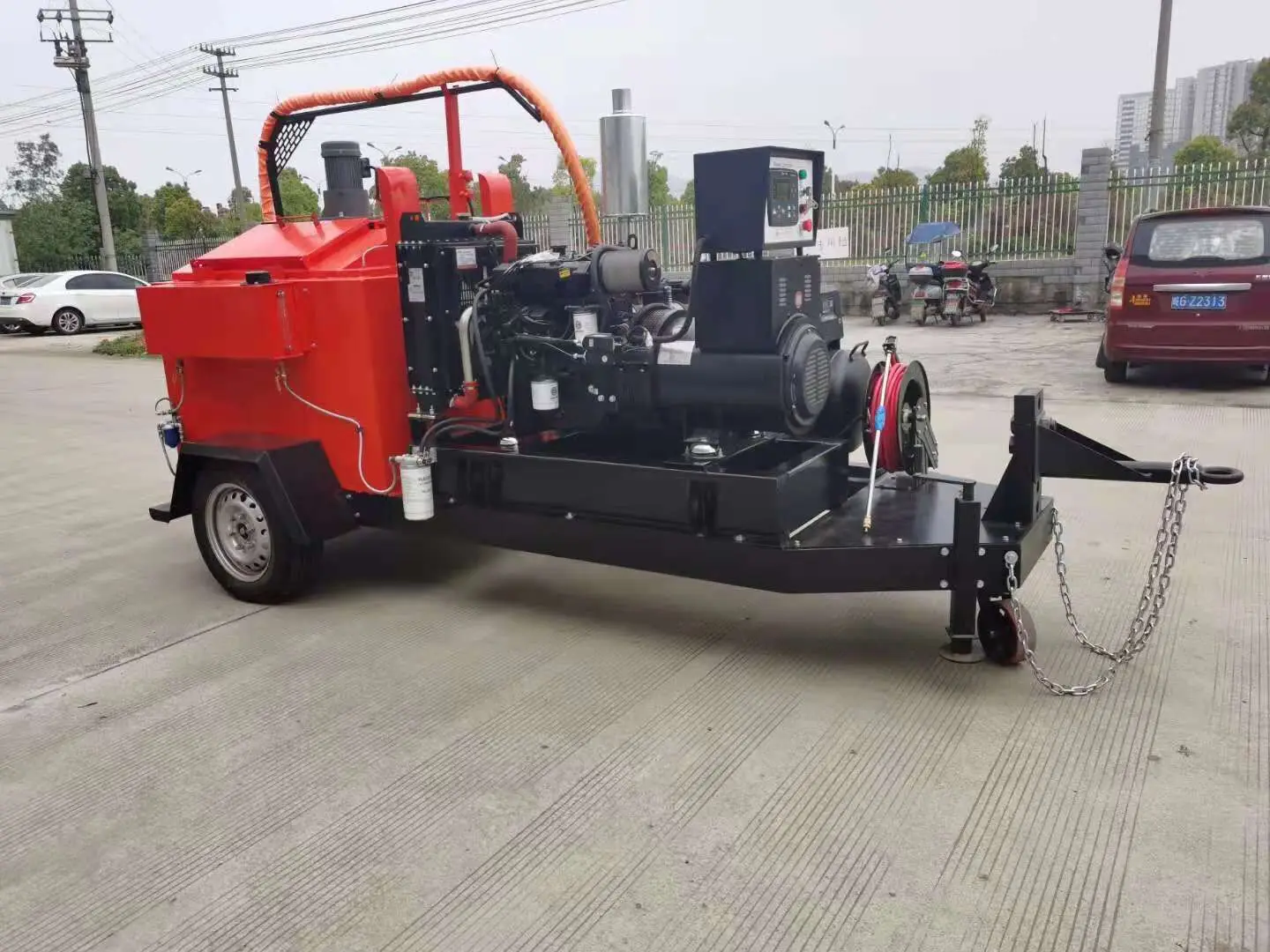

RS-500

Specifications:

Size	390*174*210cm
Weight	1850kg
Engine Power	30KW
Engine type	4 cylinder diesel engine
Fuel	Diesel oil
Diesel fuel capacity	50L
Working Pressure	6-9Mpa adjustable
Combustor	Italian RIELLO 445T1
Volume	500L
Structure of tank	Double layer high insulation structure, insulation layer thickness of 80mm
Burner ignition mode	Automatic electronic ignition
Feeding port size	680mmx350mm,
Heating mode	The hot melting kettle with protective heat conduction oil sleeve adopts diesel burner to heat the heat conduction oil indirectly to heat the material. The heating is uniform and the material is not easy to age
Material of pump	1.The feeding pump is external and hidden in the constant temperature box, synchronizing with the temperature of the rubber material in the kettle to ensure the patency of the rubber material transportation. 2.The connecting pipe between the pump and the electric heating pipe is placed in the kettle, synchronizing with the temperature of the glue material, and equipped with adjustable pressure valve to ensure the safety of personnel.
Output flow	Maximum output flow of 32 L/min, stepless speed control by the governor.



RS-600

Thermal oil capacity	80L
Generator set	Customized
Filling pressure	6-9Mpa
Voltage	220V/380v
Power	6KW+6.5KW
Speed	3600r/min
Adjustable discharge speed	0.5t/h
Electric heating tube	7m
Stirring method Electric stirring	750W, intermittent stirring
Hot melt kettle volume	600L
Walking mode	Self-driving, with traction rod
Burner	Riello 445T1
Constant temperature control	SLA-5000 intelligent digital temperature controller, automatic constant temperature control
Heating method	Indirect heating of heat conduction oil and circulating heating of external oil pump
Heating time	40-50 minutes
Temperature control range	0-230℃
Size	4014*1660*2160 mm
Weight	1650kg
