Industrial Bag House Dust Collector for Asphalt Mixing Plant

Bag house dust collector is one of the most important parts of asphalt mixing plant. It is general supporting use of cyclone dust filter (primary dust filter) to collecting cyclone can't collect the very small dust. For there is more and more strict environmental protection requirements, bag house filter began to use more widely for asphalt mixing plant. The dust it collected is called “secondary recovery powder”.

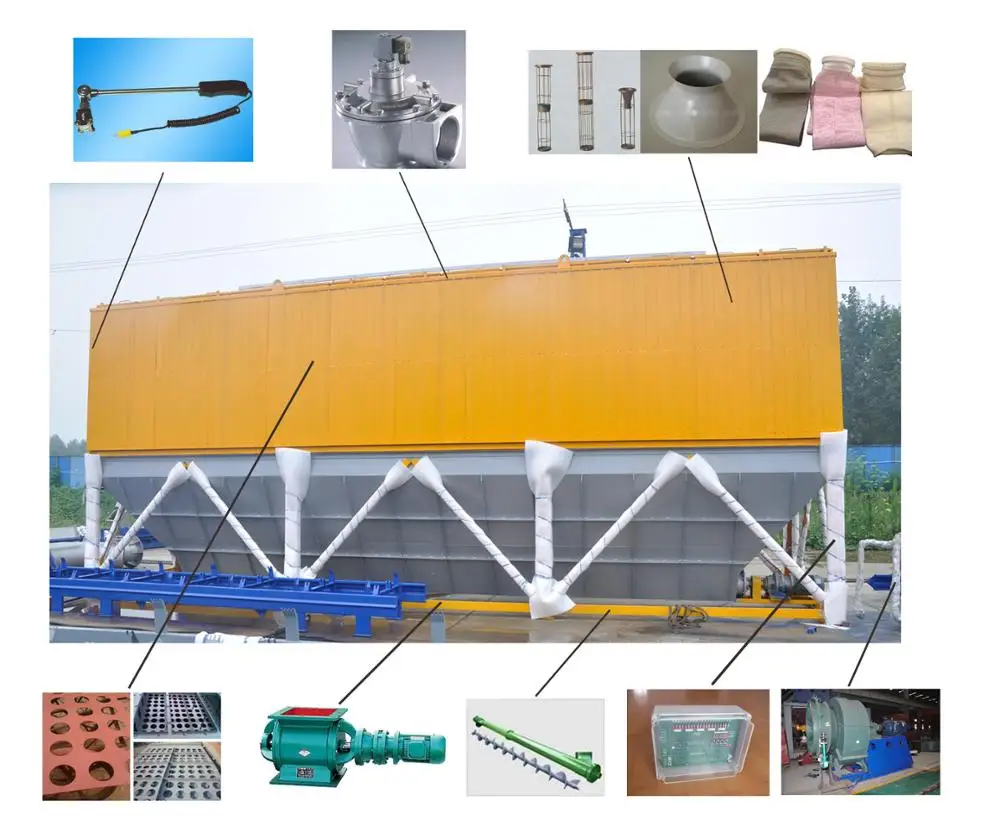

Components of bag house dust collector

Generally, impulse dust collector is consists of following parts:

1.dust box   2.filter bag    3.filter bag keel (filter bag framework)   4.impulse valve   5.Venturi-tube   6.Pulse Controller   7.draft fan and pipe   8.Dust collection screw conveyor   9.Dust discharge rotary feeder   10.temperature detection system   11.Negative pressure detection system   12.pneumaticsystem   13.Other Accessory

BD series impulse dust collector features:

BD series impulse bag filter is a special filter for asphalt mixing plant designed by ZOOMLINE, on the basis of absorbing foreign advanced concepts and technology. It overcomes the problems brought to the bag filter by asphalt plant for its big dust. This series bag filter improved the dust collection efficiency highly, extended the life of the filter bag and expanded the application range. The running process is more stable and efficient.

BD series impulse dust collector mainly used for the dust collection system of asphalt mixing plant, crushing machine, grinding machine, dryer, furnace, and so on.

1. Draft fan designed with special base and electric throttle controller. Depending on the different load and ventilation needs, throttle controller real-time control throttle opening, has reached the optimum removal needs and maximize save power consumption.

2. Bag house dust filter import and export has a temperature detection system, real-time detecting the temperature of bag house dust filter, prevent temperature too low or too high, to avoid the condensation or burner bags condition happened.

3. Dust collecting filter input port designed emergency cooling valve, negative pressure testing etc other safety facilities, ensuring the equipment working safety and reliable.

Common types of bag house dust collector:

BD series impulse dust collection filter can be divided into fixed type and mobile type according to the installation way.

Mobile BD series bag house dust collector is mainly matched with our ZAP-M series mobile asphalt mixing plant. There are half-hanging and drag-and-stop structure for choose.

Technical parameter of BD series impulse dust collector (general)

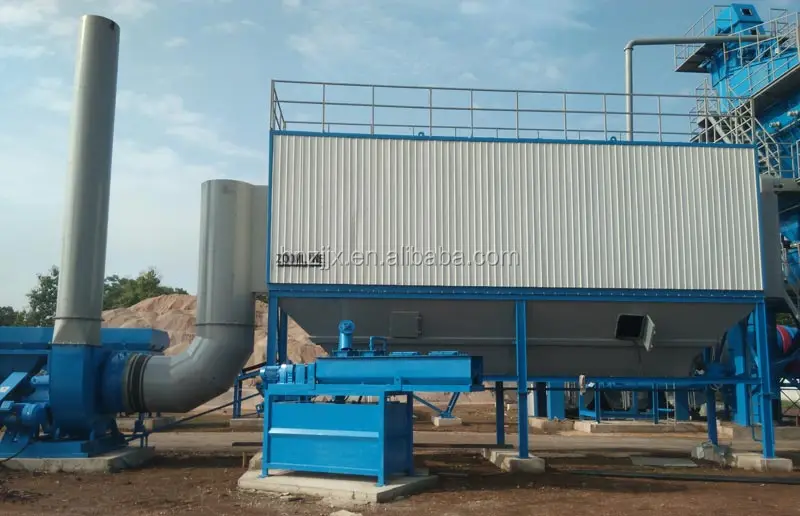

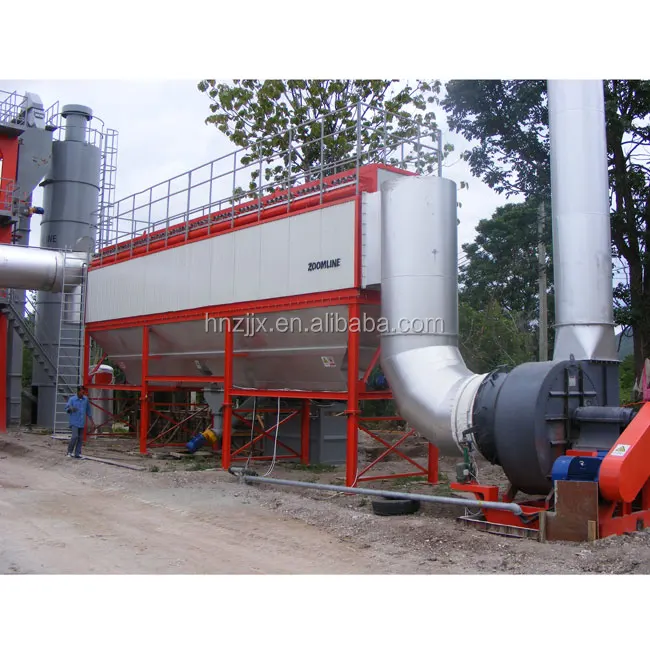

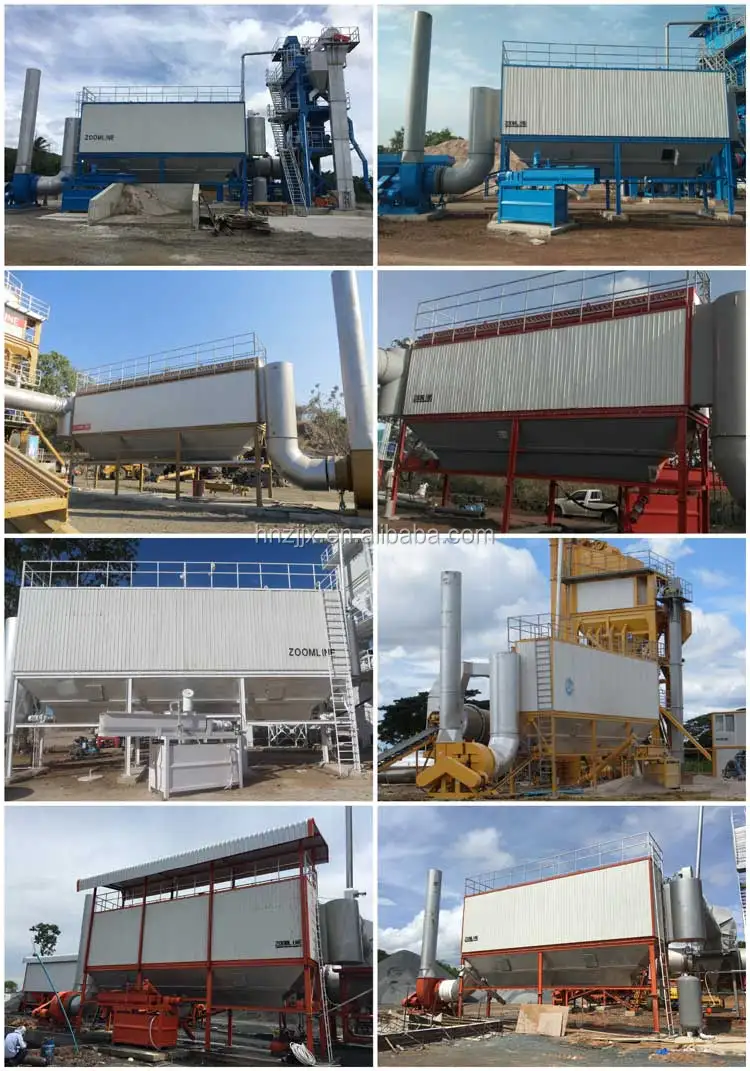

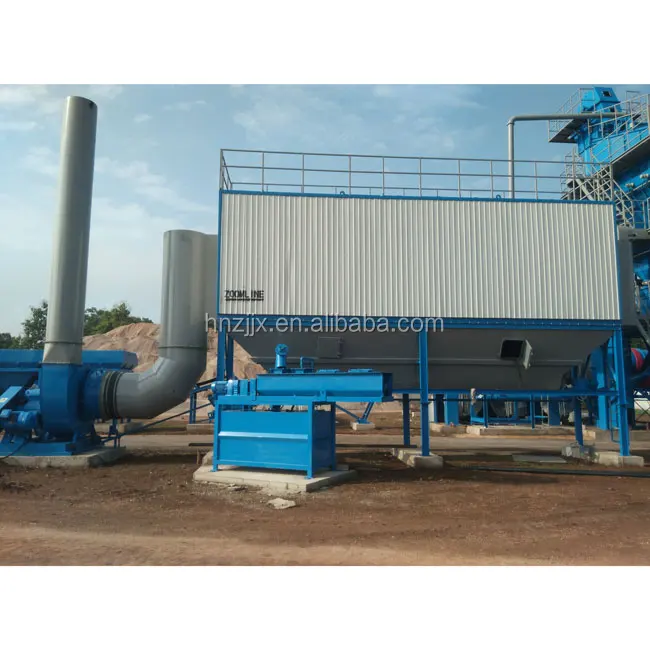

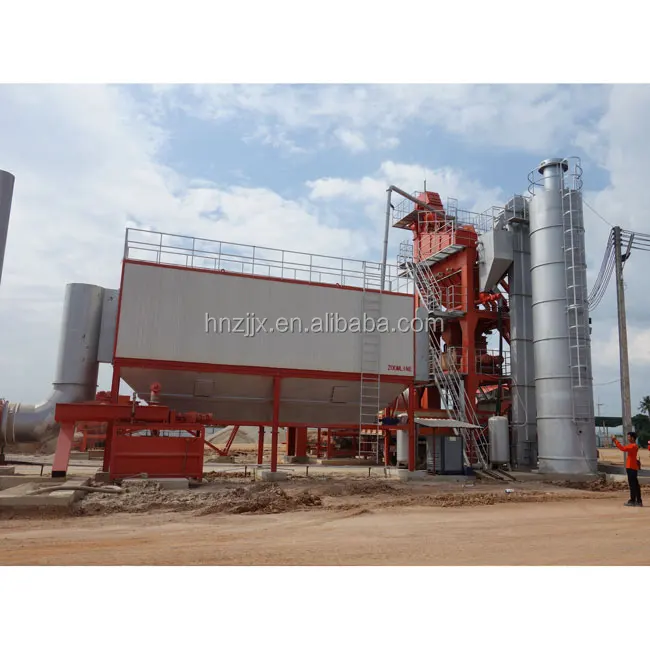

Bag house dust collector for asphalt mixing plant working site photos show:

Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.
Our main asphalt mixing plants include:

Stationary asphalt mixing plant(ZAP-S series)

Mobile asphalt mixing plant(ZAP-M series)

Continuous asphalt mixing plant(ZAP-C series)

Nowadays, our asphalt plant products have been sold to Russia, Philippine, Kenya, Sri Lanka, Mongolia, Chile, Peru and Thailand etc. Our asphalt plants and asphalt mixing plant patrts have got CE,GOST,EAC,EMC and ISO9001 certification and we hold 18 patents which own to the concerted efforts of our employees.

Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.

Technical support

To know the most direct and precised information, our after-sales team would follow up the whole process (Transport—Foundation treatment --Installation--Debugging----Staff training---Technical support----Spare parts supply) after you purchased whether our whole asphalt plants or just auxiliary.

They would give regular technical support and training according to the actual situation of our asphalt mixing plant or concrete mixing plant production.

Whenever there is any accidental technical problem, it could be feedback to our engineer at the first time by our after-sales team.

Whatever you/customer need technical support in worksite, and purchase ZOOMLINE accessories or other technical consultation. We will serve you wholeheartedly!

You can also contact our distributor in local area or through our sales Dept to contact us.

If you need our help, please contact us by phone email or skype leave message on web.We would reply within 24 hours and handle your problem as soon possible.

OEM Scheme

1. Provide OEM service to other manufactures.

2. Seek for productive manufacture OEM in our company sales area.

3. Flexible cooperation type.
