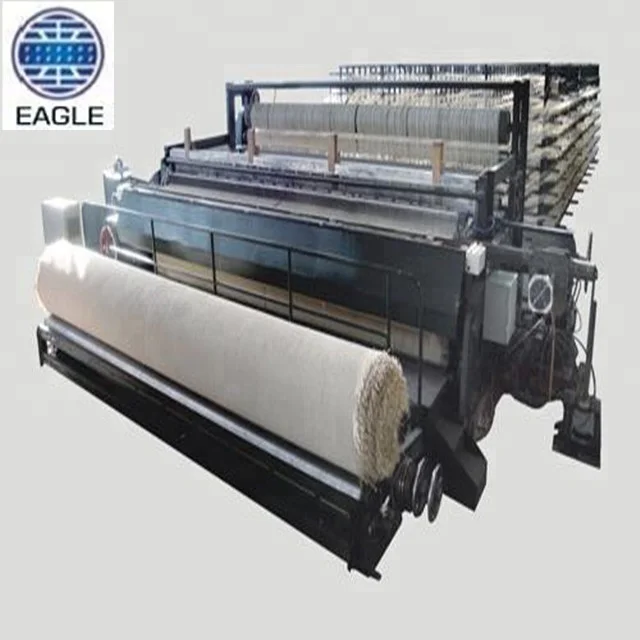

Jute fabric making machine weaving machinery textile rapier loom

Model Number

Jute fabric making machine weaving machinery textile rapier loom

Reed width (mm)

180, 190, 200, 230, 260, 280, 300, 360cm

Rotation speed

Designing speed 180~220rpm.

Weft insertion

180-220weft/min

Warp beam dia.

600mm

Cloth Roll Dia.

300mm, can match with big rolling cloth mechanism.

Weft feeder

FDP electronic weft accumulator.

Driving control

Rated 1.1~1.5kw main motor power, 3-phase line, 380v, 50hz;

Beat-up motion

Crankshaftweft beat-up motion.

Lubrication

Oiling pump, automatic oil for dobby.

Electric circuit

Standard modularization design, LED displays working condition.

Weft selection

4 or 6 colour weft selector motion.

Material

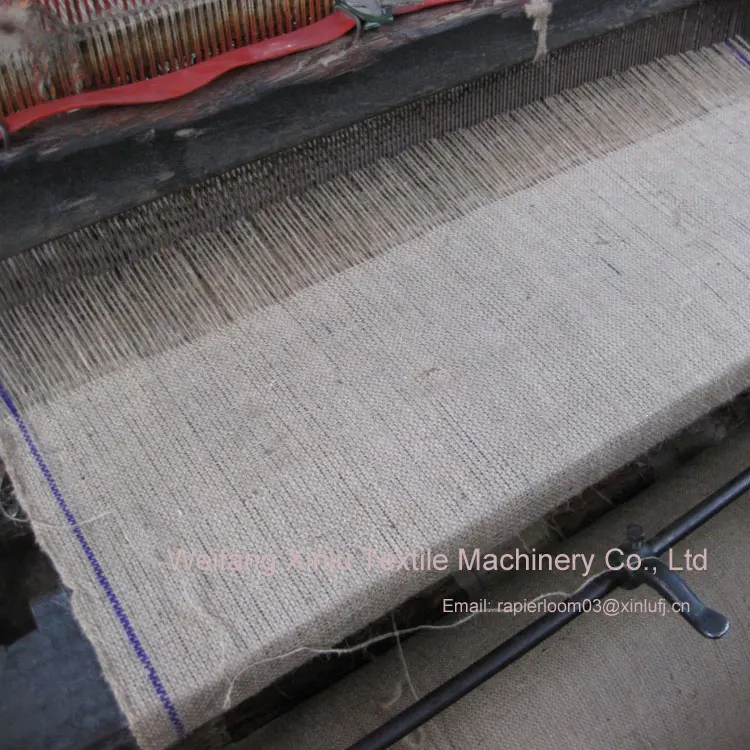

Jute fabric.

8-12 pieces heddle frame, mechanical dobby with max. 20 shafts automatic open, can match with big jacquard.

Let-off motion

Semi positive let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension.

Take-up motion

Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels.

Selvage formation

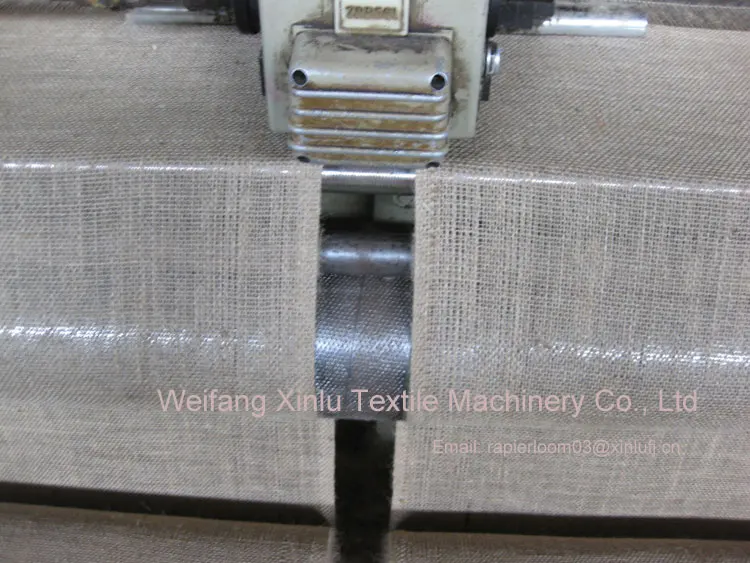

Mechanical selvage cutter, Leno selvedge. Temple: ring type copper cylinder with pin.

Stop motion

Warp yarn: automatic stop by electric dropper pin type with 6 rows;Weft yarn: high-sensitivity piezoelectricity detector automatic stop. Stop display: 4-colour multi-function indication lamps.

Electronic control

Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment.

Overall size

450*250*260cm, 1.8~2.2 MTs.
