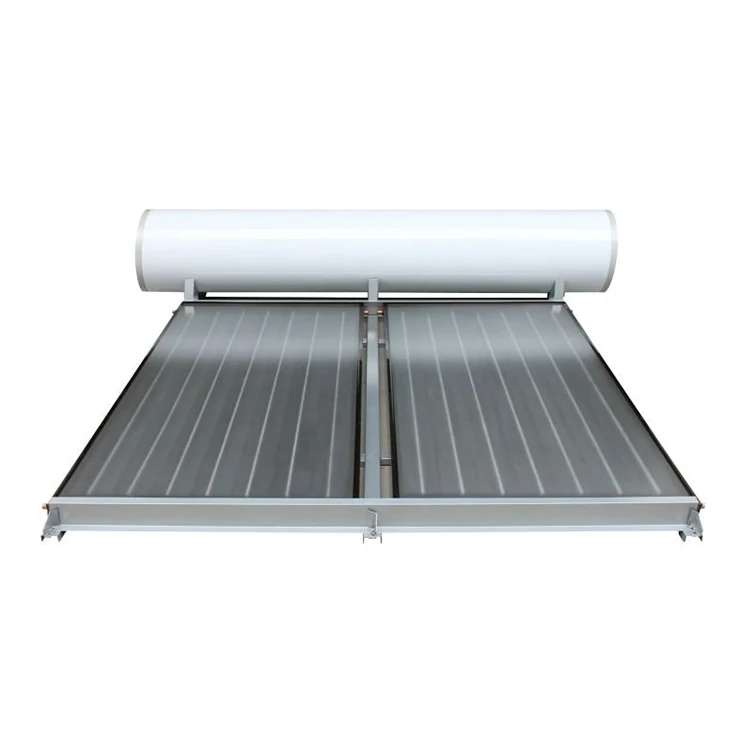

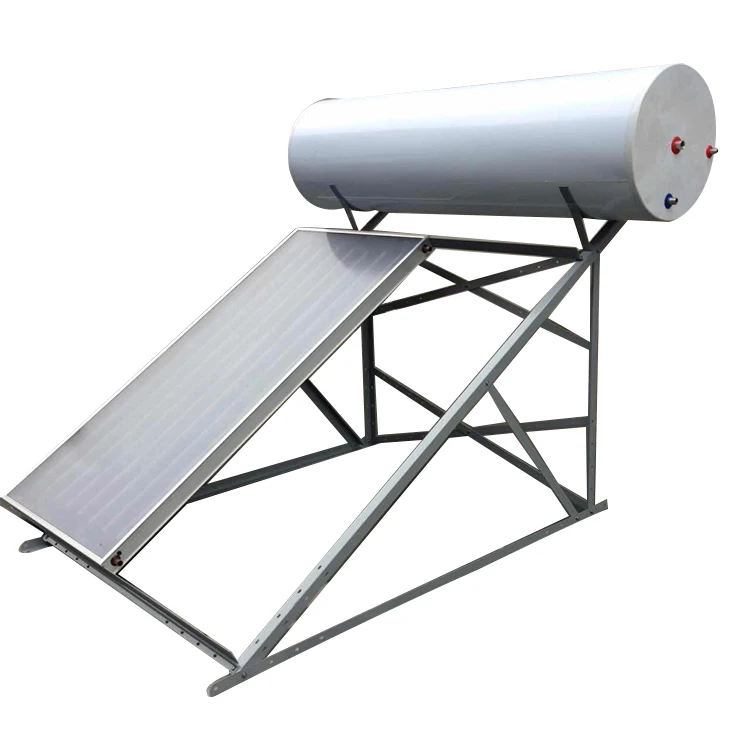

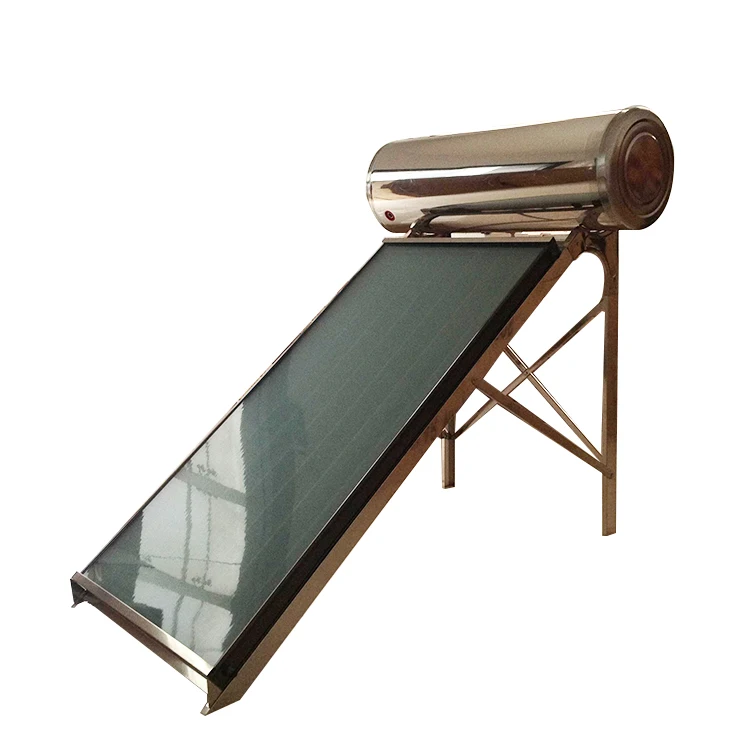

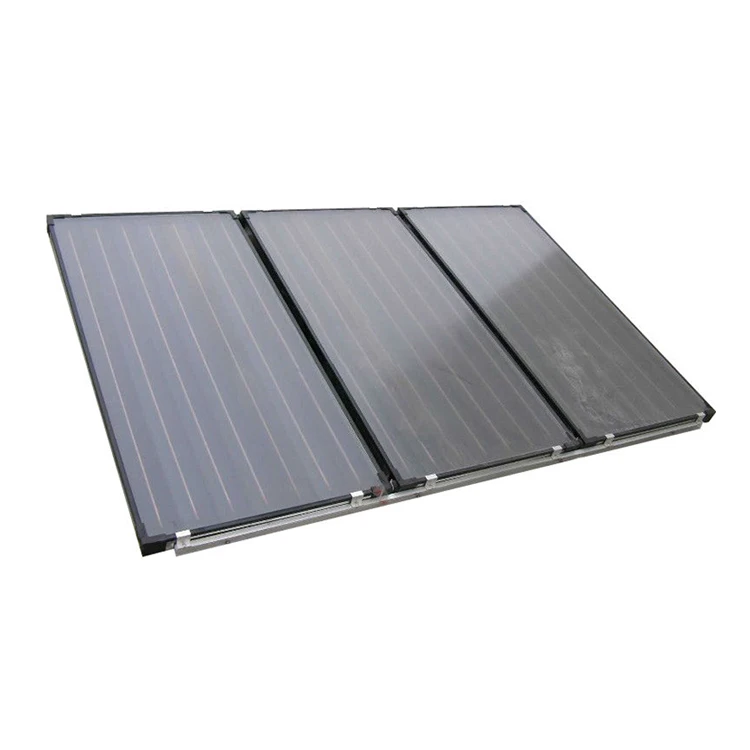

100/150 Liters Pressurized Compact Flat Plate Heater Flat Panel Solar Water Heater For Global Market
- Category: >>>
- Supplier: Haiyan Uniepu New Material Co. Ltd.
Share on (60745412642):
Product Overview
Description
Detail Date

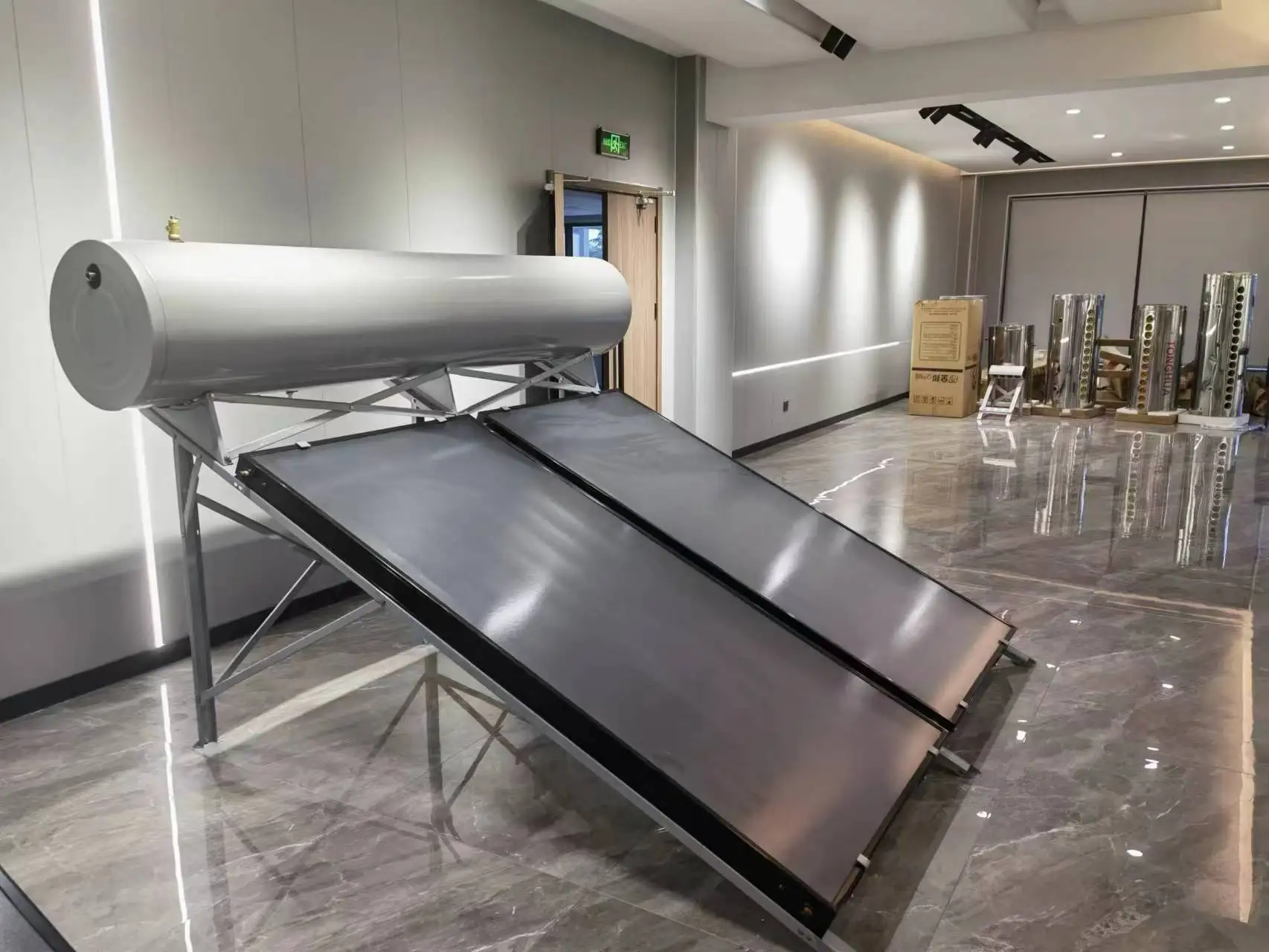

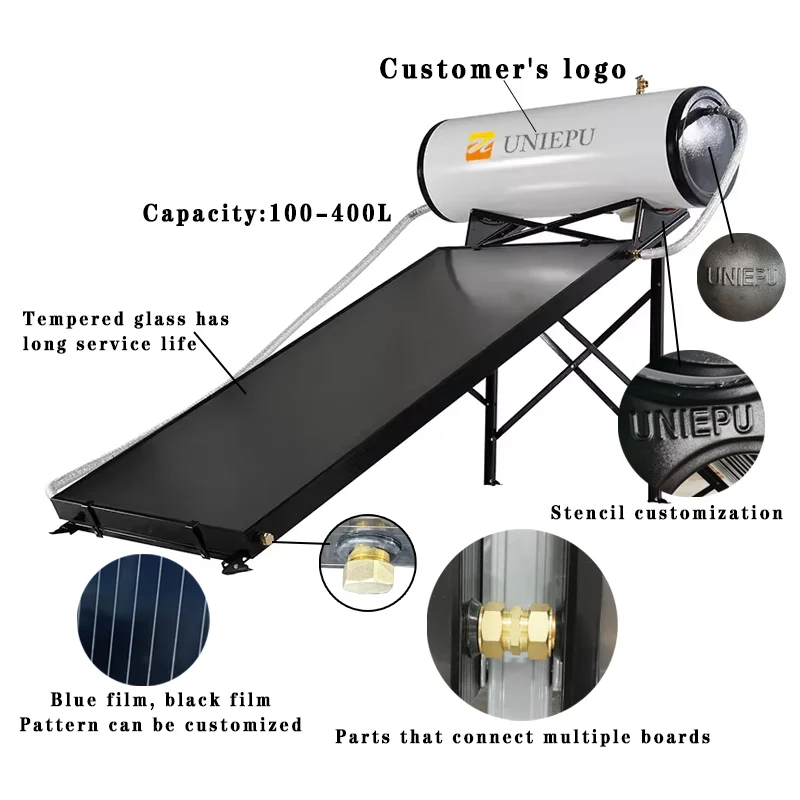

A flat plate solar water heater is a common type of solar water heater used in homes. This water heater is designed to provide quality hot water using solar energy. It has a new flat plate design that is energy-efficient and includes a selective coating that maximizes solar heat absorption.
Additionally, it has weather-resistant aluminum framing and interior fiberglass insulation
that increases its efficiency. This particular type of solar water heater is very popular in China and foreign markets due to its ease of delivery and installation, as well as its long working life (≥15 years).

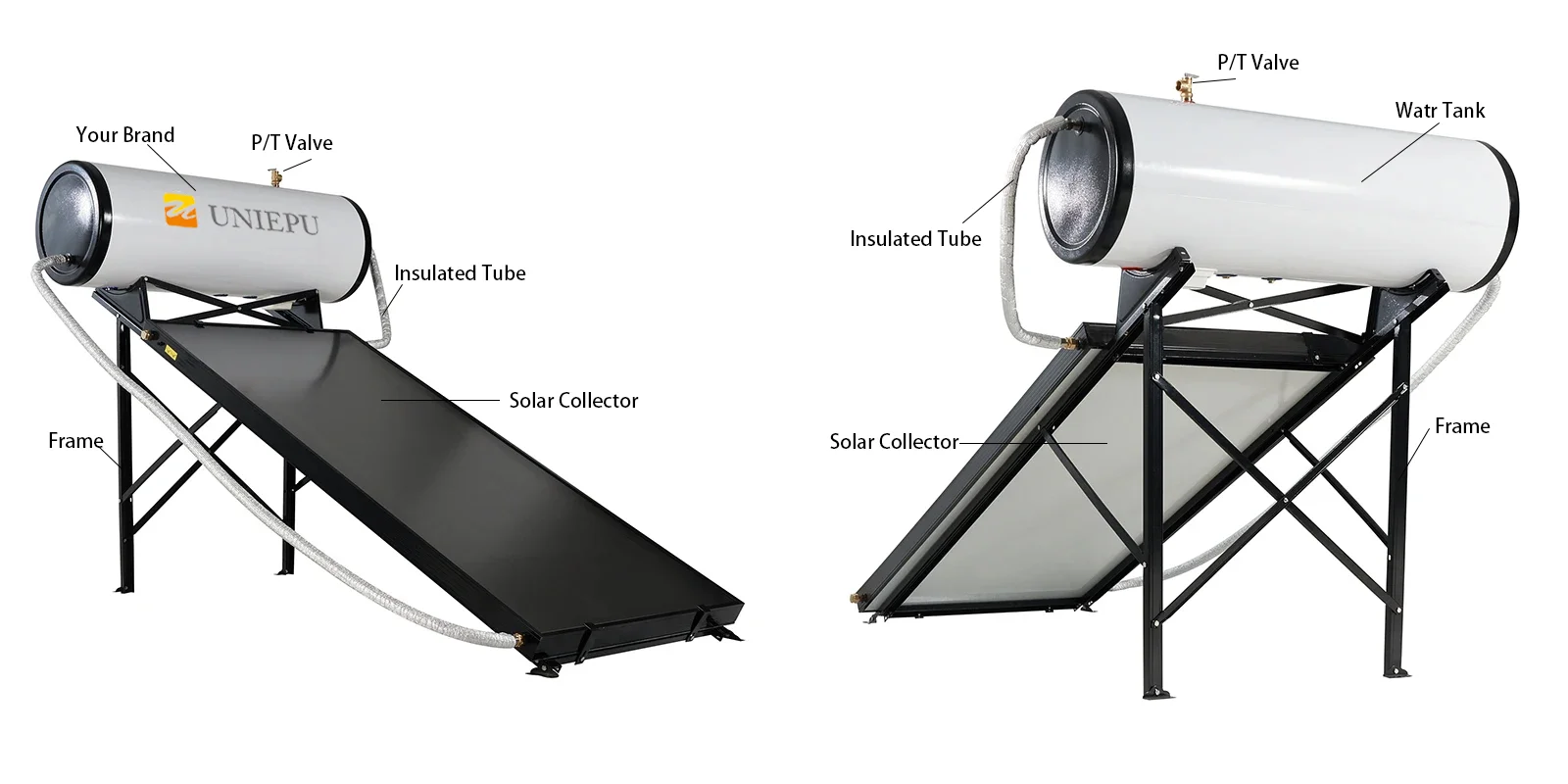

The main components of this water heater are the water tank, flat plate solar collector, and frame. Other spare parts include the controller, electrical heating, connection pipes, screws, and more.
We have 15+ years of experience manufacturing complete solar water heaters. We welcome your inquiries and appreciate every time we communicate with you. We will do our best to answer every question and provide the best price and service. Thank you for choosing UNIEPU!
Additionally, it has weather-resistant aluminum framing and interior fiberglass insulation
that increases its efficiency. This particular type of solar water heater is very popular in China and foreign markets due to its ease of delivery and installation, as well as its long working life (≥15 years).
The main components of this water heater are the water tank, flat plate solar collector, and frame. Other spare parts include the controller, electrical heating, connection pipes, screws, and more.
We have 15+ years of experience manufacturing complete solar water heaters. We welcome your inquiries and appreciate every time we communicate with you. We will do our best to answer every question and provide the best price and service. Thank you for choosing UNIEPU!

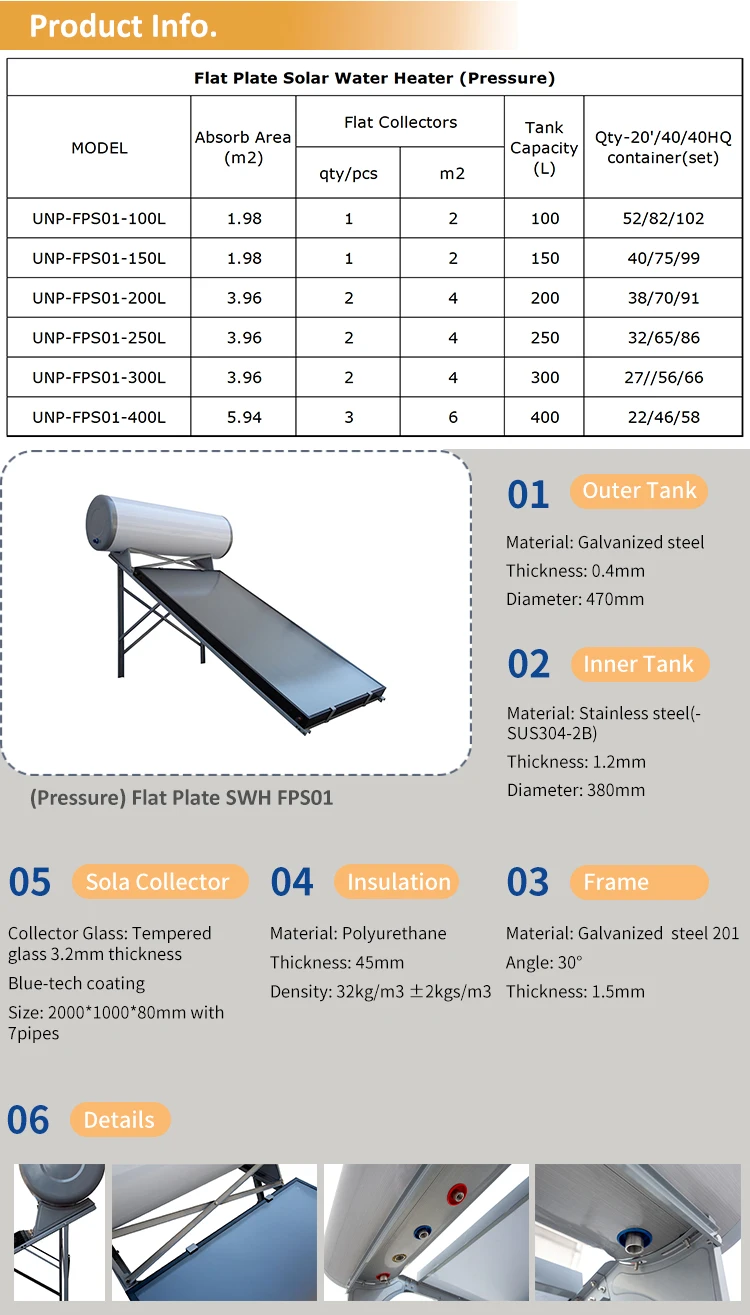

Flat Plate Solar Water Heater | Flat Plate Solar Water Heater Specification | |||
Water Tank | Capacity | 100Liter for 2 person 150Liter for 3 person 200Liter for 4 person 250Liter for 5 person 300Liter for 6 person 400Liter for 8 person | ||
Inner tank material | 1.2mm stainless steel 304 | |||
Inner tank diameter | 360mm (380mm is available) | |||
Outer tank material | 0.4mm Galvanized steel | |||
Outer tank diameter | 460mm (470mm and 480mm are available) | |||
Test pressure | 1.0 Mpa | |||
Working pressure | 0.5 Mpa | |||
Welding | Argon arc technology | |||
Color and LOGO | As request | |||
Connection nipple | 1/2" 3/4" or 1' | |||
Insulation | Imported polyurethane with 50mm thickness | |||
Frame | Material | 1.5mm Galvanized steel | ||
Angle | 0degree / 20degree / 27degree / 30degree / 38degree / 45degree | |||
Size | 2000*1000*80mm standard model(other sizes are available) | |||
Flat Plate Solar Panel | Gross area | 2 sqm | ||
Aperture area | 1.98 sqm | |||
Net weight | 29.5 kg | |||
Glass cover | 3.2mm Tempered low-iron Glass | |||
Transparence rate | 91.5% | |||
Absorber material | Aluminium film | |||
Surface | Black-tech coating or Blue-tech coating | |||
Header tube material | Copper TP2 | |||
Header pipe size | Diameter 22mm, 1060mm length*0.6mm thick 2 pcs standard model | |||
Riser pipe size | Diameter 8mm(10mm, 12mm are available) 1862mm length*0.5mm thick 2 pcs standard model | |||
Frame | 1.8mm thick joint aluminium alloy | |||

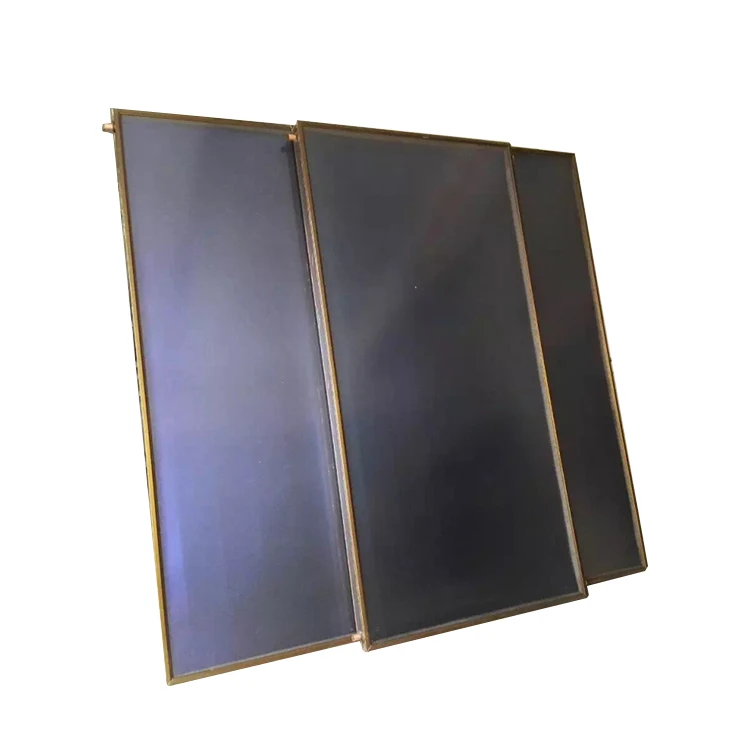

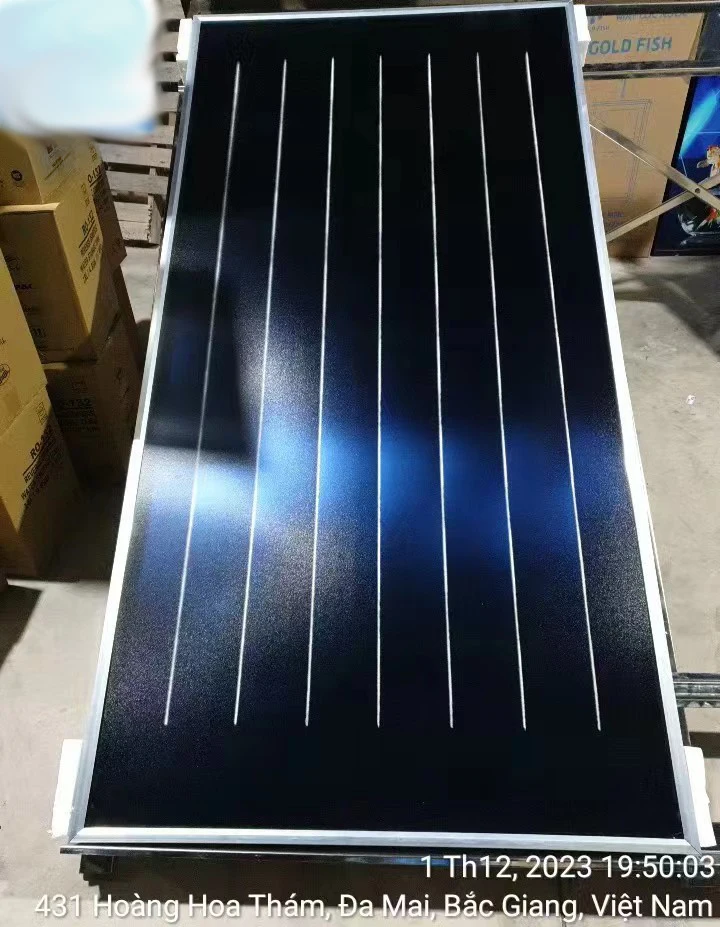

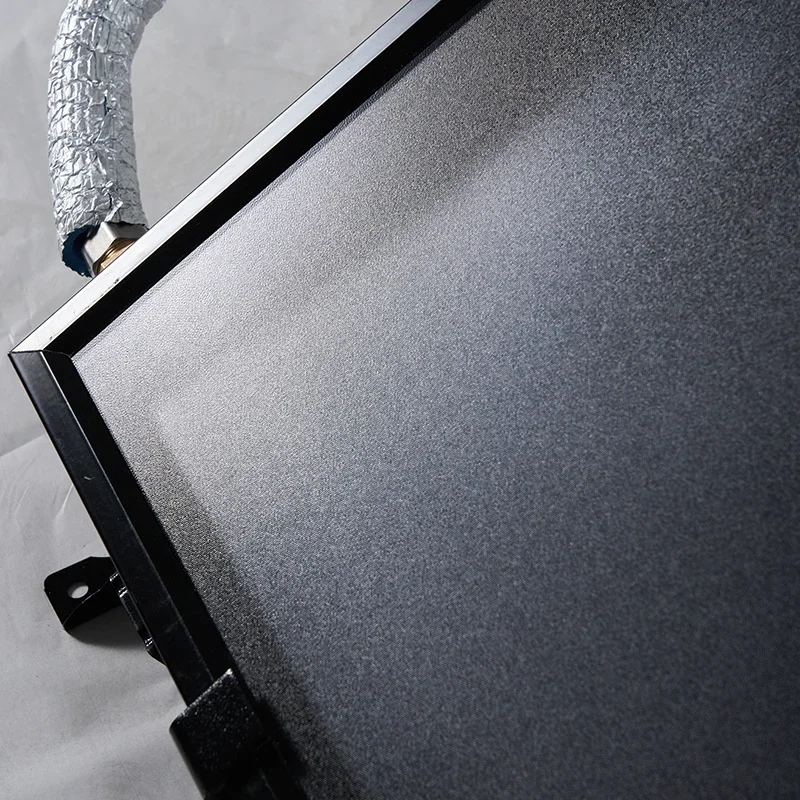

Flat Plate Solar Panel
Tempered low-iron glassUltrasonic welding technology

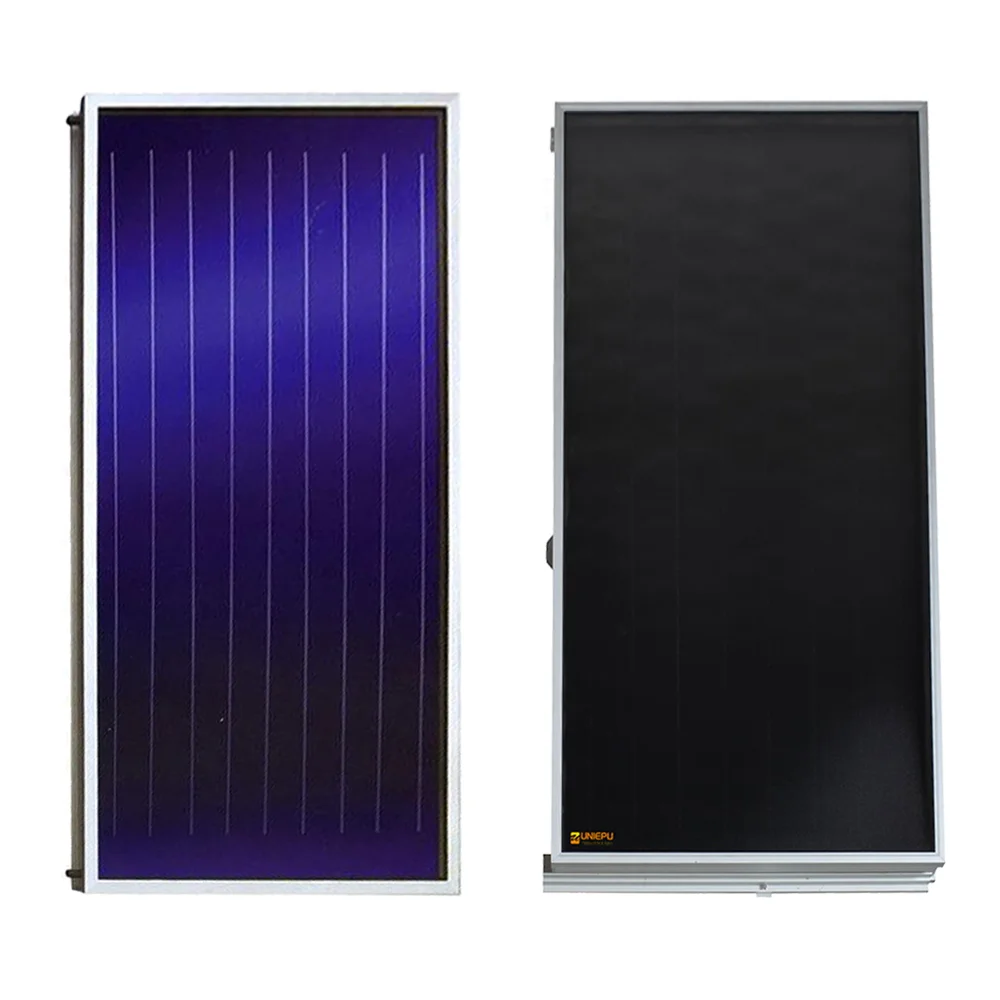

You can choose black-tech coating or blue-tech coating

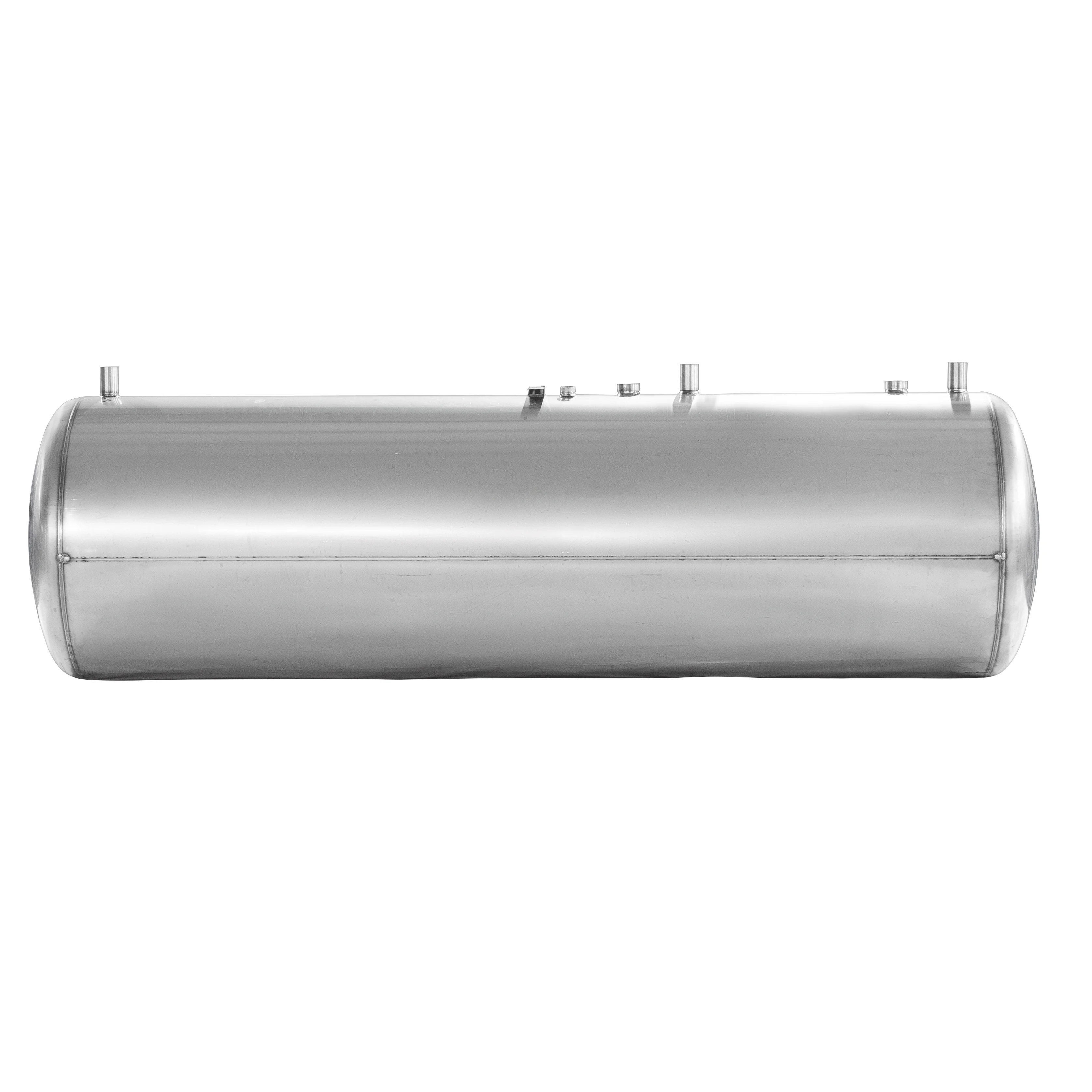

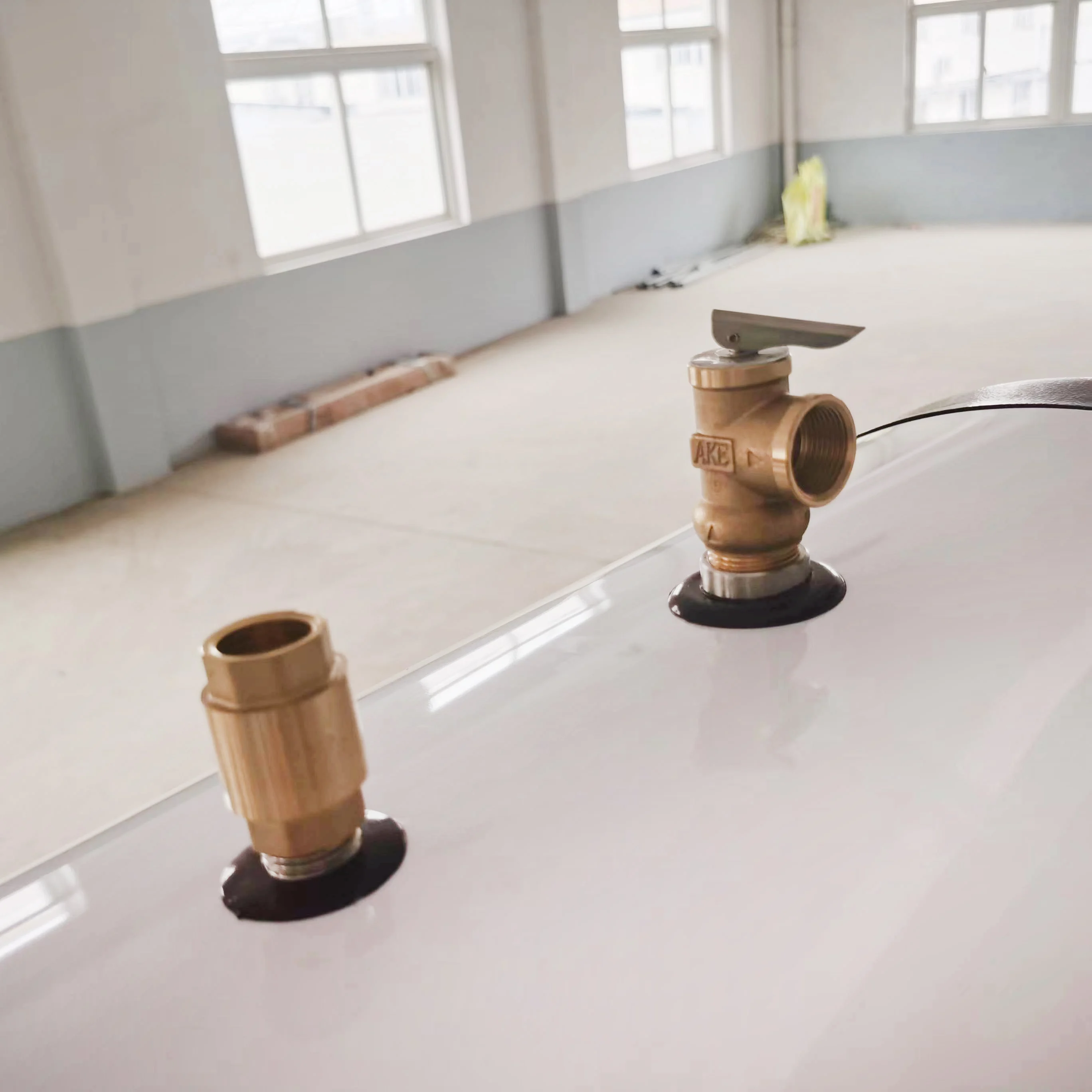

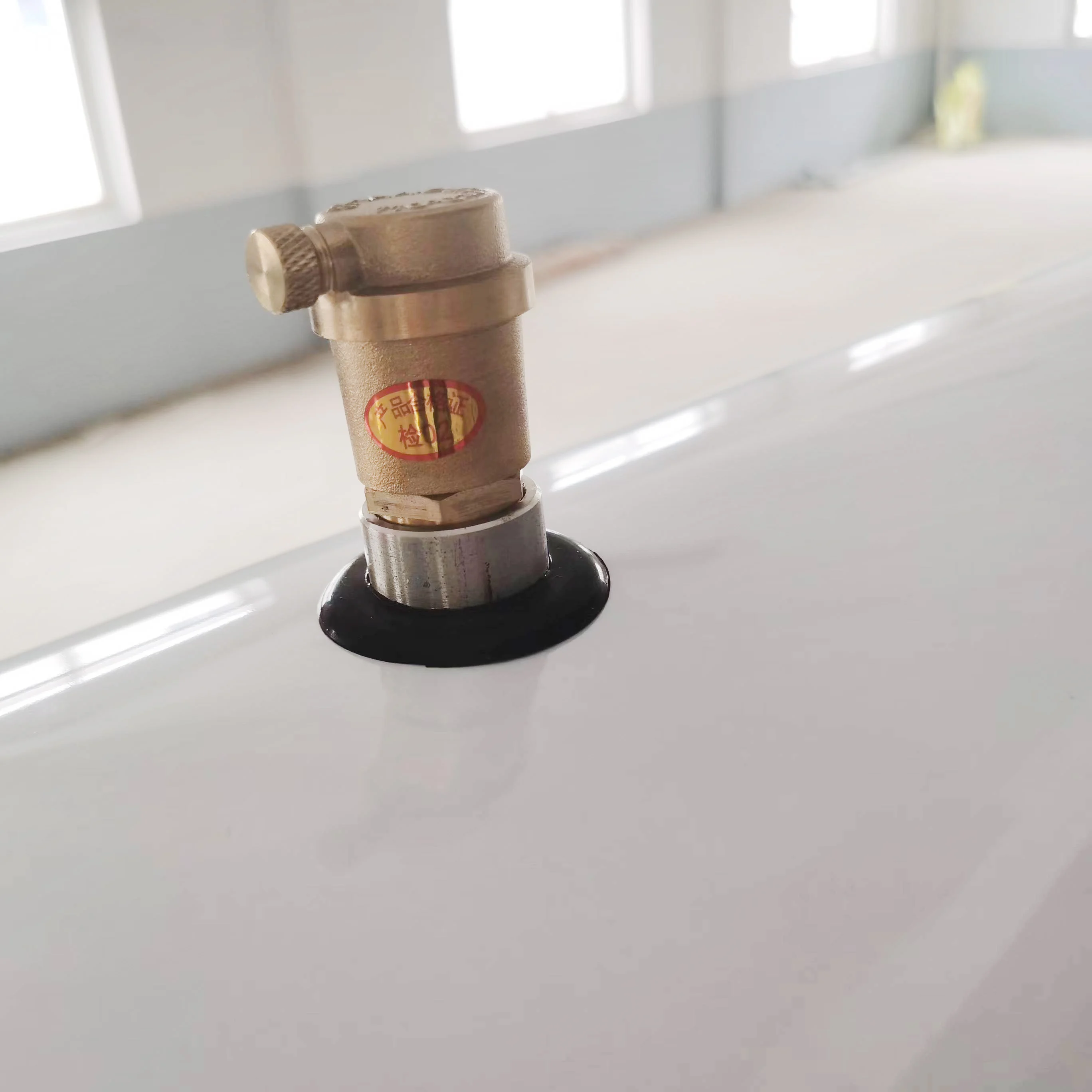

Water Tank
We solemnly promise All inner water tank we produce are made of SUS304 materialand 100% tank leakage testing Argon arc welding
technology
technology

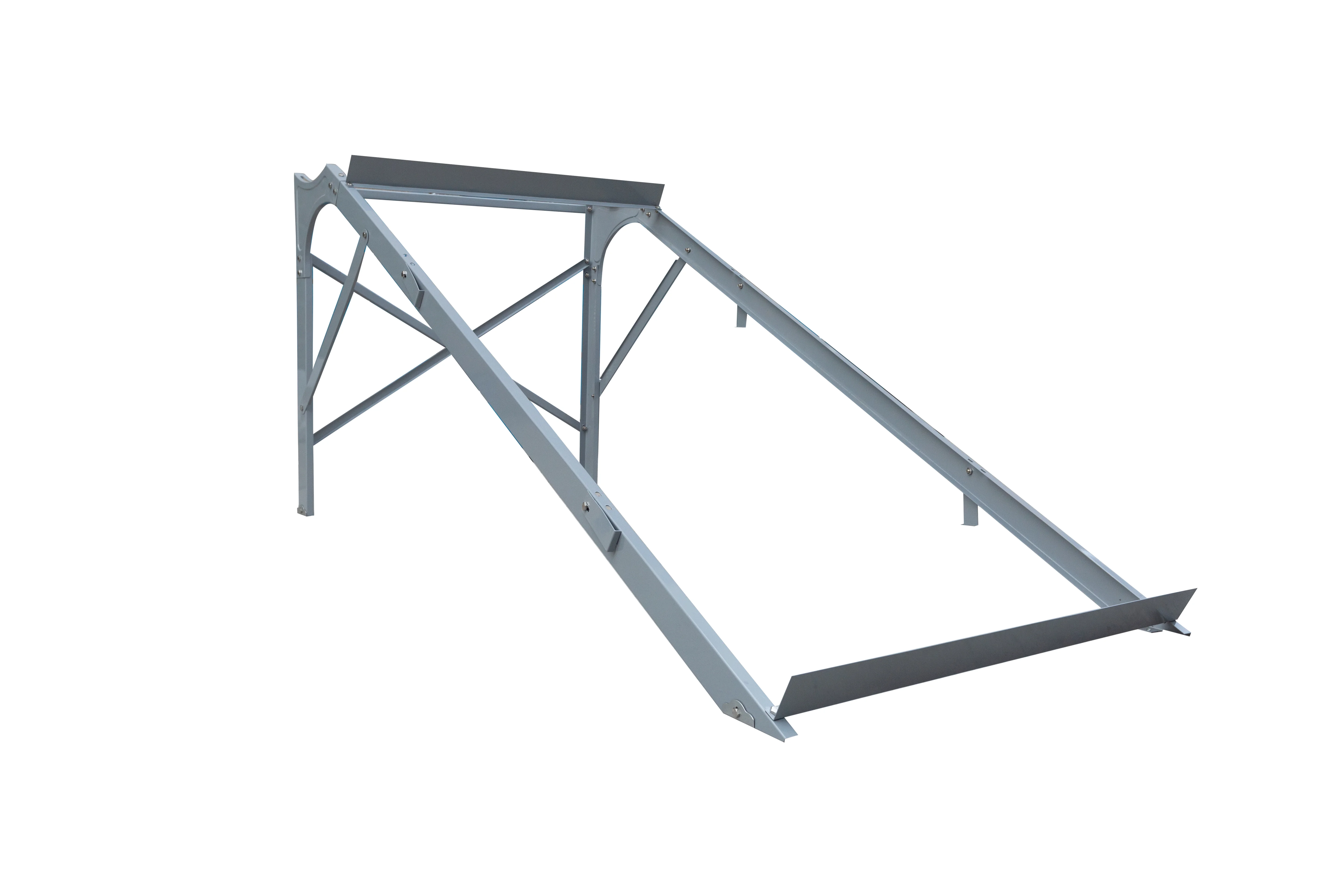

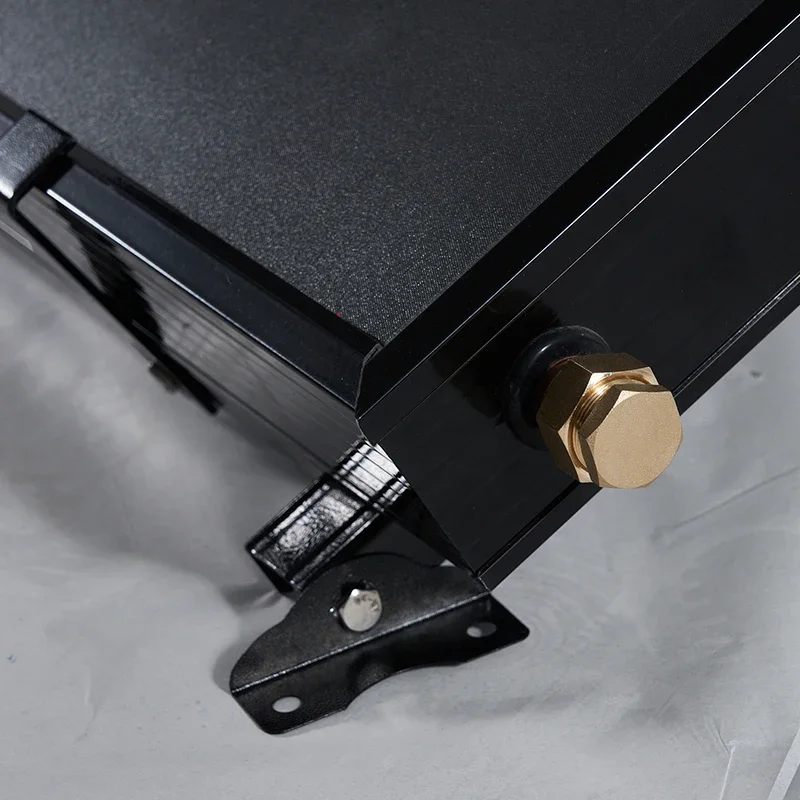

Galvanized Steel Frame
Customizable angle
Anti-corrosive and Anti-ultravioletLife time 10 years
Anti-corrosive and Anti-ultravioletLife time 10 years

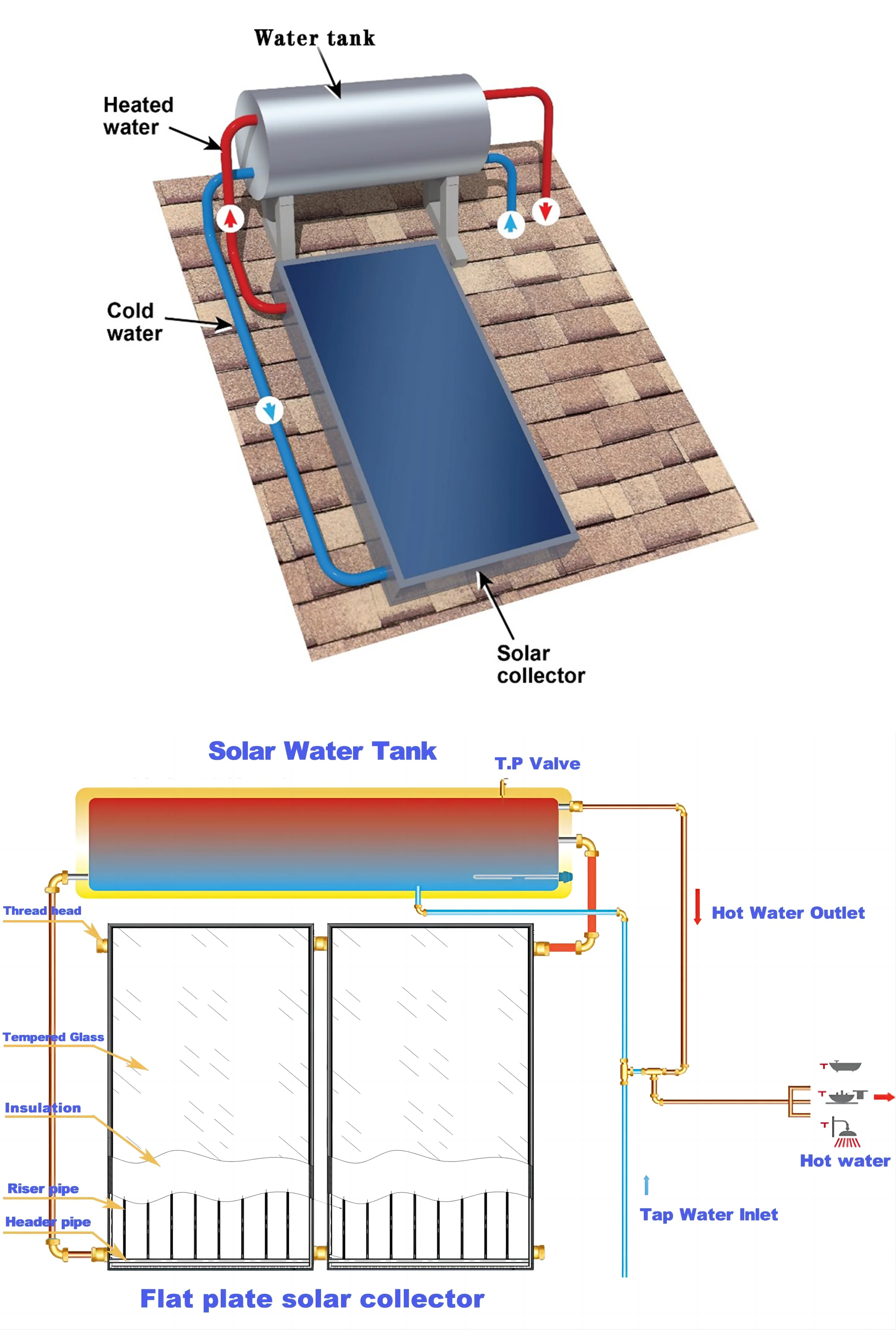

Work principle
Customer Feedback
Hello, very nice to meet you!
If you've read this far, I'd love to share some customers’ feedback with you.

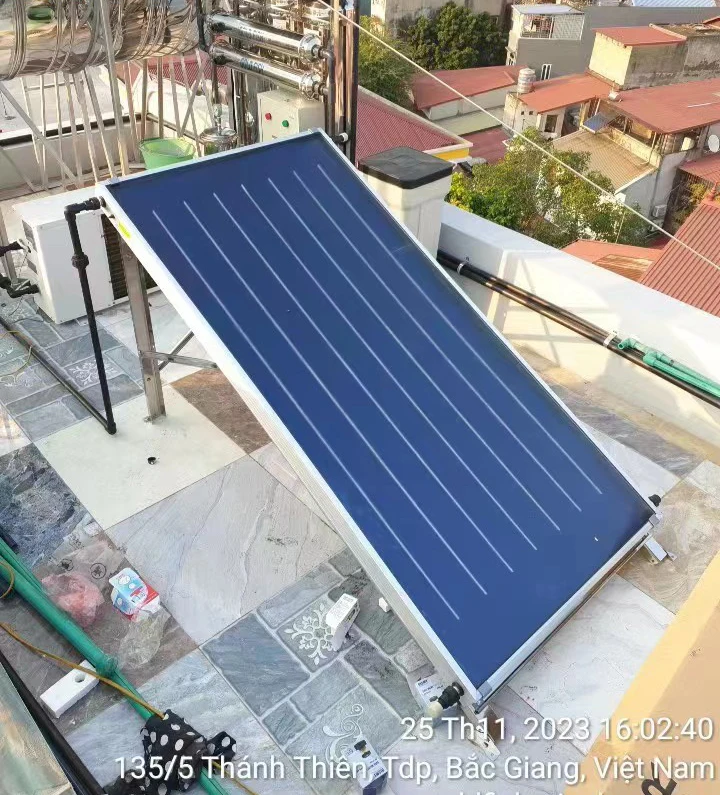

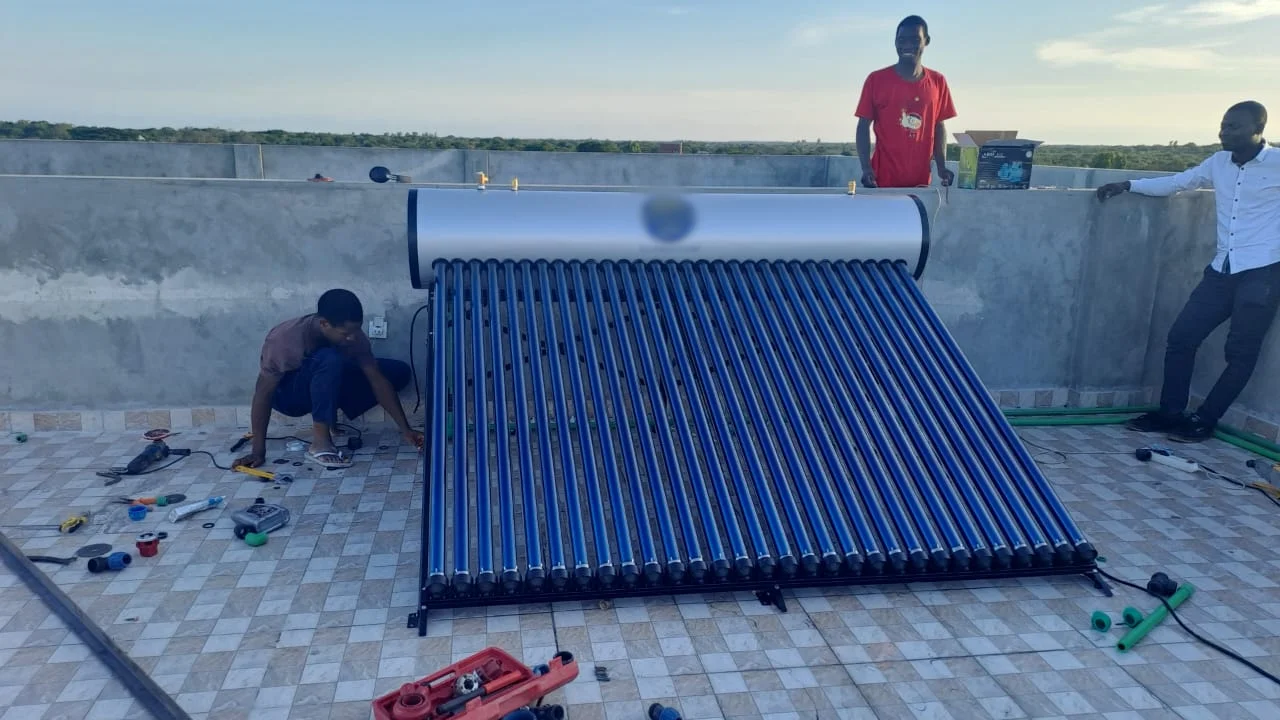

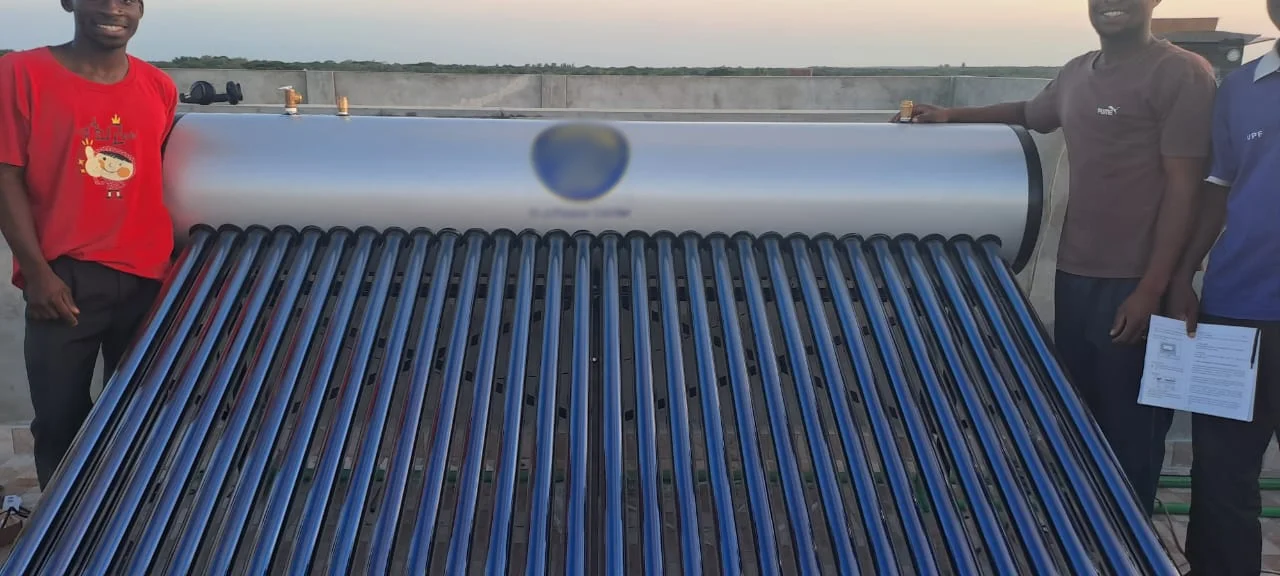

The customer is from Mozambique.

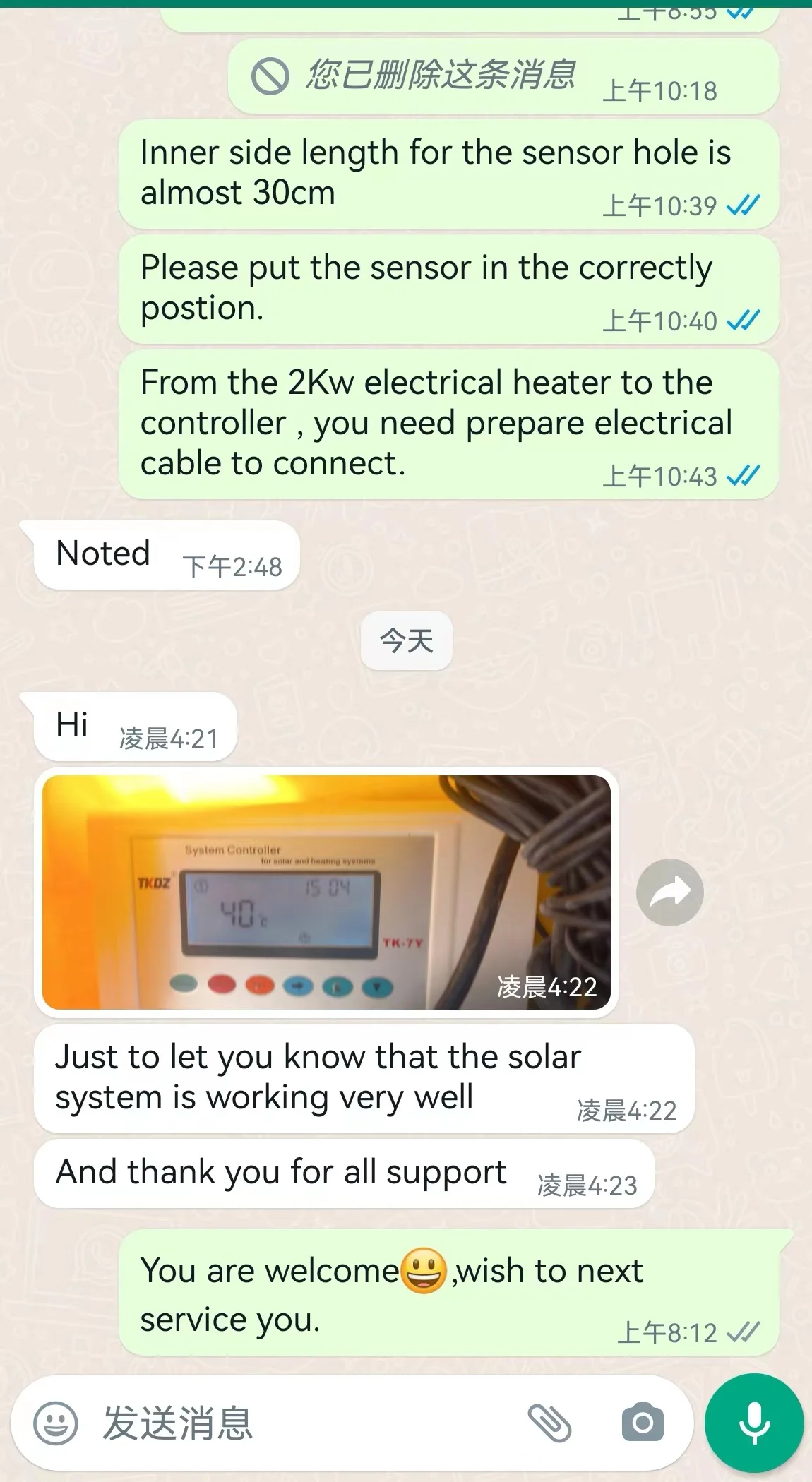

This is a very gentlemanly customer and we had a very pleasant exchange. He purchased a pressurized solar water heater from us for his residence. We gave online guidance cause he had no installation experience. What makes me happy is that the installation was very successful and he gave full recognition to our serve and products.
This is an old customer of ours who has been chatting, inquiring, and placing orders with us very smoothly.
Workshop
Accessories
Recommend Products
Company Profile
Exhibition
Warranty Policy
Compoent | Warranty period |
Manifold and Mounting Frames | 10 years |
Evacuated Tubes and Heat Pipes | 10 years |
Tank (does not include element and thermostat) and Frames for S02,G01,GI01,G02,P02,IP01,R01,FPS01 | 3 years |
Feeding tank | 1years |
Tank Thermostat and Heating Element | 1 year |
Controller | 1 year |
1. This Warranty is effective for uniepu solar water heater systems manufactured and installed after 1 January 2023.
2. If the customer has not paid in full for the uniepu solar water heating system then this warranty does not apply.
3. Warranty against defective factory parts from the date of BL.
4. This Warranty does not apply to any defects or damage NOT due to faulty factory parts or workmanship including, but not limited to, defects or damage caused by or resulting from:
(a) accidental damage, storm damage, vandalism, failure due to misuse or abuse, or neglect of any kind;
(b) incorrect or improper installation of the Uniepu Solar Water Heating System, including but not limited to, installation
otherwise than in accordance with the instructions contained in the owner’s manual supplied by Uniepu or incorrect system selection;
(c) attachment of any parts or accessories other than those manufactured or approved by Uniepu;
(d) power surges;
(e) animals, birds, and/or rodents;
(f) the solar collector being left dry (no liquid circulation) and exposed to daily sunlight (i.e. not covered) for a period
exceeding 14 consecutive days;
(g) excessive water pressure, negative pressure (partial vacuum), excessive temperature, corrosive atmosphere, faulty plumbing and/or electrical wiring;
(h) sludge/sediment as a result of connection to a water supply from filtered or treated sources ie. spring, dam, bore, river, or town supply from a bore;
(i) contamination and corrosion from particles in the water supply;
(j) serial tags/stickers on any of the components being removed or defaced;
(k) the water stored in the cylinder exceeding at any time the following:
Levels: Total hardness 200 mg/litre or p.p.m
Total dissolved solids 600 mg/litre or p.p.m
Electrical conductivity 850 μS/cm
Chloride 250 mg/litre or p.p.m
Magnesium 10 mg/litre or p.p.m
Sodium 150 mg/litre or p.p.m
PH Min 6.5 to Max 8.5.
5. According to the national standard warranty is 3 years, if you want to put the conditions of 5 - 10 years extended warranty, you need to add a 5% fee.
2. If the customer has not paid in full for the uniepu solar water heating system then this warranty does not apply.
3. Warranty against defective factory parts from the date of BL.
4. This Warranty does not apply to any defects or damage NOT due to faulty factory parts or workmanship including, but not limited to, defects or damage caused by or resulting from:
(a) accidental damage, storm damage, vandalism, failure due to misuse or abuse, or neglect of any kind;
(b) incorrect or improper installation of the Uniepu Solar Water Heating System, including but not limited to, installation
otherwise than in accordance with the instructions contained in the owner’s manual supplied by Uniepu or incorrect system selection;
(c) attachment of any parts or accessories other than those manufactured or approved by Uniepu;
(d) power surges;
(e) animals, birds, and/or rodents;
(f) the solar collector being left dry (no liquid circulation) and exposed to daily sunlight (i.e. not covered) for a period
exceeding 14 consecutive days;
(g) excessive water pressure, negative pressure (partial vacuum), excessive temperature, corrosive atmosphere, faulty plumbing and/or electrical wiring;
(h) sludge/sediment as a result of connection to a water supply from filtered or treated sources ie. spring, dam, bore, river, or town supply from a bore;
(i) contamination and corrosion from particles in the water supply;
(j) serial tags/stickers on any of the components being removed or defaced;
(k) the water stored in the cylinder exceeding at any time the following:
Levels: Total hardness 200 mg/litre or p.p.m
Total dissolved solids 600 mg/litre or p.p.m
Electrical conductivity 850 μS/cm
Chloride 250 mg/litre or p.p.m
Magnesium 10 mg/litre or p.p.m
Sodium 150 mg/litre or p.p.m
PH Min 6.5 to Max 8.5.
5. According to the national standard warranty is 3 years, if you want to put the conditions of 5 - 10 years extended warranty, you need to add a 5% fee.
FAQ
Contact us if you have other question！
Q: Are you a factory or trading company?
A: Yes, we are a solar water heater factory in China. Zhejiang Uniepu New Energy is our factory name, and Haiyan Uniepu New Material is our trade company name. Both are us!
Q: Do the products have any certificates?
A: Yes. We have solar keymark. For the air source heat pump monoblock, we have CE.
Q: What's the shipping method and delivery time?
A: Shipped by sea express. Need 20 to 40 days by sea.
Q: How to get the price list?
A:Price list Pls Email/Message/Call to us with your interested products together with your details(name,detailsaddress,telephone,etc), so we can reply to you as soon as possible.
Q: Can I use my own forwarder to transport the products for me?
A:Yes, you can let your forwarder ship the products for you. And then you will no need to pay the freight to us.
If you have another question, pls feel free to contact us!
A: Yes, we are a solar water heater factory in China. Zhejiang Uniepu New Energy is our factory name, and Haiyan Uniepu New Material is our trade company name. Both are us!
Q: Do the products have any certificates?
A: Yes. We have solar keymark. For the air source heat pump monoblock, we have CE.
Q: What's the shipping method and delivery time?
A: Shipped by sea express. Need 20 to 40 days by sea.
Q: How to get the price list?
A:Price list Pls Email/Message/Call to us with your interested products together with your details(name,detailsaddress,telephone,etc), so we can reply to you as soon as possible.
Q: Can I use my own forwarder to transport the products for me?
A:Yes, you can let your forwarder ship the products for you. And then you will no need to pay the freight to us.
If you have another question, pls feel free to contact us!
