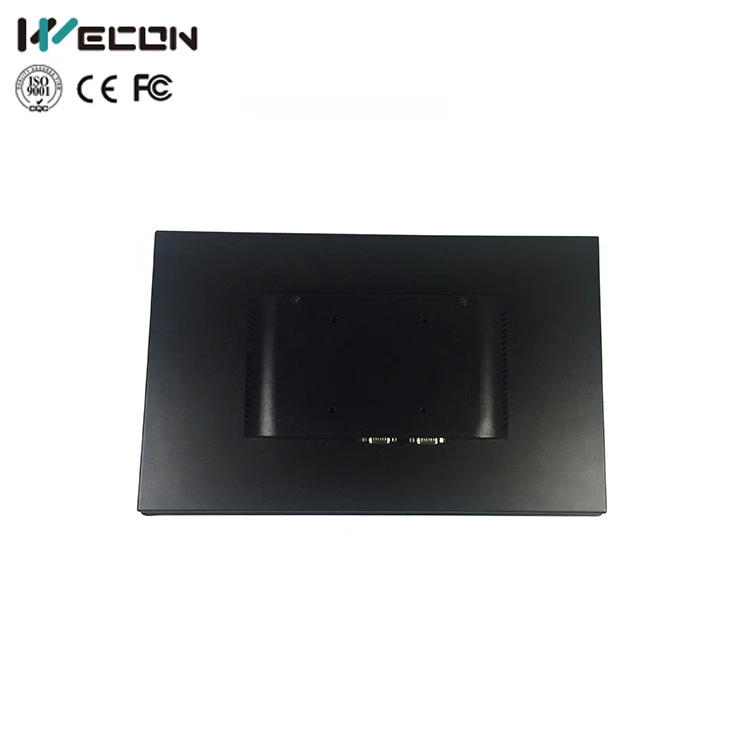

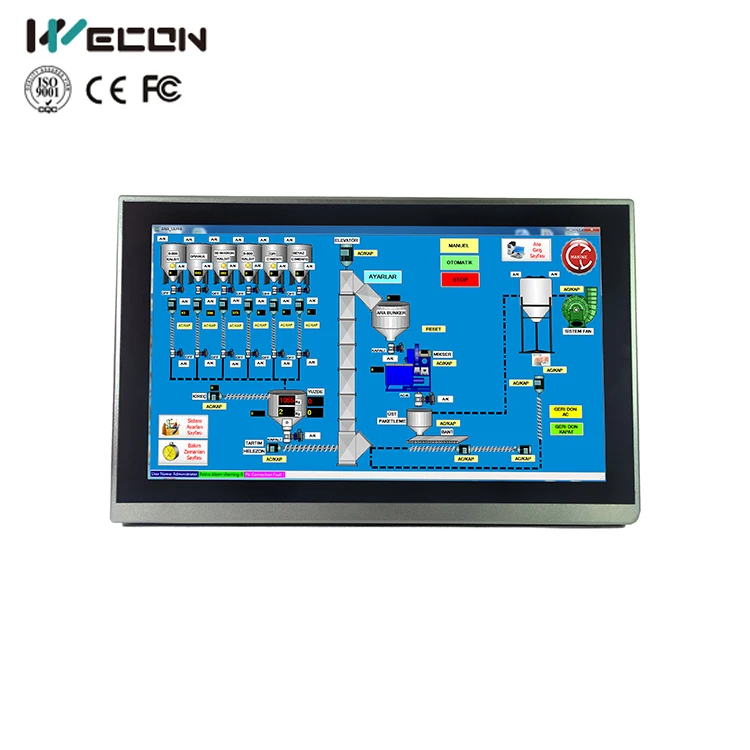

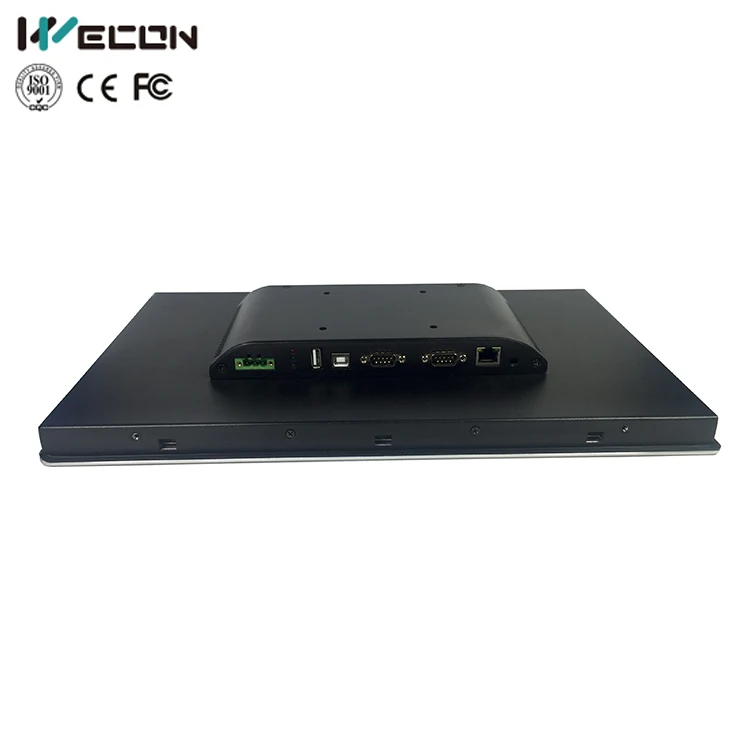

Wecon automation touch panel 15 inch big size tft lcd hmi screen
- Category: >>>
- Supplier: Fuzhou Fuchang WECON Technology Co. Ltd.
Share on (60745438719):
Product Overview
Description
Product Description
Wecon automation touch panel 1500 nits tft lcd hmi monitor
Product specification
General Specifications | |||
Screen Size | 12 inch | 15.6 inch | |
Item | PI9120 | PI9150 | |
Screen Type | TFT LCD | ||
Color | 16000 colors | ||
Resolution | 1920*1080 | ||
Maximum Brightness | 300 cd/m2 | ||
Service Life | > 50,000 hours | ||
Programming Cable | USB cable (D shape) / USB flash disk | ||
CPU | Cortex A9 1.4GHZ | ||
Power Supply | DC12V~28V 50/60Hz | ||
Power Consumption | < 5W | ||
Operating Temperature | -10℃ ~ +60℃ | ||
Protection Level | IP65 | ||
Overall Size (L*W*H) | 312.6W*208.9H*49D | 420.0W*310.0H*62.0D | |
Mounting Size(L*W*H) | 305.0W*201.0H | 381.0W*281.0H | |
Serial Port (COM1) | RS232, RS485 / RS422 | ||
Serial Port (COM2) | RS232,RS485 | ||
Serial Port (COM3) | RS485 | ||
Ethernet | YES | ||
CAN BUS | Optional | ||
USB Host | YES | ||
USB Device | YES | ||
SD Card Slot | YES | ||
Flash | 4G | ||
Memory | DDRIII 512MB | ||
CE certificate | EN61000-6-2:2005,EN661000-6-4:2007 standard | ||
FCC certificate | FCC Class A | ||
