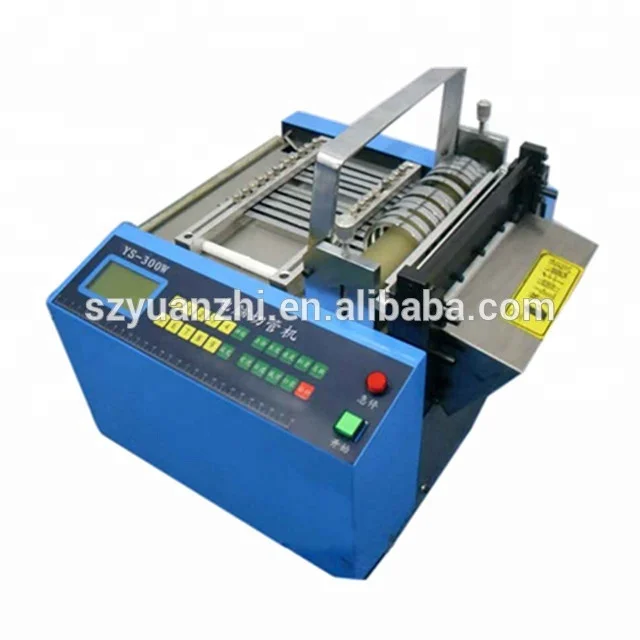

Fast speed nylon tape cutting machine nylon rope nylon webbing cutting machine

Product Overview

Description

Fast speed rope cutting machine

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

 Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc.

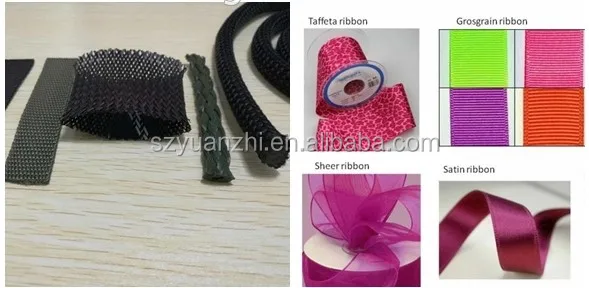

Tape: nickel strap, cotton tape, elastic band, plastic tape, zipper, conductive tape, foam, etc.

 Sheet: battery separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet, etc.

 Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper, etc.

one machine suitable for cutting various kinds of materials



Features

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-QTY & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.



Specification

Model: YS-100

1. Voltage: AC220V/50Hz & AC110V/60Hz

2. Power : 250W

3. Cut Length : 0.1-9999.9mm

4. Cut Width : 0-100mm

5. Cutting Thickness : 0-12mm

6. Dimension : L360*W300*H350MM

7. Net Weight : 28kg



Typical specifications

Electrical Source	220V 50/60HZ
Power	250W
Cut Length	from 0.1 MM to 9999.9MM
Cut Width	from 0.1 MM to 155MM
Cut Speed	It depen on the cut length,from 50 PCS to 120PCS per minute
Net Weight	29KG
Outer size	L360*W370*H350 mm
Packaging detail	Carton or wooden case within foam plastics.L700MM*W550MM*H450MM.

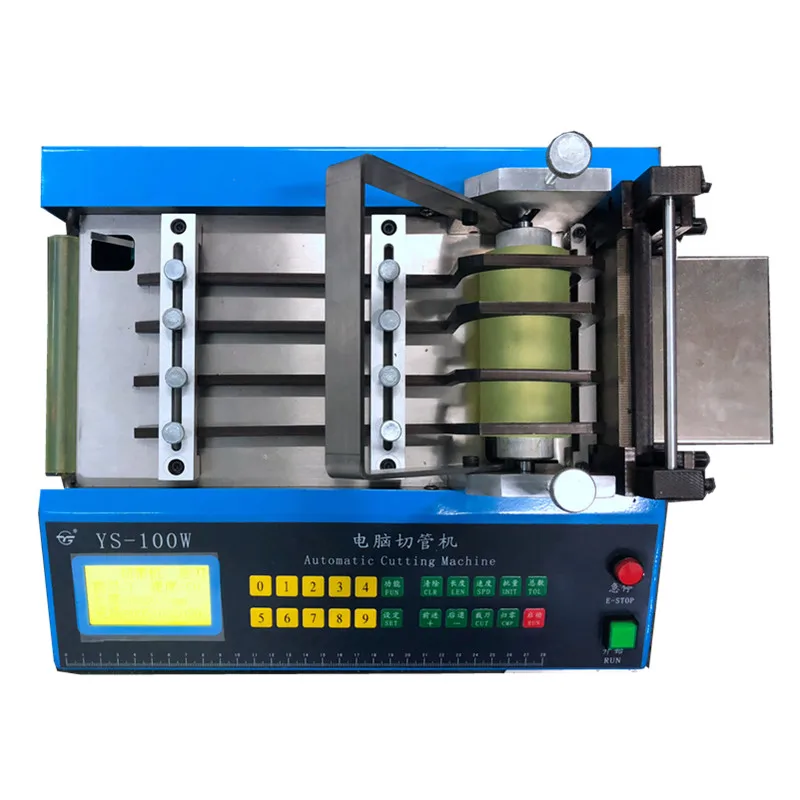

Computerized Cutting Machine

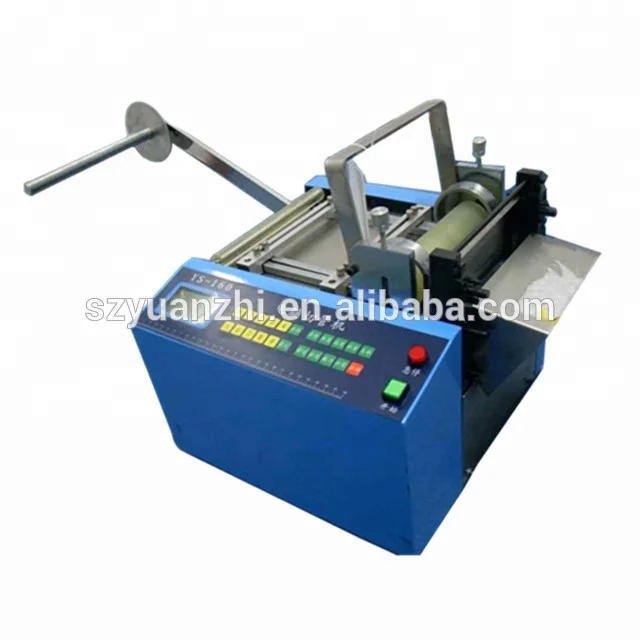

YS-100/YS-120/YS-160

Specifications

Voltage:220/110v 50/60HZ

Power:250w

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28kg

Size:L360*W300/320/360*H350mm

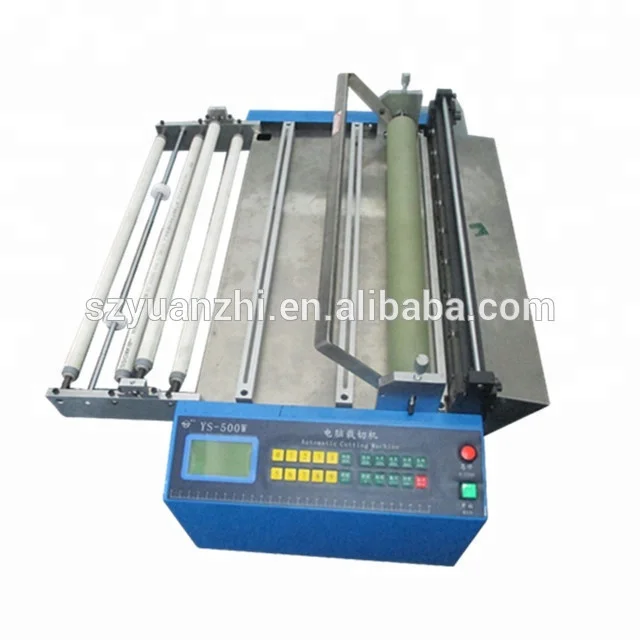

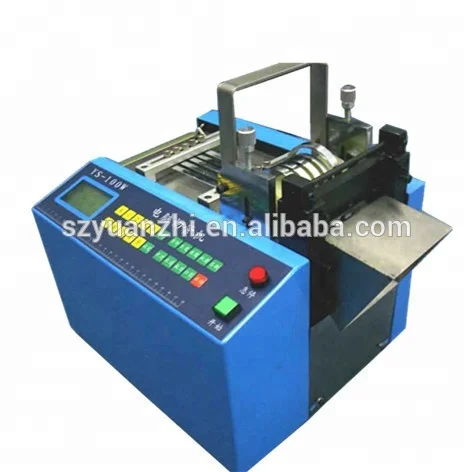

YS-100W/YS-120W/YS-160W/YS-200W

YS-250W/YS-300W/YS-400W/YS-500W

Specifications

Voltage:220/110v 50/60HZ

Power:500w

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28-38kg

Size:L360*W(300-700)*H350mm



Intelligent and High Speed Cutting machine

YS-IH611X series is new developed high speed cutting machine.It is updated according to YS-100~YS-300W series.The speed is 2~2.5 times more than others.Hot sale Machine.

YS-IH6110/YS-IH6112/YS-IH6116

Specifications

Voltage:220/110v 50/60HZ

Power:250w

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28kg

Size:L360*W300/320/360*H350mm

YS-IH6110W/YS-IH6112W/YS-IH6116W

YS-IH6120W/YS-IH6125W/YS-IH6130W

Specifications

Voltage:220/110v 50/60HZ

Power:500W

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28-38kg

Size:L360*W(300-500)*H350mm

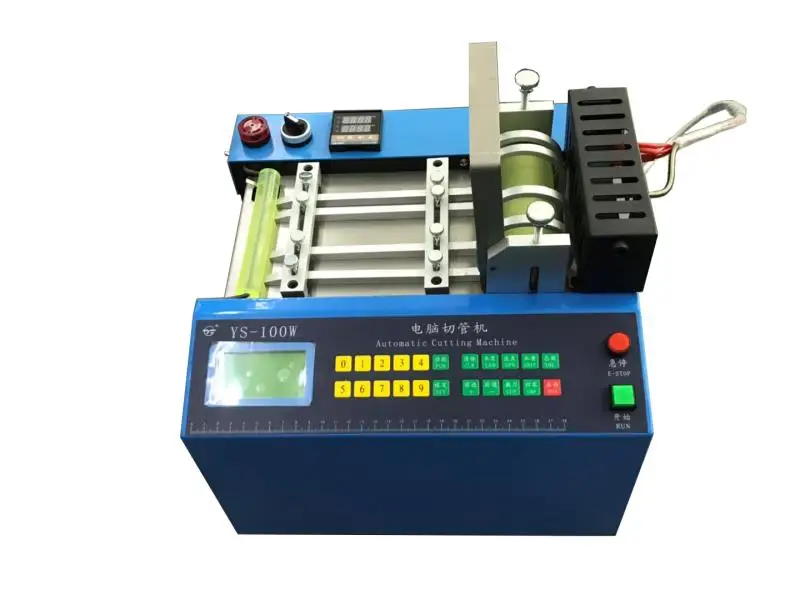

Hot and Cold Cutting Machine

Applications

Suitable for hot cutting material to fuse together



Specifications

Voltage: 220V/110V 50/60Hz

Power: 500W

Temperature: 0°---750° adjustable

Cutting Length: 0.1---9999.9mm

Cutting Width: 0-100mm

Weight: 30KG

Size: L360*W300*H350mm

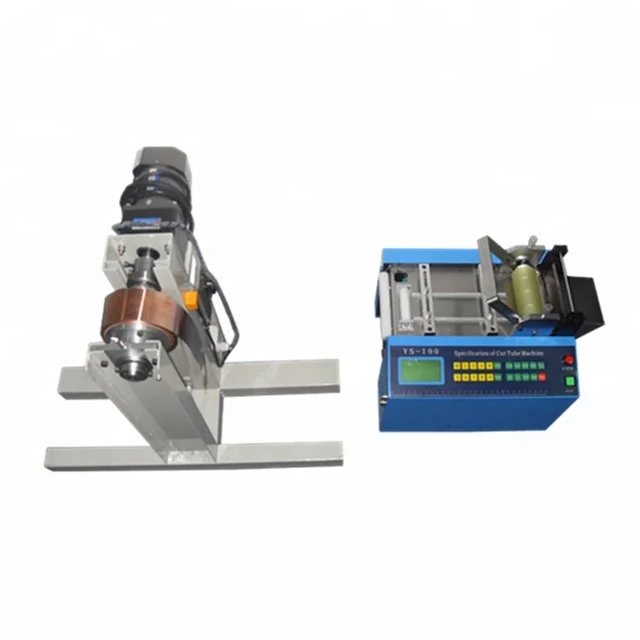

Automatic Cutting Machine With Feeding Device

Introduction

Automatic feeding system is applicable for bigger and heavier material cutting machine. It is suitable for all cutting machine models.



Ordering information

Model No	Cut Width	Machine Size	Net Weight	Power
YS-100, YS-100W	0-100MM	L360*W300*H350MM	29kg	250W/500W
YS-120, YS-120W	0-120MM	L360*W320*H350MM	30kg	250W/500W
YS-160, YS-160W	0-160MM	L360*W360*H350MM	33kg	250W/500W
Model No	Cut Width	Machine Size	Net Weight	Power
YS-200W	0-200MM	L360*W400*H350MM	35kg	500W
YS-250W	0-250MM	L360*W450*H350MM	40kg	500W
YS-300W	0-300MM	L360*W500*H350MM	45kg	500W

PS: For cutting tubes, according to the diameter of the tubes, choose suitable machine.

YS-100: Cut tubes with diameter less than 13mm

YS-120WH: Cut tube with diameter less than 22mm
