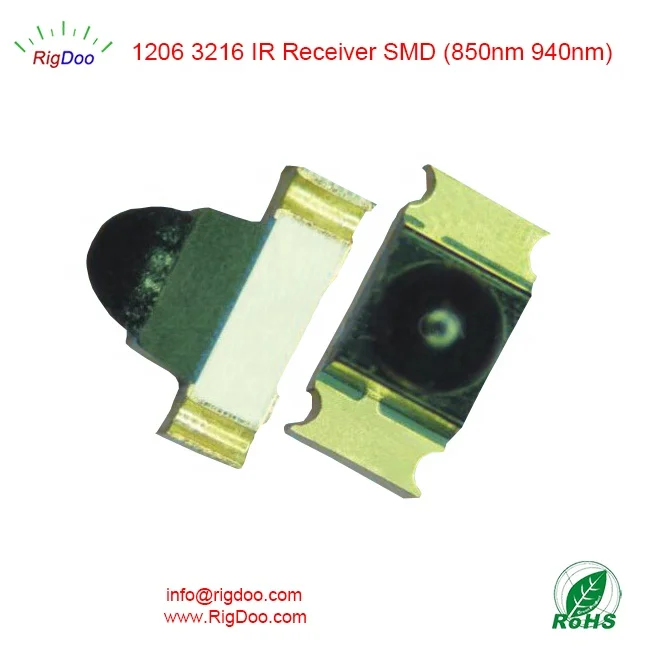

Free Samples RoHS 1206 3216 Infrared 940nm Receiver Transistor IR Receiver Transistor Electronic Components Manufacturer
Free Samples RoHS 1206 3216 Infrared 940nm Receiver Transistor IR Receiver Transistor Electronic Components Manufacturer
Free Samples RoHS 1206 3216 Infrared 940nm Receiver Transistor IR Receiver Transistor Electronic Components Manufacturer

Free Samples RoHS 1206 3216 Infrared 940nm Receiver Transistor IR Receiver Transistor Electronic Components Manufacturer

Share on (60745505146):


Price:RUB 2.28

Quantity:


Product Overview

Description

Product Name

Free Samples RoHS 1206 3216 Infrared 940nm Receiver Transistor IR Receiver Transistor Electronic Components Manufacturer

Product Description



Features

Package ( L/W/H ) : 3.2×1.6×2.38 mm
Wavelength Received : 940nm
Lens: Black Round Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

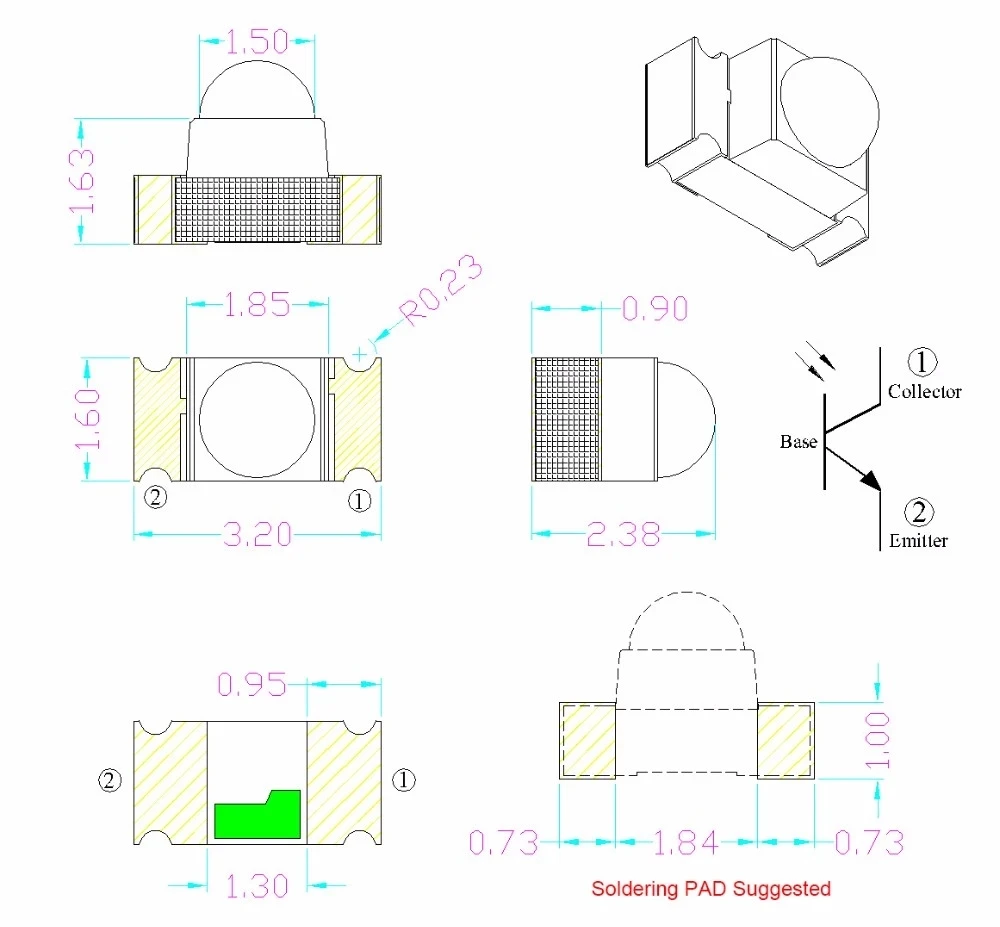

Package Profile & Soldering PAD Suggested


Absolute Maximum Ratings At Ta=25℃

Parameter
Symbol
Rating
Unit
Collector-Emitter Voltage
Vceo
30
V
Emitter-Collector Voltage
Veco
5
V
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds

Electrical Optical Characteristics At Ta=25℃

Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Collector-Emitter Breakdown Voltage
BVceo
85
---
---
V
Iceo =100μA
Ee=0mW/cm2
Emitter-Collector Breakdown Voltage
    BVeco
8.2
  ---
---
V
Ieco =10μA
Ee=0mW/cm2
Collector-Base Breakdown Voltage
BVcbo
85
---
---
V
Icbo =100μA
Ee=0mW/cm2
Collector Dark Current
Iceo
---
---
30
uA
Vce=20V
Ee=0mW/cm2
Collector Dark Current
Iceo
---
---
150
uA
Vce=70V
Ee=0mW/cm2
Collector-Emitter Saturation Voltage
Vce(sat)
---
---
0.3
V
Ic=2mA, Ib=100μA
Ee=1mW/cm2
Peak Sensitive Wavelength
λp
---
880
---
nm
---
Current Amplification Factor
hFE
200
---
2300

Vce=5V, Ic=2mA
Photocurrent
Ipce
4
---
6
mA
Ee=1mW/cm2, λp=940nm
Vce=5V
Spectral Bandwidth
λ0.5
700
---
1100
nm
---
Rise Time
Tr
---
15
---
uS
Vce=5V, Ic=1mA
RL=1000Ω
Fall Time
Tf
---
15
---
uS
Vce=5V, Ic=1mA
RL=1000Ω


Packing

Product Categorie
Certificates


Application


Company Information




Company Profile

Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry. RigDoo specially R&D, manufacture and sales LED, SMD LED, Through Hole LED and High Power COB integrated LED.

We have hundreds of machines of Crystal Bonders (ASM), Wire Bonders (ASM, K&S), Dispensing Machines (Musashi), Molding Machines (Single Well), Slicing Machines (DISCO), Sorting Machines (Ka Large, Single Well, Tripod) and Tape Loading Machines (Mason, Ka Large, Single Well and Tripod) etc..

For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB, RGBW, RGBWW etc..

For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..

For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.

Our factory are with certificates of ISO9001 and ISO14000.
Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
FAQ

Q1. Can I have samples order for LED?
Yes, if quantity is small, we can supply samples free of charges. Just you need pay for shipping cost. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the samples via DHL, TNT, UPS, FedEx or Aramex.


Q2. What about the lead time?
If we have the products in our stock, lead time is 3-5 days. If we need special production, lead time is around 15 days.


Q3. Do you have any MOQ limit for LED order?
Yes, normally, MOQ is SPQ, Standard Packing Quantity.


Q4. How do you ship the goods and how long does it take to arrive?
Normally we ship the goods via international express. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the products via DHL, TNT, UPS, FedEx or Aramex. It takes around 2-6 days to arrive. And we can also ship the goods to your agent in China Mainland or HongKong.
