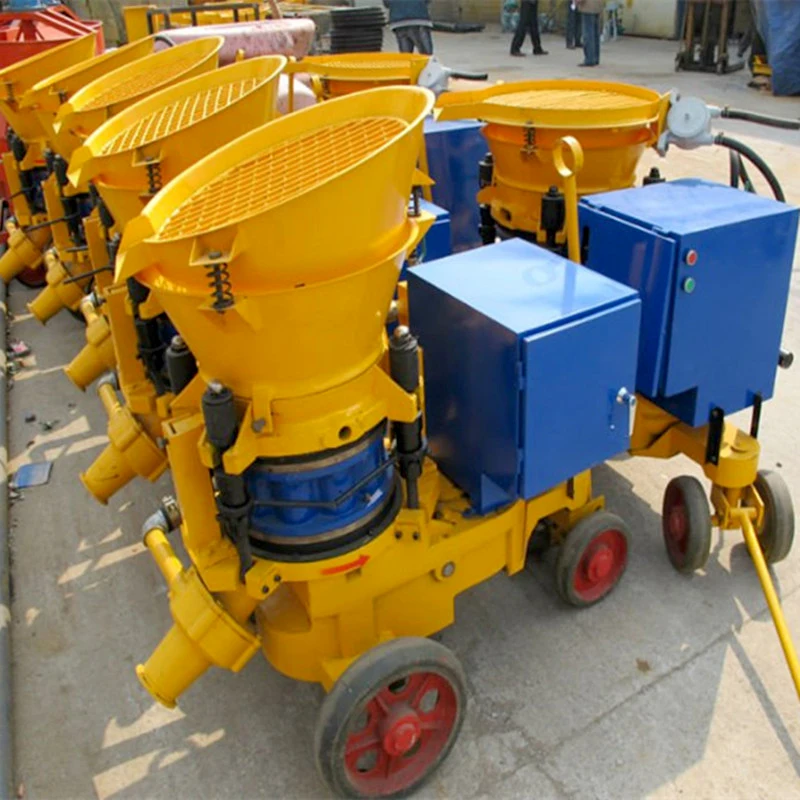

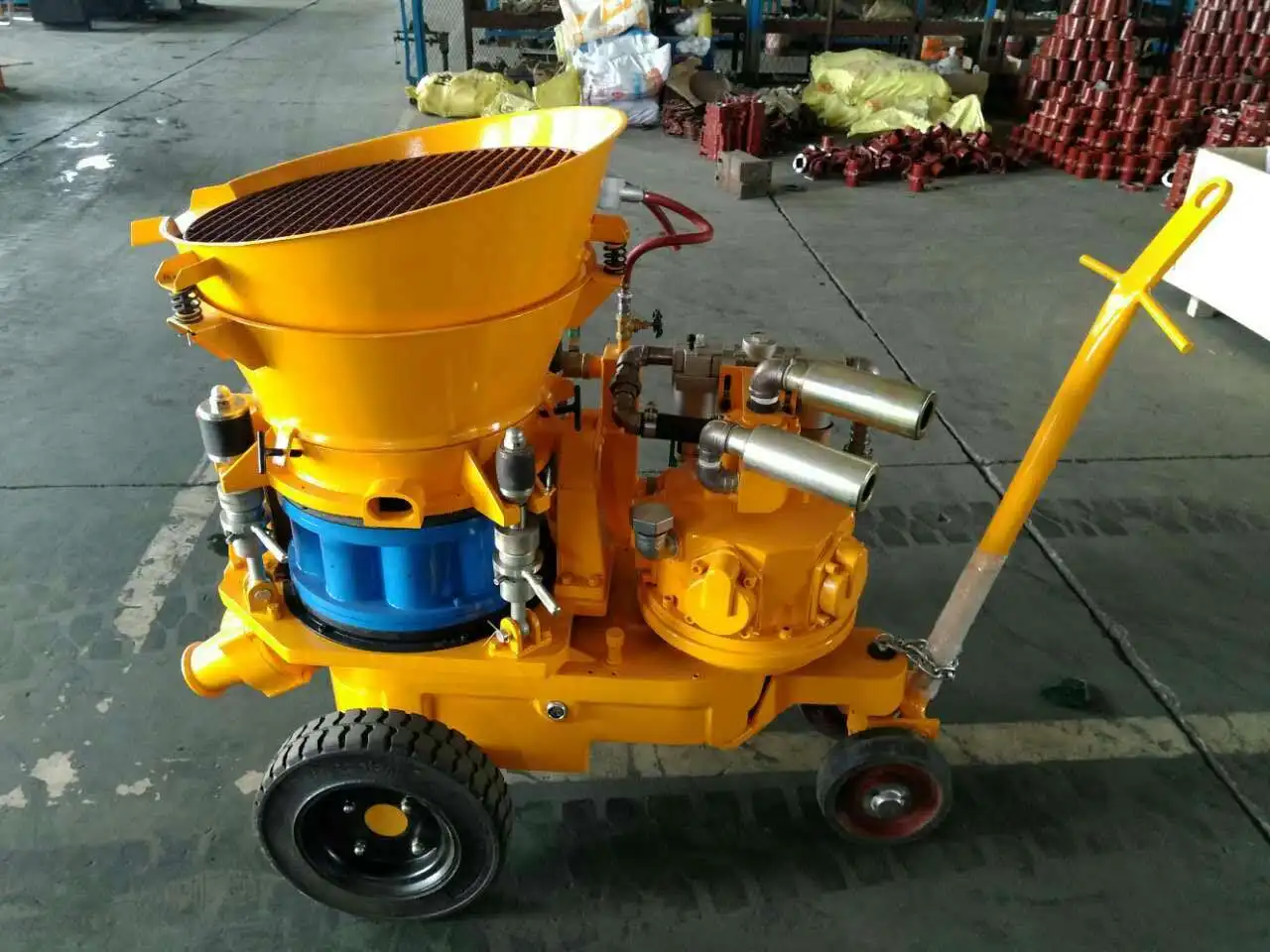

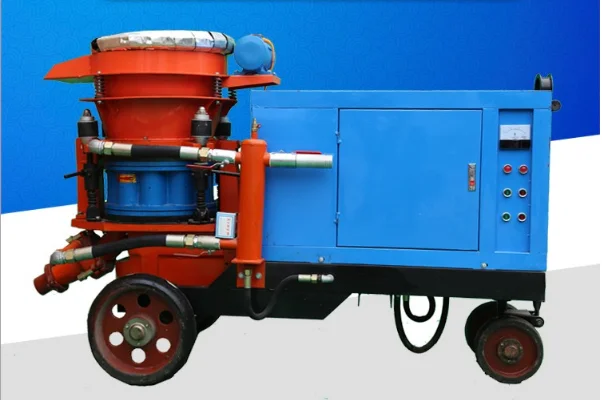

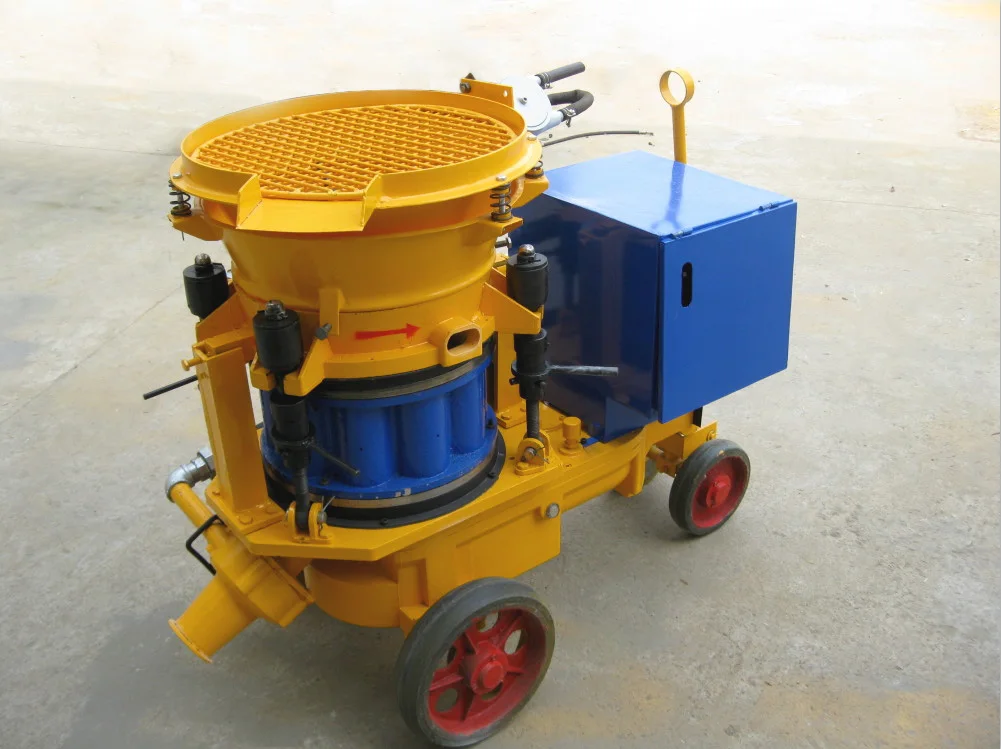

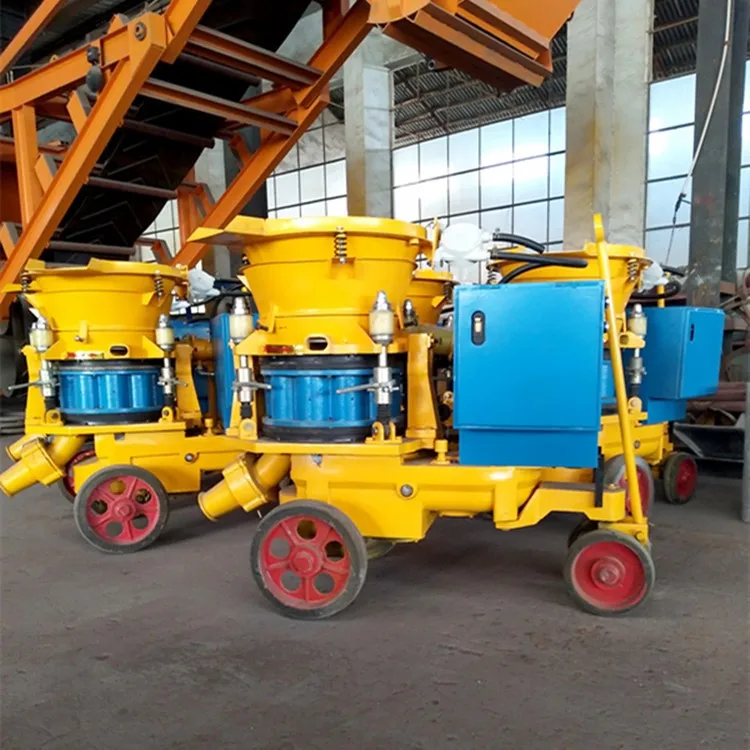

Electric dry Shotcrete machine PZ-3 concrete spraying plaster machines for sale
1. Xinyu PZ-3 gunning machine is mainly used for tunnel, hydro-power engineering,mines, underground engineering, civil engineering and slope stabilization, etc.
2. Refractory material spraying and repair for industrial kilns or kilns's inner .
2.Features:
1. Advantages: This is a high-effective shotcrete machine, which is mainly used for dry- mix, damp-mix shotcreteing and steel fiber reinforced shotcreting.
2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3. Four-point clamping device make it easy to adjust the press between seaing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4.Technical Parameters:
Item
PZ-3
Output
3m3/h
Max. conv. dist
200m
Water cement ratio
0.4
Max. Aggregate. size
10mm
Hose inner size
42mm(2'')
Operating air pressure
0.2~0.6MPa
Air consumption
5~6m3/min
Motor power
3kW(4hp)
Voltages
380v,440v,660v,1140v 50HZ/60HZ
Basic chassis
type , skid ,rail wheel
Packaging & Shipping
According to the size of the machine you need,we have adopted the different packing.
If you have special circum stanstances according to your requirments packing.
