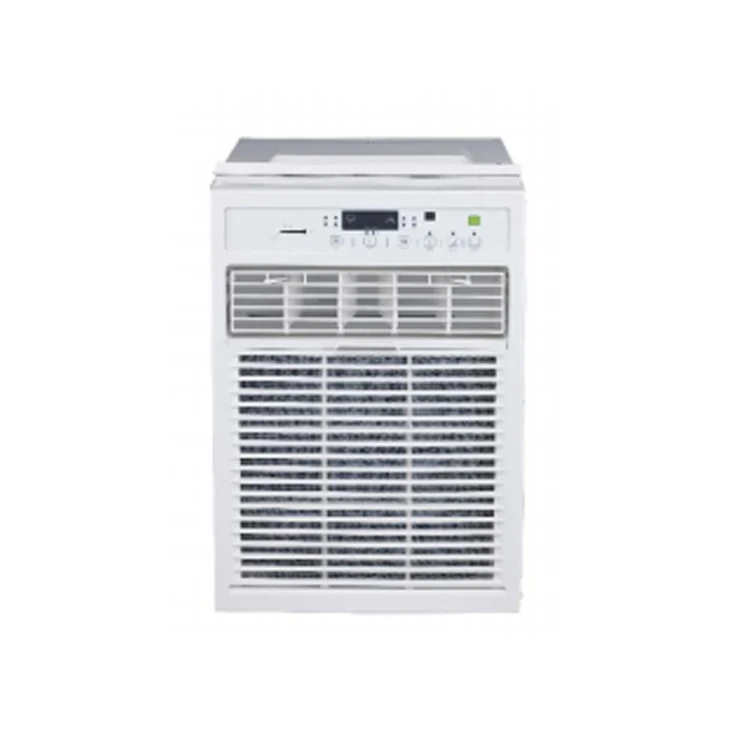

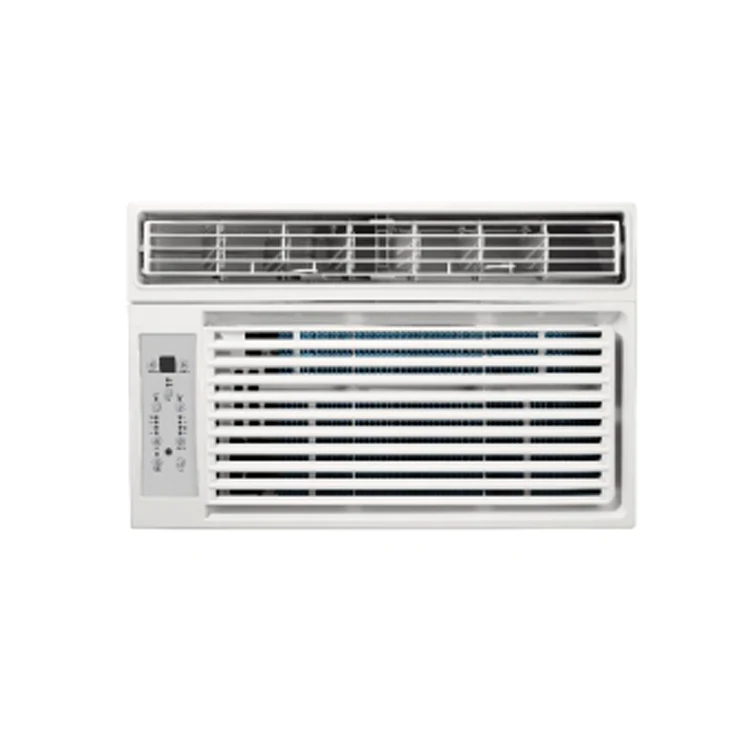

Low power consumption energy saving high efficiency cheap price 12000btu 1.5hp window type air conditioner
- Category: >>>
- Supplier: Shenzhen Midas Electronic Co. Ltd.Shenzhen Ltd.
Share on (60745577844):
Product Overview
Description
| Project NO. | 0.7HP | ||
| Code | mechanical | ||
| New code | 22020320000823 | ||
| Factory model | PH-KC21/N1-F1F(C2) | ||
| Sale model | MWF1-07CMN1-NC2 | ||
| Power supply | Ph-V-Hz | 1Ph,220-230V~ 60Hz, | |
| Cooling | Capacity | Btu/h | 7080 |
| Input | W | 680 | |
| Current | A | 3.2 | |
| EER | W/W | 3.05 | |
| Moisture Removal | L/h | 0.8 | |
| Rated input consumption | W | 1100 | |
| Rated current | A | 5.5 | |
| Starting current | A | 18 | |
| Compressor | Model | ASN68N1UDZ | |
| Type | Hermetic Motor | ||
| Brand | GMCC | ||
| Capacity | Btu/h | 6943/7029 | |
| Input | W | 674/683 | |
| Rated current(RLA) | A | 3.33/3.08 | |
| Locked rotor Amp(LRA) | A | 18 | |
| Thermal protector | BF635-MA | ||
| Thermal protector position | EXTERNAL | ||
| Capacitor | uF | 20 | |
| Refrigerant oil/oil charge | ml | ESTER OIL VG74.300.ml | |
| Fan motor | Model | YKT-32-6-2/YSK32-6BC | |
| Input | W | 77/72/68 | |
| Capacitor | uF | 2 | |
| Speed(Hi/Mi/Lo) | r/min | 1030/940/780 | |
| Evaporator | a.Number of rows | 3 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21×13.37 | |
| c.Fin spacing | mm | 1.2 | |
| d.Fin type (code) | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | |
| f.Coil length x height x width | mm | 255x294x40.11 | |
| g.Number of circuits | 2 | ||
| Condenser | a.Number of rows | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | |
| c.Fin spacing | mm | 1.2 | |
| d.Fin type (code) | UnHydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ5,innergroove tube | |
| f.Coil length x height x width | mm | 480x332x23.2 | |
| g.Number of circuits | 2 | ||
| Refrigerant type | kg | R410A/0.34 | |
| Design pressure | MPa | 4.2/1.5 | |
| Plug type | 18#x3 / SP008 | ||
| Control type | Mechanical Control | ||
| Operation temp | indoor(cooling/heating) | ℃ | 17-32/--- |
| outdoor(cooling/heating) | ℃ | 18-43/--- | |
| Application area (Cooling Standard) | m2 | 9-14 | |
| Dimension(W*D*H) | mm | 445x415x320 | |
| Packing (W*D*H) | mm | 495x580x435 | |
| Net/Gross weight | Kg | 32/34.6 | |
| Loading quantity 20’ /40’ /40'HQ | Pieces | 220/480/576 | |
