Share on (60745596706):


Price:$325.35 - $335.21

Quantity:


Product Overview

Description









Product Description


Key Features:
◆ Pure Sine Wave Solar Hybrid Inverter;
◆ Be able to run without battery;
◆ One-key restoring to factory default settings;
◆ Built-in Lithium battery automatic activation;
◆ Bulit-in 160A MPPT solar controller(for 10.2KW), 140A(for 7.2KW);
◆ Max 7500W & 10800W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment.
◆ Smart battery charge design to maximize battery lifespan
◆ Dual PV Input & AC output;
◆ WIFI available for IOS and Android systems.


Specification


Model
SCI-EVO-7200
SCI-EVO-8200
SCI-EVO-10200
RATED POWER
7200W
8200W
10200W
Maximum PV Input Power
7500W
8200W
10800W
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT DC Voltage Range
90-450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
1/27A
2/18A
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)
98%
OFF-GRID OPERATION
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable AC Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
40A
40A
50A
Nominal Operating Frequency
50/60Hz
Surge Power
14400W
16400W
20400W
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER
Nominal DC Voltage
48VDC
48VDC
48VDC
Maximum Charging Current(Solar to AC)
140A
160A
160A
Maximum AC Charging Current
120A
140A
160A
GENERAL
Dimension, D x W x H (mm)
500*390*130mm
500*390*130mm
530*390*130mm
Net Weight (kgs)
13.1kg
13.1kg
14.5kg
Humidity
5% to 95% Relative Humidity (Non-condensing)

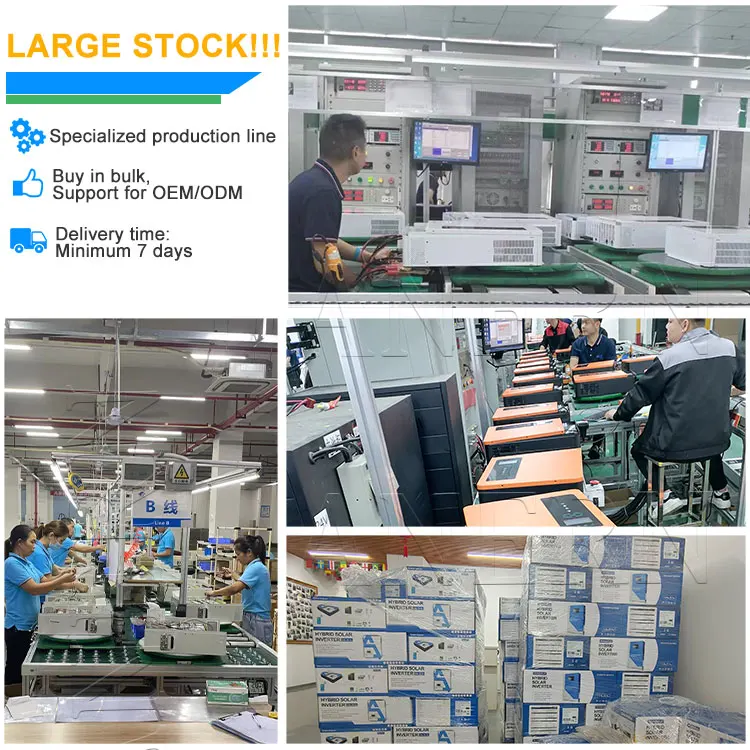

Factory


Anern Group company, owning three factories, big production capacity, OEM/ODM available. Anern is a reputable and famous trademark in China and abroad. Business scope covering diversified models of solar panels, hybrid inverters, lithium battery, solar power systems, etc.




Packaging & Shipping


Anern has strong supply capacity with a fast delivery time and the shortest delivery time is 7 days.




Certifications




Exhibition


Anern products are ISO9001, CE, ROHS,TUV, ISO, FC approved, meeting various certification requirements for different countries, Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.




Company Profile


Anern has 14 years of manufacturer experience in solar energy system field with strong R&D ability. We have a professionable technique team engaged in R&D, with our own patents and unique features.
