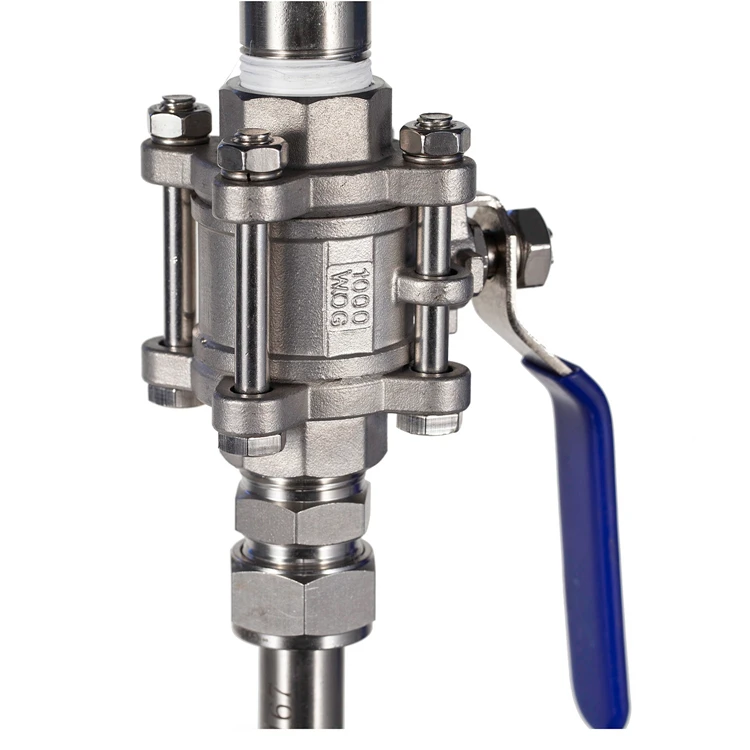

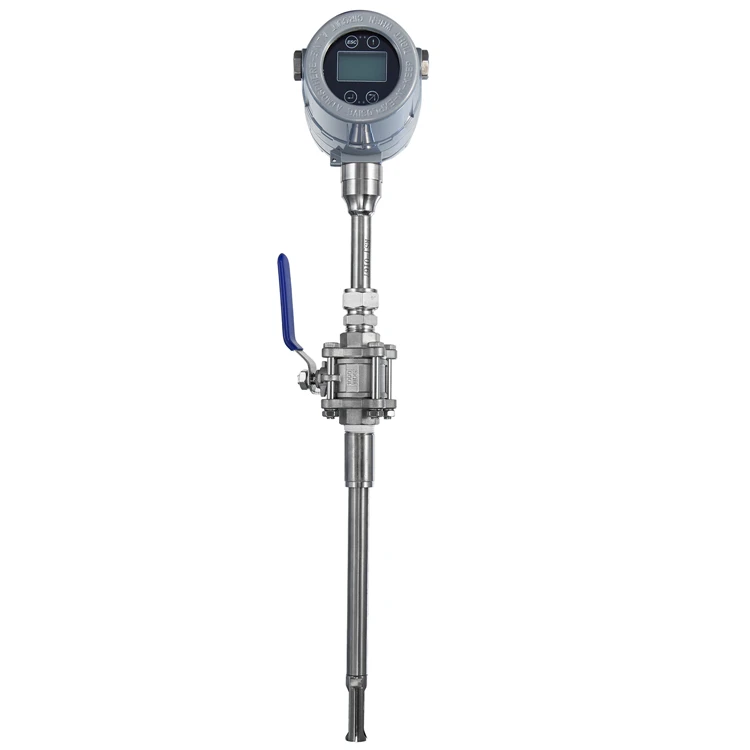

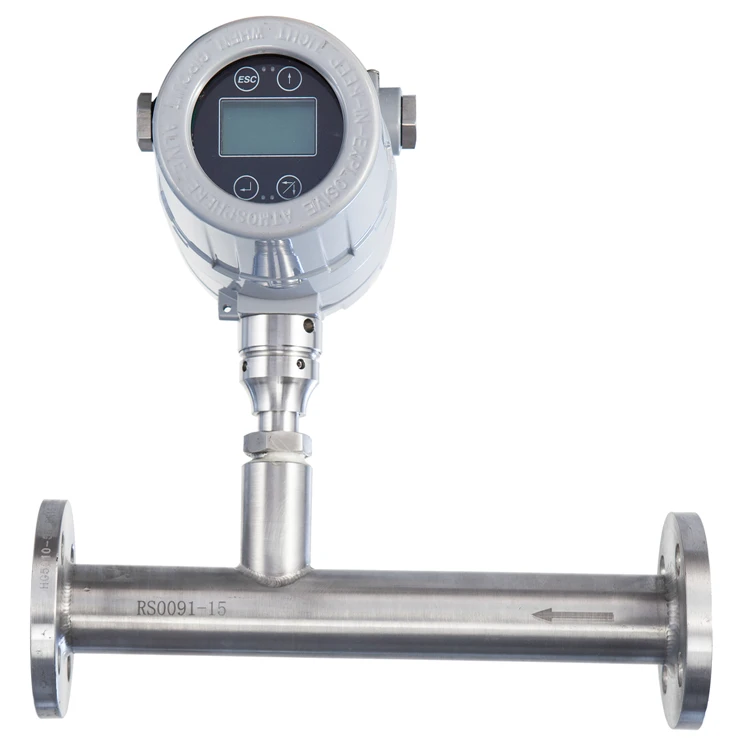

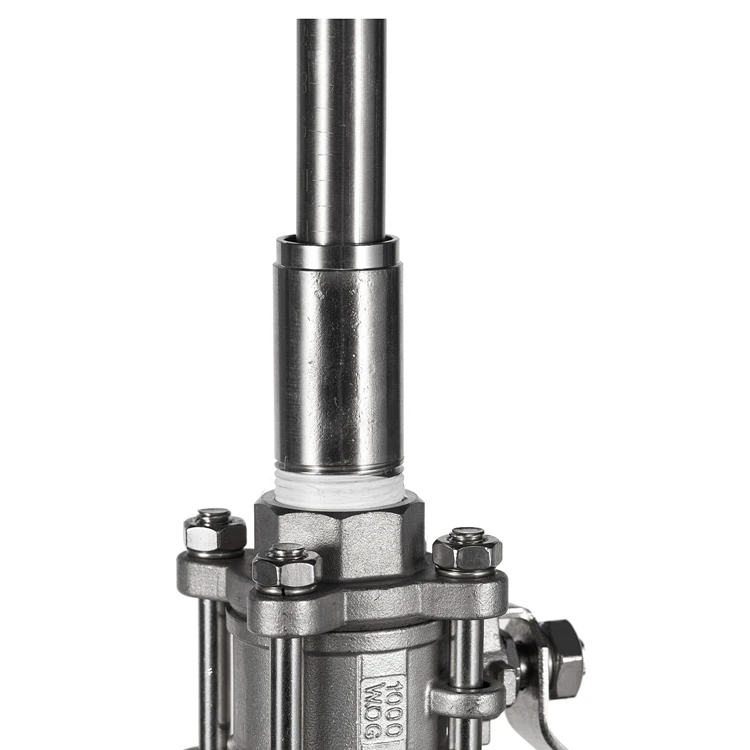

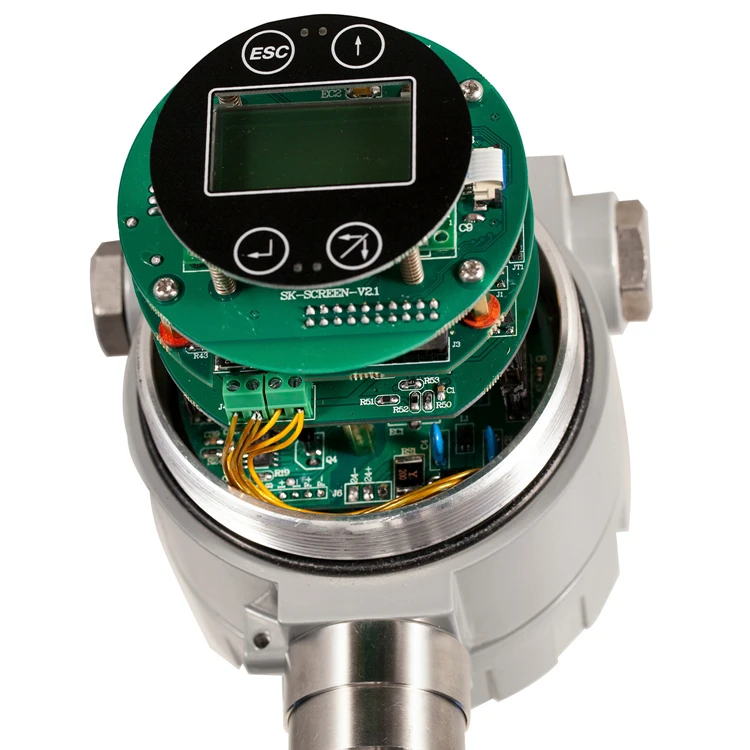

Sincerity Coriolis Force 1.0% Precision SS316L Insertion Type Thermal Mass Gas Flow Meter
- Category: >>>
- Supplier: Beijing Sincerity Automatic Equipment Co. Ltd. Tongzhou Branch
Share on (60745618662):
Product Overview
Description

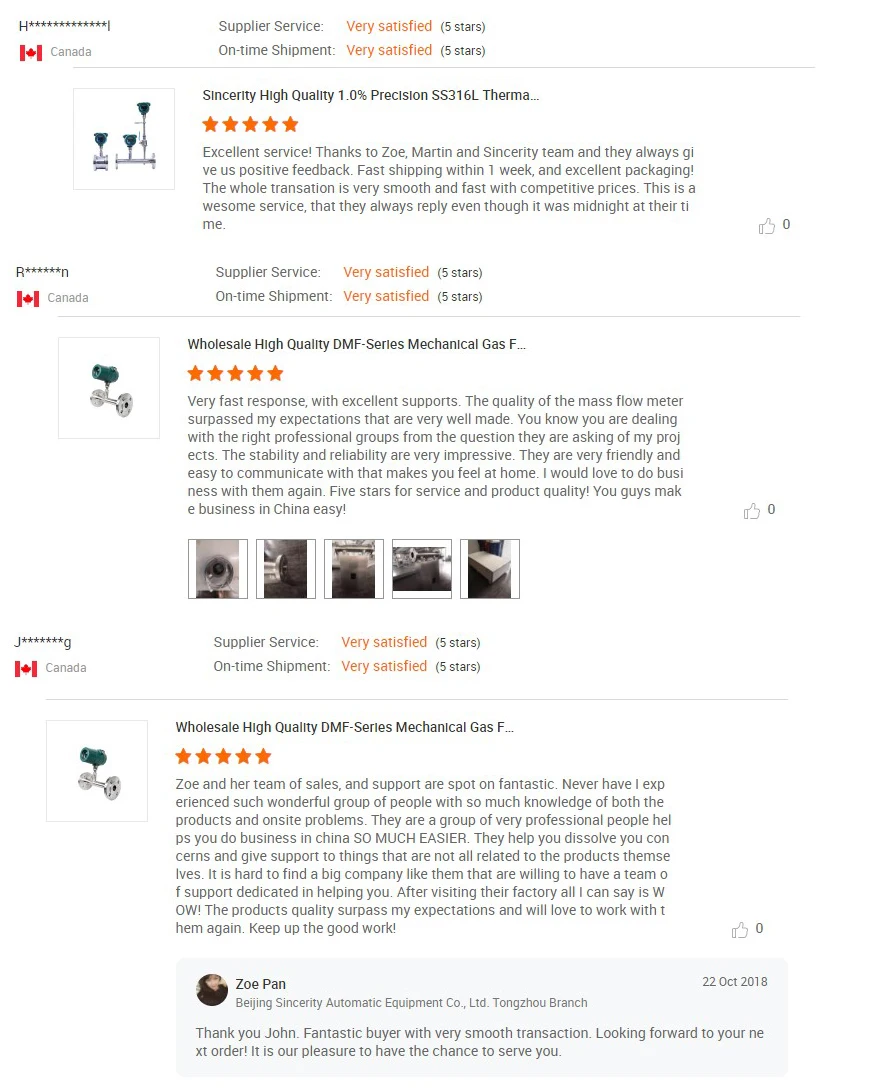

WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACk
Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .
Please visit www.bjsincerity.en.alibaba.com
click HERE, or go to " Verified Company profile” - “Business performance”, “Ratings & Review”
Then you can see all comments from our clients.
{ please note : all our customer comments are real one , NOT FAKE !
Product Description
| Insertion Type | Segment Type | |
| Measuring media | Various gases (except for acetylene gas) | |
| Range of pipe diameter | DN80-6000 mm | DN15-2000 mm |
| Velocity range | 0.5-100 Nm/s | |
| Accuracy | ±1.0% | |
| Working temperature | Sensor: normal temperature type -10℃ to +200℃, high temperature type -10℃ to +350℃; converter:-20℃ to +45℃ (for special environment, please specify) | |
| Working pressure | Media pressure≤2.5Mpa | Media pressure≤4.0Mpa |
| Power supply | Integrated type machine (DC24V or AC220V ≤18W), detachable converter (AC220V ≤19W) | |
| Response speed | 1S | |
| Output signal | 4-20mA (photoelectric isolation, maximum load 500Ω) RS-485 (photoelectric isolation) |
|
| Pipeline material | Carbon steel, stainless steel and plastic, etc. | |
| Display | Integrated type: 8-bit field + 24 prompts Detachable type: 10x2 Chinese characters |
|
| Display content | Mass flow, volume flow under normal condition, integrated flow, standard time and integrated runtime, etc. | |
| Outline of detachable converter | Wall-hanging type: 213x185x107mm Panel-mounting type: 160x80x160mm |
|
| Distance between detachable converter and primary instrument | ≤25m(primary instrument is powered by detachable converter), ≤1000m (primary instrument is powered on the site) |
|
| Degree of protection of detachable converter | Wall-hanging type: IP65 Panel-mounting type: IP52 |
|
| Degree of protection of primary instrument | IP67 | |
| Explosive-proof grade of primary instrument | ExdⅡCT4 | |
| Sensor materials | Stainless steels | Stainless steel, carbon steels |

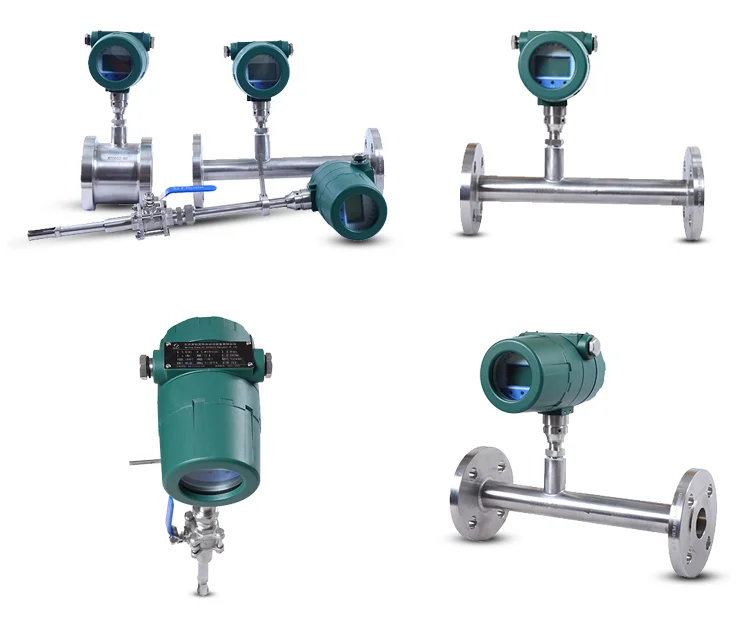

Product Display

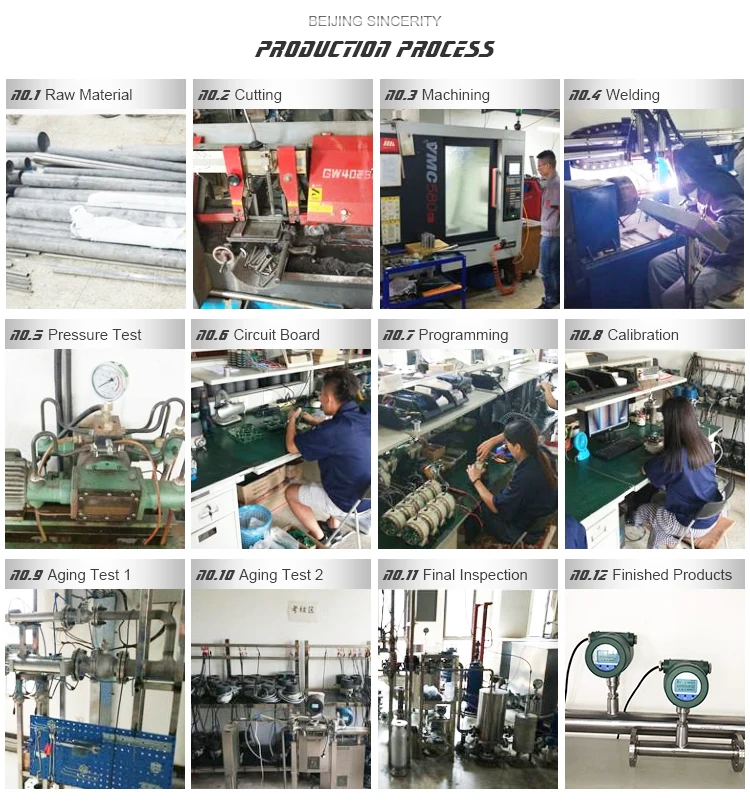

Product Process
Related Products
Company introduction
[ THEY TRUST US ]
We had the honor to serve some famous companies all over the world such as, Coca-cola, redbull, unilever, volkswagen, Samsung, Sinopec, Petro China, CNOOC etc.
Certification
Kindly Reminder :
all our certifications are REAL ONE.
NOT FAKE , NOT FAKE , NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU!!!
Packaging & Shipping
Action Now Contact Us For WHOLE CATALOG
