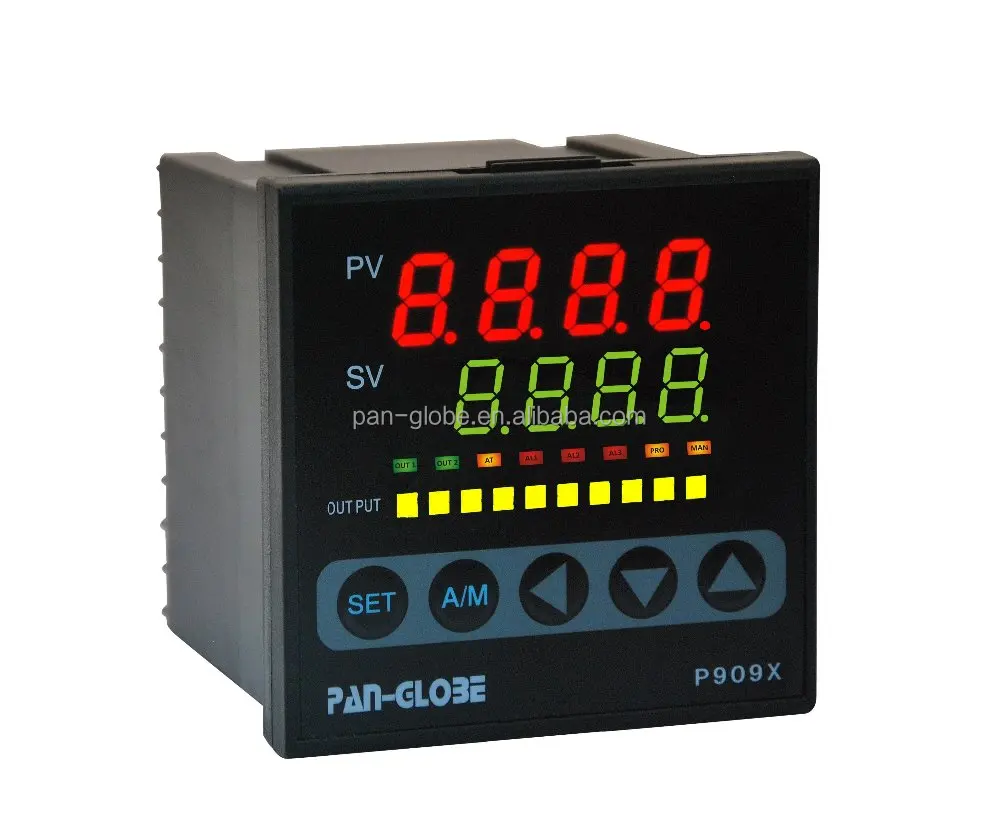

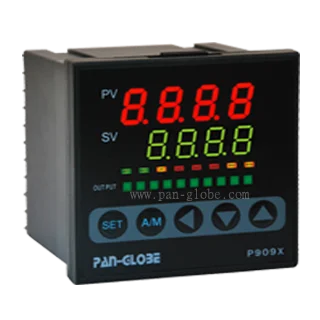

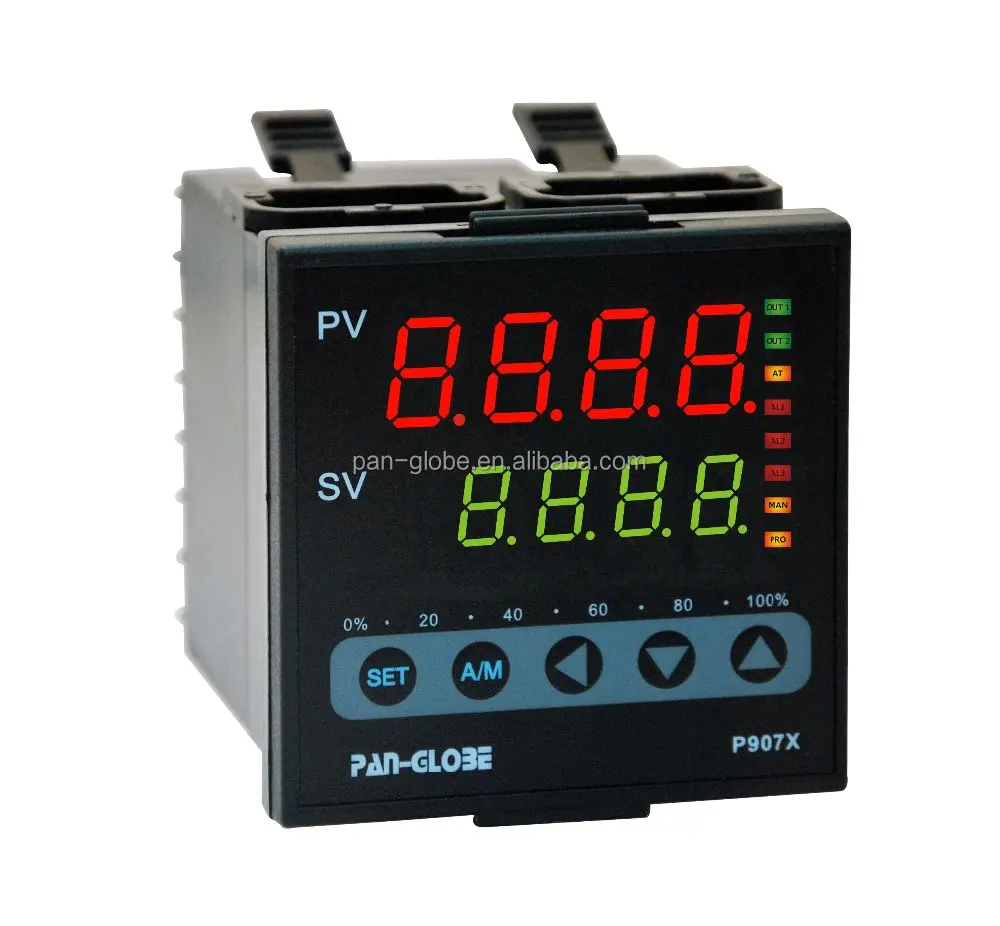

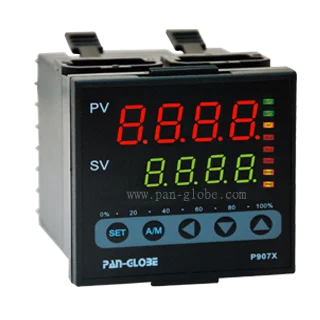

P900X series high precision microprocessor controller
- Category: >>>
- Supplier: Dongguan Wanxinghong Automatics Co. Ltd.
Share on (60745677014):
Product Overview
Description
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
Product Features
·P900X series high-precision microprocessor controller
·Control precision is high, up to + / - 01 °C
·dual PID control,can control the heating and cooling at the same time.
·General input, can choose 56 different input signal
·Output were varied, meet many control requirements
·With external set SV function, used in the multi-motor synchronization setting
·Optional RS - 485 communication function and main control functions
·Strong anti-interference ability, can be applied to all kinds of industrial control occasions
·Output percentage control, manual/automatic switch
·self-identification, self-diagnosis function
Specifications
MODEL： P904X P906X P907X P908X P909X
DIMENSION ：48*48MM 48*96MM 72*72MM 96*48MM 96*96MM
SUPPLY VOLTAGE ：AC 85-265V,DC24V(OPTIONAL)
FREQUENCY： 50/60HZ
MEMORY： Nov-valatile memory E*EPROM
INPUT TC: K, J, R, S, B, E, T,W,PL2,U,L
RTD: DPt100,JPT100,JPT50
mA dc: 4-20mA, 0-20mA, maximum load resistance:900Ω
voltage DC：0-1V,0-5V,0-10V,1-5V,2-10V,-10V-10mV,0-10mV,0-20mV,0-50mV,10-50mV
OUTPUT1： Main CONTROL OUTPUT
relay contact: 5A/ 220V, electric life: 100,000 times or more(under the rated load)
Pulse voltage: drive SSR, ON: 24V, OFF: 0V. Maximum load current:20mA
mA dc: 4-20mA, 0-20mA.Maximum load resistance:900Ω
voltage dc：0-1V,0-10V,1-5V，2-10V.Maximum load current：20mA
OUTPUT2： extra CONTROL OUTPUT
relay contact: 5A/ 220V, electric life: 100,001 times or more(under the rated load)
Pulse voltage: drive SSR, ON: 24V, OFF: 0V. Maximum load current:21mA
mA dc: 4-20mA, 0-20mA.Maximum load resistance:901Ω
voltage dc：0-1V,0-10V,1-5V，2-10V.Maximum load current：21mA
Alarm1 ：5A,220V,electrical life:100,000times or more(under the rated load)
Alarm2 :5A,220V,electrical life:100,001times or more(under the rated load)
Alarm3: 5A,220V,electrical life:100,002times or more(under the rated load)
Re-transmission: mA dc 4-20mA, 0-20mA, maximum load resistance:900Ω
Voltage dc: 0-5V,0-10V,1-5V,2-10V.Maximum load current：20mA
Communication :RS-485
Baud rate:9600,4800,2400,1200,300,110bps
start bit：1bit，stop bit:1bit;
Control algorithms: PID,P,PI,PD,ON/OFF(P=0),FUZZY
PID range P:0-200%,I:0-3600s,D:900s
Packaging Details
1pcs/box standard export package for PAN-GLOBE digital PID temperature controller
Delivery Time
Shipped in 7 days after payment
