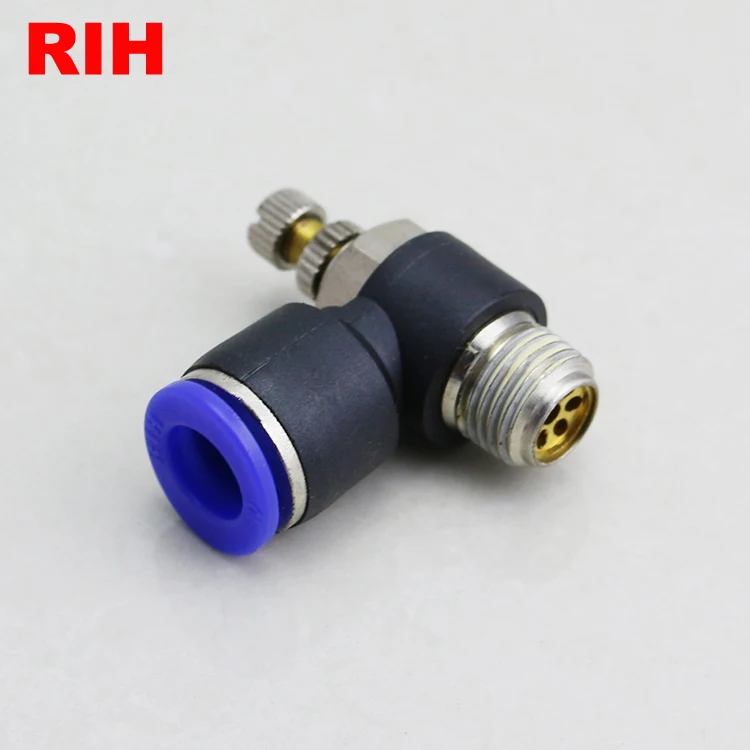

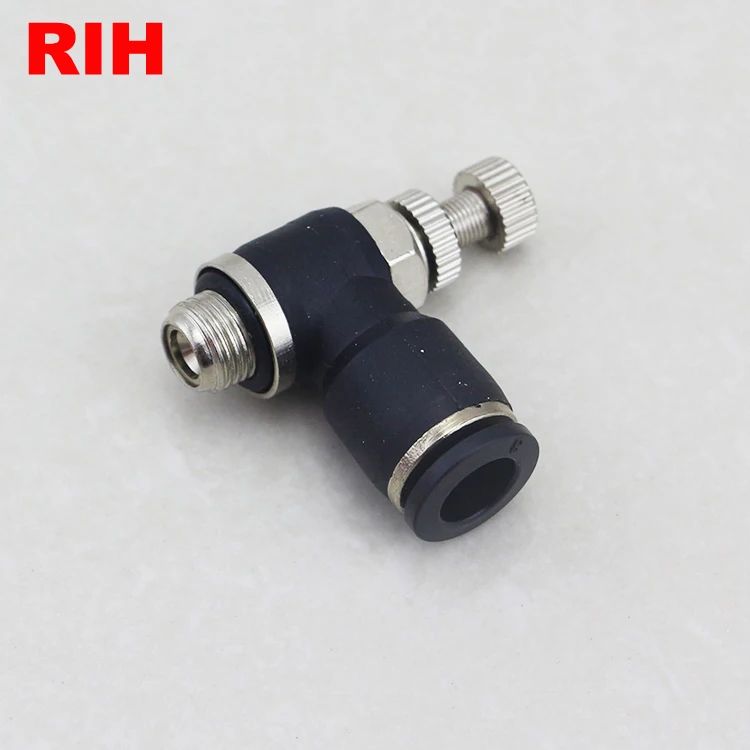

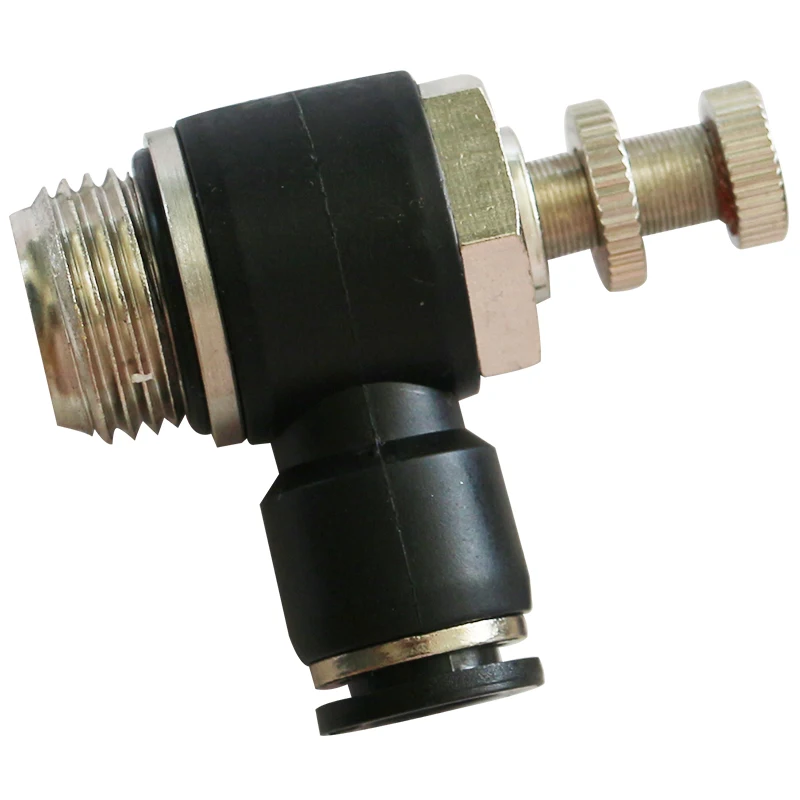

SL4 01 speed control valve 1/8' thread 4MM tube Push in pneumatic air flow regulator throttle valve fitting

SL4-M5

SL10-01

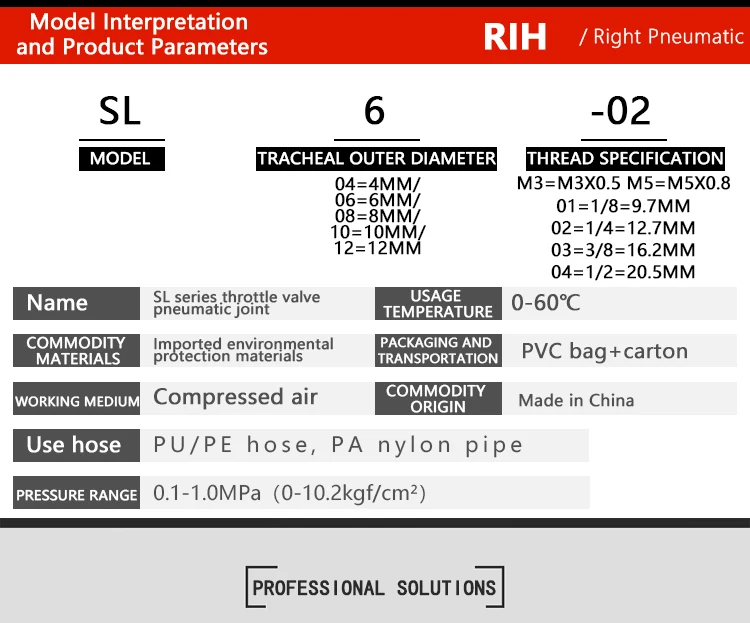

For example: SL 4- 01 (G) (1) (2) (3) (4)

SL4-01

SL10-02

(1)Model: SL air valve fitting

SL4-02

SL10-03

(2) Tube OD

SL6-M5

SL10-04

Metric: 4-6-8-10-12mm(Default)

SL6-01

SL12-02

English: 1/8'' 5/32'' 3/16'' 1/4'' 5/16'' 3/8'' 1/2''

SL6-02

SL12-03

(3)Thread Size

SL6-03

SL12-04

Metric: M5/M6/M8/M10/M12/M14/M16/M22

SL6-04

English: 01:1/8'' 02:1/4'' 03:3/8'' 04:1/2''(Default)

SL8-01

(4)Inch thread form:

SL8-02

Default: G(PF,BSPP)

SL8-03

(PT):BSPT(R)

SL8-04

(N):NPT(Z)

Product Name

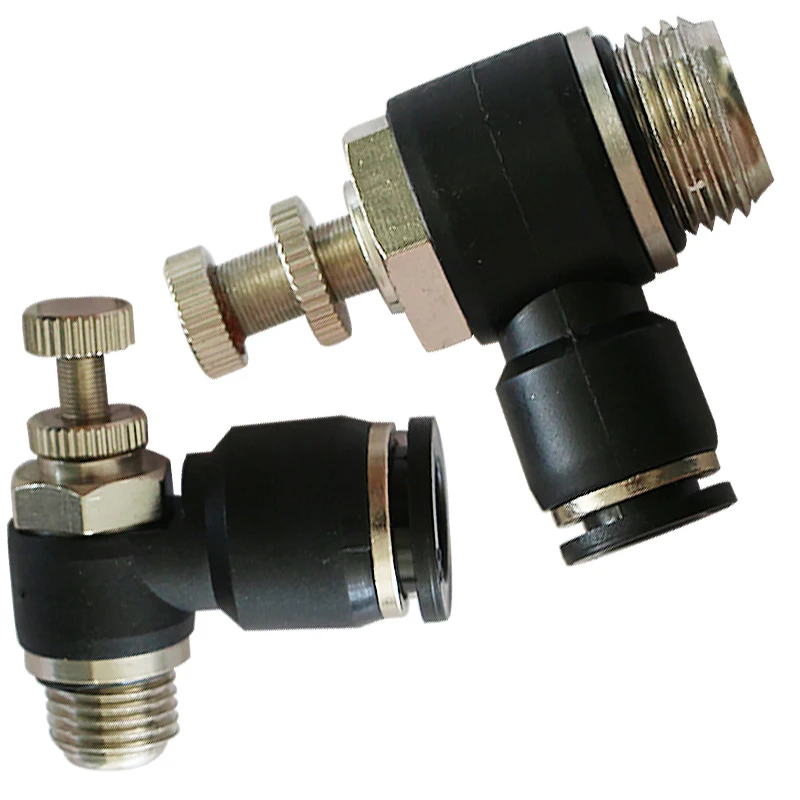

SL4-01 speed control valve 1/8 thread 4MM tube Push-in pneumatic air flow regulator throttle valve fitting

Operating Pressure

 0-1.0MPa | 0-150psi

Operating Temperature

0 - 60 °C

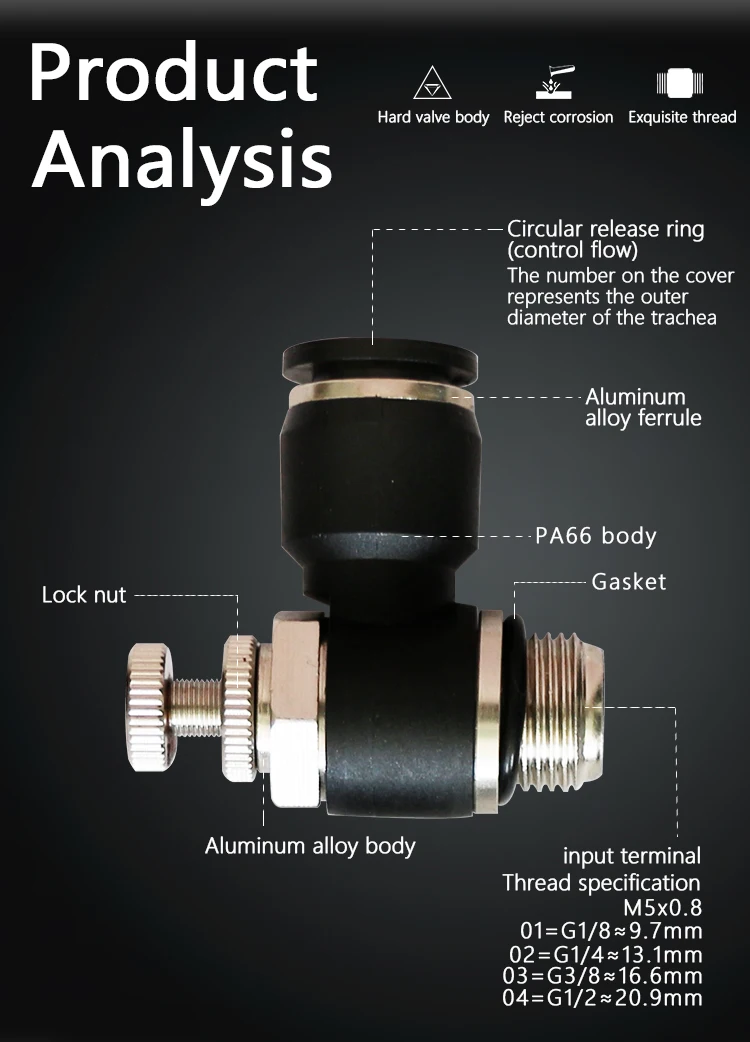

Male Thread Size

1/8" BSP thread---------Thread Outside Diameter: 9.728mm
1/4" BSP thread---------Thread Outside Diameter: 13.157mm
3/8" BSP thread---------Thread Outside Diameter: 16.662mm
1/2" BSP thread---------Thread Outside Diameter: 20.955mm
3/4" BSP thread---------Thread Outside Diameter: 26.441mm
1" BSP thread-----------Thread Outside Diameter: 33.249mm

Tube Size

4-6-8-10-12-14-16mm

Inch Tube Size

5/32''-1/4''-5/16''-3/8''-1/2''

Applicable Tube

 PU / PA / PE / PVC

Features

1. Designed for Polyurethane or Nylon tubing.
2. Simple installation pneumatic push in connector.
3. After installation, the direction of the tube can be changed freely.

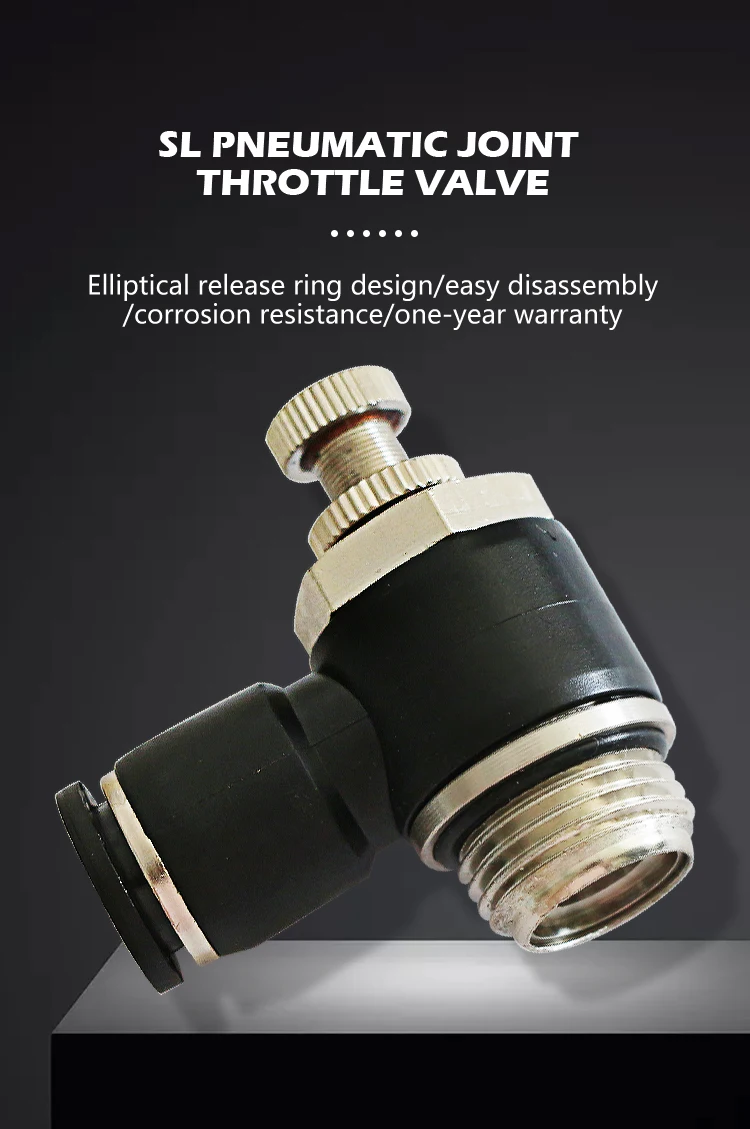

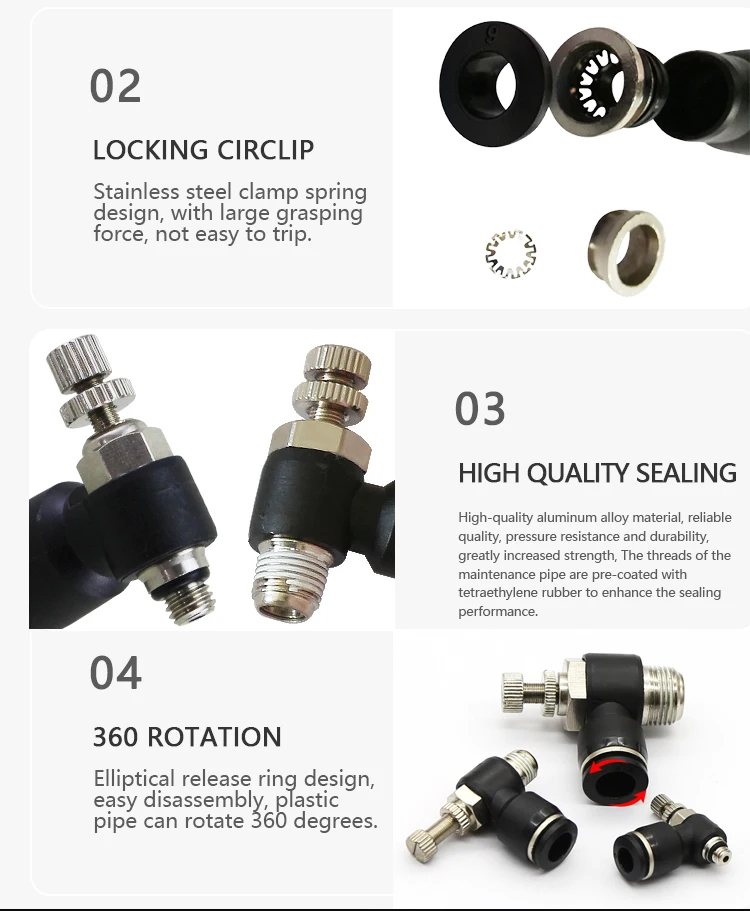

4. Elliptical release ring help to connect tube easily by manual, no special tools required.
5. Outside (and Inside where applicable) hexagonal wrench tightening.
6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.
