Product Overview

Description

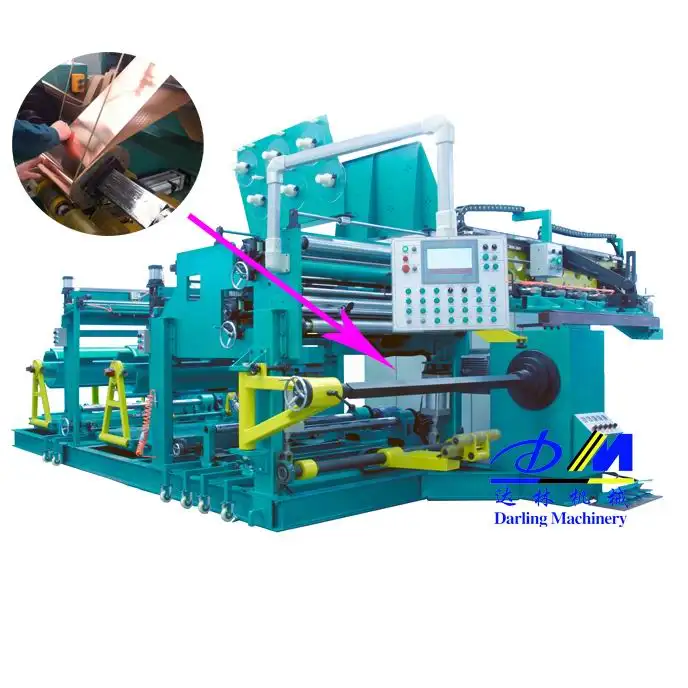

Automatic Double Layer Copper Strip Cast Resin Transformer Foil Winding Machine



Introduction

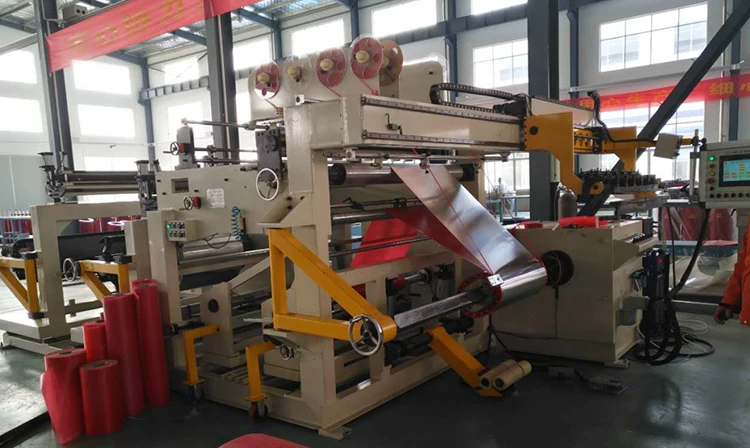

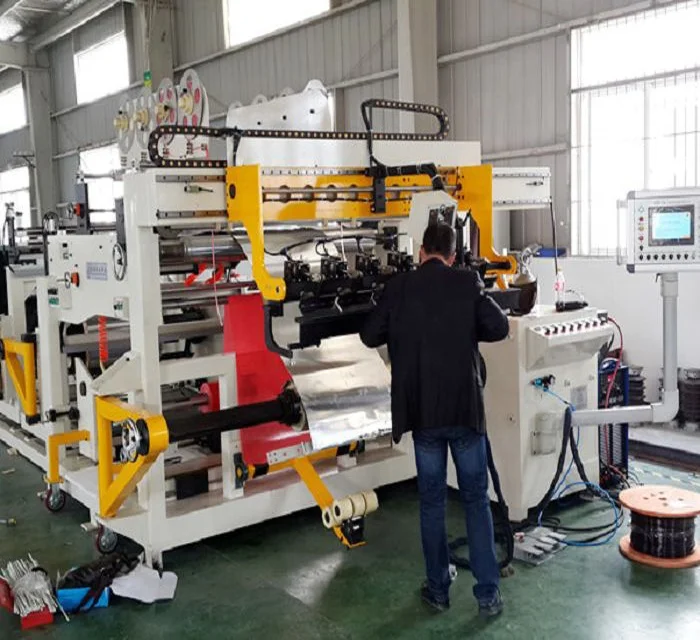

Automatic Double Layer Copper Strip Cast Resin Transformer Foil Winding Machine BRJ1400-2 is used to wind transformer foil coils and other similar products, the foil conductor can be copper or aluminum strip. This kind of foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation material (such as paper or similar material). Bus bars are welded with TIG welding process. The automatic foil edge alignment makes sure that the coil edges are straight and smooth. Control system is based on PLC.



Main Components



1.Main frame

2.Winding unit

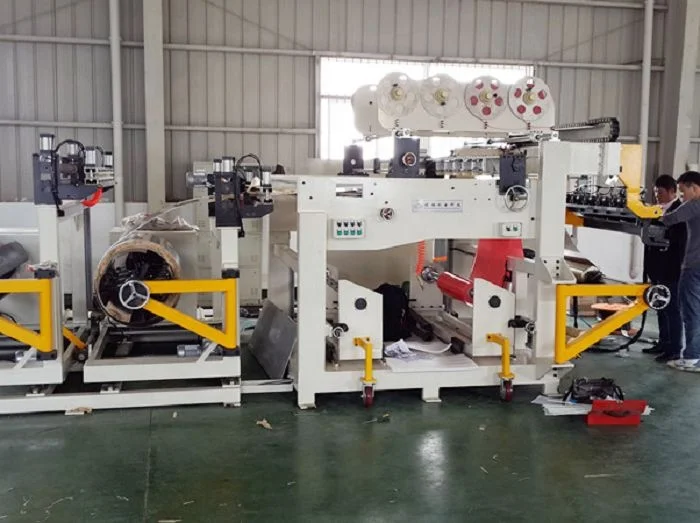

3.Foil decoiler

4.Insulation decoiler

5.End-fill strip feeder

6.Cleaning system

7.Cutting system

8.Foil deburring system

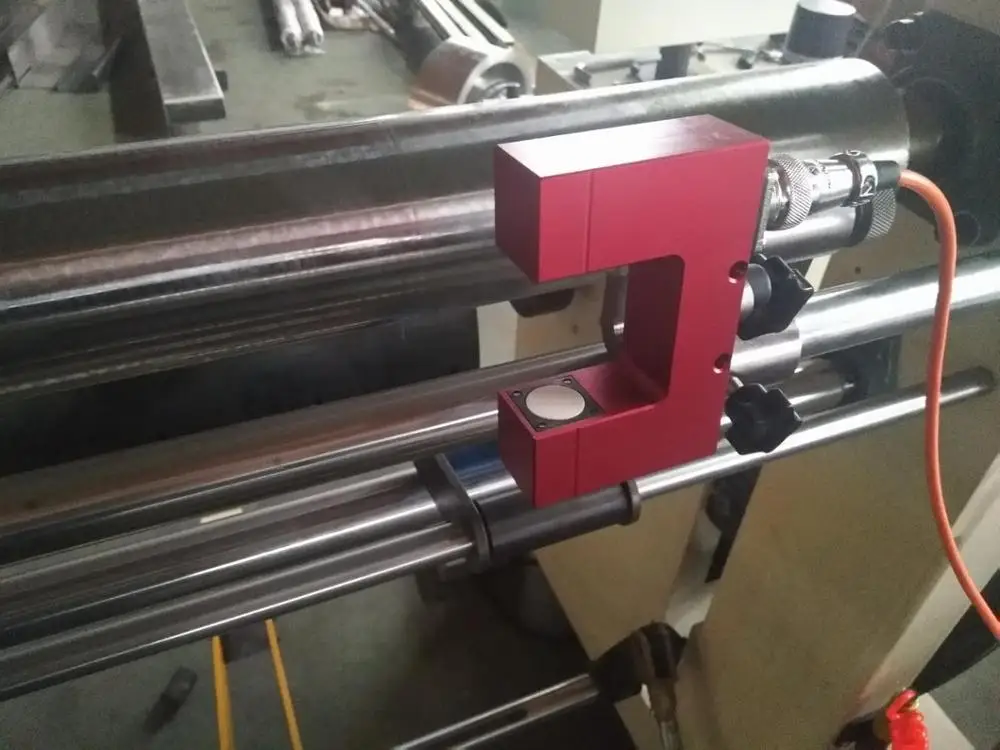

9.Edge alignment system

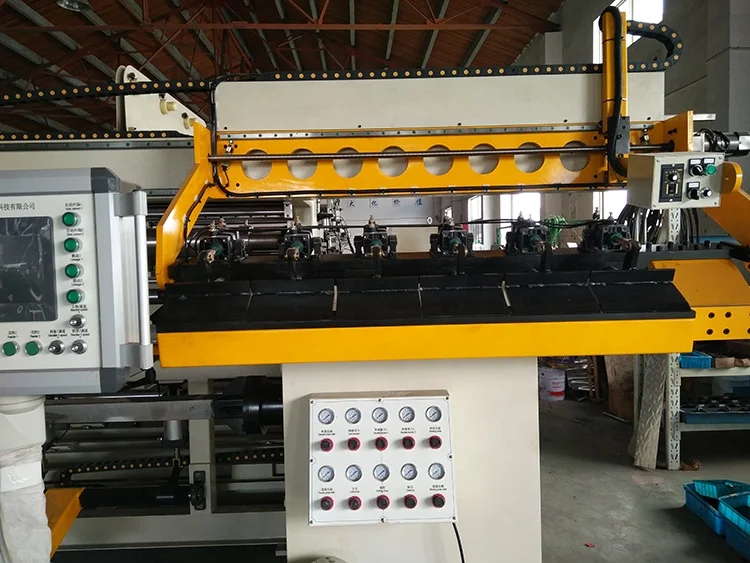

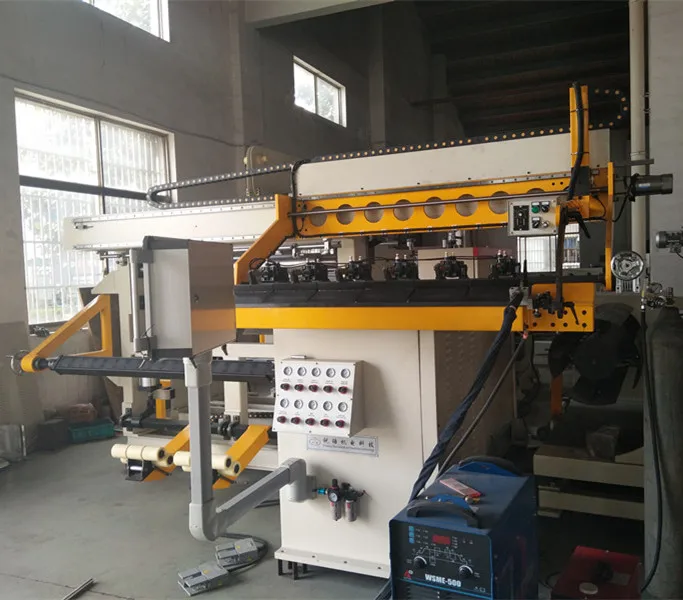

10.Automatic welding unit

11.Electronic control system

12.Pneumatic system



Technical Parameters



Typical standard specifications of BRJ1400-2 are shown below, however these can be easily modified as requested.



Axial Length (foil width):	1,400mm
Axial Length (incl. lead bar):	1,550mm
Max. OD. of Finished Coil:	1,000mm
Max. ID. of Finished Coil:	130mm
Conductor Foil Material OD.:	1,000mm
Conductor Foil Material ID.:	500mm
Number of Foil Decoiler:	2
Number of Insulation Decoiler:	2
Insulation Material OD.:	≤400mm
Insulation Material ID.:	76mm
User Interface:	10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range:	0 - 9999.9
