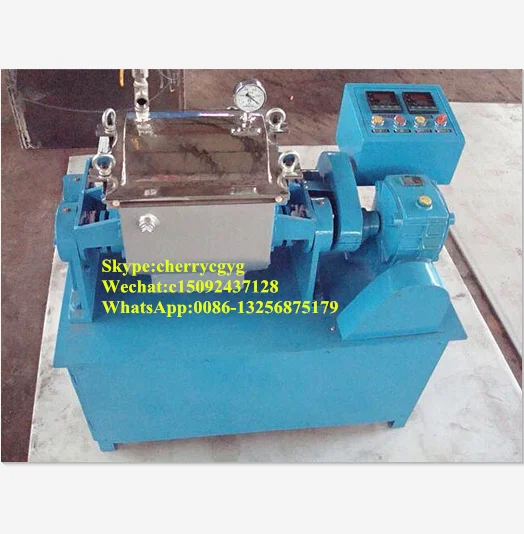

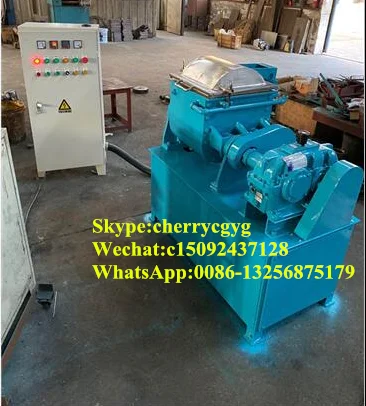

5 Liter laboratory Z Blade kneader mixer
- Category: Rubber Kneaders >>>
- Supplier: Qingdao Chaoguangyue Industry Co. Ltd.
Share on (60745689823):
Product Overview
Description

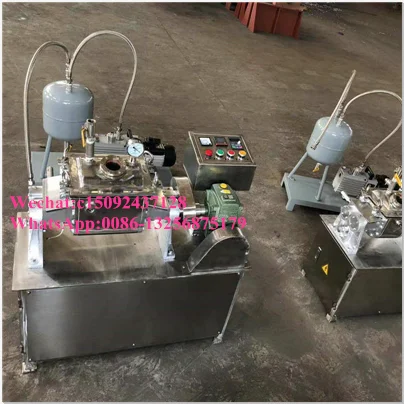

5 Liter laboratory Z Blade kneader mixer
Application
Kneader reactor has strong functions of shearing, stirring and kneading. It is widely used for
chemical, plastic, pencil manufacturing and resin brake disc industries.
In production of aminoplast, the kneader has the advantages of low energy consumption, quick and convenient discharge, long trouble-free operation, easy maintenance. It is generally popular.
Structural Features
1.The whole machine adopts channel bottom head for convenient installation and maintenance .
2.Using helical gear or hardness surface reducer to ensure the mainframe's stable transmission, low noise and long life .
3.Stirring paddle and inner wall of mixing cylinder both adopts stainless steel materials to keep the products' purity and quality.
4.Advanced structure of shaft seal makes the sealing effect very good.
5.Integrated electric control (working mainframe ,hydraulic mixing cylinder ,hydraulic cover opening and constant temperature control ),temperature control and temperature display make the operation and process control convenient .

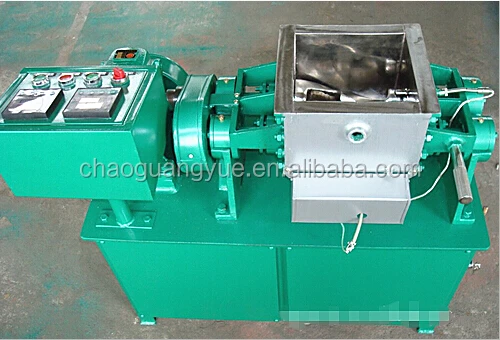

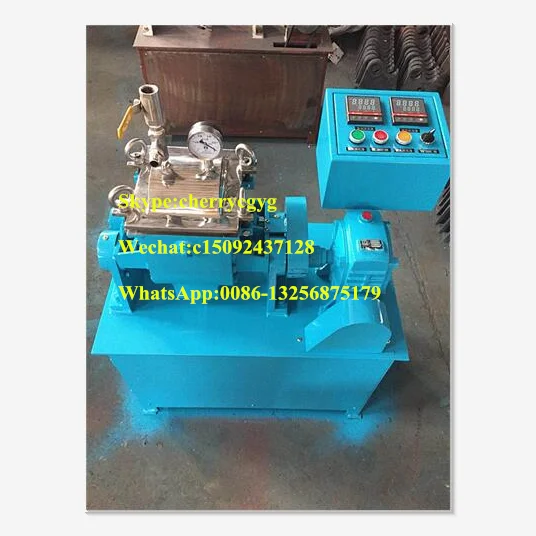

SH-1 Lab kneader reactor
Main technical parameters
Type | ZH-5 | ZH-10 | ZH-100 | ZH-300 | ZH-500 | ZH-1000 | ZH-1500 | ZH-2000 | |
Volume(L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | |
Speed of stirring paddle(rpm) | 33,23 | 33,23 | 35,22 | 37,21 | 37,21 | 35,25 | 30,16 | 30,16 | |
Main motor power(kw) | 0.75 | 1.1 | 3-7.5 | 11-30 | 15-37 | 22-90 | 22-90 | 30-110 | |
Heating method | Steam pressure (MPa) | 0.3 | |||||||
Electric heating power (kw) | 1 | 1 | 4 | 9 | 16.2 | 27 | 32.4 | 40 | |
Vacuum degree (MPa) | -0.090(Vacuum type kneader reactor) | ||||||||
Pressure (MPa) | 0.45(Pressure type kneader reactor ) | 0.35(Pressure type kneader reactor) | |||||||
Weight (kg) | 210 | 320 | 1250 | 1600 | 3000 | 4500 | 5800 | 6500 | |
Lab kneader reactor,screw kneader and high speed kneading machine also produced.
SH-2 Laboratory kneader reactor

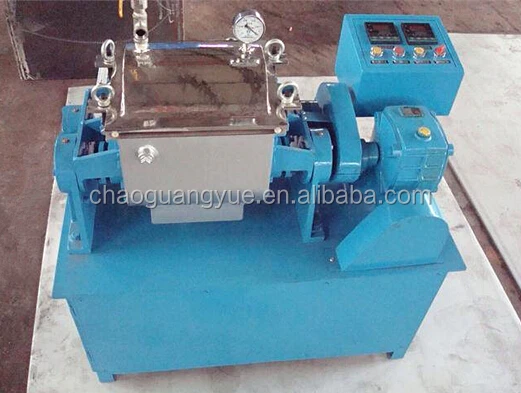

ZH-10 Vacuum kneader reactor
ZH-100 Vacuum kneader reactor
ZH-300 Vacuum kneader reactor
ZH-500 Vacuum kneader reactor

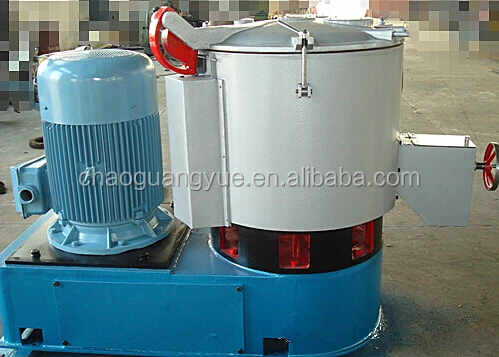

SHG-200 High speed kneading machine
Our packing way: Export standard (wooden package ) or according to your requirement.
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.
Welcome to visit our factory and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information for you.We can also make non-standard machines according to your request.
Contact freely Skype: cherrycgyg ,Whatsapp:0086-15092437128
