Weifang Handon CNC channel letter bending machine is used to make 3D advertising sign Channel Letters. We are the earliest inventor and professional maufacturer of CNC channel letter bending machine in China.

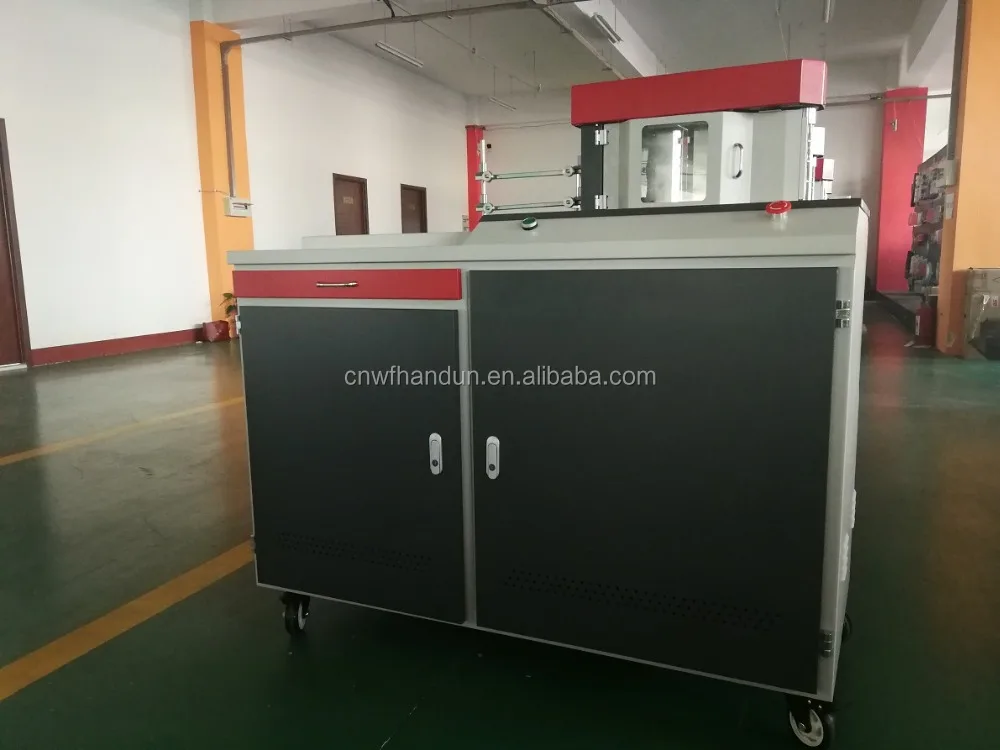

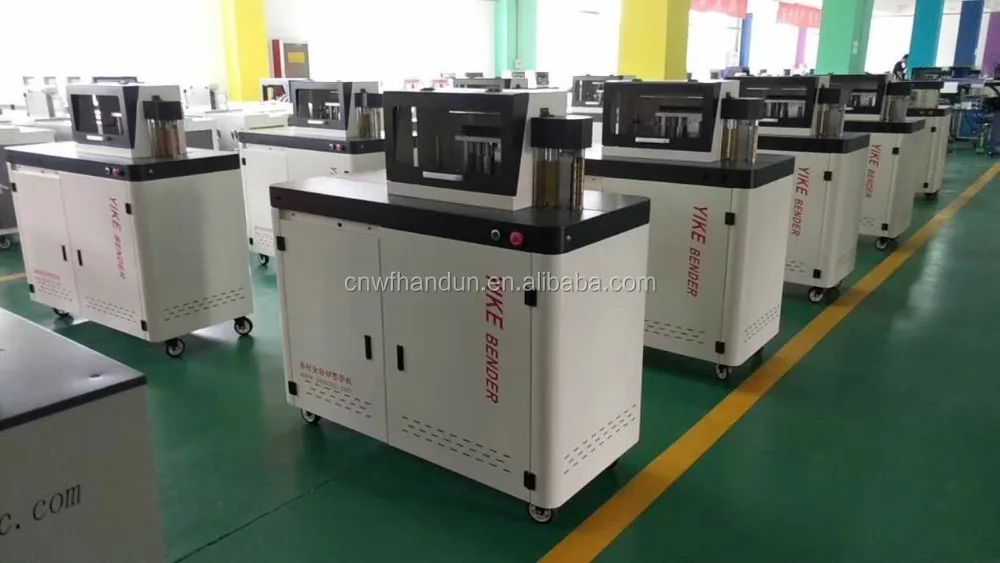

3D advertising metal led sign logo CNC channel letter machine
Technical Parameters
Values
Material thickness
0.3-1.2mm
Material width
20-160mm
Min. letter size
100mm
Min. bending radius
10mm
Min space between two slottings
5mm
Rated power
1000W
Machine size
1400*600*1240mm
Machine weight
190KG
Rated voltage
220V
Step motor
5 pcs
Reduction Drive
1 pc
Main Features
1, Exclusively developed software, high precision, easy to use, 95% users can learn it by themselves. Training by remote control is also possible.
Free software upgrades and technical support service for life.
2, Single-side slotting or double-side cutting both OK.
3, It can process extruded aluminum profile, aluminum with trim and without, channelume etc.
4, Max material width is 133mm. It is equipped with 5 famous brand stepper motors and high precision control device.
5, Quality Saw Blade.
6, Need air compressor.
7, Rubber rollers and quick-wear parts are easy to be changed by workers.
8, Fast bending speed, curve bending smooth and beautifully.
9, CE certificated. United States Patent No.: US9,021,847 B2.
10, Two year free warranty.
Certifications
Detailed Images
Machine Parts
1, Double-bearing inserted for polylester and steel rollers installation, much more durable than similar models from other suppliers.
2, Quality polyester rubber rollers and steel rollers with high power motor to ensure strong feeding force.
3, Famous Brand precision control device (TAMAGAWA FA-CODER) to ensure high precision.
High quality Saw Blade for free degree cutting according to your project files.
Machine Parts
Good brand electrical components and tidy cotton covered wire.
Cutting structure: Stable and durable
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
153 (L) * 67 (W) * 142 (D)cm
Weight
190kg
Packaging Details
The normal package is Plywood box(Size: L153*W67*H142cm). Bubble film inside as cushion to protect machine.
