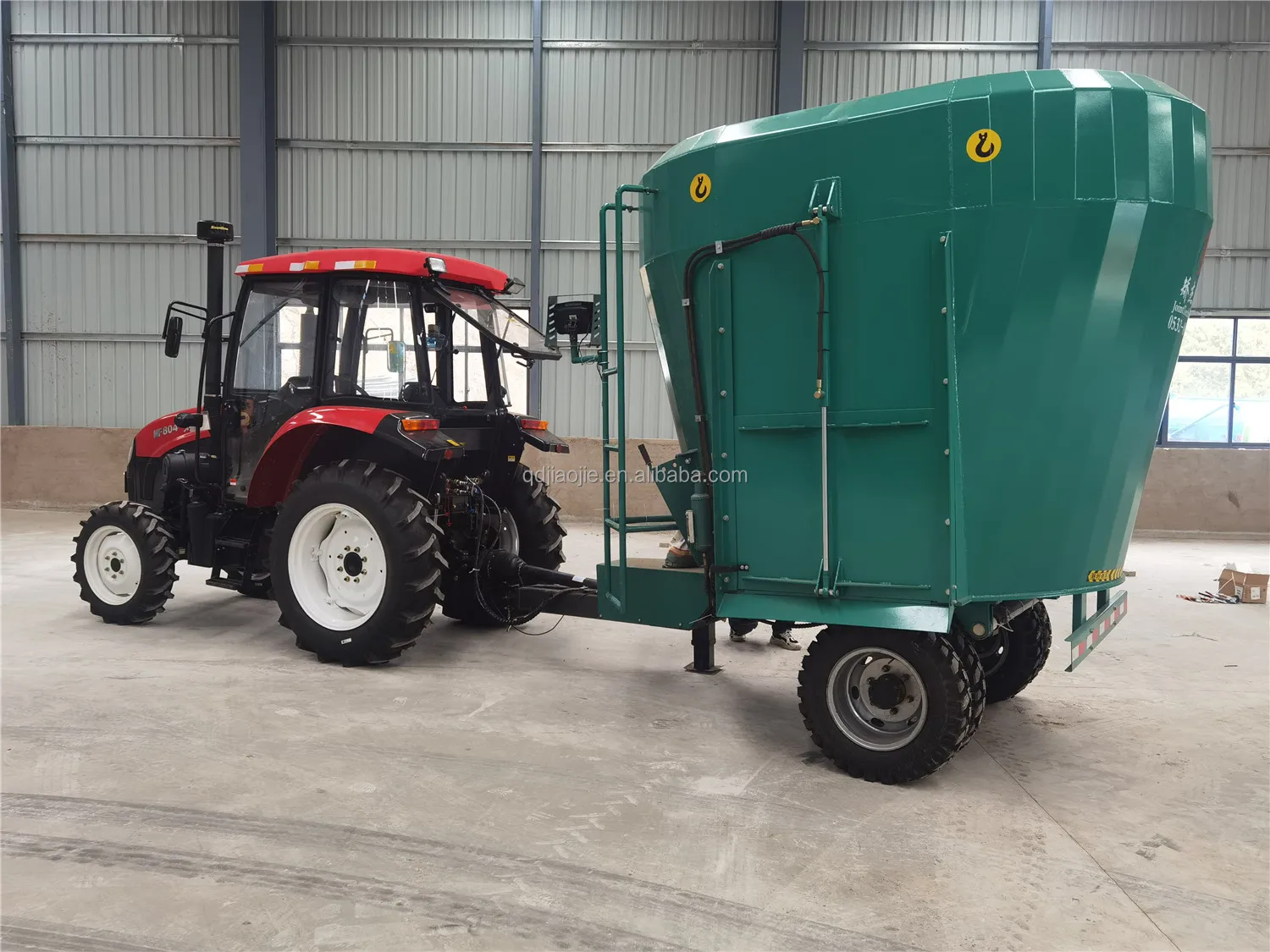

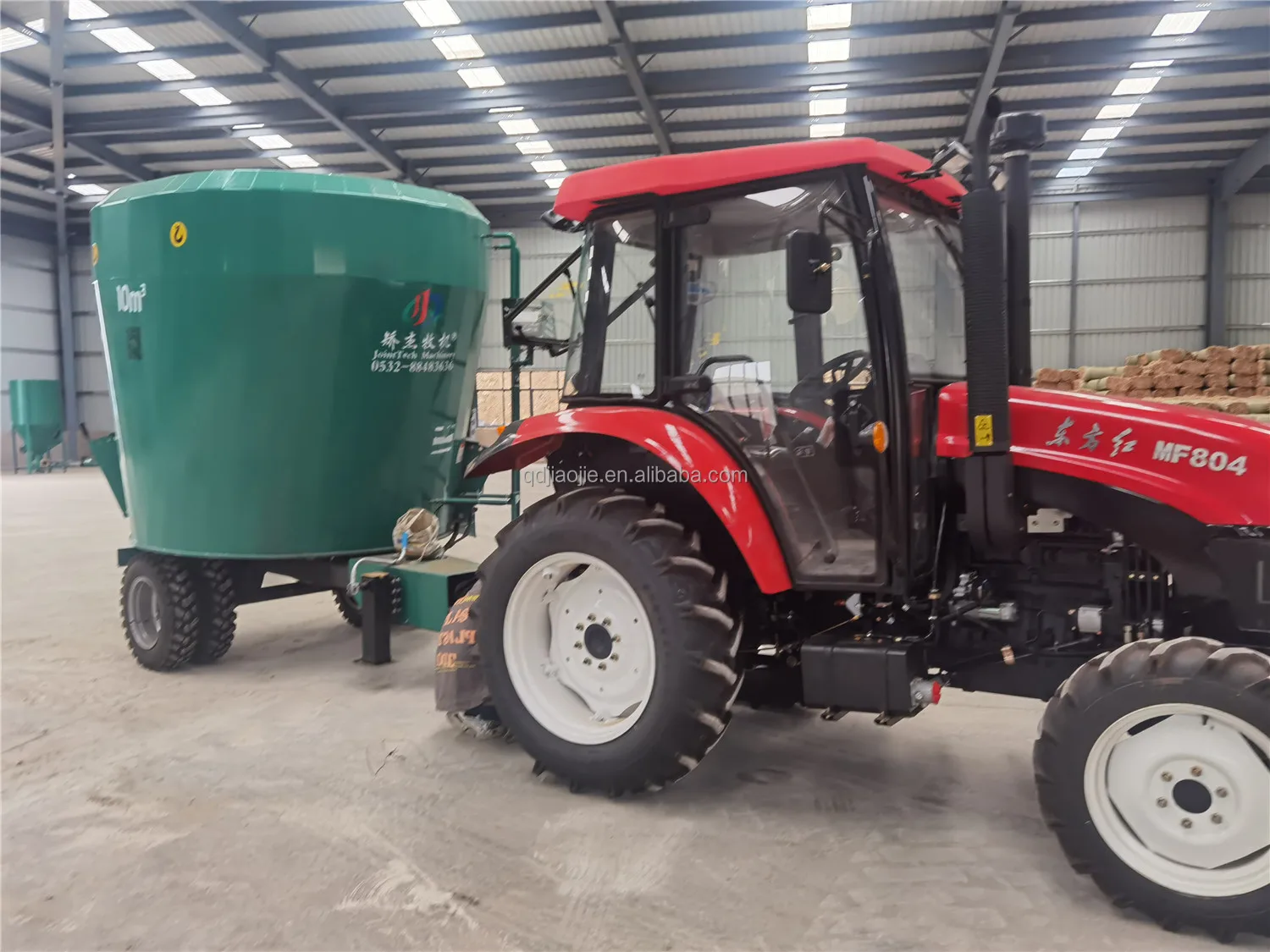

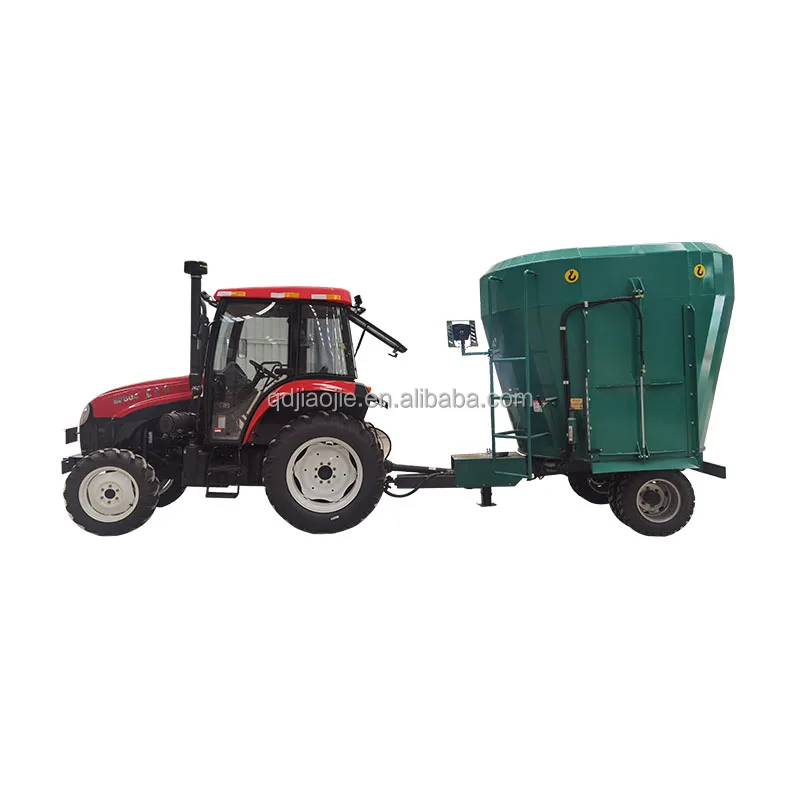

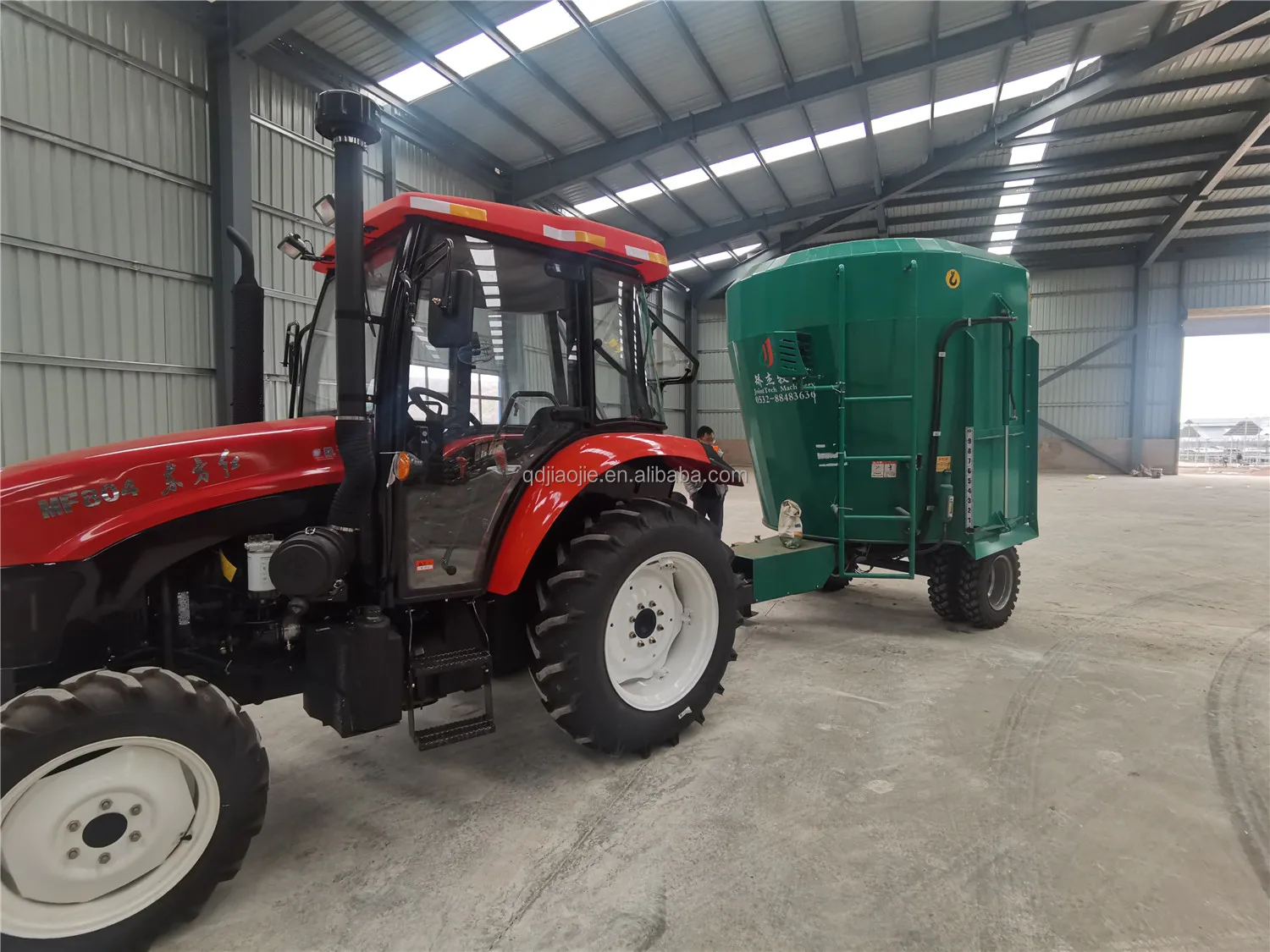

Farm machinery dairy farming tmr cow feed mixer truck for sale
Model | TTMR-10 |
Capacity | 10m3 |
L*W*H(mm) | 4060*2160*2880 |
Blade Quantity | 9 |
Power(HP) | 80-120 |
Max Load | 3500kg |
Mixing Time | 15-20 Min |
No. of auger | 1 |
Discharge Type | Side Discharge |
Description:

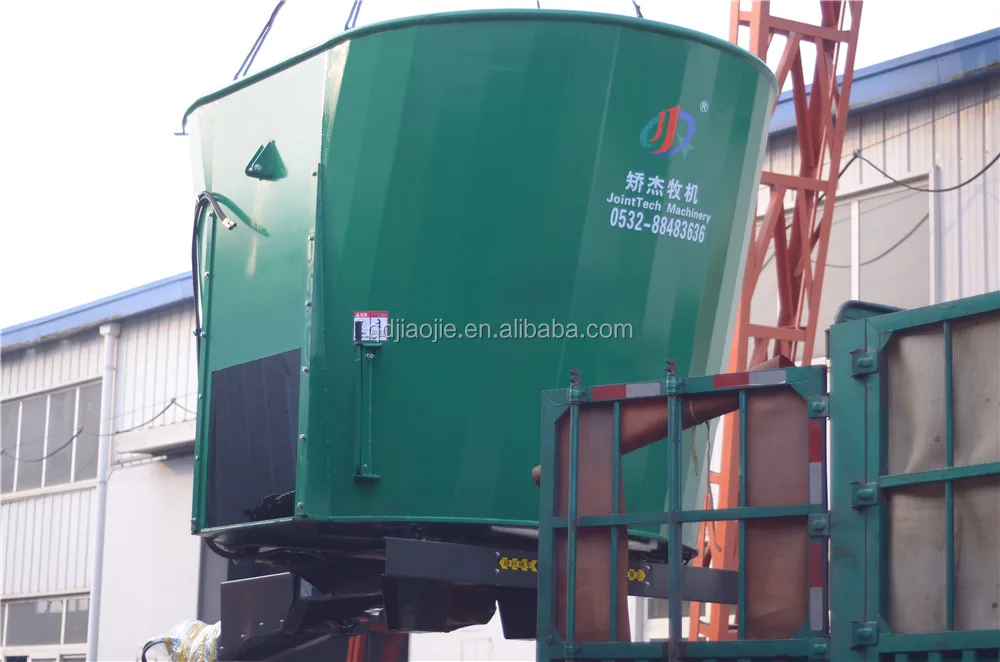

The Tractormount is a mixing chamber, mounted on a tractor chassis, featuring one vertical augers and a hydrostatic drive system. Two different discharge options are available for this unique feed mixer: a side discharge slide, or a side discharge chain. The machine is available in volumes ranging from 5 to 36m³.

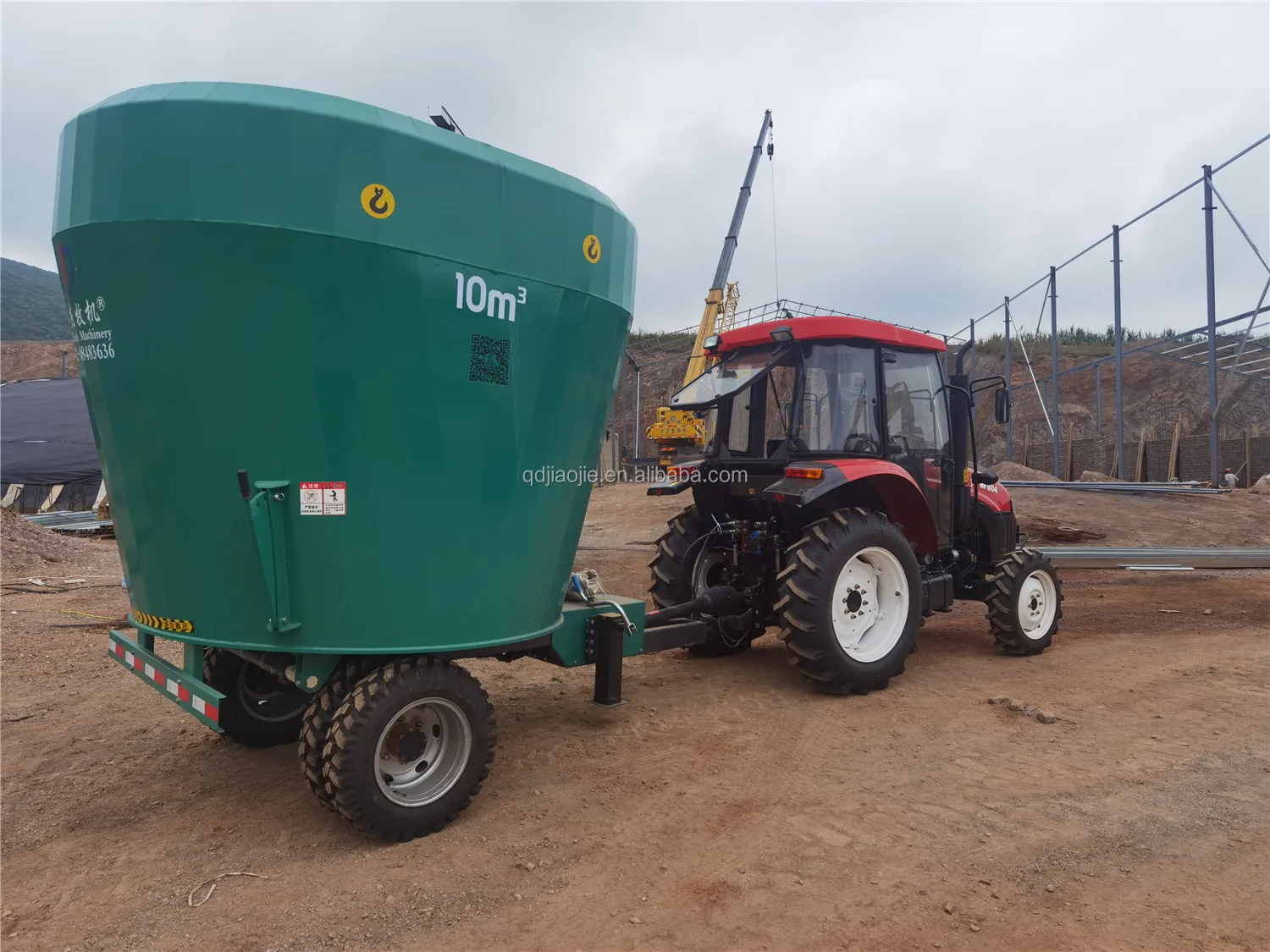

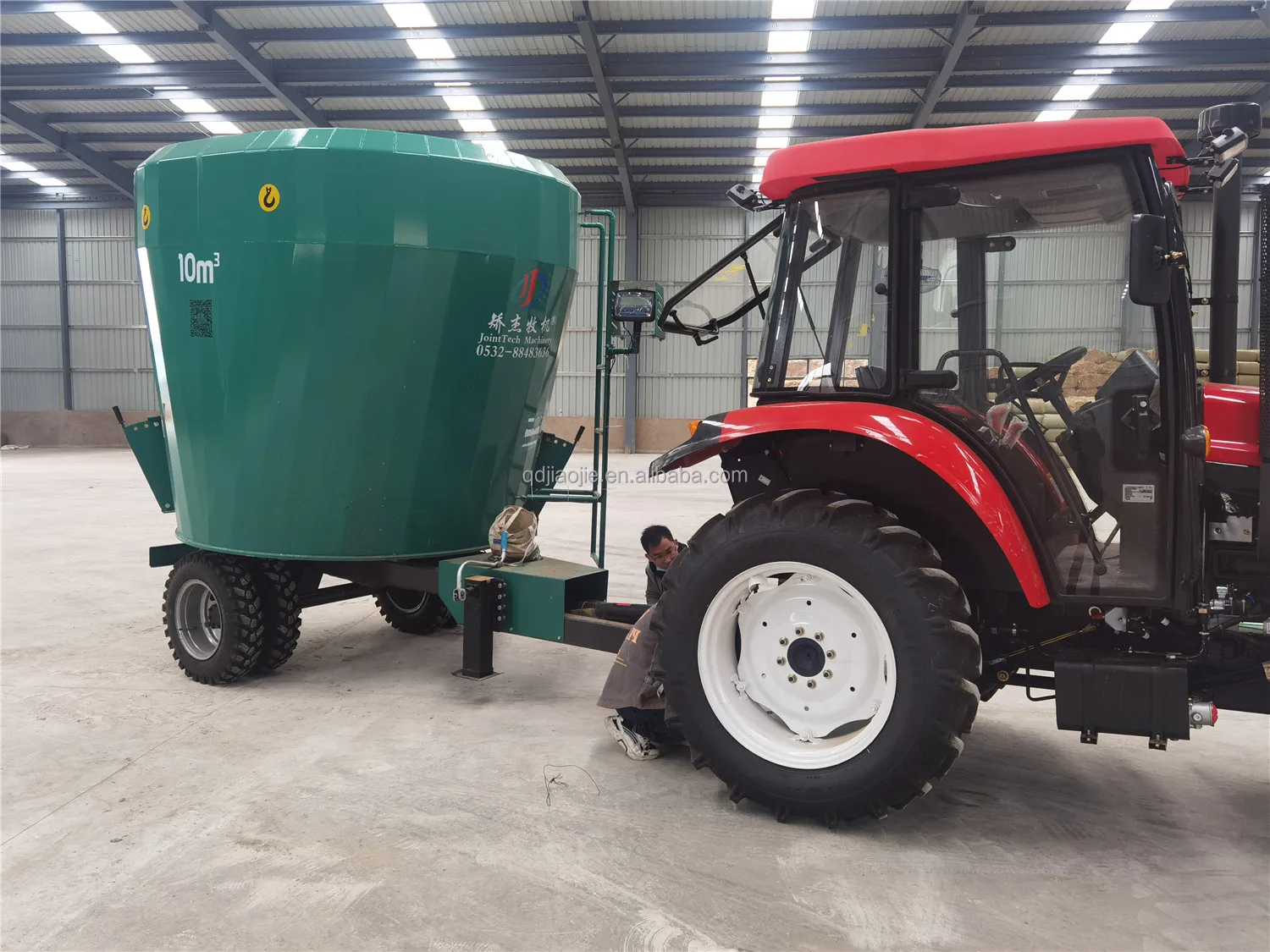

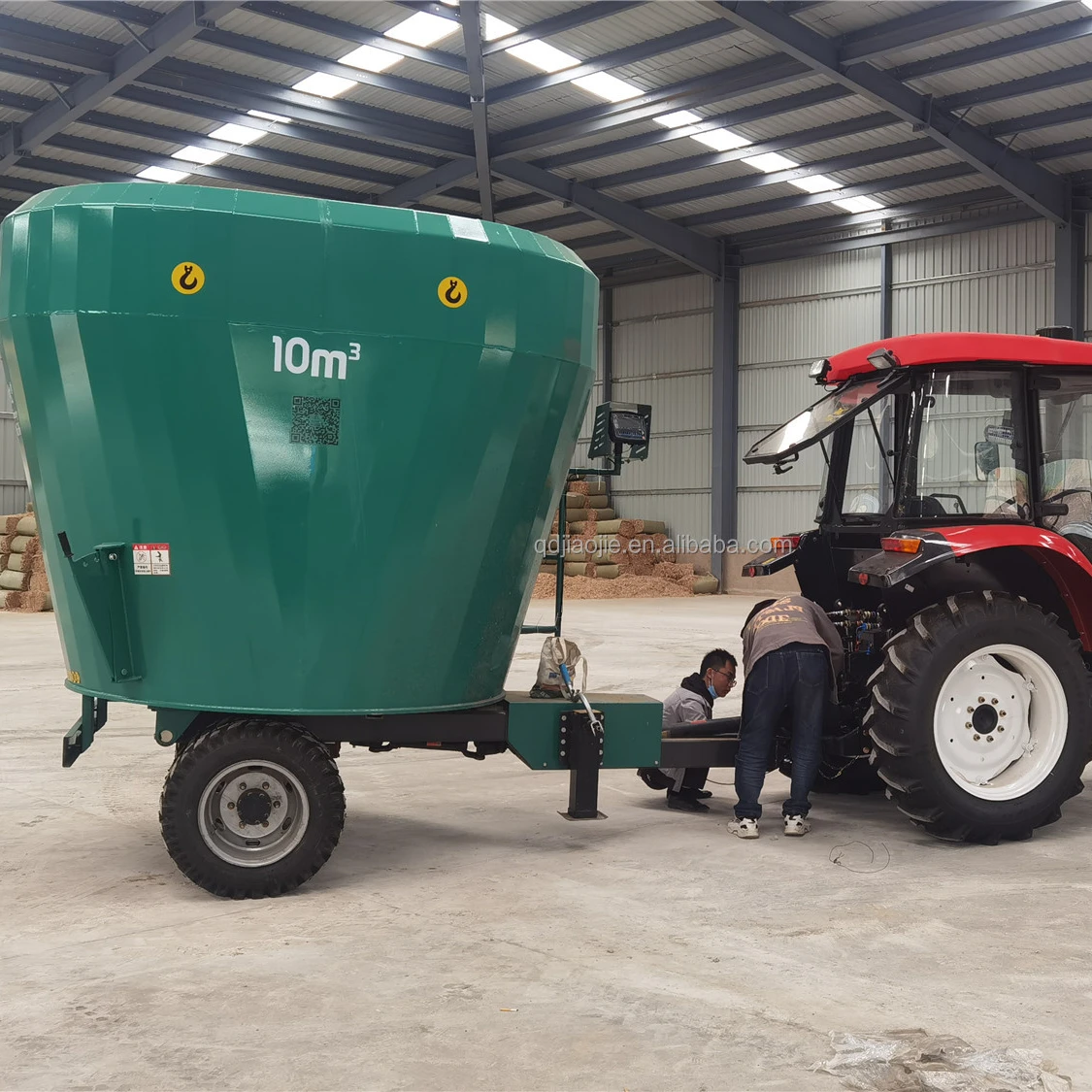

Displacement varies according to ration dry matter. More water means more weight. With dry (45% DM; dry matter) rations, a 10m3 mixer-wagon such as the one pictured, may contain 3.5 tonnes fully loaded.
Tractor Trailed Feed Mixer Specification
Model | Capacity | Dimension(cm) LxWxH | Auger | Cutting Blade | Matching Power | Loading Weight | Mixing Time |
QTMR-05 | 5m3 | 300x170x212 | 1 Set | 7 Sets | 40HP | 1500Kg | 20 Min |
QTMR-07 | 7m3 | 376x189x248 | 1 Set | 9 Sets | 50HP | 2100Kg | 20 Min |
QTMR-12 | 12m3 | 436x216x311 | 1 Set | 9 Sets | 90HP | 3600Kg | 20 Min |
QTMR-14 | 14m3 | 546x216x281 | 2 Set | 14 Sets | 100 HP | 4200Kg | 20 Min |
QTMR-16 | 16m3 | 604x216x281 | 2 Set | 18 Sets | 120HP | 4800Kg | 20 Min |
QTMR-20 | 20m3 | 636x216x281 | 2 Set | 18 Sets | 140HP | 6000Kg | 20 Min |
QTMR-24 | 24m3 | 656x216x281 | 2 Set | 18 Sets | 180HP | 7200Kg | 20 Min |
A mixer-wagon commonly consists of :
A trailed chassis, for coupling to a tractor power unit, and fitted with one or more usually braked axles, and fitted with a road-legal lighting system.
A mixing body, attached to the chassis by four weighing sensors, one at each corner. There are three main types of mixing body:
Paddle, whereby a central axial shaft turns a series of paddles which rotate the contents and provide front to back mixing in the mixer-wagon.
Vertical auger, with one, two or three augers used to move the contents from top to bottom.
The weighing system can weigh in all the ingredients of a ration in any chosen order and weigh out according to chosen quantities corresponding to the needs of different groups of animals.Loading is generally done using the mixer-wagon cutting and loading device, a high capacity tractor loader, or a telescopic handler.
The mixing paddle, rotors or augers are connected to the tractor pto through a reducer system, provided by either a planetary gearbox, and / or a step-down pulley and chain system.
A mixing body, attached to the chassis by four weighing sensors, one at each corner. There are three main types of mixing body:
Paddle, whereby a central axial shaft turns a series of paddles which rotate the contents and provide front to back mixing in the mixer-wagon.
Vertical auger, with one, two or three augers used to move the contents from top to bottom.
The weighing system can weigh in all the ingredients of a ration in any chosen order and weigh out according to chosen quantities corresponding to the needs of different groups of animals.Loading is generally done using the mixer-wagon cutting and loading device, a high capacity tractor loader, or a telescopic handler.
The mixing paddle, rotors or augers are connected to the tractor pto through a reducer system, provided by either a planetary gearbox, and / or a step-down pulley and chain system.
A set of stationary knives, against which long fibre may be chopped by the forcing action of the mixing rotor.
A hydraulic door to seal the ration in during mixing, thus permitting the use of liquid feeds such as molasses.
An unloading system, side discharge door,can be consisting of a simple hydraulically adjustable chute, and a hydraulic powered conveyor belt.
A hydraulic door to seal the ration in during mixing, thus permitting the use of liquid feeds such as molasses.
An unloading system, side discharge door,can be consisting of a simple hydraulically adjustable chute, and a hydraulic powered conveyor belt.
Detailed Images
Wall Thickness:8mm Floor(Bottom) Thickness:20mm

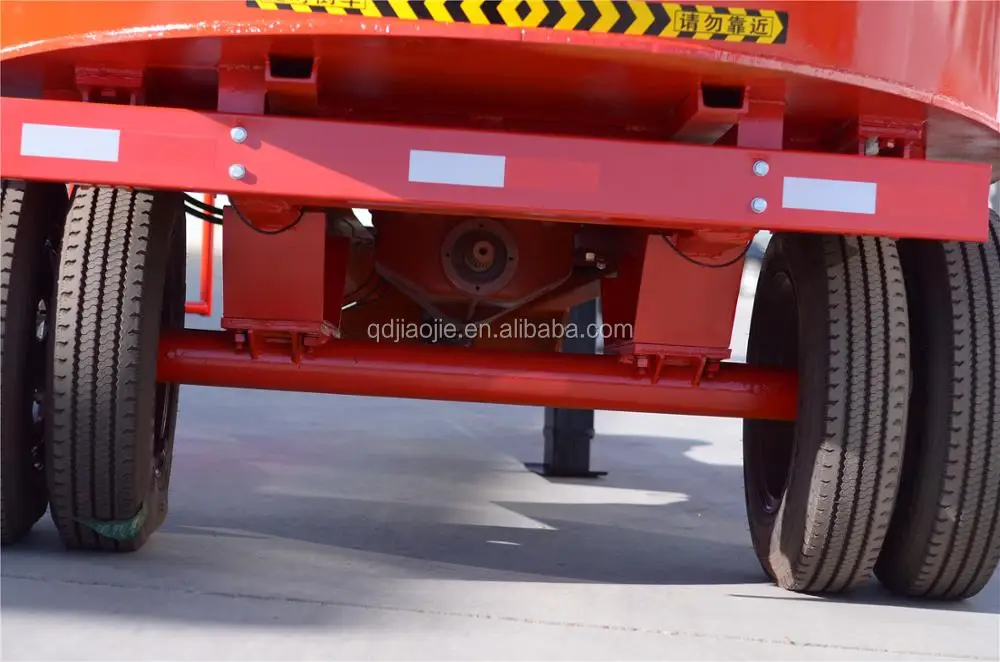

Gear Box:JCTT,best brand in China

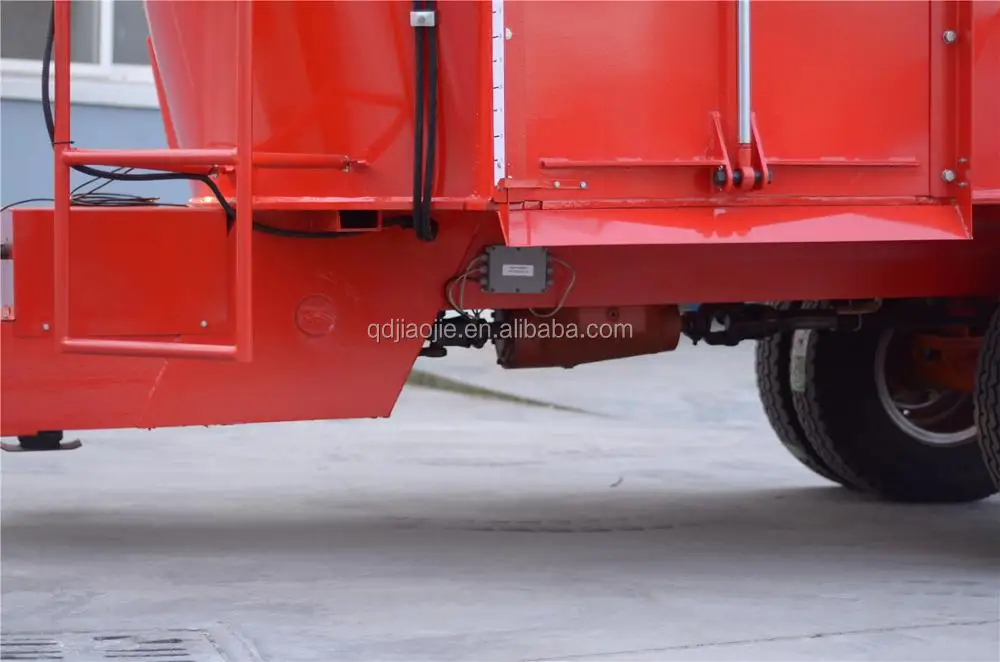

Weighing Sensor:
Electronic weighing system
The creation of a constant mixed ration is additionally simplified through the use of an electronic weighing system (optional). The electronic additive scale guarantee continous mixing of the individual components.
Consistent feed quality

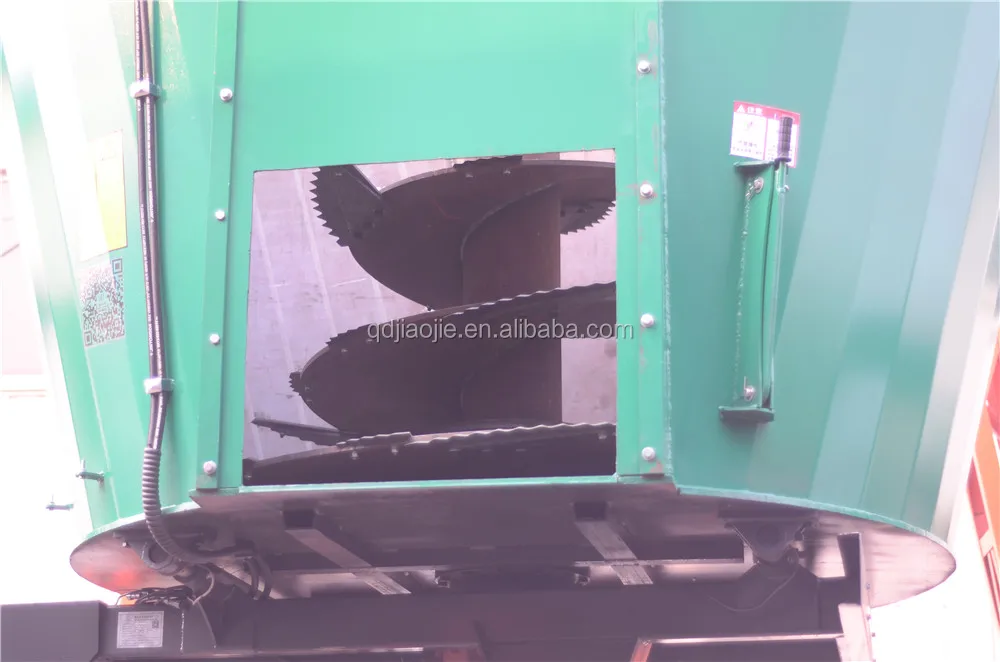

The vertical mixer auger and the canted container ensure that the feed is mixed through perfectly. The distance from the mix container to the auger has been selected to ensure that all feed components are reliably shredded and mixed trough.

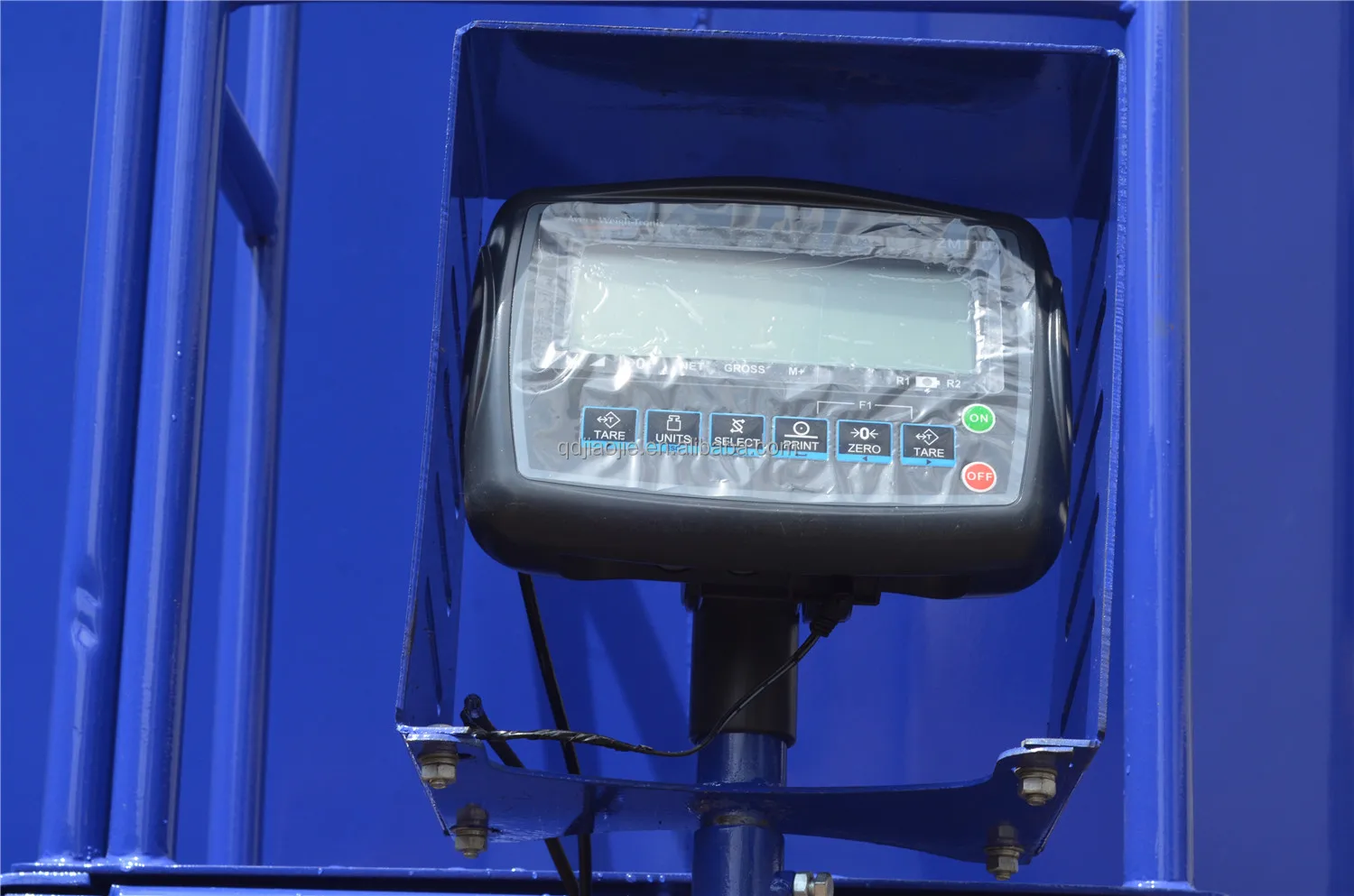

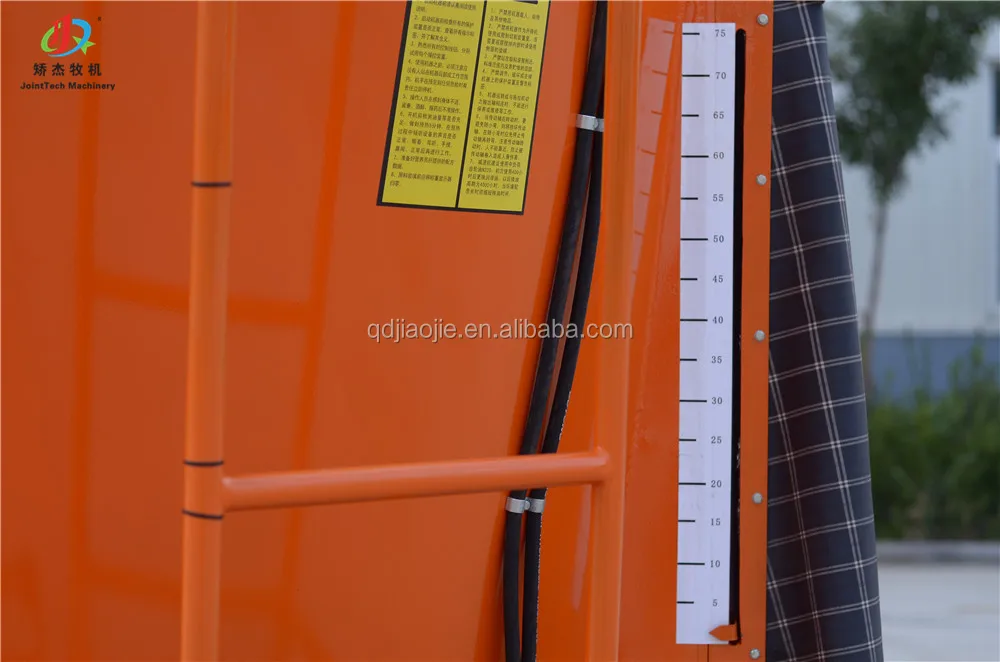

Clear Scale:For accurate feeding

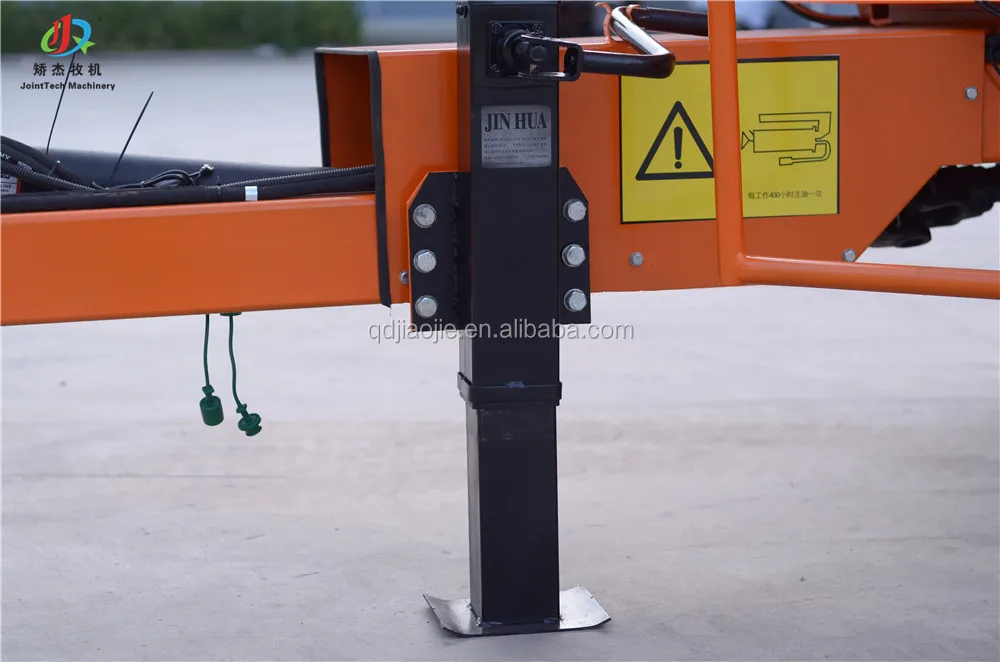

Leg:used when stop working

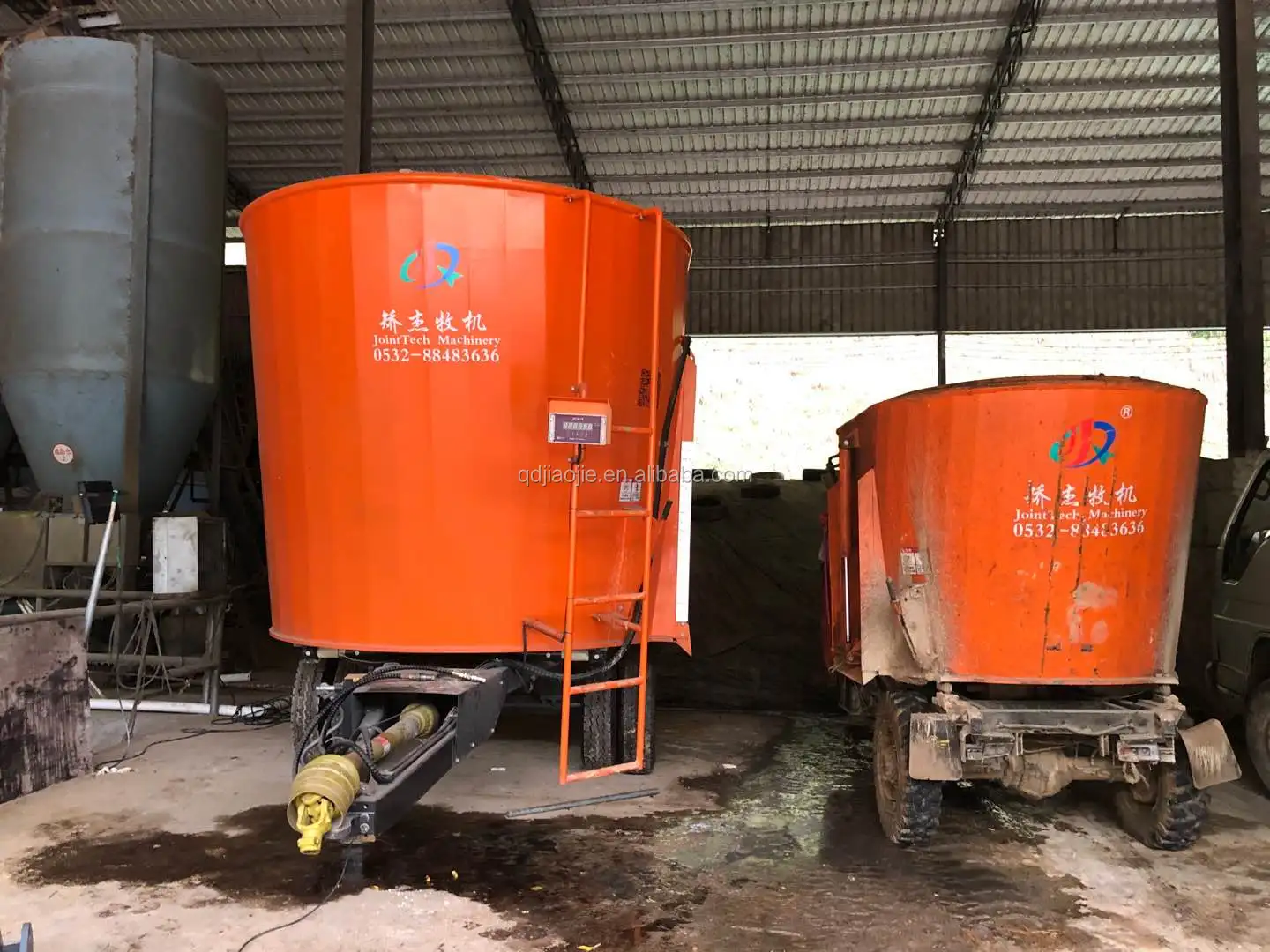

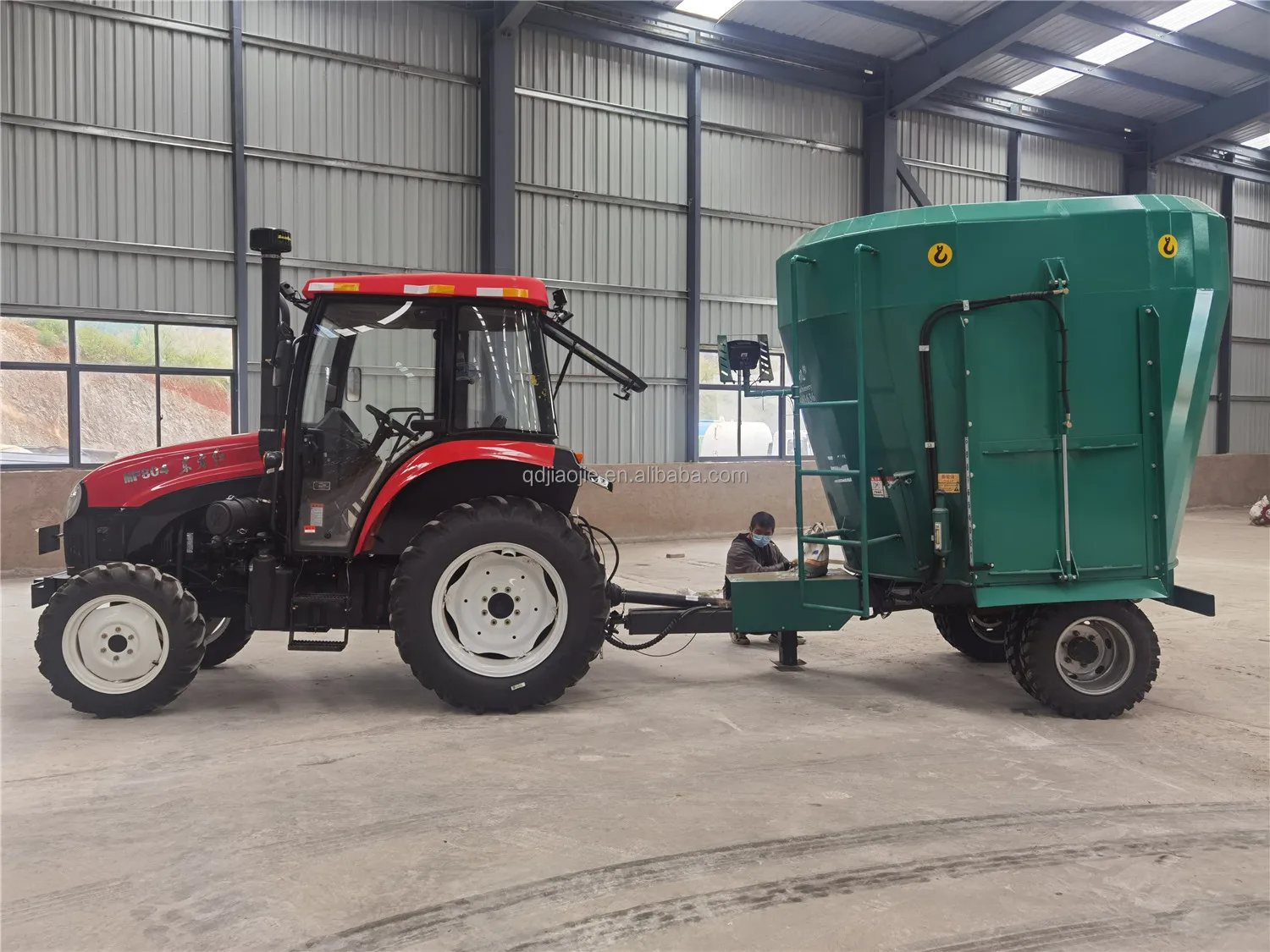

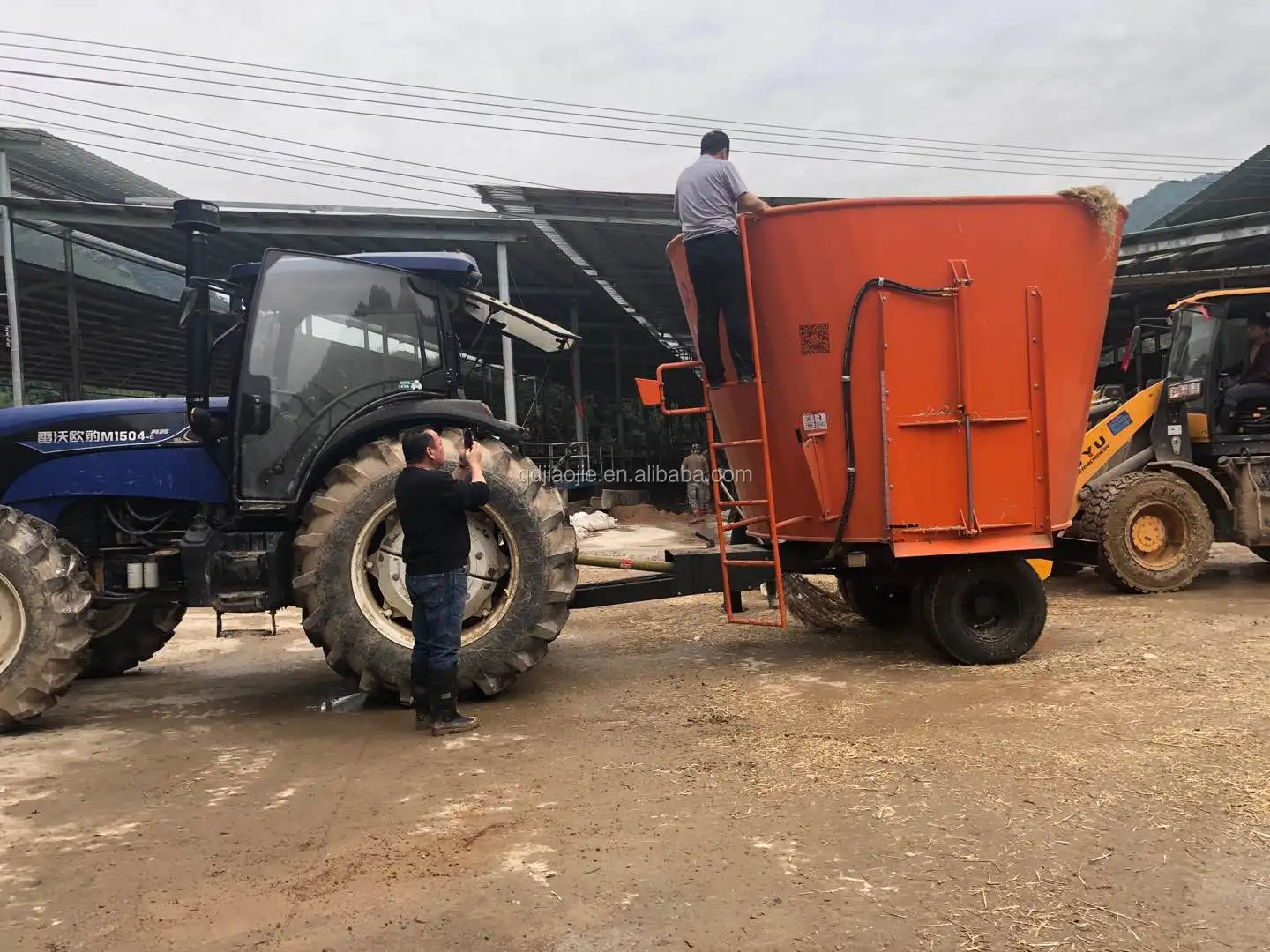

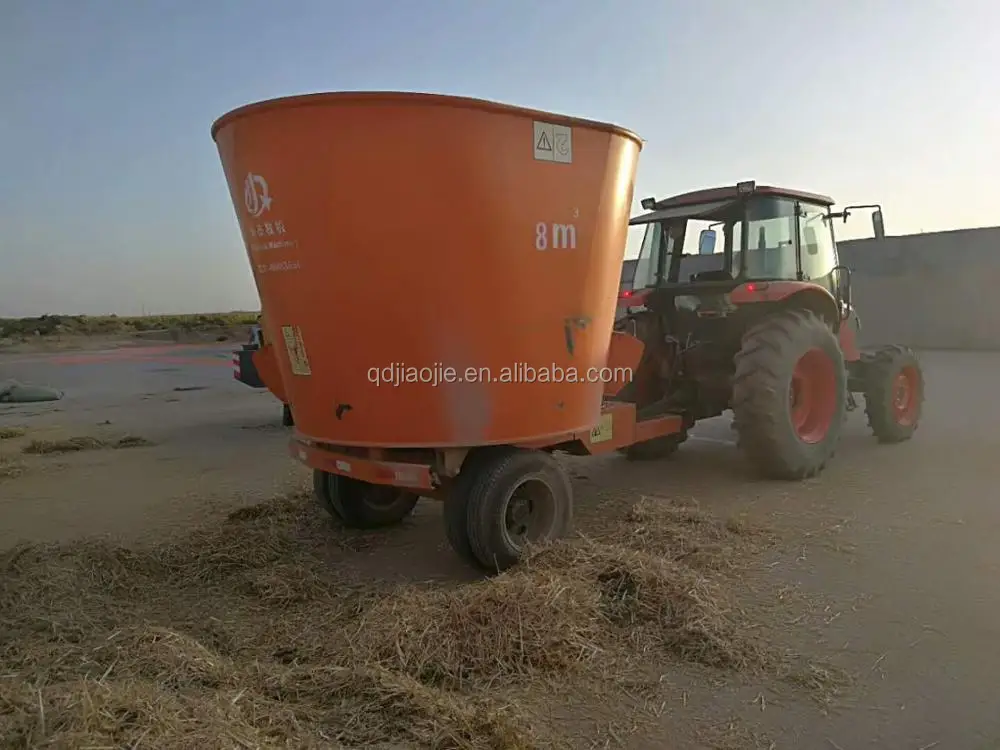

Client Case
Our Service
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t

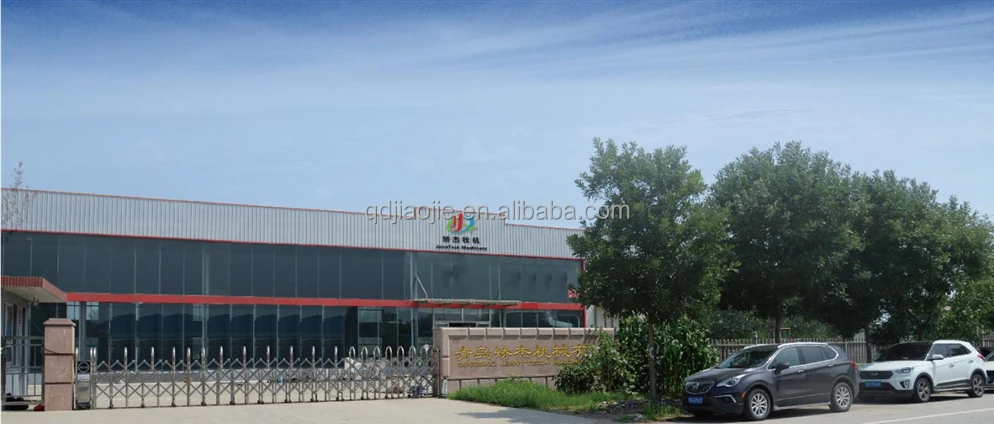

Qingdao JointTech Machinery Inc. is located in Laixi,Qingdao City,close to Qingdao Airport and Qingdao Port.It is a professional manufacturer of dairy farm machiney equipment.It owns 2 factory, it is a modern machinery equipment manufacturer integrating design, production, sales and service.
