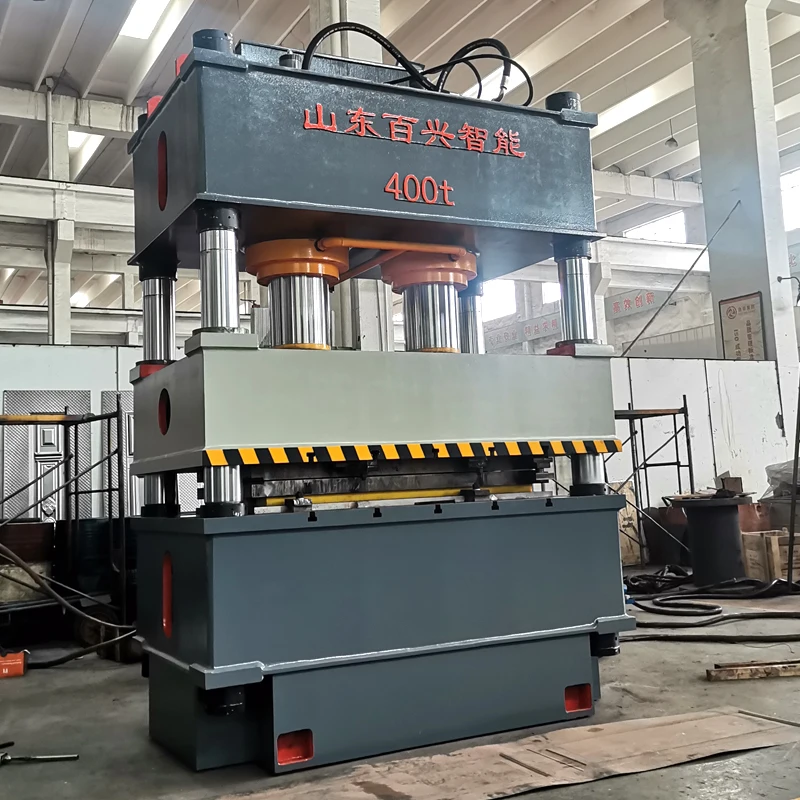

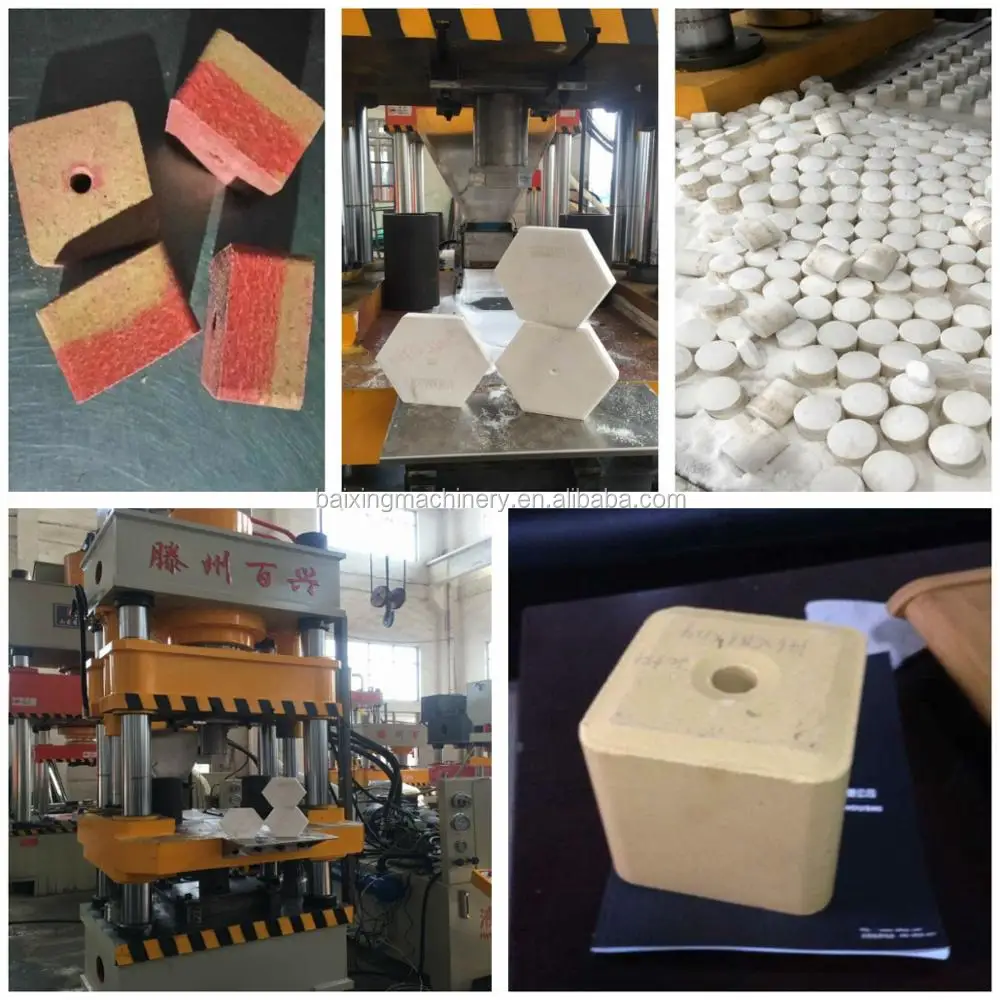

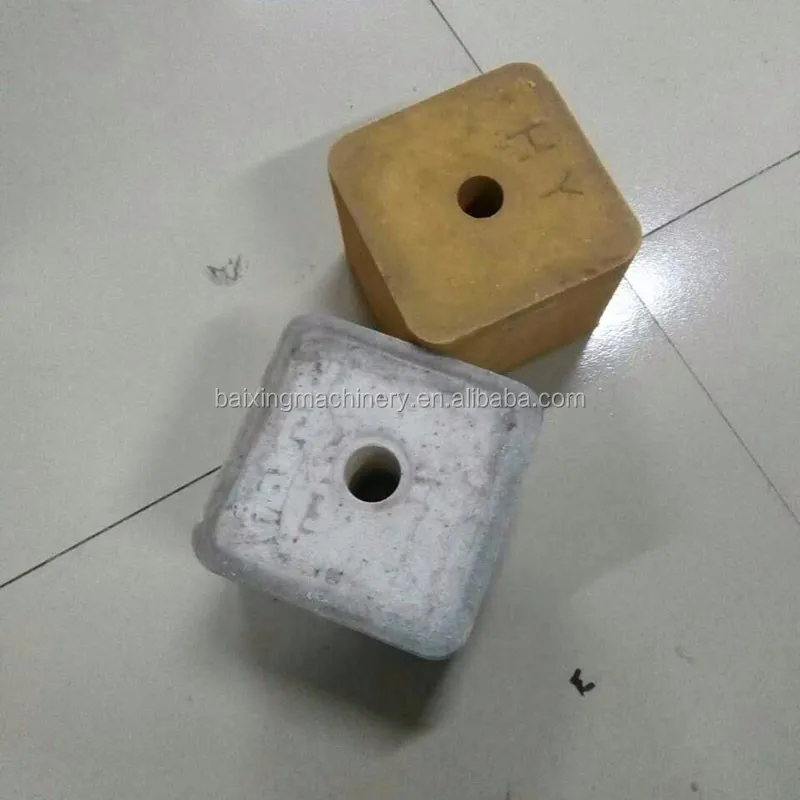

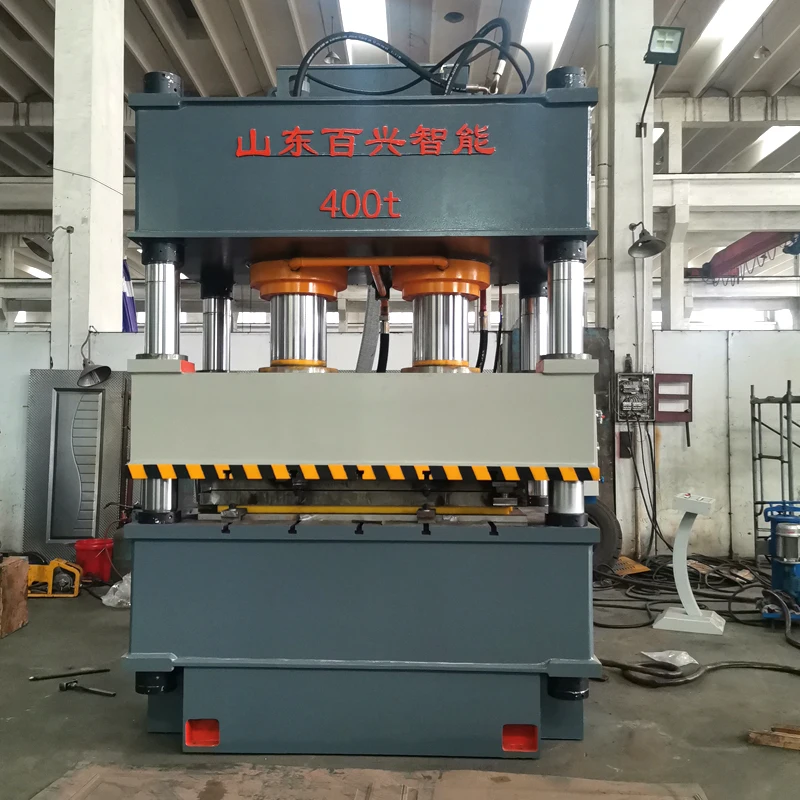

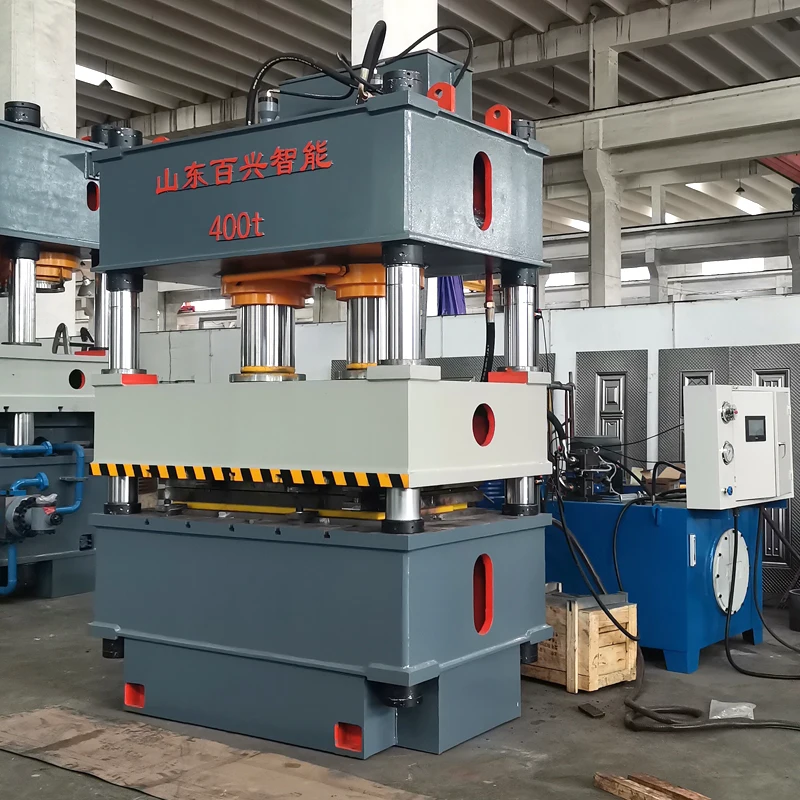

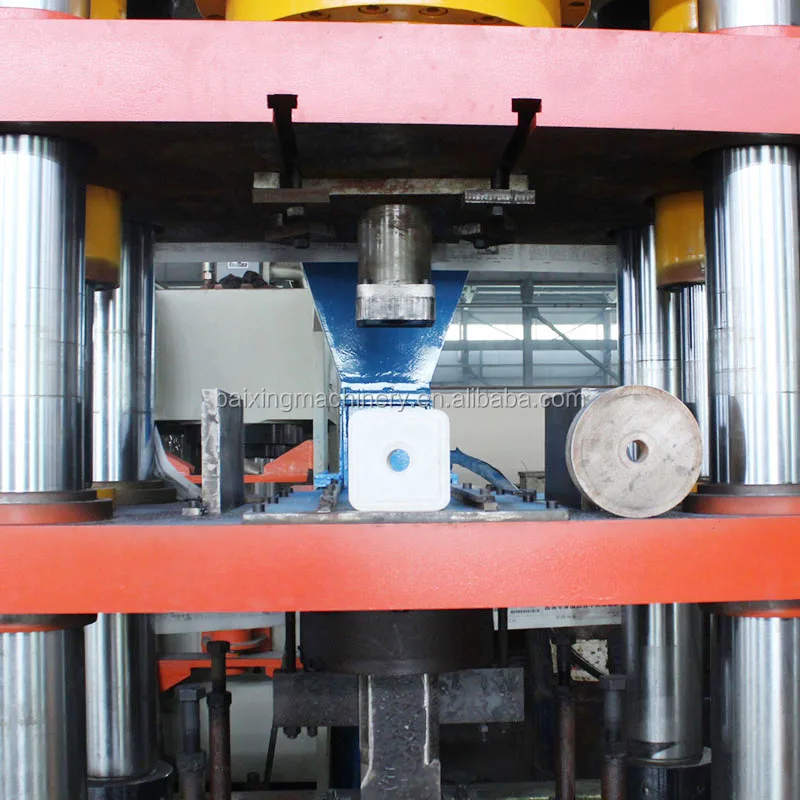

BX 500T Multi function powder hydraulic molding PRESS machine, can produce baits, salt blocks and so on.
- Category: >>>
- Supplier: Tengzhou Baixing Machinery Co. Ltd.
Share on (60745795400):
Product Overview
Description
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
序号(NO.) | 项目(ITEM) | 单位(UNIT) | 规格(NORMS) | ||
1 | 公称力(Nominal capacity) | KN | 4000 | ||
2 | 顶出力（Ejection nominal force） | KN | 800 | ||
3 | 液体最大工作压力(The maximum working pressure of the fluid) | MPa | 25 | ||
4 | 主缸有效行程(Master cylinder effective stroke) | mm | 600 | ||
5 | 顶出行程(Ejector Stroke) | mm | 200 | ||
6 | 最大开口高度(Maximum opening height） | mm | 700 | ||
7 | 最小闭合高度(minimum shut height) | mm | 100 | ||
8 | 工作台有效面积(Effective area ofworking table) | 左右(L/R) | mm | 2000 | |
前后(F/B) | mm | 1000 | |||
9 | 滑块速度 | rapid down | mm/s | 120 | |
working speed | mm/s | 5-10 | |||
return trip | mm/s | 90 | |||
10 | 电机功率 motor power | KW | 22 | ||
