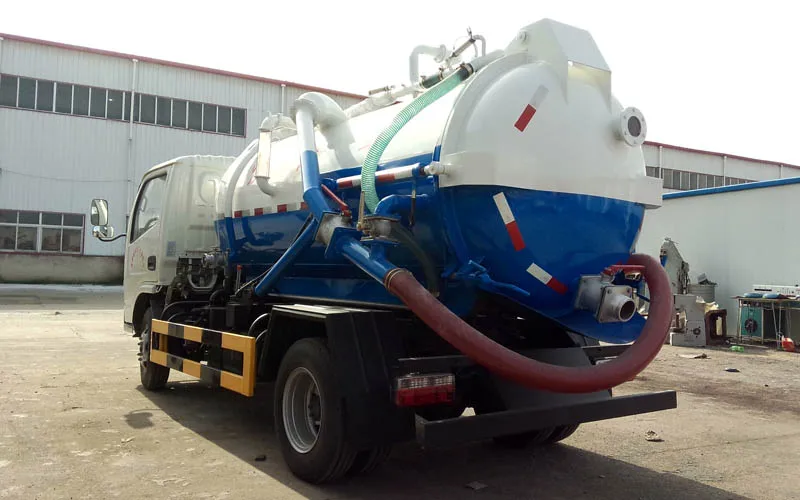

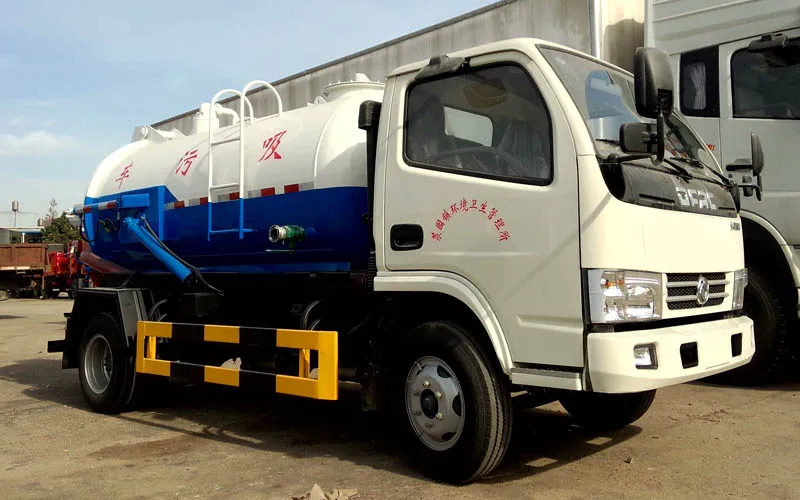

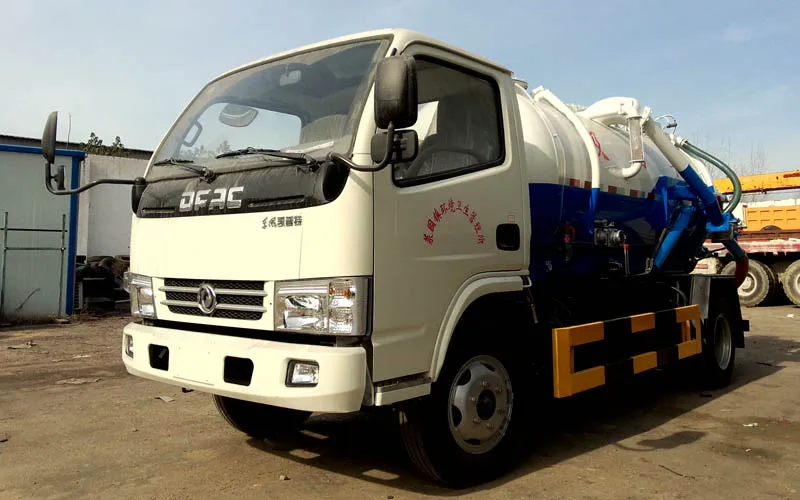

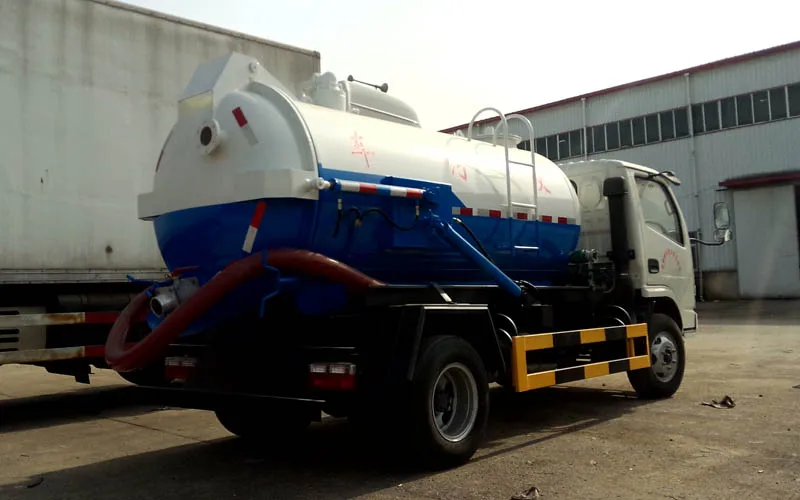

Dongfeng Multi functional 5cbm sewage pump truck in dubai
- Category: Flower Girls' Dresses >>>
- Supplier: Hubei Veldlion Machinery Co. Ltd.
Share on (60745822141):
Product Overview
Description
Product Description

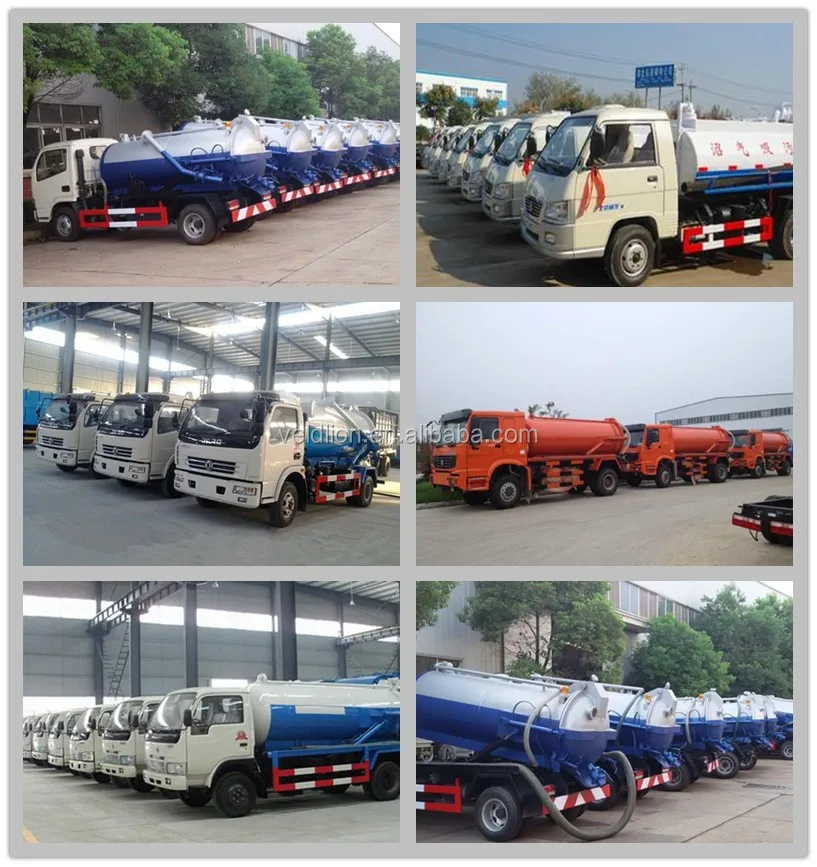

I. SEWAGE SUCTION TRUCK SERIES

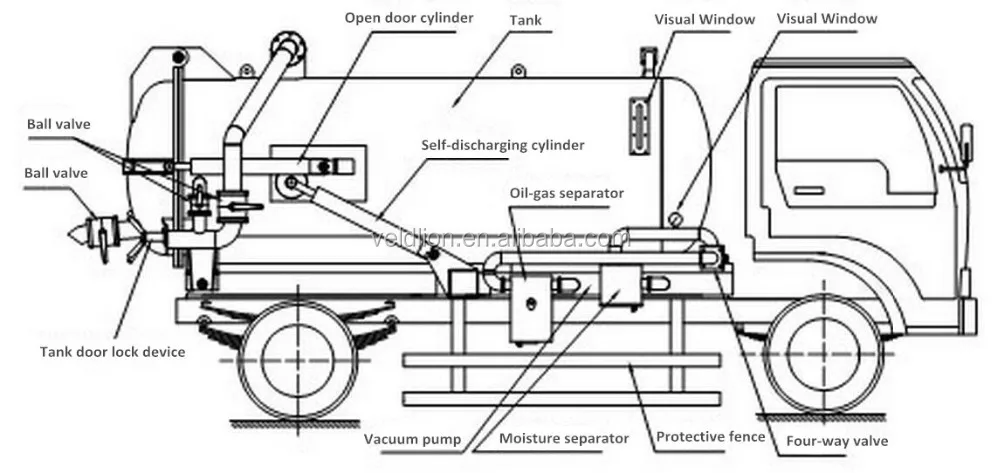

II.SEWAGE SUCTION TRUCK DETAILS
Specification
III. SPECIFICATION
| Product Technical Specifications | ||||
| Item | Descriptions | Dongfeng Multi functional 5cbm sewage pump truck in dubai | ||
| Vehicle | Brand | VELDLION | ||
| Overall Dimensions L*W*H | 5995*2000*2520mm | |||
| Weights | GVW. | 7300kgs | ||
| Kurb Weight | 4100kgs | |||
| Rated Payload | 3070kgs | |||
| Chassis | Chassis Brand | Dongfeng | ||
| Drive Type | 4×2 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Chao chai engine | ||
| Power | 95HP | |||
| Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
| Performance | Max. Speed | 90km/h | ||
| Wheel base | 3300 mm | |||
| Tyre Specifications | 7.00-16 | |||
| No. of Tyre | 6 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 2 persons allowed | ||
| Body/Superstructure | Tank | Capacity | 3m³-5M3 | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Vacuum pump | China famous vacuum pump | |||
| Vacuum rate | 99% thorically | |||
| Suction head | 6m | |||
| Rotation speed | 500 rpm,low noise,high efficiency | |||
| Basic | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
| Equipments | ||||
| Paint | ||||
| Tank color is according to client's requirements. | ||||
| Optional Equipments | Italy or Spain vacuum pumps | |||
| Stainless steel | ||||
| Anti-rust coating inside tank | ||||
Factory view

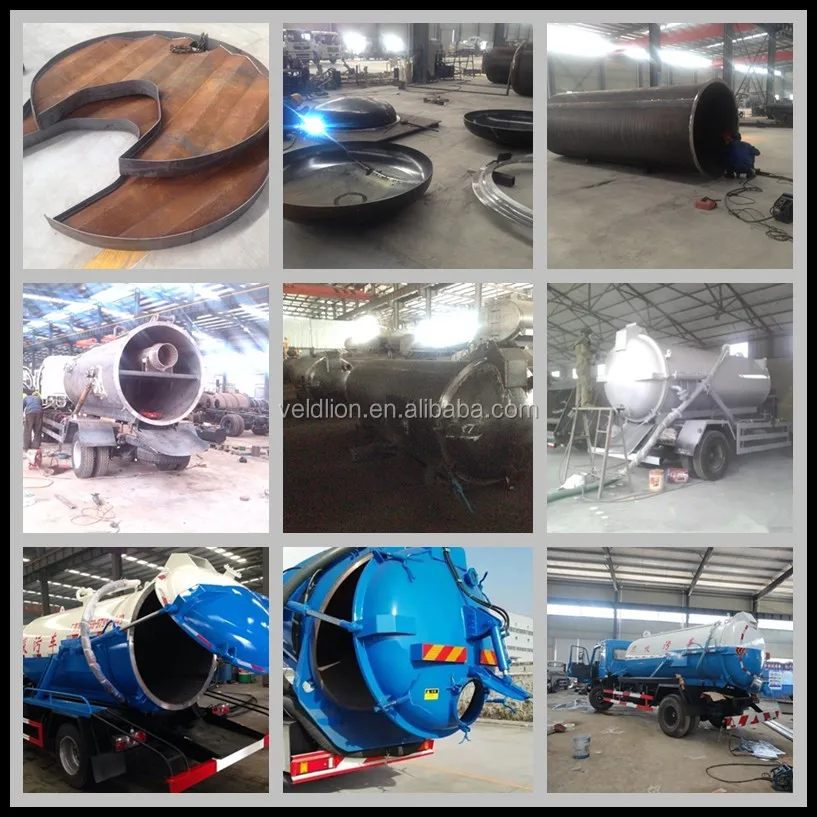

IV. WORKSHOP VIEW
Packaging & Shipping

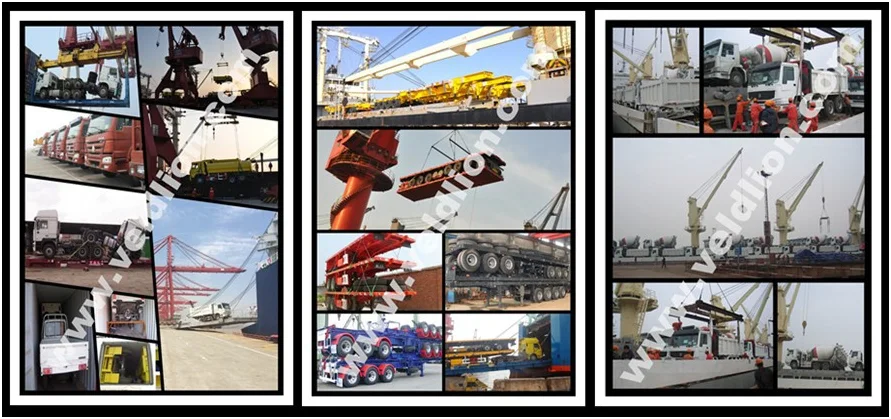

V. TRANSPORTATION
Contact us
VI . CONTACT INFORMATION
HUBEI VELDLION MACHINERY CO., Ltd
ATTN: Real Liu
Mobile phone: +86 13656866460
Skype: real_veldlion
Email: sales05(at)veldlion (dot) com
Website: www.veldlion.com
