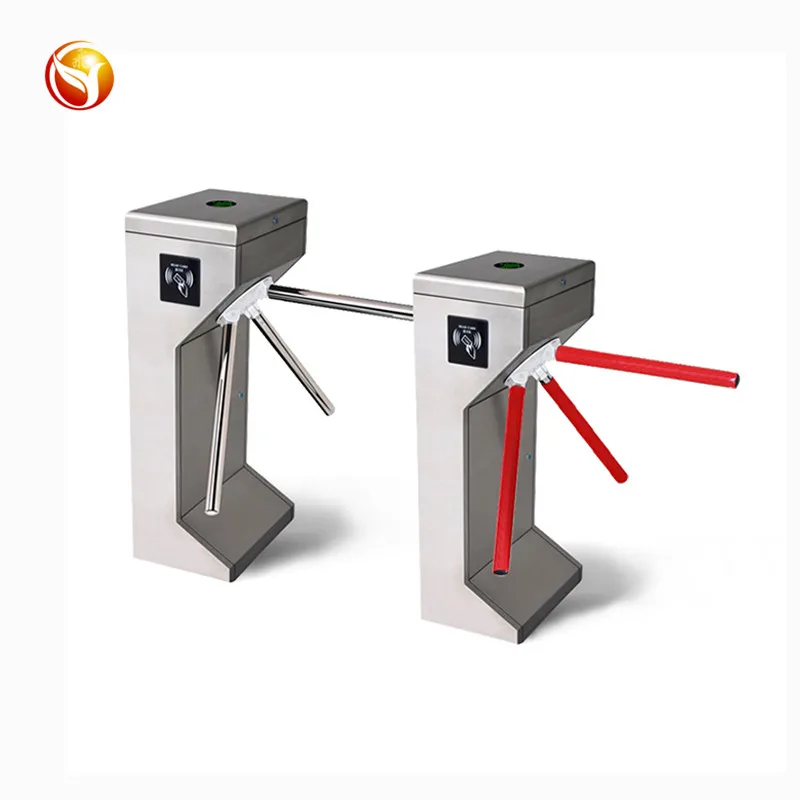

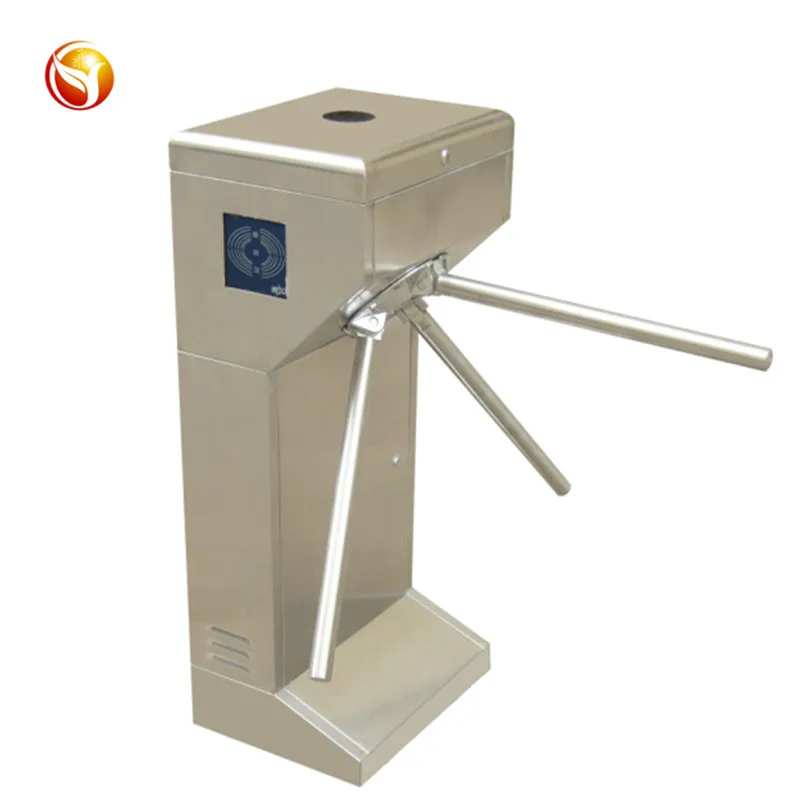

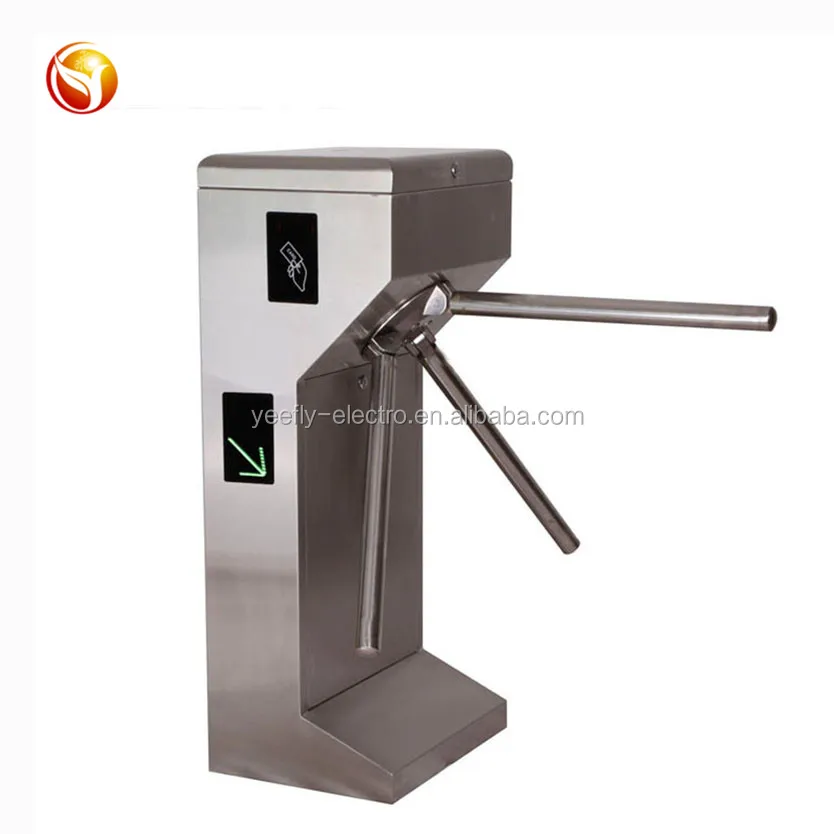

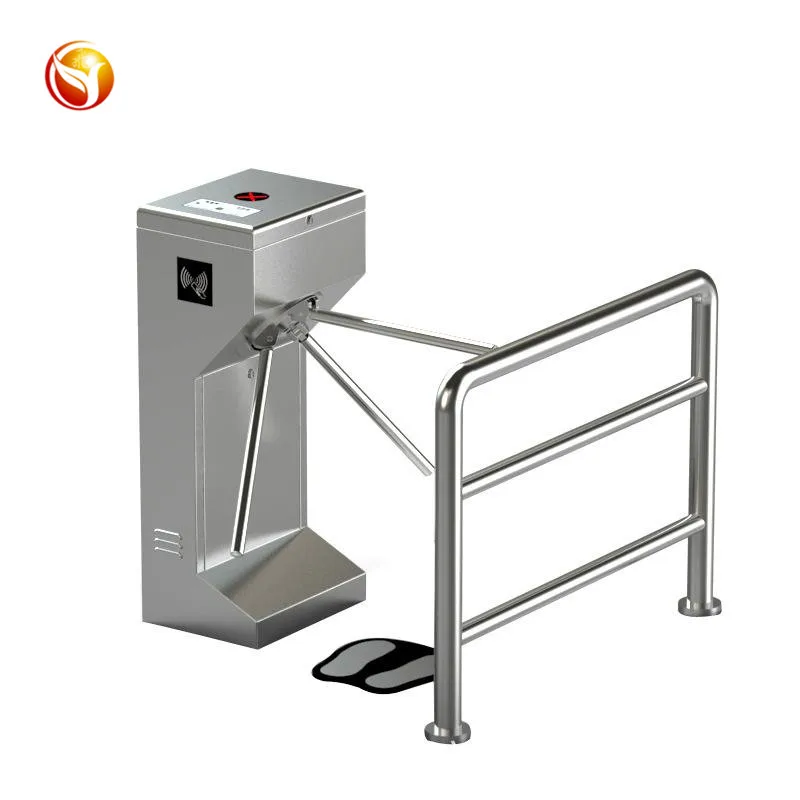

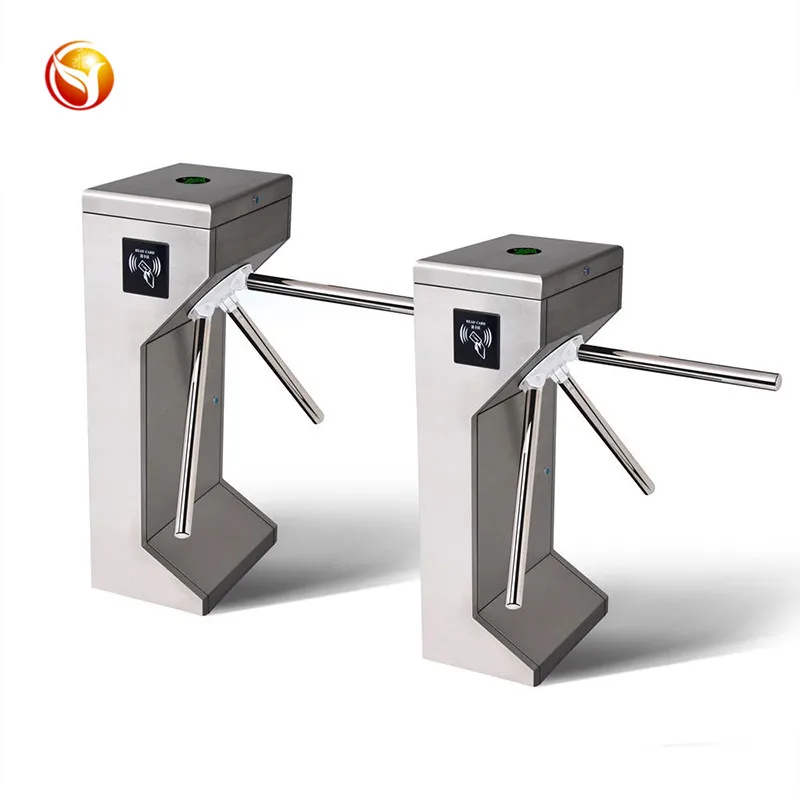

Promotion Vertical pedestrian tripod turnstile 304 stainless steel rfid card reader security turnstile gate

Product Overview

Description

Specifications



1	Power	AC220C±10V,50/60HZ;
2	Machine core	Automatic
3	Operating Temperature	-45°C-60°C
4	Relative Humidity	≤95%, No Condensation
5	Passage Width	≤600mm
6	Passing Speed	45persons/min
7	Motor	DC Brushless motor, 30W/24V
8	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9	Communication Connection	RS485 Communication
10	Material	Stainless steel 304,thickness is no less than 1.3mm
11	Communication Distance	1200M
12	Running life	5--8 Million(Continuous Opening and Closing Operation)
13	Protect level	IP54
14	Size	1220*280*985mm(Bridge house ) ; 400*330*980mm(Vertical house); custom made as demand
15	Colour	SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
16	Operation Place	Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area, Enterprise’s Entrance and Exit Attendance,Gateway Guard, Charge Management,Special Access Control





Features



1.Smart card reader compatible with a variety of card such as IC and ID card.

2.can be expanded to automatic identification system, realizing function of access control,

Pedestrian flow control, attendance check or fare collection.

3.Equipped with international standard electrical interface, can be easily integrated with other

R/W device, also can be controlled and management through remote supervision computer

4.Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating

Attempts, together with anti-strike function to protect pedestrian

5.LED gate direction indicator that displays the current operational state to pedestrian. Green

Arrow for entry free, Red Cross for passage locked.

6.Can open the turnstile by two input signals (signals can be input by access controller, button or

Other equipments)

7.Provide audible sound prompt and information display function.

8.The flaps will open automatically during power interruption and recover N/C mode after power on (optional)

9.counting function. Flap closes after passing N pedestrians continuously by swiping card N times

Correspondingly (N<=16) (optional)

10.Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction

After reading the card. (optional)










Packing

Shipping











 Certification
