AC 220V 240V Air Compressor Solenoid Valve
AC 220V 240V Air Compressor Solenoid Valve
AC 220V 240V Air Compressor Solenoid Valve
AC 220V 240V Air Compressor Solenoid Valve
AC 220V 240V Air Compressor Solenoid Valve
AC 220V 240V Air Compressor Solenoid Valve

AC 220V 240V Air Compressor Solenoid Valve

Share on (60745860254):


Price:

Quantity:


Product Overview

Description


Product Description

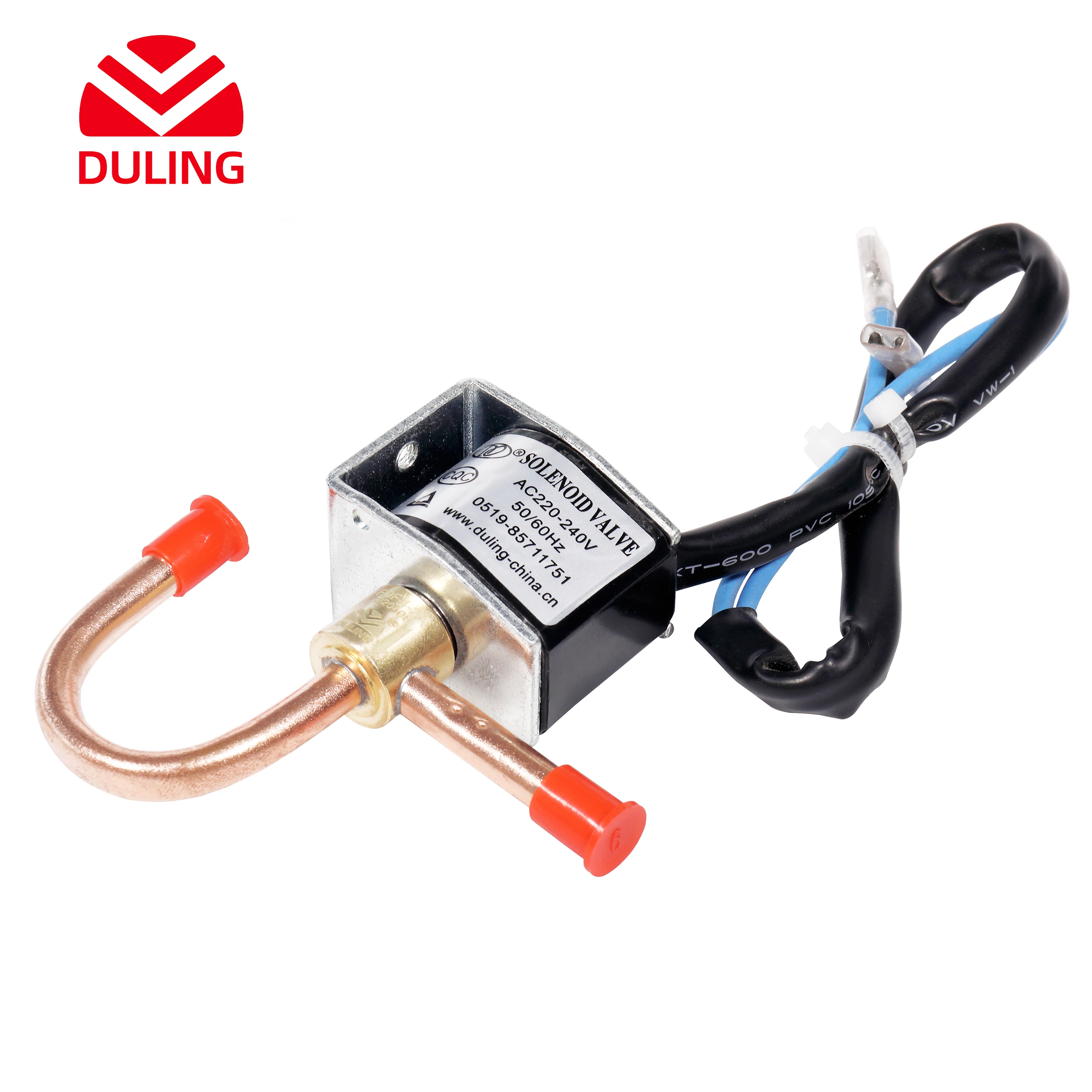

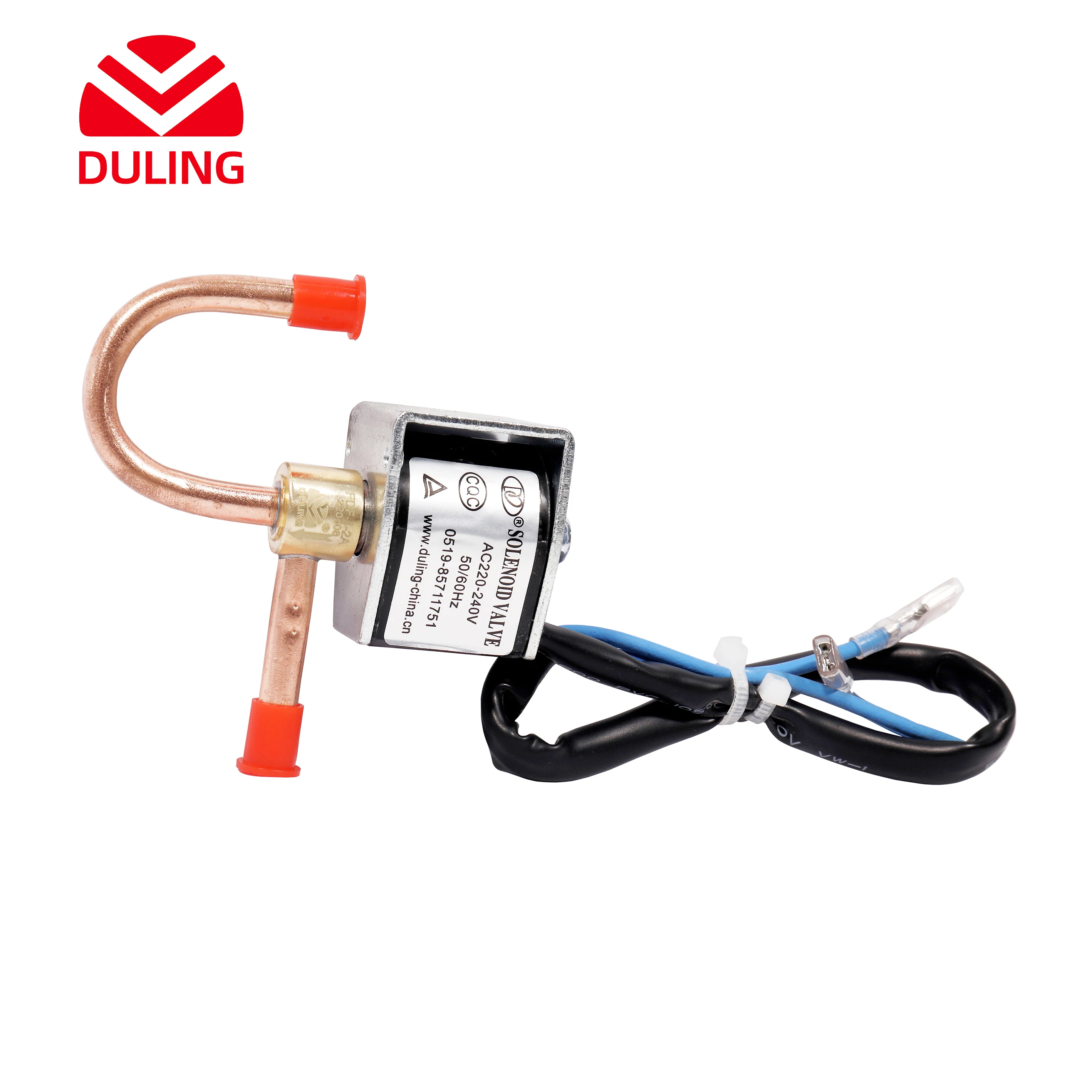

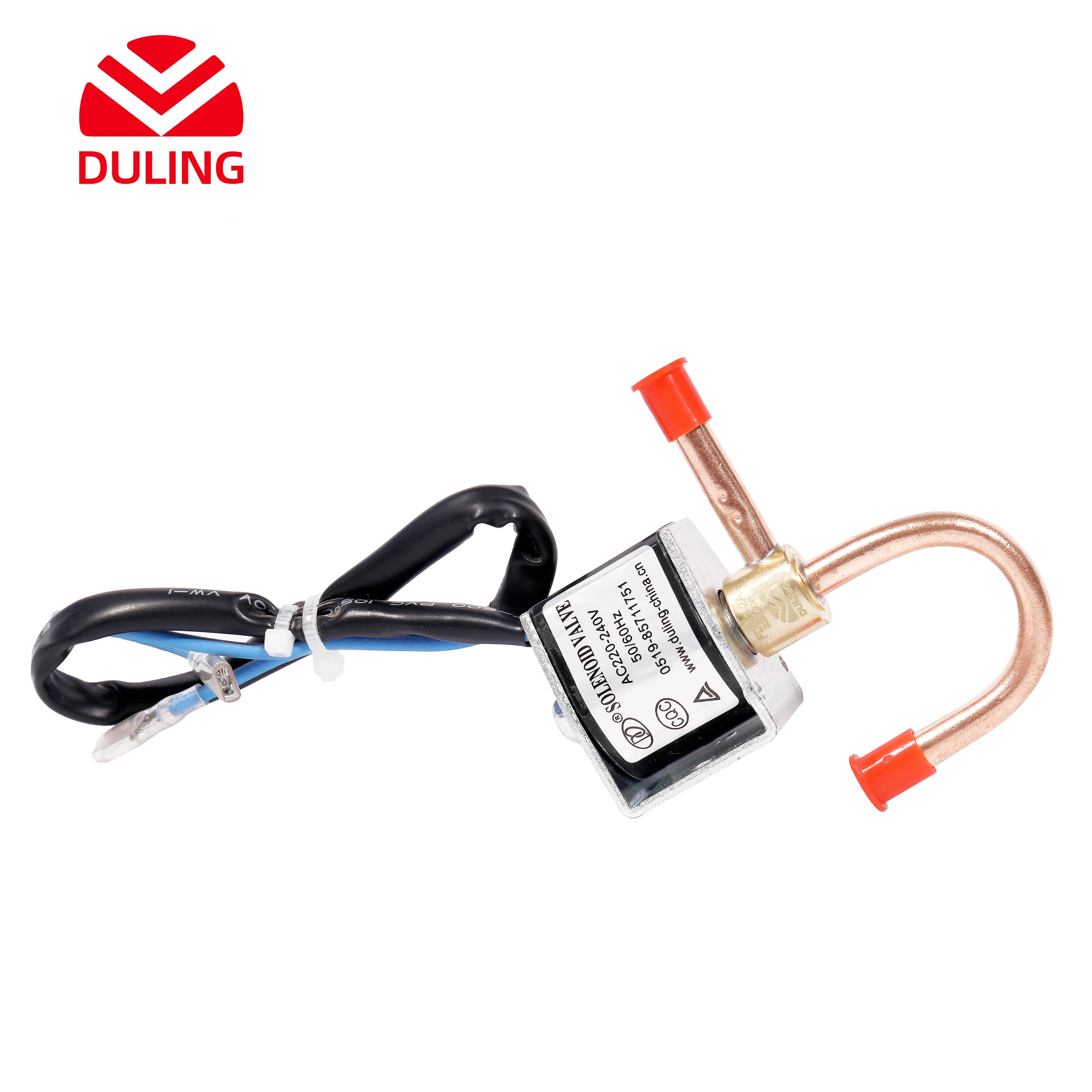

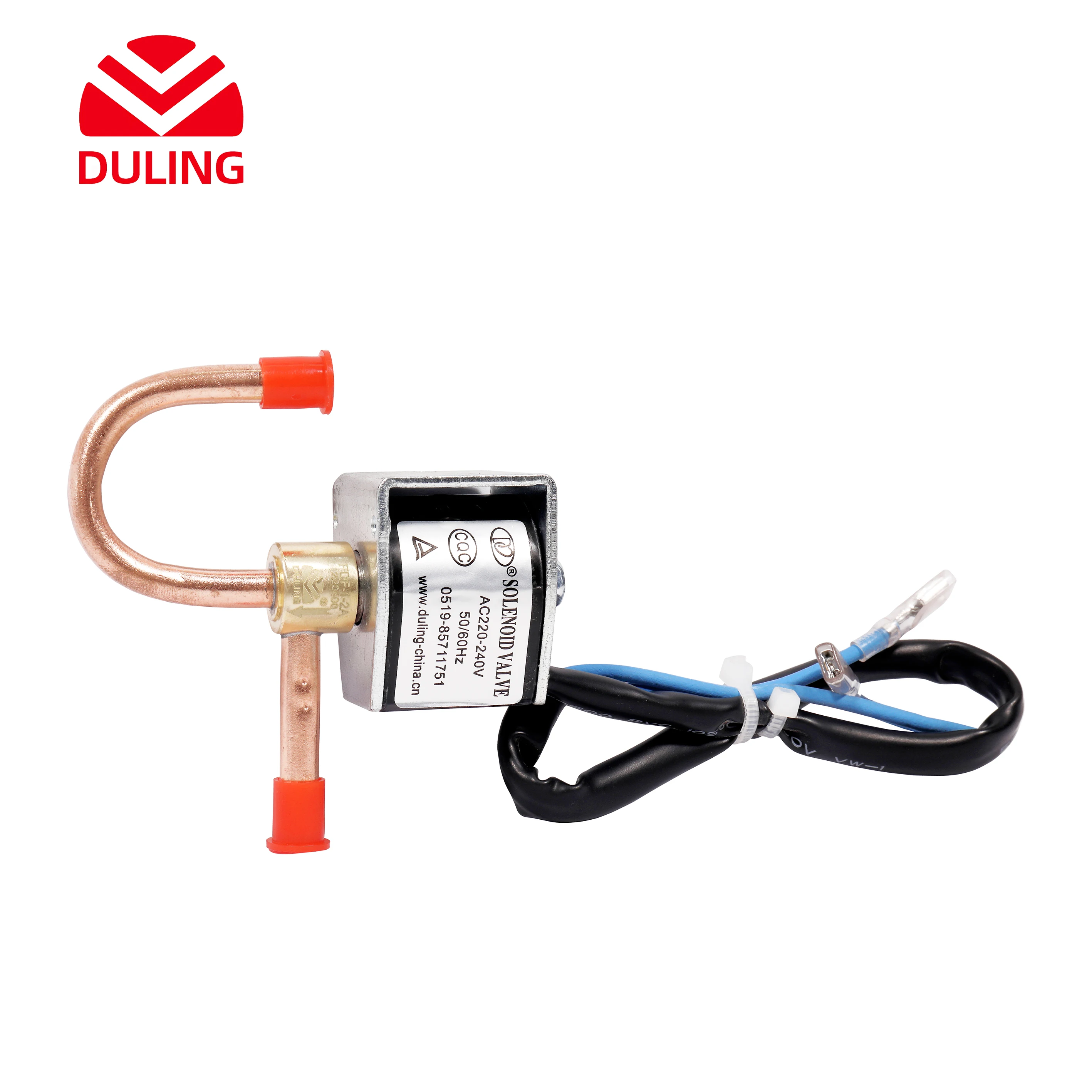

AC 220V 240V Air Compressor Solenoid Valve

1. Leakage of small, small volume.

2. Coil: low power consumption,stable performance,good reliability.

3. Open performance is good, maximum working pressure difference is big.

4. Certification: CE, Rohs

\t
Product Name
\t
Solenoid Valve
\t
Material
\t
stainless steel, Copper
\t
Voltage
\t
AC 220-240 V, AC 110-115 V, DC 12 V, DC 24 v etc.,
\t
Takeover OD
\t
6 mm, 6.35 mm, 8 mm, 9.52 mm
\t
Length of cable
\t
customization
\t
Color of cable
\t
Blue, Black
\t
Type
\t
Normally closed
\t
Used
\t
Heat Pump, Air Conditioner, Ice machine, Water Chiller, Refrigeration etc.,
Products Show
Components


It's composed of valve body and electromagnetic coils,
Which control the opening, closing and closing of the valve  by on-off electromagnetic coils.
Technical Parameter
\t
Specification
\t
Movement pattern
\t
Diameter
  (mm)
\t
    Flow
   (L/min)
\t
 Internal
 leakage
(ml/min)
\t
Highest
Actions pressure
\t
Lowest
Actions pressure
\t
Takeover OD
       (mm)
\t
FDF-1-2A
\t
Normally closed
\t
  1.9
\t
38
\t
50
\t
3.4
\t
0
\t
6
\t
FDF-1-3A
\t
 3.0
\t
110
\t
50
\t
3.4
\t
0
\t
6.35
\t
FDF-1-4A
\t
4.0
\t
196
\t
200
\t
3.4
\t
0
\t
6.35
\t
FDF-1-6A
\t
6.0
\t
367
\t
200
\t
3.4
\t
0
\t
8
\t
FDF-1-8A
\t
8.0
\t
450
\t
300
\t
3.4
\t
0
\t
9.52
\t
Coil
\t
BMC
\t
AC 220-240 V, AC 110-115 V, DC 12 V, DC 24 v etc.,
Frequency: 50/60Hz
