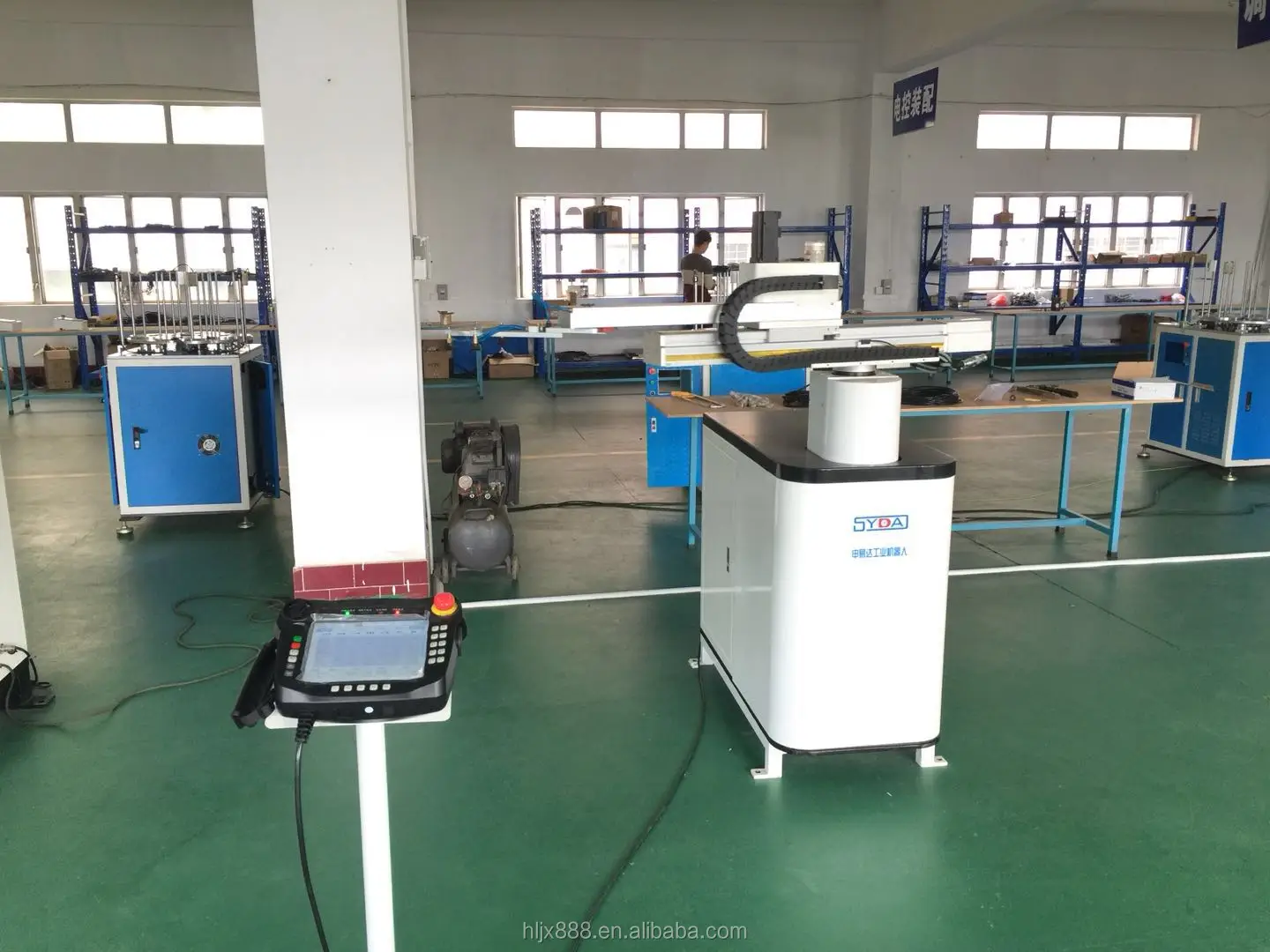

SYD P 02A Full Automatic 4 Axis Robot Arm For Pick And Place Sheet Metal Plate

Share on (60745916230):


Price:RUB 602,703.20 - RUB 828,716.90

Quantity:


Product Overview

Description

Product Description

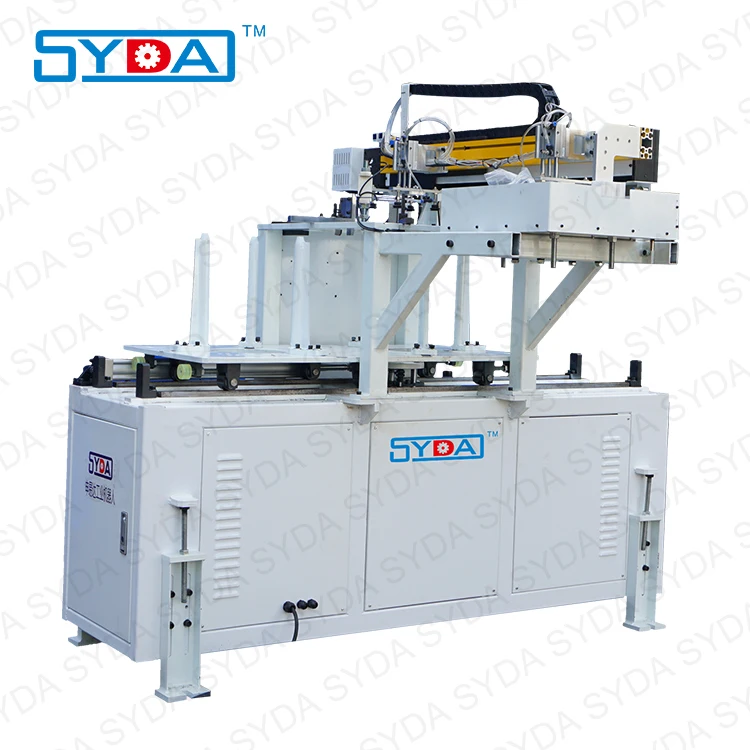

robot 0904 (9)

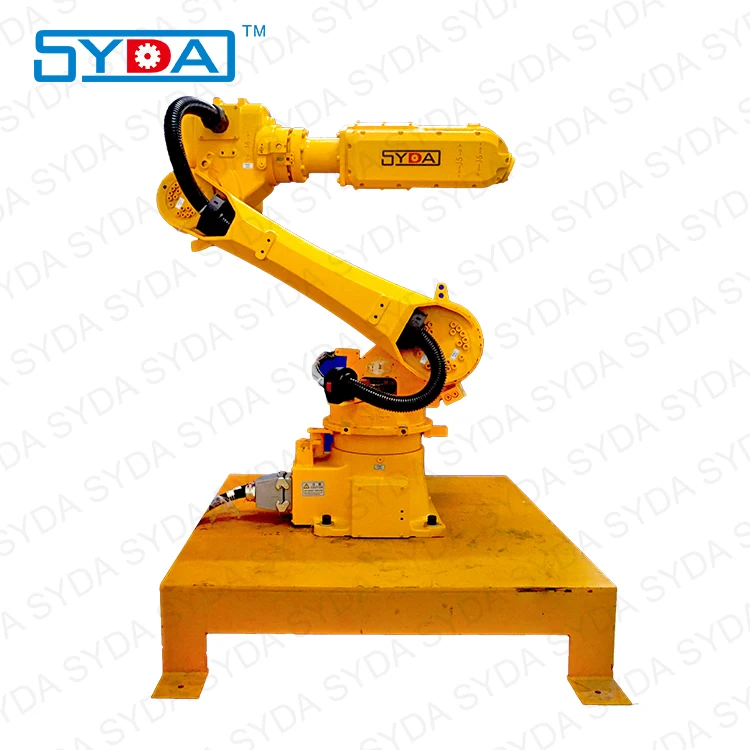

6 axis (1)

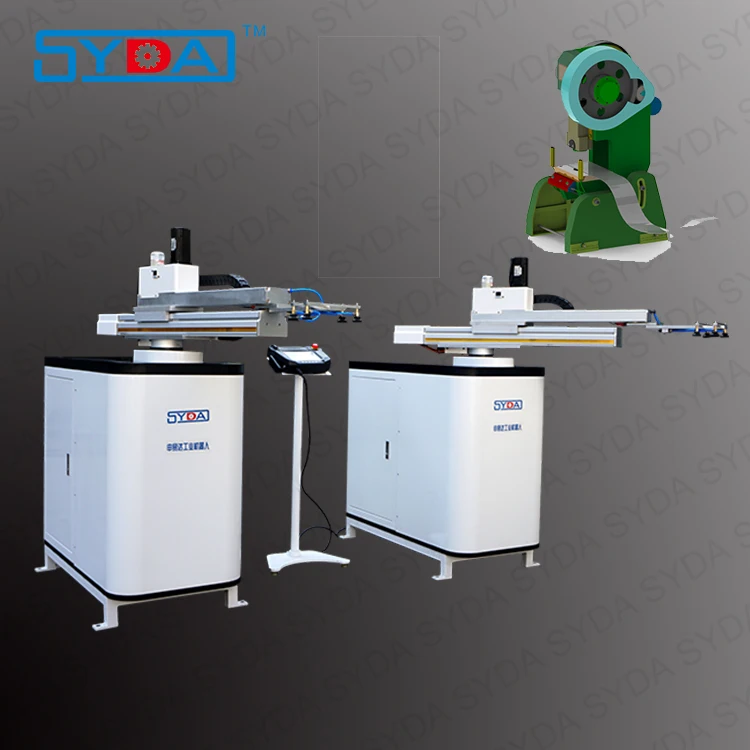

robot 0904 (4)
Double stacker robot hand
6 axis industrial robot arm 4 axis press to press transfer robot
91.8% Response Rate
 91.8% Response Rate 91.8% Response Rate



SYDA ROBOT MODEL

SYD-P-02A

Configuration

4 Axis

Payload

5kg / 10kg

Repeatability Accuracy

±0.2mm

Speed

(Count from bottom to up)

J1(Turn Up down)

0.7m /sec.

J2(Swing Arm)

225°/sec.

J3 (Upper Arm)

-

J4 (Wrist Roll)

-

J5 (Wrist Bend)

-

J6 (Wrist Twist)

-

Horizontal Reach

J2 Arm reach

800/±135°

J2 Arm reach

1000/±135°

Vertical Reach

J1 Up down

300-350mm(customer request)

Max Horizontal Reach

1000mm

Environment

Temperature

0-45

Humidity

20~80% RH(no condensation)

Other

Keep away from:

Flammable/corrosive gases

Flammable/corrosive Solvents

Water or oil and powder dust

Sources of electric noise

Weight

40 kg

Safety Regulations  Arm

IP65

Safety Regulations  Electric cabinet

IP43

4 AXIS

SYDA is a subcompany of HENLI Co., Ltd, which focus on automatic production line designing and developing. Main products is 2D/ 3D/ 4axis/ 6 axis robotic arms and robot, specialised in press lines, like drawing lines, punching stamping lines, and so on. We hope to built solid realation ships with you.

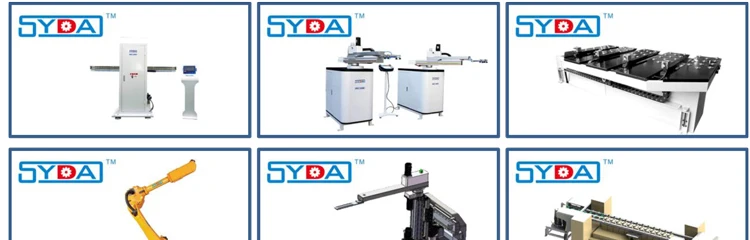

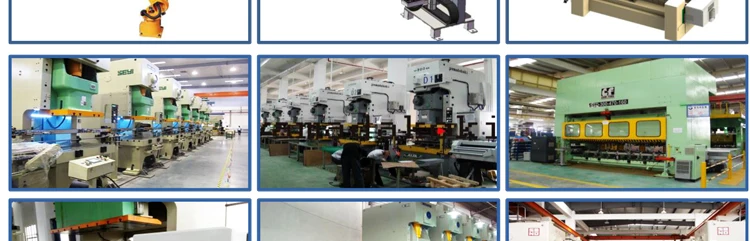

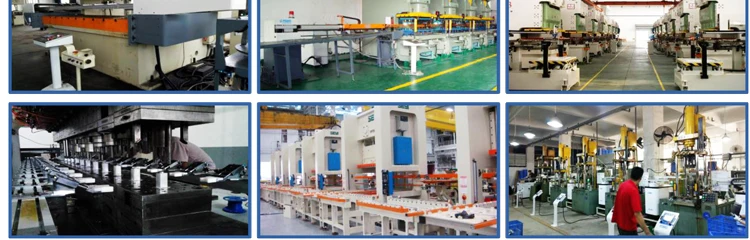

robot_01robot_02robot_03

Company Information

SYDA is a subcompany of HENLI Co., Ltd, which focus on automatic production line designing and developing. Main products is 2D/ 3D/ 4axis/ 6 axis robotic arms and robot, specialised in press lines, like drawing lines, punching stamping lines, and so on. We hope to built solid realation ships with you.

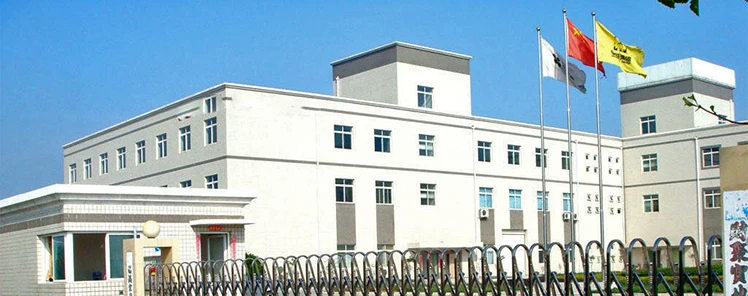

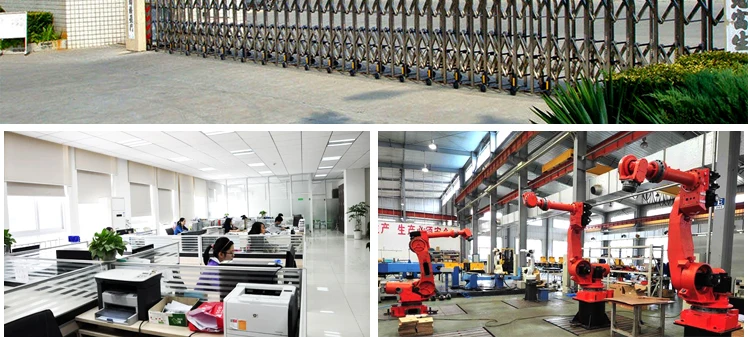

Our factory is located in Dongguan city, which is one of the biggest industrial cities in China. For domestic market, we have more than ten branches and offices fully cover the south and east of China, which are near the sea. And for foreign market, includes South America, Middle East, South Africa, Southeast Asia, now is expanding the market in North America. Most of our clients are terminal clients, we can clearly know their production demands and choose the most suitable machines for them. We also welcome dealers, sincerely hope we can build a long-time and win-win partnership. Welcome you all come to China and visit our factory. What are you waiting for? Go contact us for more!




*Factory direct



HENLI is the top 10 manufactures in southeast china, more than 100 sets machine and equipment are shipped out from our factory to different countries and areas every month.



*Professional



HENLI have been specializing in press automation since established. We provide full series support from function machine to coil line solution.



*Service support



Free pre sales consulting service including project evaluation and practical suggestion



Free training service from installing to daily maintenance. Full technical support through whole machine life



*Safe Trade



All products showing on site are vaild for online trading, and your order will be protected by Trade Assurance.








Certifications

HENLI MACHINERY (4)HENLI MACHINERY (5)

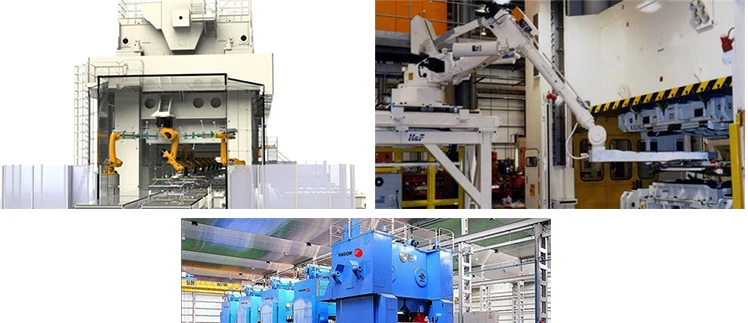

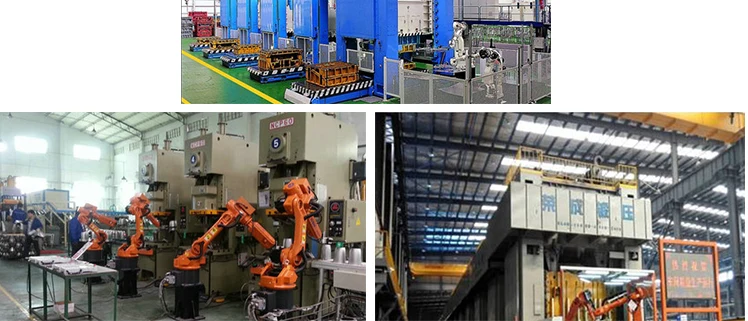

Cases Show








For more videos and solution projects, pls contact us now!
