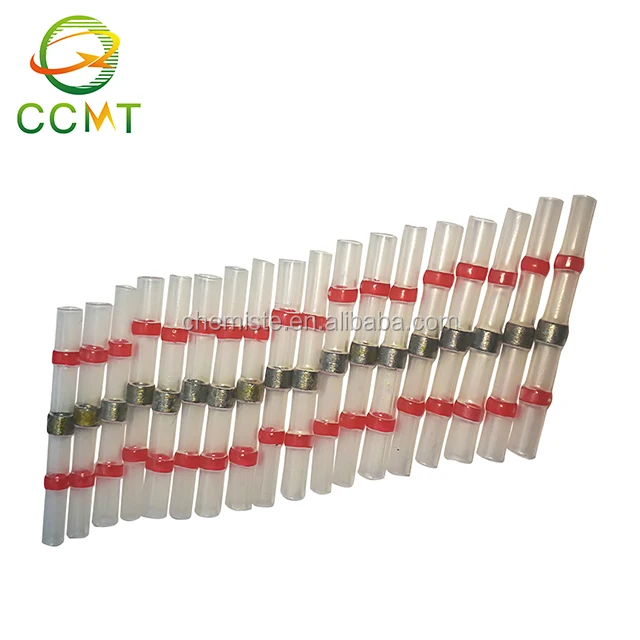

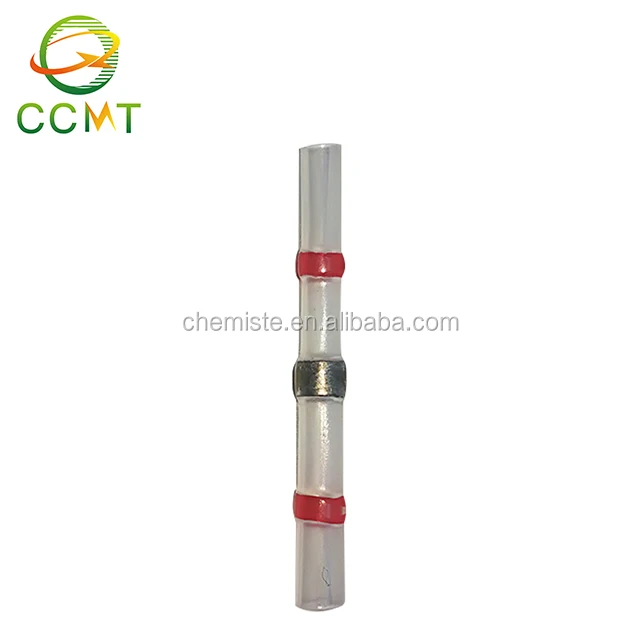

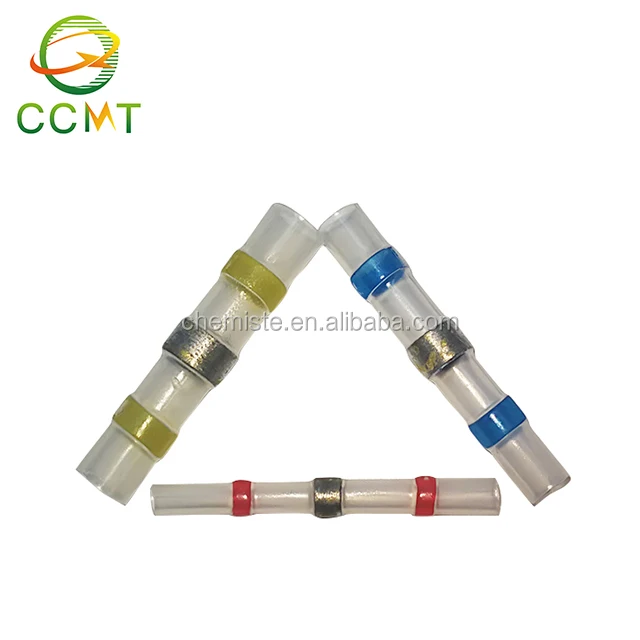

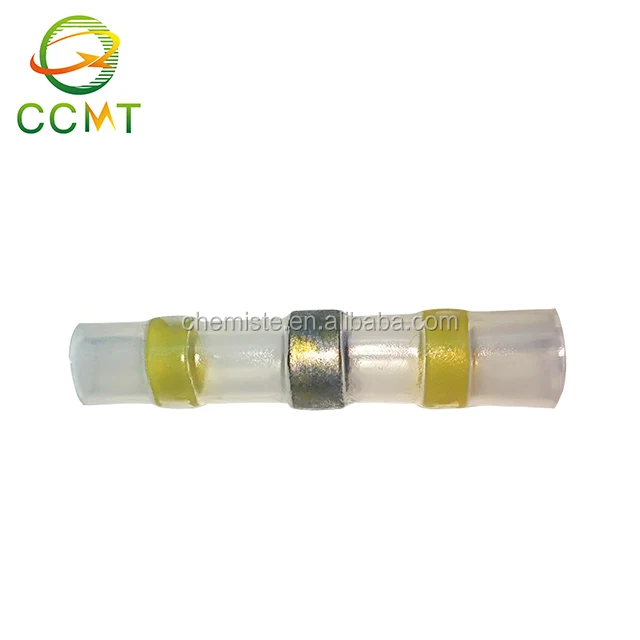

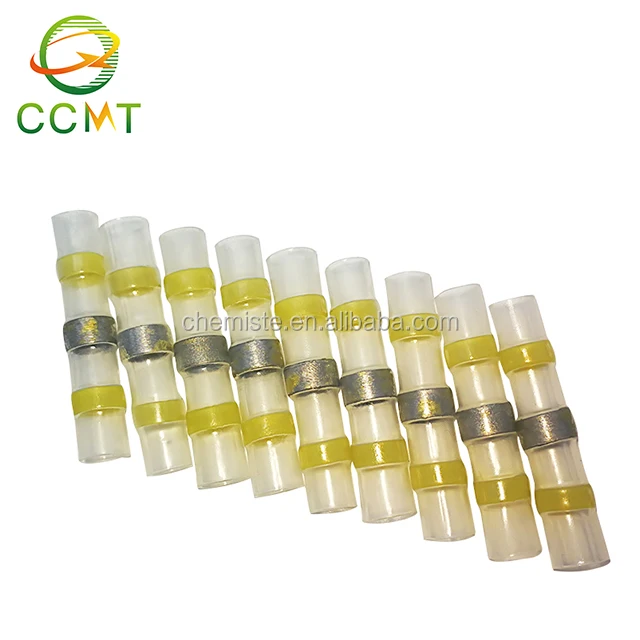

push wire solder seal heat shrinkable tin solder sleeves tube butt connector
- Category: >>>
- Supplier: Changchun Chemistry Technology Co. Ltd.
Share on (60745939521):
Product Overview
Description
push wire solder seal heat shrinkable tin solder sleeves tube butt connector
Product Description
Dimension:
Part Number | Product Dimensions (mm) | Wire Dimensions (mm) | Cable Size | Standard color | |||
| A(min) | L(min) | B(min) | B and C(max) | C(min) | A.W.G(mm2) |
|
SST-S11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24(0.25-0.34) | White |
SST-S21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18(0.5-1.0) | Red |
SST-S31 | 4.5 | 40 | 2.3 | 4.5 | 2.0 | 16-14(1.5-2.5) | Blue |
SST-S41 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10(4.0-606) | Yellow |
SST-S51 | 11.5 | 40 | 5.8 | 11.5 | 5.5 | 10-6(6.0-14.0) | Blue |
SST-S61 | 13.0 | 42 | 6.8 | 13.0 | 6.5 | 8-4(8.0-22.0) | Blue |
Performance:
Operating temperature | -55℃~125℃ |
Shrink temperature | >160℃ |
Dielectric strength | 1kv |
Protection type | IP 67 |
Features:
Shrink ratio 2:1
Waterproof for wiring splices
Transparent sleeve provides precise inspection.
Easy control soldering process.
Applications:
One piece design, it consists of transparent heat shrinkable sleeve and fluxed solder. Provides insulation and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube, it is very convenience to use the exact wire dimension.
Operating temperature range:
Operating temperature: -55℃~125℃
Minimum shrink temperature: 80℃
Starting temperature of solder melt: 138℃
Minimum fully recovery temperature: 160℃
Product Show
Main Products
About Us
Our Customers
Product Line
Package
FAQ
Q 1: What is your quality warranty terms?
A: We will remake for free if you find some quality problems when you receive the products.
Q2: What’s the payment terms?
A: Generally. It’s T/T or L/C at sight for bulk order, also we accept the Western union or Money or Money gram or Paypal etc for small or sample order.
Q3: What’s your lead time?
A: For bulk order takes about 15-30days, for samples, take 3-5 working days.
Q4: Can you print on the products?
A: We can supply the print on the products as your demands.
Q 5: Can you help us to make the design?
A: OK, but please send us the logos or any contents you want to show.
