PVC welding machine for urine bag(ISO9001:2000,CE, 2021 new design)

Product Overview

Description



A. Main Application:

This Medical urine bag blood bag infusion IV bag feeding bag film and tube high frequency welding machine series are widely used and suitable for all kinds of medical infusion bag, blood bag, saline bag, feeding bag and urine bag film high frequency welding with or without tube.



B. Main introduction:

World famous brand Delta PLC controlling system with human-computer interface and touch screen, Japan Toshiba evacuated tube, Japan FUJI contactor, Japan OMRON temperature controller, Japan Mitsubishi servo motor, World famous 5557 anti-spark pipe included.



C. Main Parameters of medical urine bag film high frequency welding machine and final urine bag film&tube welding machine:

C1. High frequency output: 16KVA for medical urine bag film welding machine

C2. Oscillation power: 10KW for medical urine bag film welding machine and 1.5kw for final urine bag film&tube welding machine.

C3. Oscillation frequency: 27.12MHZ for medical urine bag film welding machine and 40.68MHZ for final urine bag film&tube welding machine

C4. World famous brand Taiwai Delta PLC controlling system with Delta touch screen and Japan Toshiba evacuated tube

C5. Way of pressure: Pneumatic

C6. American 5557 anti-spark pipe function for medical urine bag film welding machine only

C7. Welding speed: 8500-10000pcs/8hours for urine bag film welding, 3-5 sets/min normally for final urine bag film&tube welding

C8. Welding area: 12,000MM2 max for medical urine bag film welding machine only

C9. Net weight: 1500kg for urine bag film welding machine and 250kg for final urine bag film&tube welding machine

C10. Dimension(LxWxH): 4,600x1200x1,900mm for urine bag film welding machine and 1400x800x1400mm for final urine bag film&tube welding machine



D. Main Parameters of medical infusion bag, blood bag, saline bag, feeding bag film and tube high frequency welding machine:

D1. High frequency output: 15KVA

D2. Oscillation power: 8KW

D3. Oscillation frequency: 27.12MHZ

D4. World famous brand Taiwai Delta PLC controlling system with Delta touch screen

D5. Japan OMRON relay, Taiwan CKC timer, Japan Toshiba evacuated tube, Japan FUJI contactor

D6. Taiwan Airtac magnetic valve, 8kw Oscillation power, World famous Russia 5557 anti-spark system

D7. Way of pressure: Pneumatic

D8. Welding speed: 4000-4500pcs/8h normally, 0-10s adjustable for welding time

D9. Net weight: 550kg

D10. Dimension(LxWxH): 2,500x1300x1,900mm



E. Main Parameters of medical bag film making machine(Data Sheet):

Main Parameters(Data sheet)
High precise Φ65mm single screw extruder	SJ-65A model, 22kw driving motor, World famous HLP transducer, Japan OMRON temperature controller, French Schneider contactor
medical urine bag, serum bag, IV infusion bag blood bag feeding bag drainage bag film mould complete set	Stainless mould-steel mould head and die, latest designed quick changing style, polished carefully and precisely, no dead angle in the whole flow channel
High precise auto 2-layer style stainless steel water cooling tank	Stainless steel material, L=2000mm
High efficient auto calibrating and winding system	Magnetic powder clutch to have high auto controlling; Constant tension system for winding device for auto winding; Special auto taking count device when total bag film winding length=100M or 150M
High Precise and efficient medical urine bag, serum bag, IV infusion bag blood bag feeding bag drainage bag film printing Machine	Magnetic powder clutch to have high automatically controlling; Constant tension system for winding device for automatic winding; Working speed: Up to 150pieces/min(200ML to 3,000ML for bag volume); Total power: 7.5KW
High precise and efficient auto medical urine bag, serum bag, IV infusion bag blood bag feeding bag drainage bag film fixed-length cutting machine	Japan Mitsubishi PLC computer controlling, world famous brand Taiwan TECO Servo motor, Magnetic powder clutch and constant tension system; 60M/min max
Extrusion Capacity(Output) and medical bag film size tolerance	50-80kg/h normally; Stable producing speed: 650M/h(120x0.35mm, 370M/h(210x0.35mm)
Suitable Material	Medical grade PVC, TPE, etc
Manufacturing time	70 working days normally
Volume	about 1 set of 20ft container

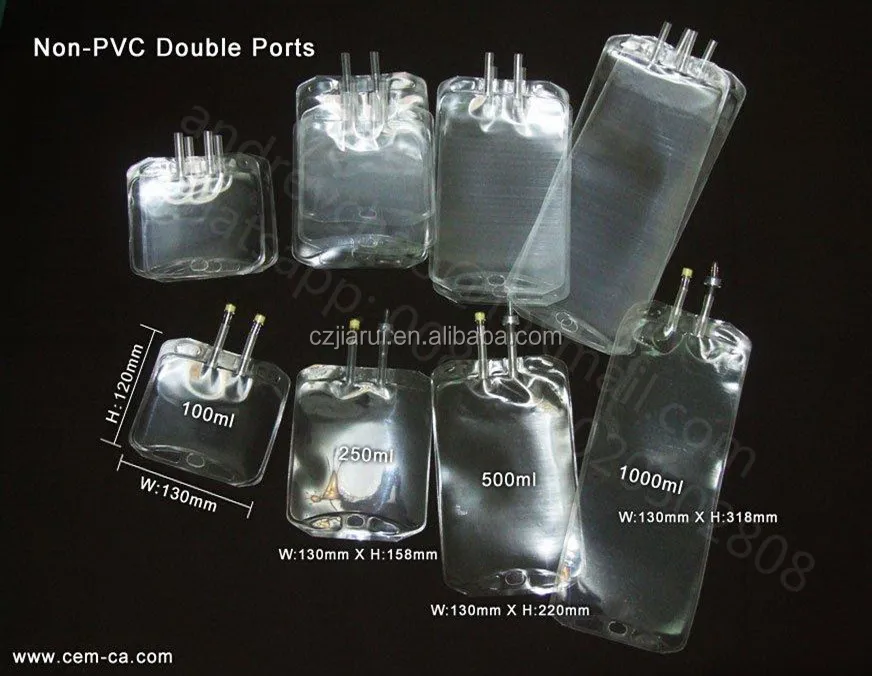

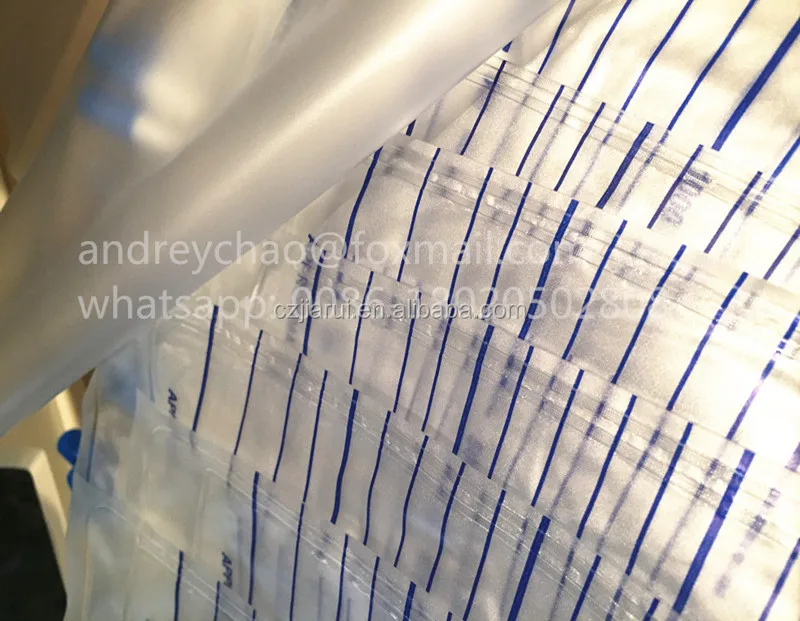

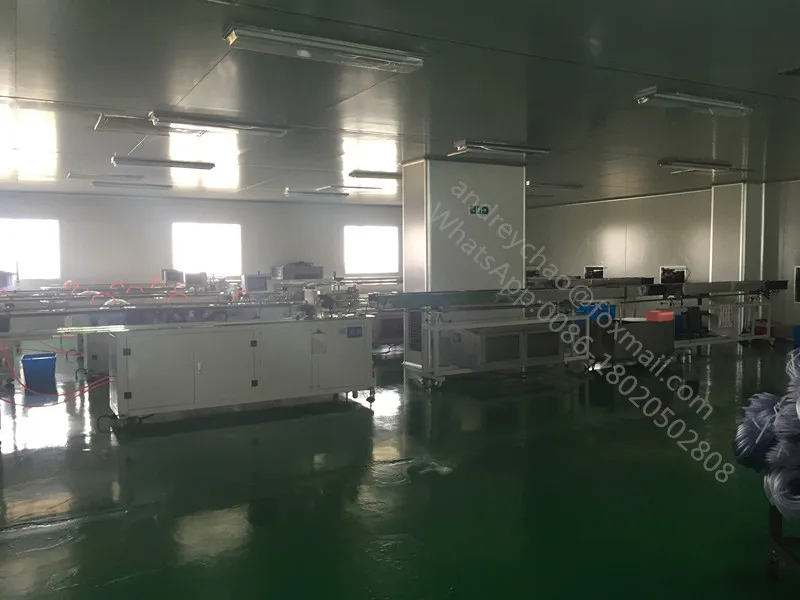

 F. Company, Machine and Product Photos:
