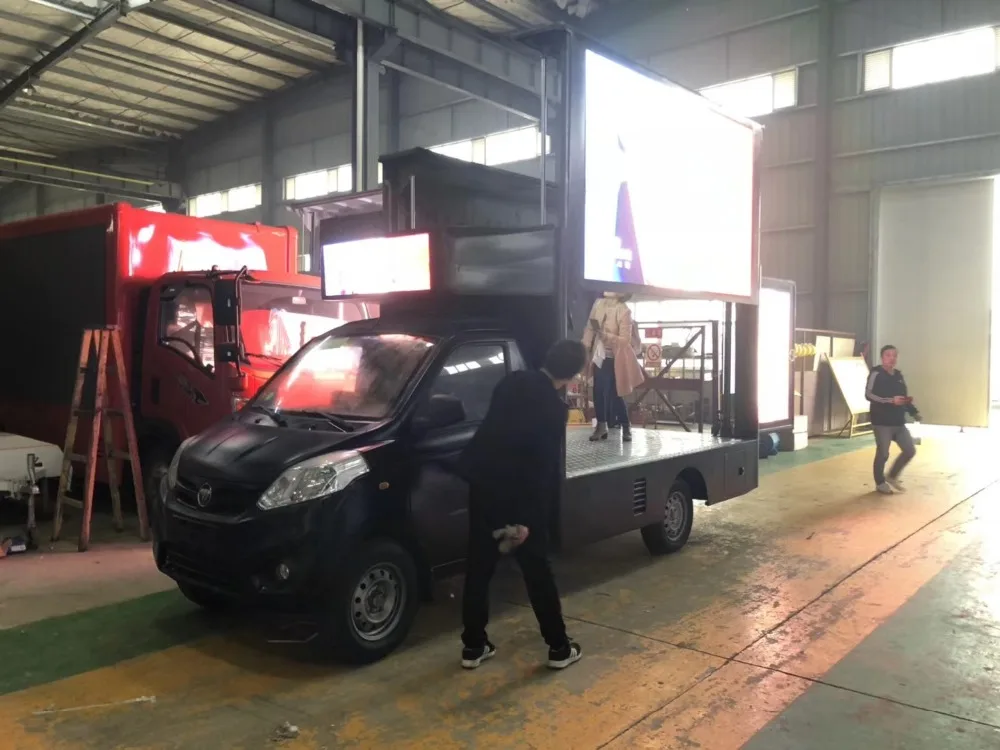

Gasoline Type ,FOTON Light LED truck ,two sides P6 Full Color LED screen
- Category: >>>
- Supplier: Hubei Veldlion Machinery Co. Ltd. [Hubei China]Hubei
Share on (60745967833):
Product Overview
Description

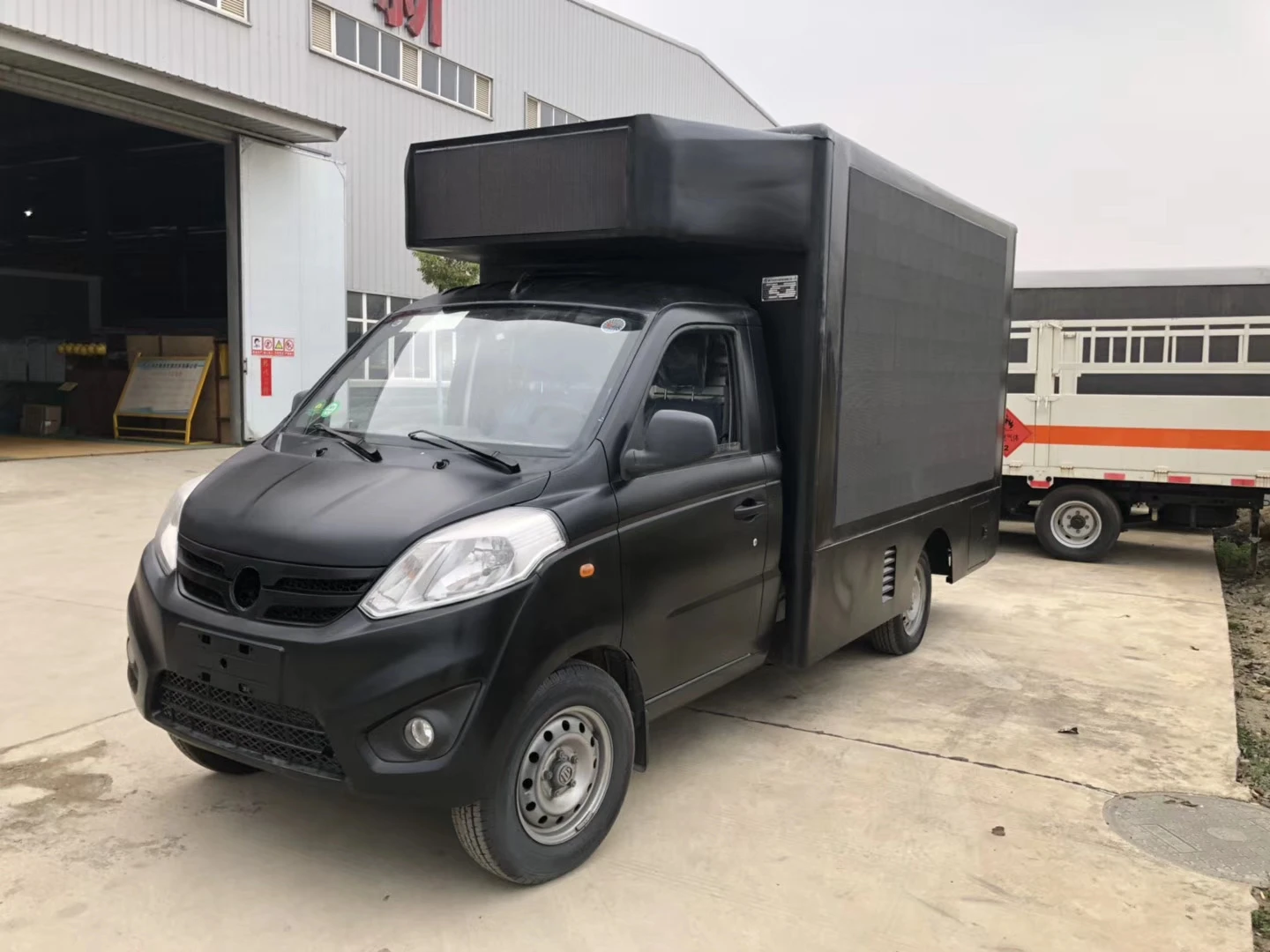

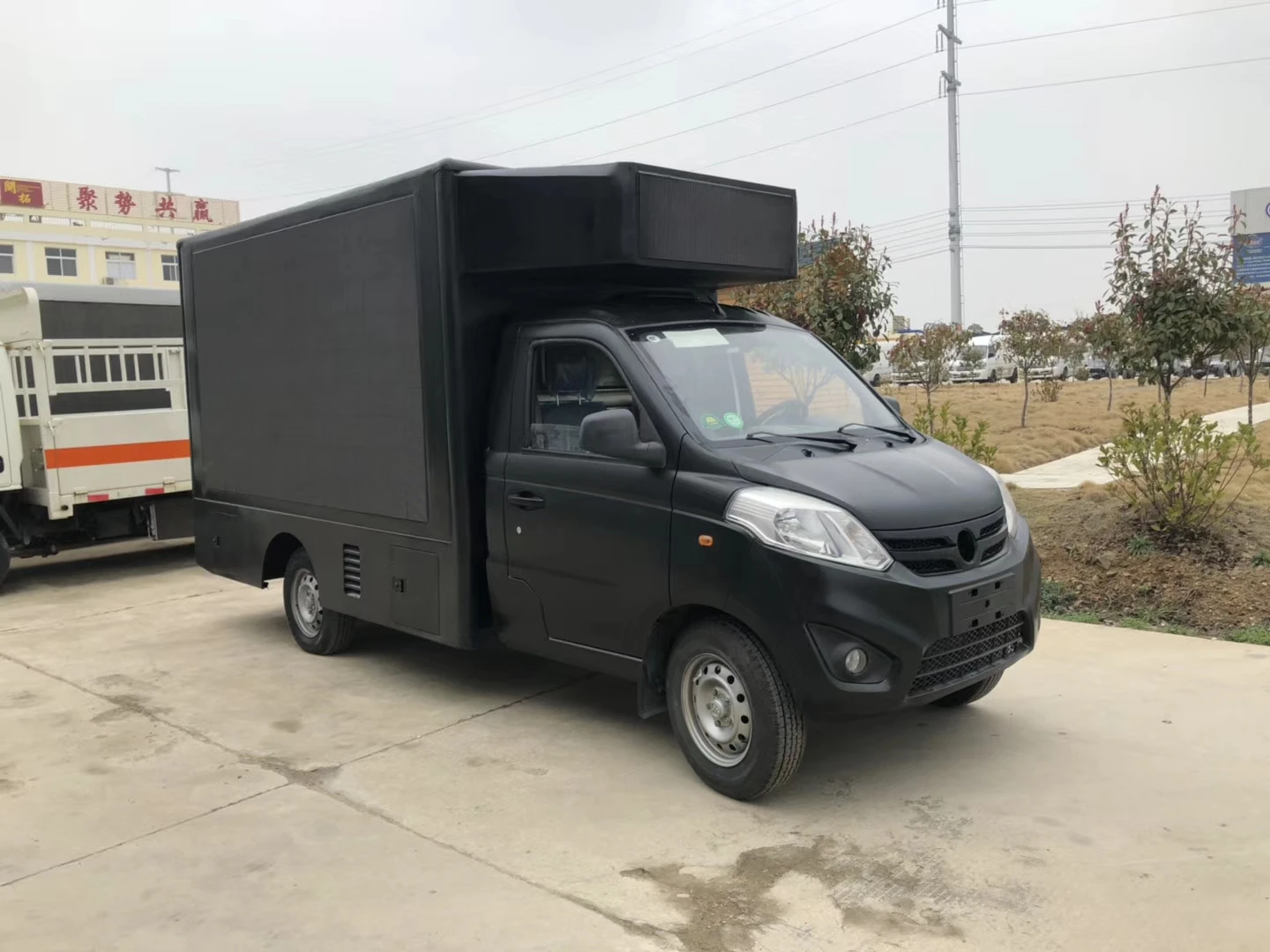

1. Technical parameters of FOTON T3 LED advertisment light truck
| Main specification | Chassis brand | / | FOTON |
| Chassis model | / | BJ1036 | |
| Overall dimension(L*W*H) | mm | 5100*1900*2650 | |
| The size of the cargo box(L*W*H) | mm | 2640*1790*1900 | |
| Total weight | kg | 2,250 | |
| Rated Loading capacity | kg | 3,500 | |
| Chassis | Drive modle | / | 4x2 left hand drive |
| Axle number | / | 2 | |
| Axle loading (front/rear) | kg | 1200/2000 | |
| Wheel Base | mm | 3070 | |
| Front/rear suspension | mm | 605/1280 | |
| Front/rear track | mm | 1338/1375 | |
| Spring number | / | /5 | |
| Tyre size & number | / | 175R14 | |
| Max speed | km/h | 115 | |
| Engine | Manufacturer | / | LIUZHOU WULIN |
| Model | / | LJ469Q 1AE9 | |
| Engine Type | / | Gasoline | |
| Horse power | kw/hp | 64/87 | |
| Displacement | ml | 1249cc | |
| Emission | / | Euro 5 | |
| LED cargo box | Overall dimension(L*W*H) | / | 2640*1790*1900 |
| Matreil of Van | / | Steel | |

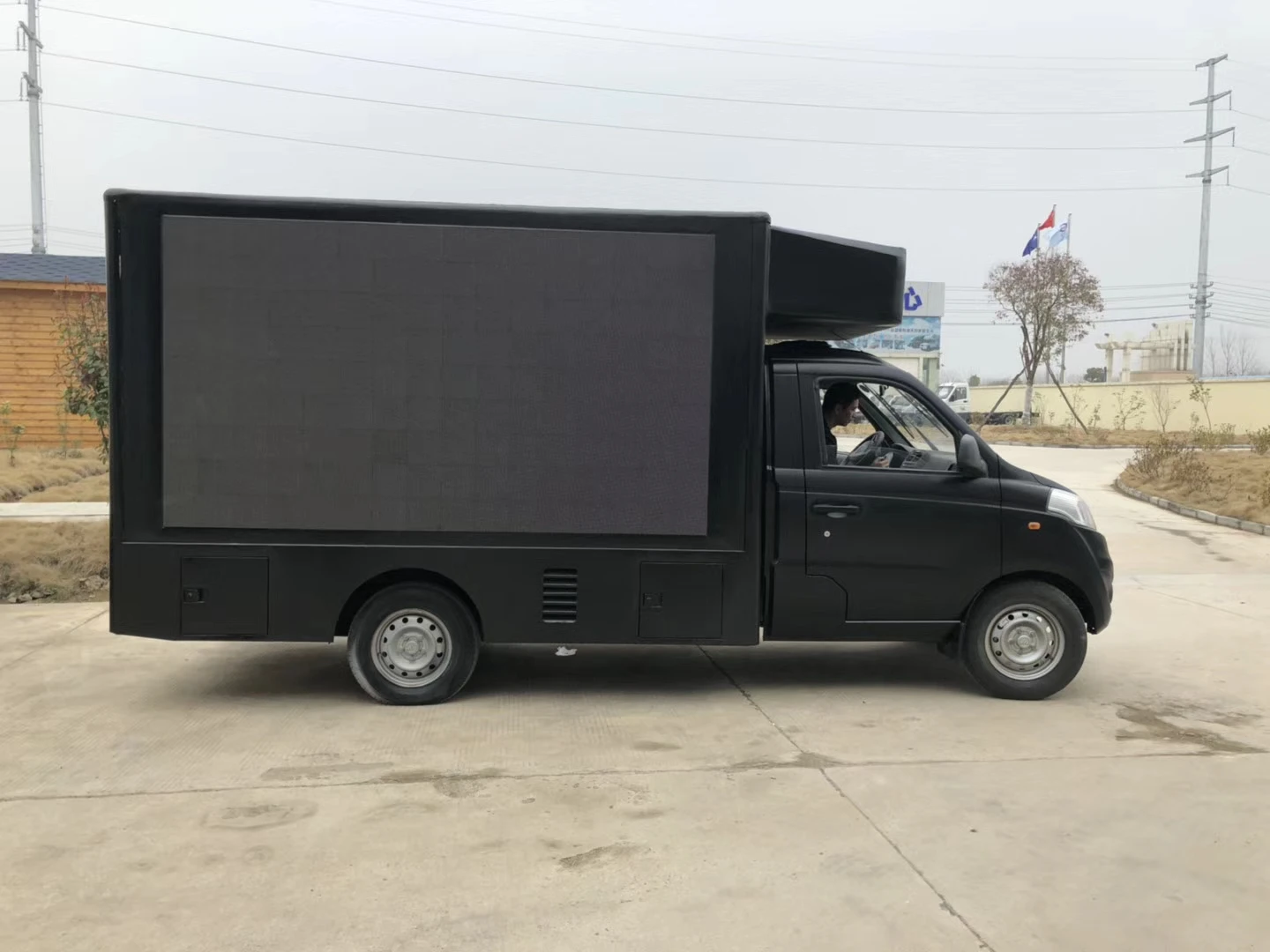

| Right side LED screen | / | P6 full color LED screen ,Size :2304mmx1536mm | |
| Left side LED screen | / | P6 full color LED screen ,Size :2304mmx1536mm | |
| Rear LED screen | / | P6 full color LED screen ,Size :1152mmx1344mm | |

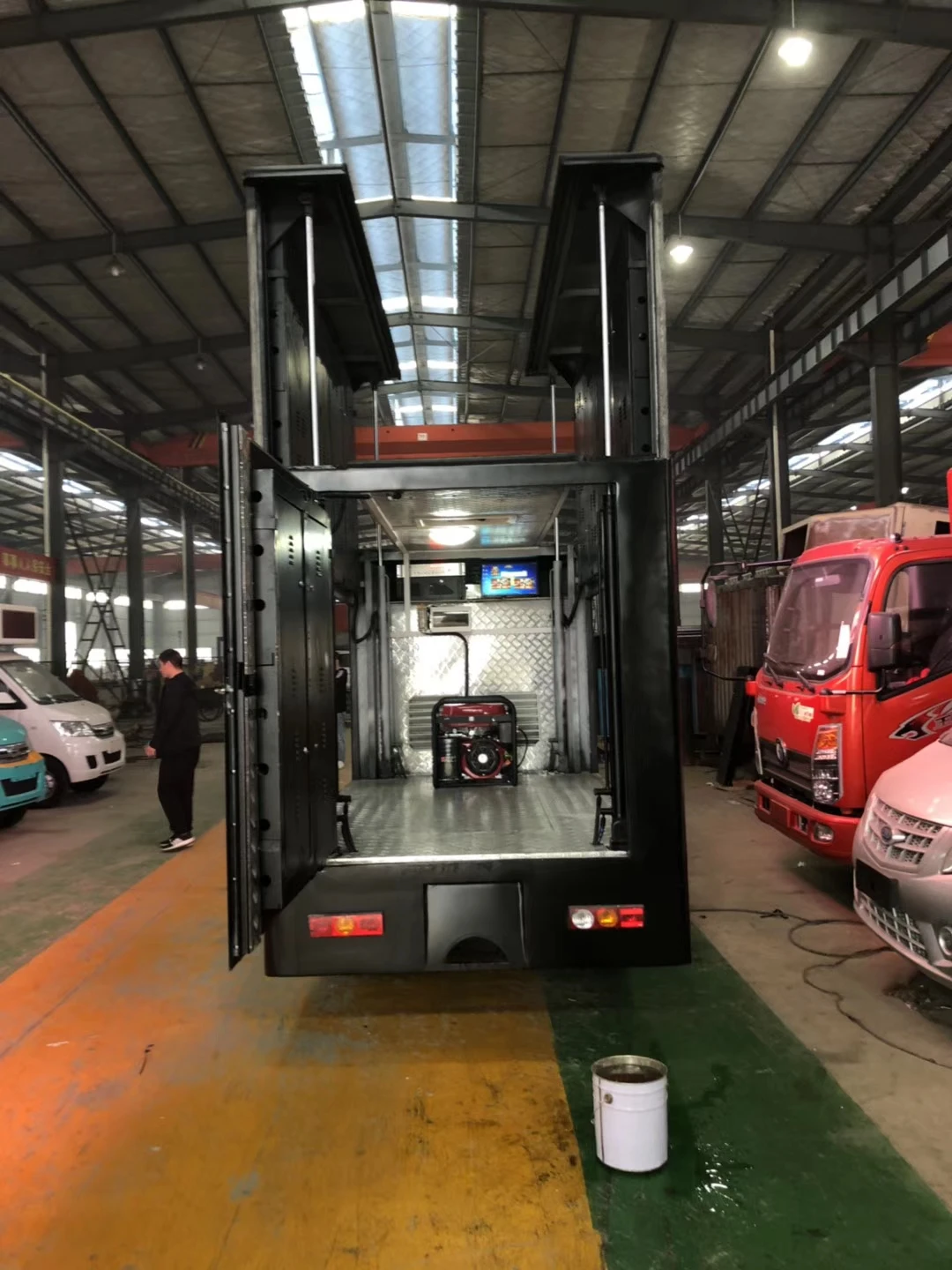

| Equipments list | 1.Details of the LED cabinets : PIC inIndicate as below ACER computer console Malata 2*60W water-proof column loudspeaker 220V external power outlet, plug, power cord | ||

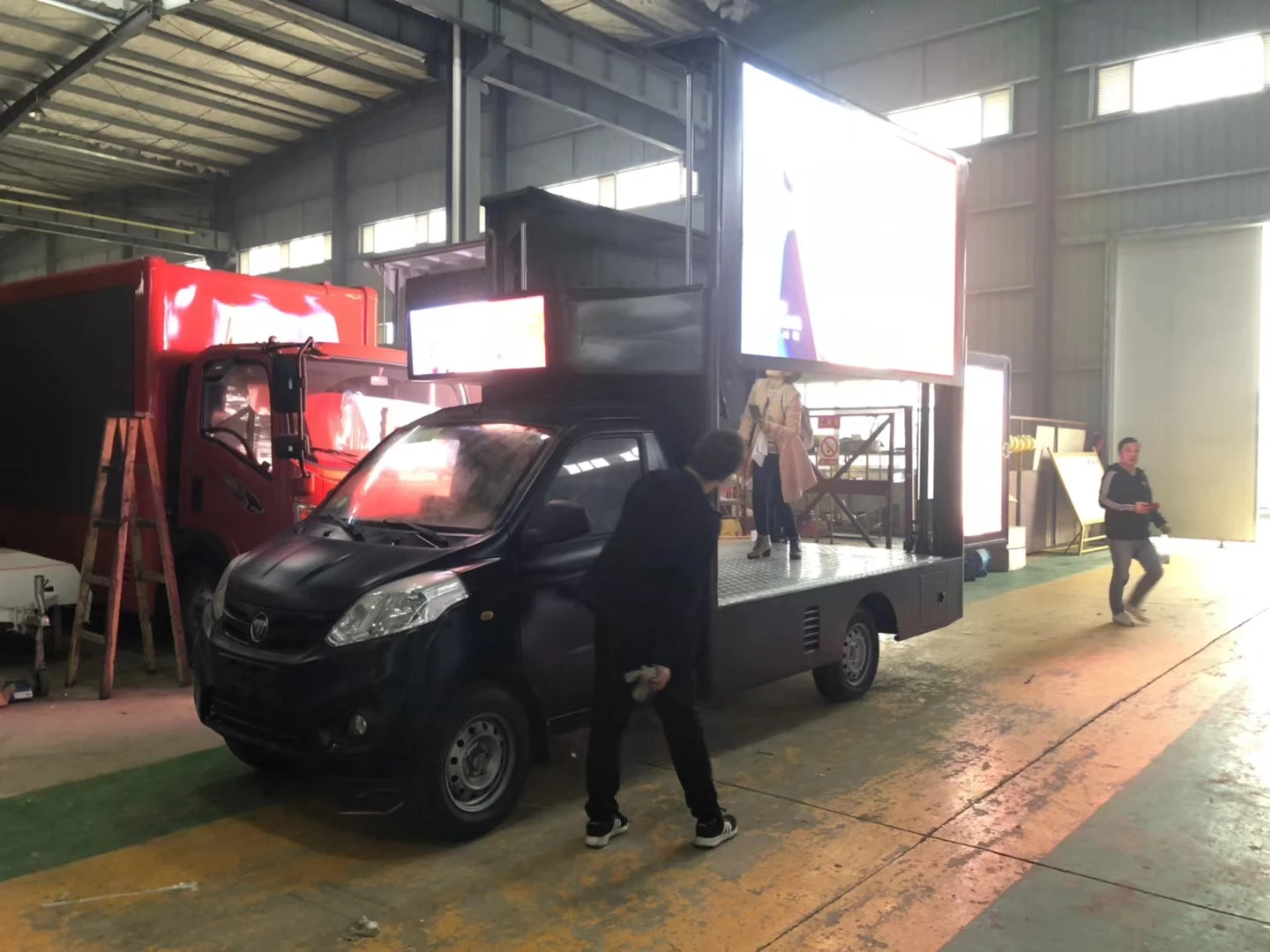

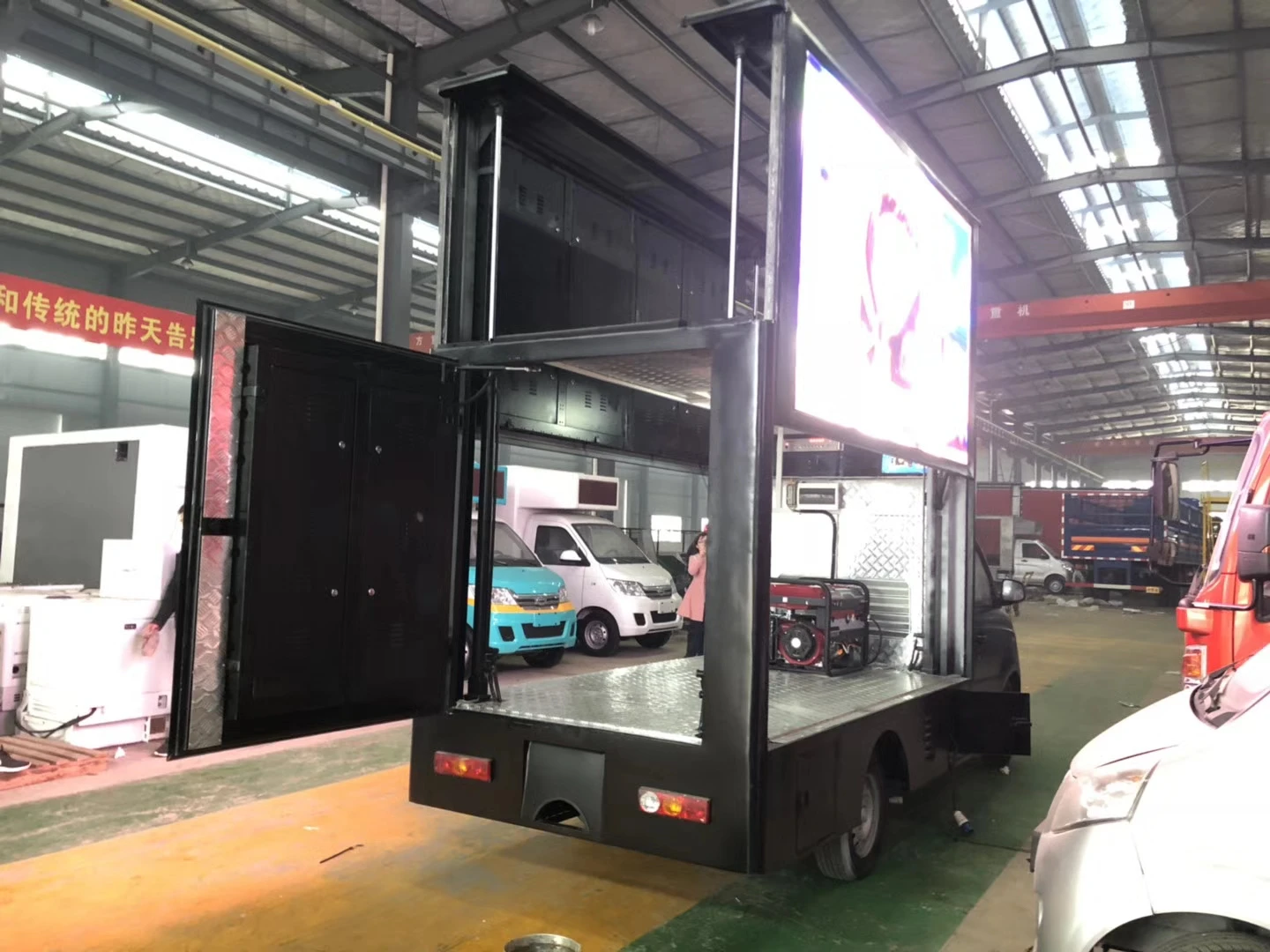

| 2.One side of led screen can be lifted by hydraulic. Lifting height : 1.5m | |||
2. Company introduction
HUBEI VELDLION MACHINERY CO., LTD is a special purpose vehicle manufacturer that has the capacity of self-research and development,production,export and before and after sales service.
We can offer SINOTRUK, DONGFENG, SHACMAN, FAW, FOTON, ISUZU 4x2, 6x4, 8x4, 10x6 dump trucks/ tippers

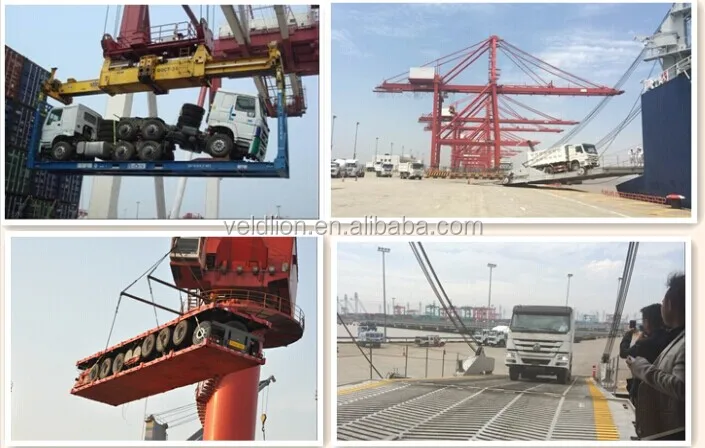

3.Packing and shipping
Contact us
4.Contact us
Atten: Ms Lotus Wong
Cellphone: 0086-135 5436 0907
Skype: VELDLIONLOTUS
Email: sales06(at)veldlion.com
Website: www.veldlion.com/en/home.asp
