DC5V, 60leds/m, ip20, 60 pixels,151 resistor sk6812 smd 5050 rgbw led addressable led strip

Share on (60745989405):


Price:$5.00

Quantity:


Product Overview

Description


Product Description



Features
Features 5050 SMD non-waterproof 14.4w/m high powered LEDs delivery up to 20LM/LED
5V DC Voltage input
Adjustable color temperature with controller

LED light strip fetures adhesive backing & cutable 1-LED segments for easy installation

120°optics improve visibility with wider area illumination
Applications include boat /marine lighting, pool deck lighting, stair/ walkway lighting,retail / sign lightings ,outdoor lighting , and RV lighting

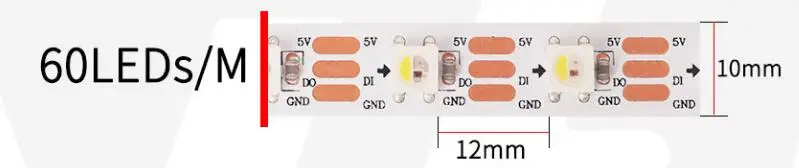

   Digital RGB led strip 60leds/m












Specification



Specifications of 5050 LED Strip

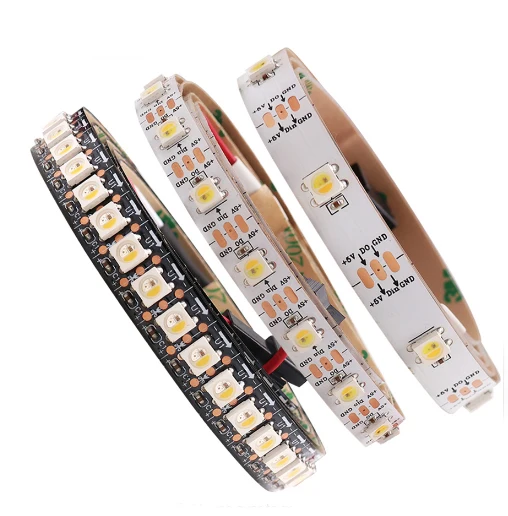

_20180321090135.jpgInput VoltageDC 5V
LED BrandSMD5050
LED Qty60leds/m
Emitting ColorSK6812 RGBW
PCBA10MM (Width) * 5000MM (Length )
Power14.4W/ M
Warranty3 year warranty
IP LevelIP20 | IP65 | IP66 | IP68
CCT Difference+/_<100K
CRI>80

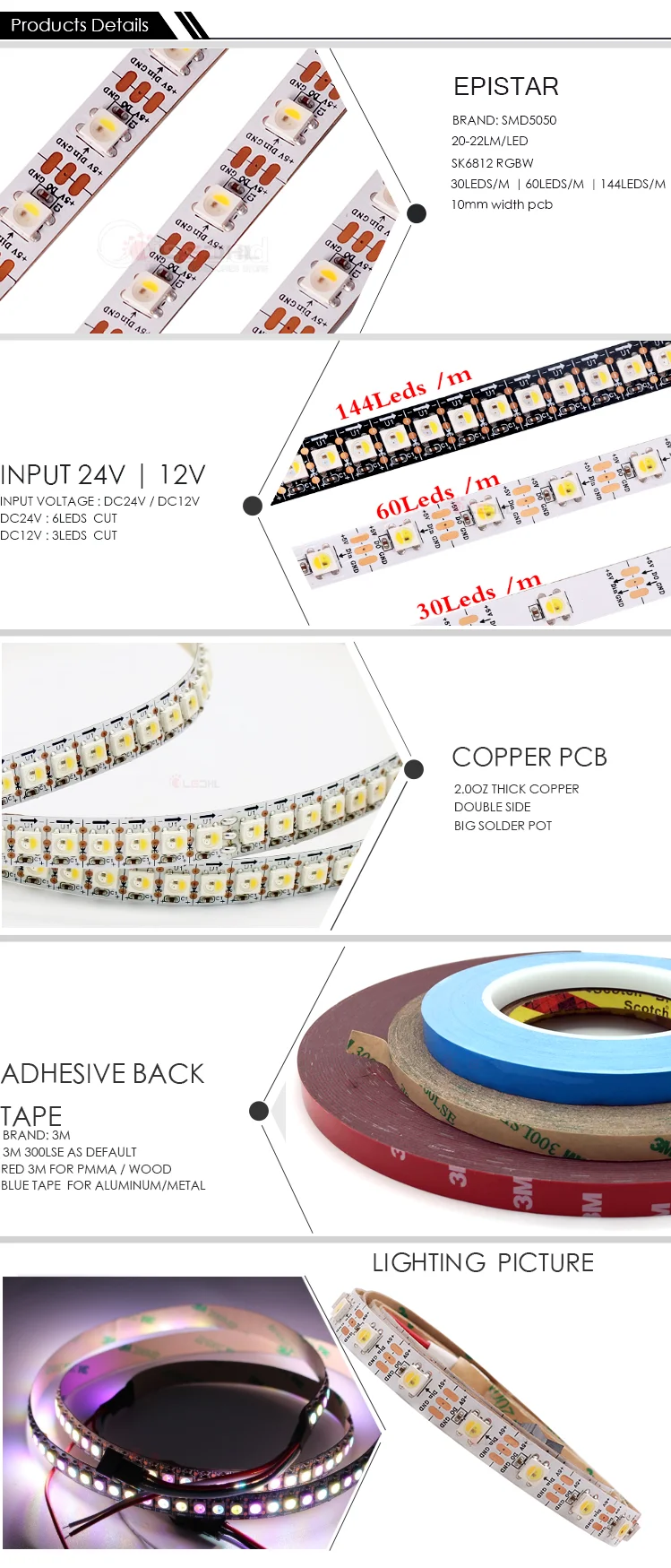

Product Details

 sk6812 led strip .png



Installation






Related Products



FAQ



1. What’s brand Led for your led strip?
Epistar brand as the Default led, other famous brand is acceptable.



2. What volatage for your led strip? Can you provide AC220V led strip?
We only provide DC5V DC12V and DC24V Low Voltage for ensuring the operator’s safety issues.



3. Can I use these led strip on the water place ?
Yes,IP65,IP66,IP68 waterproof level can be use underwater application
Ip65:silicone glue or epoxy resin, can prevent the splashing water damage.
IP66:Silicone tube, can prevent the big wave water damage.
IP68:Silicone glue +silicone tube, completely prevent within ≤3 meters water damage.



4.What kinds of led Strip type you have?
Single Color:3528,2835,5050,5630,5730,2216,335
RGB Color:5050 2in1 CCT,RGB, RGBW 4in1,RGB+W,RGBCCT,WS2811,WS2812B,SK6812
Special Function:S shape Led Strip, UV Led Strip, Led Grow Strip light



5. Do you support small orders?
Yes,we have stock for small order.



6. What is Hualing lead time?
Sample: 1-3 Working days.
Bulk Order: 5-7 Working days.



7. Can you offer OEM product?
Yes,We provide custom-made service for the led strip: color, PCB Width, CRI,Led Qty,Logo printing, label,package.



8. What's the order procedure?
1.Confirm the purchase products
2.Confirm the PI
3.Made the payment.(We accept payment through alibaba to protect your profit)
4.Bank slip received and start the production
5.Arrange Shipping



9. How can I pay for you?
1. Alibaba payment link
2. T/T (HSBC bank) and Paypal, Western Union are accepted.



10. After sales service
1. If your led strip was broken , we are willing to provide a new one to replace.
2. Once you have any questions about installation and connection, Pls kindly contact our Technical Department .
