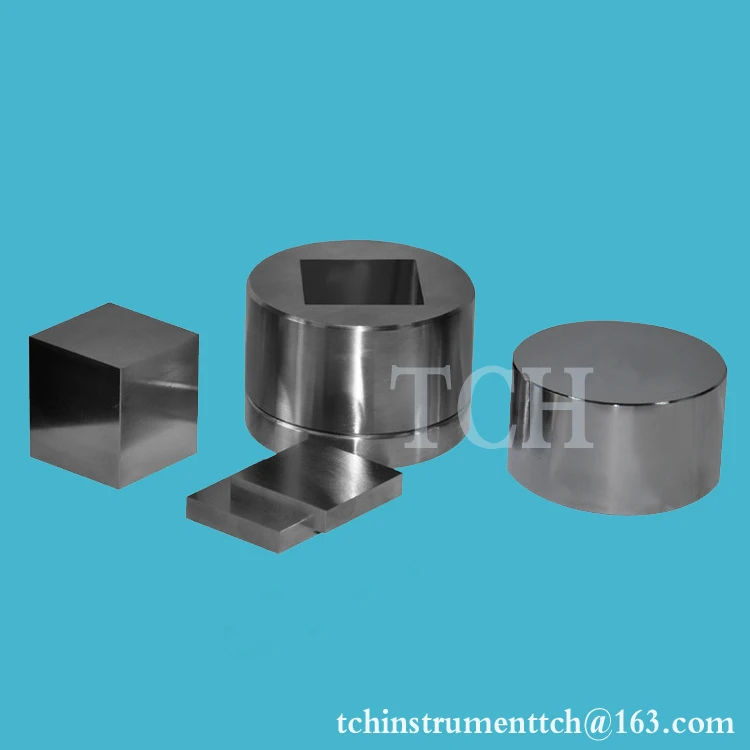

Square Dry Pellet Pressing Die set for 20 30mm width sample

 TCH-DIE-C series Complete pressing die sets is to make a square sample pellet with sizes like

22×22mm, 25×25mm, 30×30mm, etc. with sample width range from 20 to 30mm. The customized sizes are also available, please contact us to confirm the sample size that you need before order.

Specification of the  Square Dry Pellet Pressing Die set for 20 - 30mm width

Model	PMF-C
Sample shape
Die material	Alloy tool steel: Cr12MoV
Indenter hardness	HRC60-HRC62
Sample size	22×22mm/ 25×25mm/25.4×25.4mm/30×30mm(M)
Cavity depth	40mm (N)
Dimensions	Φ73×133mm (L×H)
Weight	2.4Kg

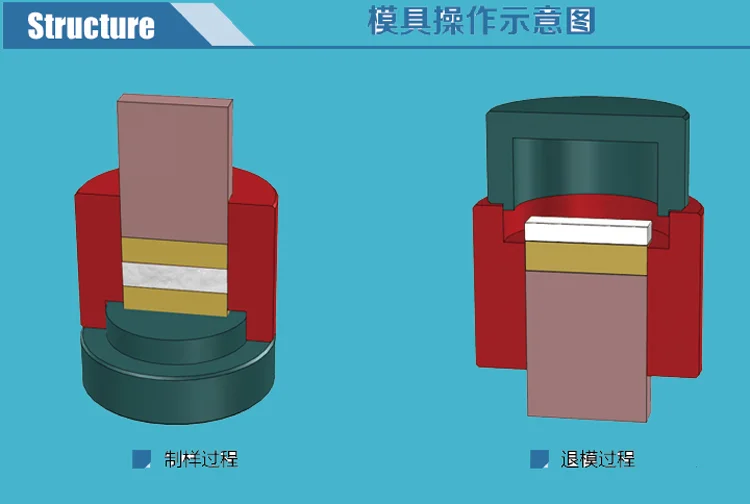

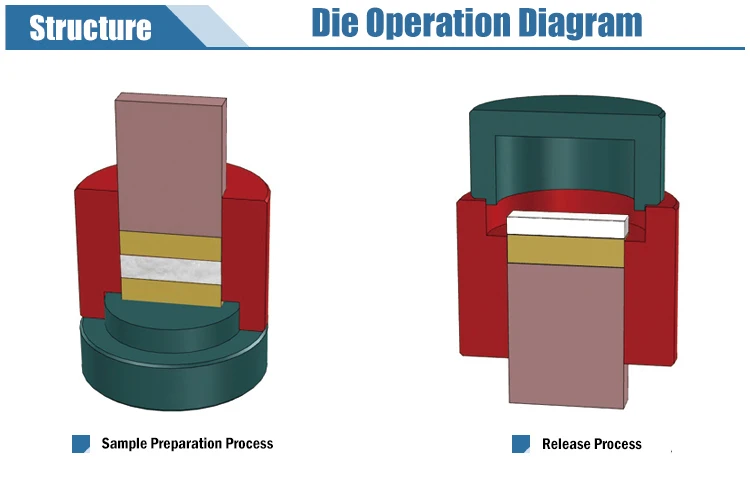

Diagram of press die

reference of the  Square Dry Pellet Pressing Die set for 20 - 30mm width
