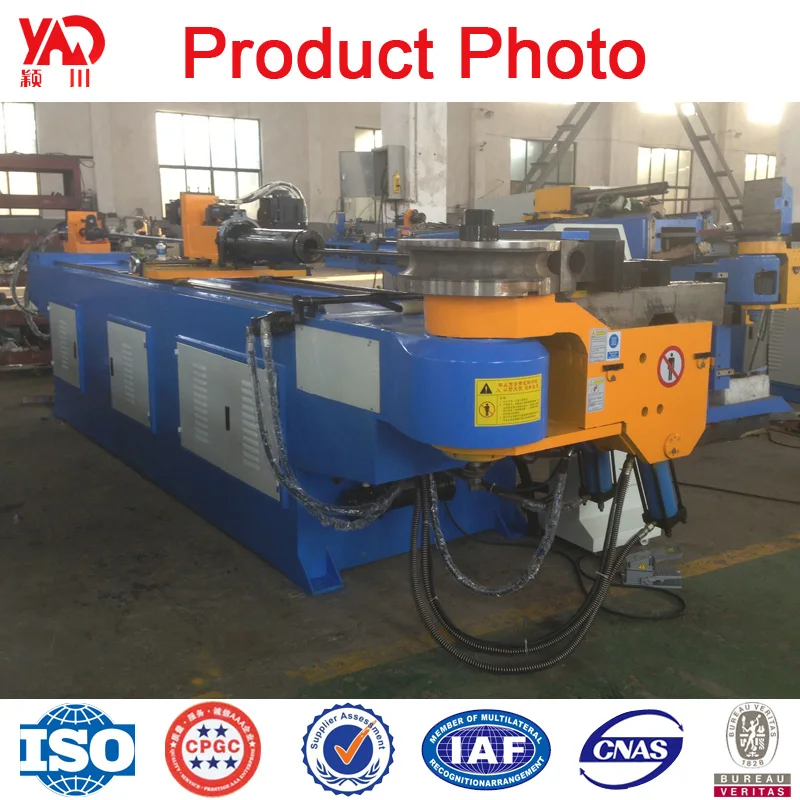

Automatic hydraulic pipe bending machine is mainly used for a variety of industries with different molds and CNC computer control, to complete a variety of complex shapes of precision bending.
This model includes HWG-38/50/63/75/89/100/114/130/168/215 and so on, can also be customized according to your special requirements
Technical Parameters of Csm Tube Bending Machine/Stainless Steel Bending Machine:
Model
HWG-38
HWG-50
HWG-63
HWG-75
Max.
working Capacity
Iron Pipe
Ø38x3 mm
Ø50x3 mm
Ø63x3.5 mm
Ø75x4 mm
Ss Pipe
Ø32x2 mm
Ø45x2 mm
Ø50x2 mm
Ø65x2.5 mm
Square Pipe
Ø32x1.8 mm
Ø32x1.8 mm
Ø50x2.5 mm
Ø63x3.0 mm
Bending Radius
200 mm
250 mm
300 mm
350 mm
Max. Bending Angle
190o
190o
190o
190o
Max effective distance of mandrel
1800 mm
2200 mm
2500 mm
3500 mm
Bending Accuracy
±0.1o
±0.1o
±0.1o
±0.1o
Motor Power
4 KW
5.5 KW
7.5 KW
7.5 KW
Max Hydraulic pressure
12 Mpa
12 Mpa
12 Mpa
15 Mpa
Demision (mm)
2400*800*1200
2900*900*1200
3300*1300*1300
5200*1300*1400
Net Weight
1000 Kg
1200 Kg
1400 Kg
3000 Kg
What can we do for you?
1. We can make a suitable plan according to your production requirements
2. We can customize the motor or other accessories according to your local requirements
3. We can help you customized your own LOGO
Our advantage:
1.We can provide you with professional machine customization services, factory outlets, model complete
2.The main structure is made of high quality welded steel plate, High strength, high stiffness
3.Structure of the sand way derusted and sprayed with anti rust paint.
4.Interactive PLC touch screen offers easy access to auto and manual operating modes.
5.System diagnostics and multiple language capability.
6.Fully hydraulic clamping on clamp die and pressure die.
7.Direct acting hydraulic pressure die with adjustable speed valve.
8.Maximum 100 sets of program storage,Maximum 32 bends for each program.
9.With Independent programmable speeds Y, B, and C axes.
10.Programmable material spring back settings for each bend angle.
11.Automatic release of tube prior to final bend.

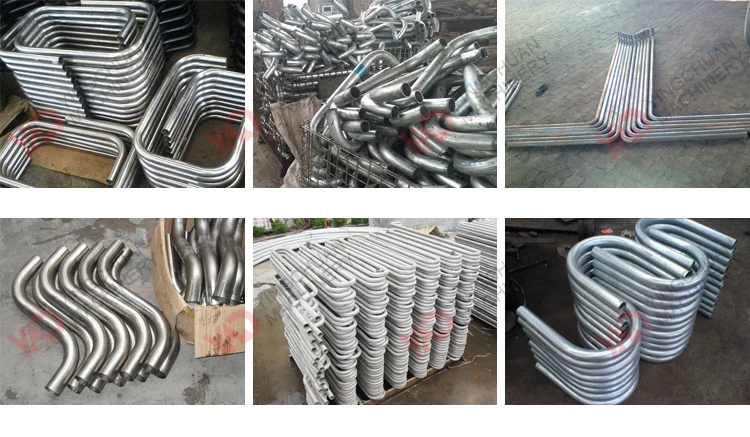

12.Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
