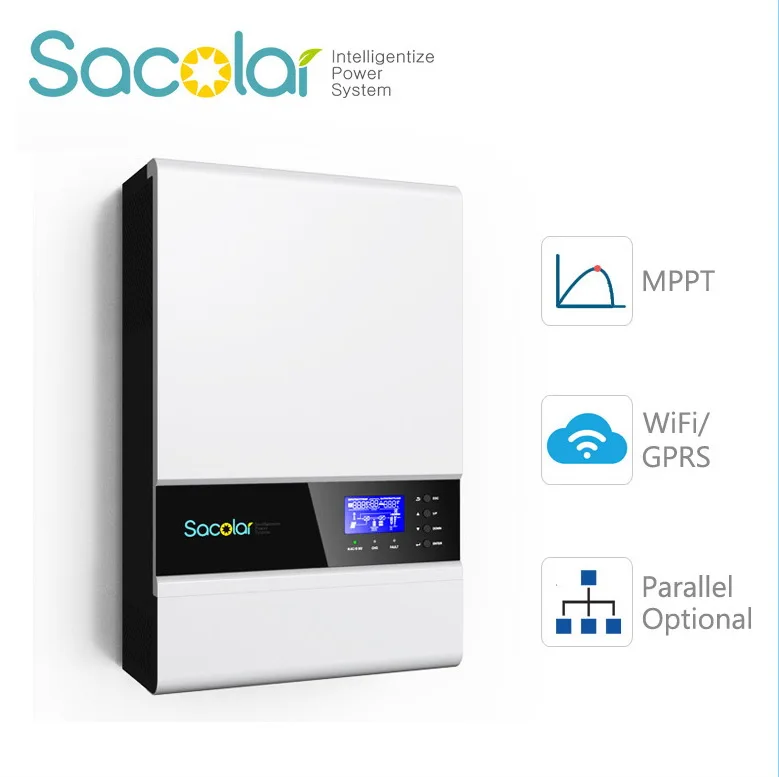

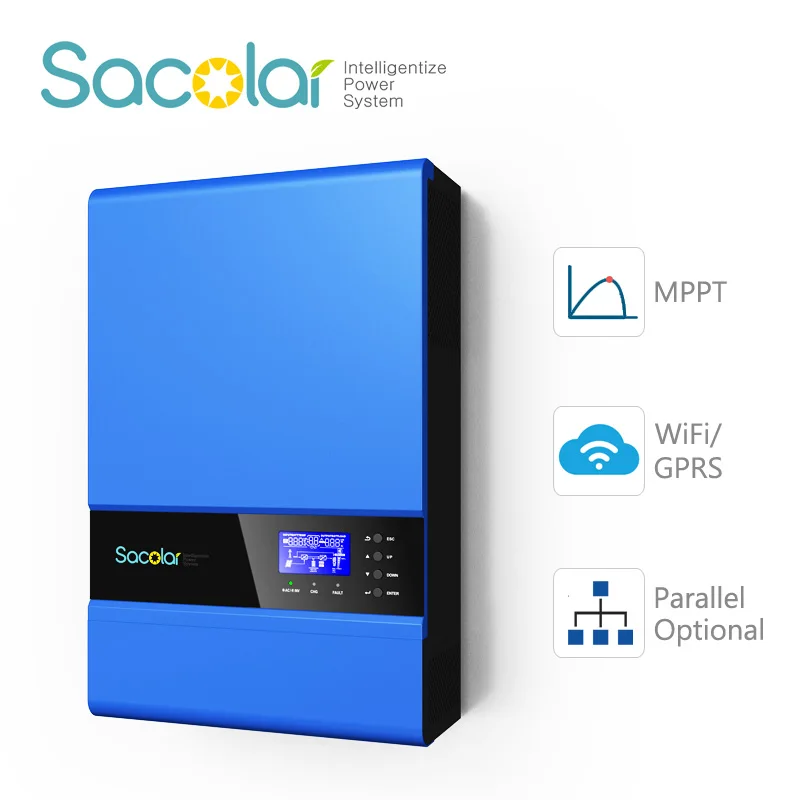

Sacolar all in one solar inverter off grid pure sine wave inverter 1 5KW
- Category: >>>
- Supplier: Shenzhen Sacolar New Energy Co. Ltd.
Share on (60746008660):
Product Overview
Description
Products Description
MAIN FEATURES:
1. Rated power 2KW to 5KW, power factor 1
2. Built-in MPPT solar charge controller
3. High frequency inverter with small size and light weight
4. Pure sine wave AC output
5. Overload, short circuit and deep discharge protection
6. Configurable AC/ solar input priority via LCD setting
7. Compatible to mains voltage or generator power
8. With CAN/RS485 for BMS communication
9. WIFI/ GPRS remote monitoring (optional)
10. Parallel operation available for 4KW/5KW (optional)

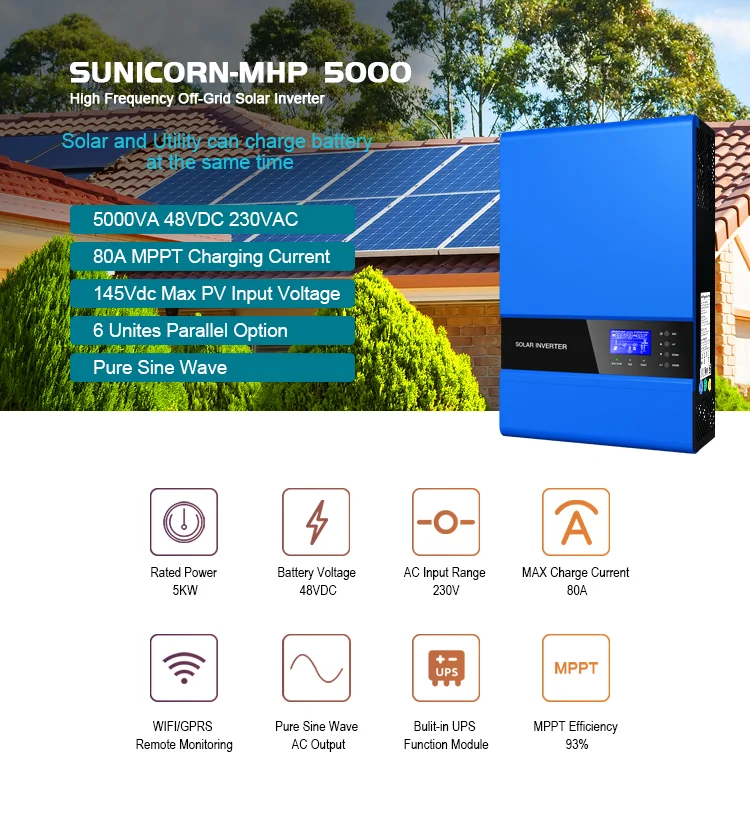

Model | Sunicorn-MHP 5000 | |
Battery Voltage | 48 VDC | |
Monitorinig Option | WiFi/GPRS | |
Inverter Output | ||
Rated Power | 5000VA/ 5000W | |
Parallel Capability | Yes, 6 units | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
Surge Power | 10000VA | |
Efficiency (Peak) | 93% | |
Waveform | Pure Sine Wave | |
Mppt Solar Charger | ||
Maximum PV Array Power | 4500W | |
MPPT Range Operating Voltage | 60VDC ~115VDC | |
Maximum PV Array Open Circuit Voltage | 145VDC | |
Maximum Solar Charge Current | 80A | |
Maximum Efficiency | 98% | |
AC Charger | ||
Max. AC Charge Current | 60A | |
AC Input Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
AC Bypass | ||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
Physical | ||
Dimension, D x W x H (mm) | 455x295x130 | |
Net Weight (kg) | 11.5 | |
Operating Environment | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0℃ - 55℃ | |
Storage Temperature | -15℃ - 60℃ | |

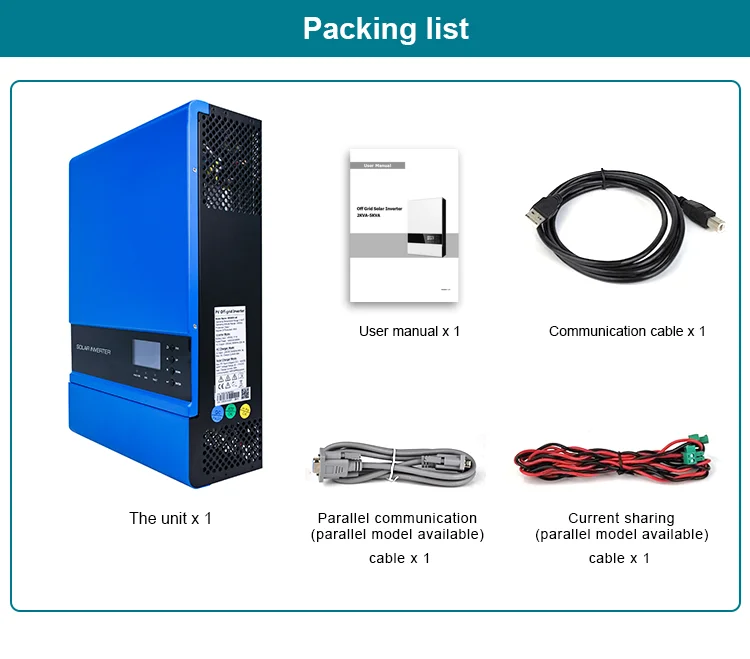

Product packaging
Fast to know Sacolar
10+ years solar power product manufacturer
We are your professional supplier of solar system products
If you are an installer,
we have reliable technical support;
If you are a project developer,
we have a professional R&D team;
If you are a trader,
we have stable product quality;
If you are a retail buyer,
we have perfect after-sales service.
200,000 ㎡ production area
1000+MW Capacity
100+ Countries of sale
Professional 10 years
focus on R&D and manufacturing of solar off-grid energy storage systems
Independent R&D capability
a R&D team composed of 50 engineers provide customers with better product solutions
Production capacity
3 million sets of high-quality inverters can be provided to global users every year
Service team
professional pre-sales team, reliable after-sales service support
Hot selling inverter
Why Choose Us

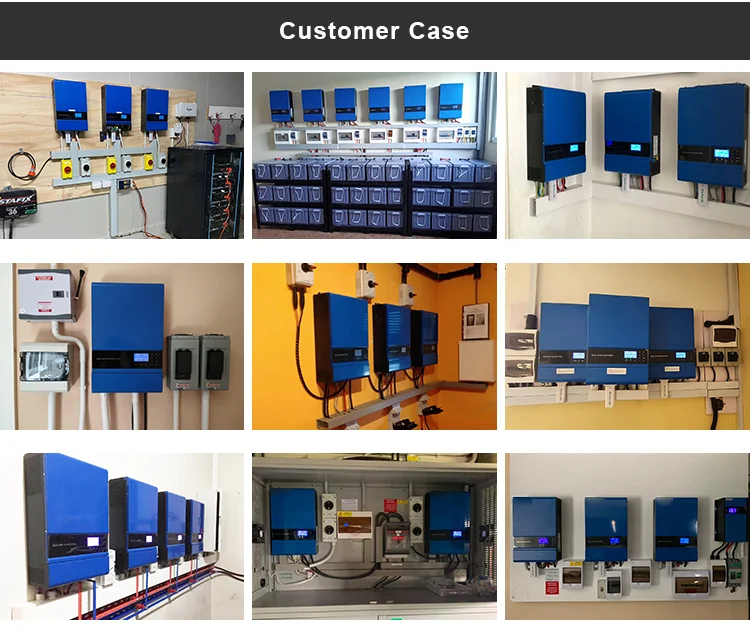

Customer Photos
FAQ
1. Why choose us?
A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service
B.Competitive price
C.High quality standard
D.Customized service
2. How is your technical support?
We provide lifetime online support. Any problem after delivery, we will help solve.
3. Can you get the the solar inverter customized for us ?
Of course, LOGO, machine color, designed unique patterns and packing available for customization.
4. How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
5. What kind of certificate you have ?
CE certificates.
6. How long of the warranty or guaranty?
For High frequency off-grid solar inverter: 2 years
For Low frequency off-grid solar inverter: 2 years
For Solar Pump inverter: 3 years
For on/off grid inverter: 5 years
For Low frequency off-grid solar inverter: 2 years
For Solar Pump inverter: 3 years
For on/off grid inverter: 5 years
7. How to pay for solar controller?
We accept Alibaba Trade Assurance, paypal, T/T.
8. How to choose a right inverter?
Tell us your demand, then our sellers will recommend suitable inverters to you.
9. How long of the delivery time, sample order and wholesale order?
After receiving payment, for Sample order, within 3 days; For wholesale order, 7-15 working days.
10. We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% on-time shipment protection
100% payment protection for your covered amount
