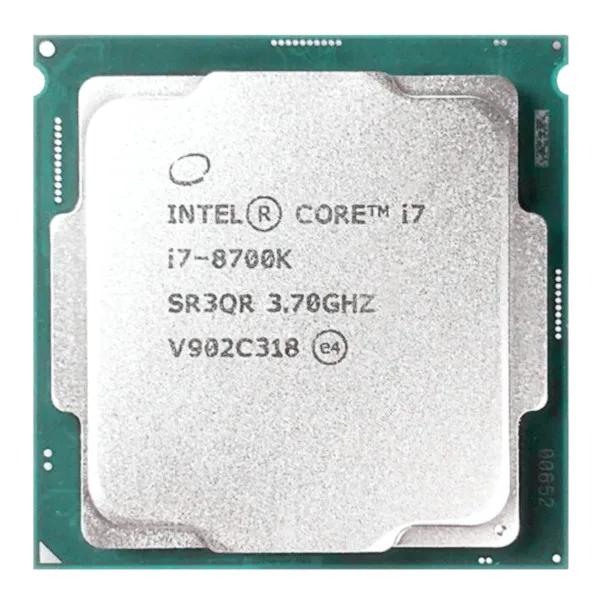

Intel Core 8 series Processor I7 8700K I7 8700K processor CPU LGA 1151 land FC LGA 14 nanometers Six Core cpu
Intel Core 8 series Processor I7 8700K I7-8700K processor CPU LGA 1151-land FC-LGA 14 nanometers Six Core cpu

Intel Core 8 series Processor I7 8700K I7 8700K processor CPU LGA 1151 land FC LGA 14 nanometers Six Core cpu

Share on (60746012265):


Price:

Quantity:


Product Overview

Description


Welcome wholesale !!!





if need the more QTY ,have best price .





my skype :lian.linda5





we selling more model



















Intel Core i7-8700K specifications





The specs can be used for short-term
listings on auction and classifieds sites


















































































































































































General information
TypeCPU / Microprocessor
Market segmentDesktop
Family


Intel Core i7
Model number  ?


i7-8700K
CPU part numbers



  • CM8068403358220 is an OEM/tray microprocessor

  • BX80684I78700K is a boxed processor without fan and heatsink (English version)

  • BXC80684I78700K is a boxed processor without fan and heatsink (Chinese version)


Frequency  ? 3700 MHz
Maximum turbo frequency4700 MHz (1 core)
4600 MHz (2 cores)
4400 MHz (3 or 4 cores)
4300 MHz (5 or 6 cores)
Low power frequency800 MHz
Bus speed  ? 8 GT/s DMI
Clock multiplier  ? 37
Package1151-land Flip-Chip Land Grid Array
SocketSocket 1151 / H4 / LGA1151
Size1.48" x 1.48" / 3.75cm x 3.75cm
Introduction dateSeptember 24, 2017 (announcement)
October 5, 2017 (availability)
Price at introduction$359 (OEM)
$370 (box)
S-spec numbers



































Part numberES/QS processorsProduction processors
 QNMKSR3QR
BX80684I78700K +
BXC80684I78700K +
CM8068403358220 +
Unknown+


Architecture / Microarchitecture
MicroarchitectureCoffee Lake
Processor core  ? Coffee Lake-S
Core stepping  ? U0 (SR3QR)
Manufacturing process0.014 micron
Data width64 bit
The number of CPU cores6
The number of threads12
Floating Point UnitIntegrated
Level 1 cache size  ? 6 x 32 KB 8-way set associative instruction caches
6 x 32 KB 8-way set associative data caches
Level 2 cache size  ? 6 x 256 KB 4-way set associative caches
Level 3 cache size12 MB 16-way set associative shared cache
Physical memory64 GB
MultiprocessingUniprocessor
Features

  • MMX instructions

  • SSE / Streaming SIMD Extensions

  • SSE2 / Streaming SIMD Extensions 2

  • SSE3 / Streaming SIMD Extensions 3

  • SSSE3 / Supplemental Streaming SIMD Extensions 3

  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?

  • AES / Advanced Encryption Standard instructions

  • AVX / Advanced Vector Extensions

  • AVX2 / Advanced Vector Extensions 2.0

  • BMI / BMI1 + BMI2 / Bit Manipulation instructions

  • F16C / 16-bit Floating-Point conversion instructions

  • FMA3 / 3-operand Fused Multiply-Add instructions

  • EM64T / Extended Memory 64 technology / Intel 64  ?

  • NX / XD / Execute disable bit  ?

  • HT / Hyper-Threading technology  ?

  • VT-x / Virtualization technology  ?

  • VT-d / Virtualization for directed I/O

  • TBT 2.0 / Turbo Boost technology 2.0  ?

  • MPX / Memory Protection Extensions

  • SGX / Software Guard Extensions

  • SMAP / Supervisor Mode Access Prevention

  • SMEP / Secure Mode Execution Protection

  • TXT / Trusted Execution technology

  • TSX / Transactional Synchronization Extensions


Low power features

  • Core C1/C1E, C3, C6, C7 and C8 states

  • Package C2, C3, C6, C7 and C8 states

  • Enhanced SpeedStep technology  ?


Integrated peripherals / components
Display controller

  • 3 displays

  • DVI / DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4


Integrated graphicsGPU Type: Intel UHD 630
Graphics tier: GT2
Microarchitecture: Gen 9 LP
Execution units: 24
Base frequency (MHz): 350
Maximum frequency (MHz): 1200
Memory controllerThe number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2666
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 42.7
Other peripherals

  • Direct Media Interface 3.0 (4 lanes)

  • PCI Express 3.0 interface (16 lanes)


Electrical / Thermal parameters
Minimum/Maximum operating temperature  ? 0°C (case temperature) - 64.5°C (case temperature)
100°C (Digital Thermal Sensor)
Thermal Design Power  ? 95 Watt
Notes on Intel Core i7-8700K



  • The processor has unlocked clock multiplier

  • The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology, Identity Protection technology, OS Guard and Boot Guard.

  • The CPU is compatible with DirectX 12 and OpenGL 4.5 APIs.

  • The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
