1. 2:1 shrink ratio (Radial change), shrink ratio in longitudinal≤5%
2. Min. shrink temperature: 80 °C ; Full recovery temperature: 120 °C
3. Continuous Operating Temperature: -40 °C ~125 °C
4. Specifications / Approvals: UL 224, CSA22.2
5. Flame retardant
6. Meet ROHS(Restriction of use of certain Hazardous Substances)requirement
7. Flexible
Performance:
Property
Test Method
Typical Performance
Tensile Strength(Mpa)
ASTM D2671
10.4MPa
Elongation(%)
ASTM D2671
200%
Tensile Strength after Heat aging
UL224 158°C X168hrs
≥7.3
Elongation after aging(%)
UL224 158ºC X168hrs
≥100
Heat shock
UL224 225ºC X4hrs
No dripping
No cracking

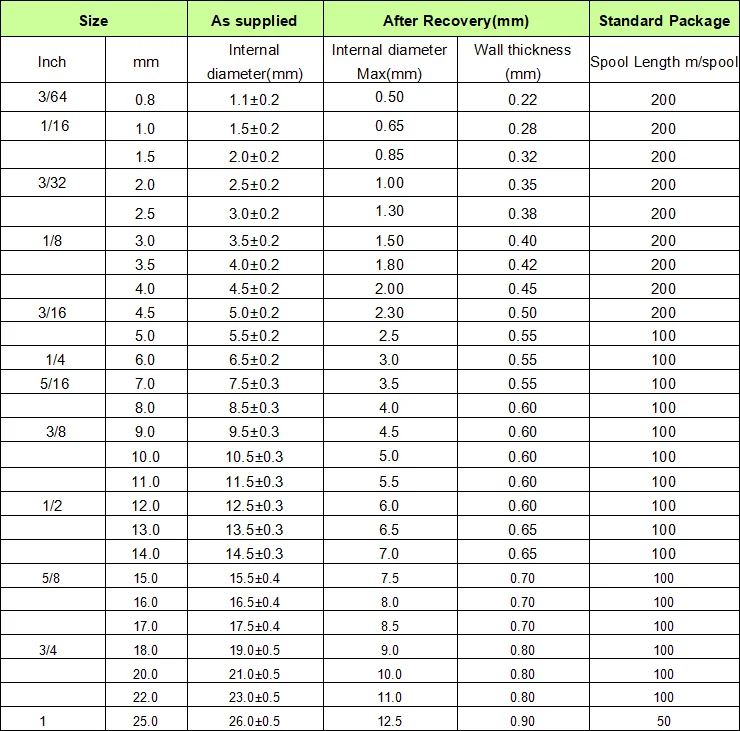

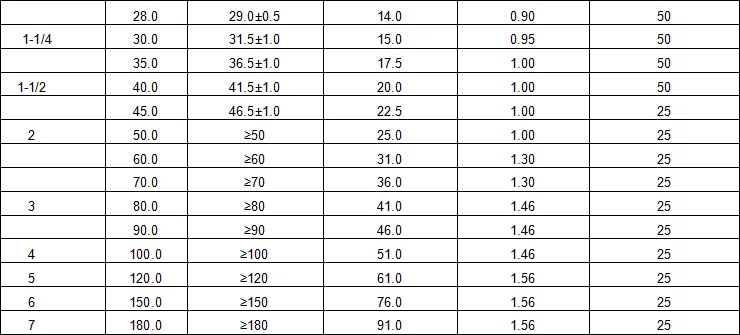

Dimension:
Application C-2 is recommended for all general purpose applications such as electrical insulation, color coding, cable bundling, light harness jacketing and identification of wires, cables, pipes, and electrical and electronic components, and mechanical protection where UL or CSA recognition as VW-1 rated material is desirable
A: We will remake for free if you find some quality problems when you receive the products.
Q2: What’s the payment terms?
A: Generally. It’s T/T or L/C at sight for bulk order, also we accept the Western union or Money or Money gram or Paypal etc for small or sample order.
Q3: What’s your lead time?
A: For bulk order takes about 15-30days, for samples, take 3-5 working days.
Q4: Can you print on the products?
A: We can supply the print on the products as your demands.
Q 5: Can you help us to make the design?
A: OK, but please send us the logos or any contents you want to show.
