Max. data transparent transmit distance up to 390meters
1) Description:

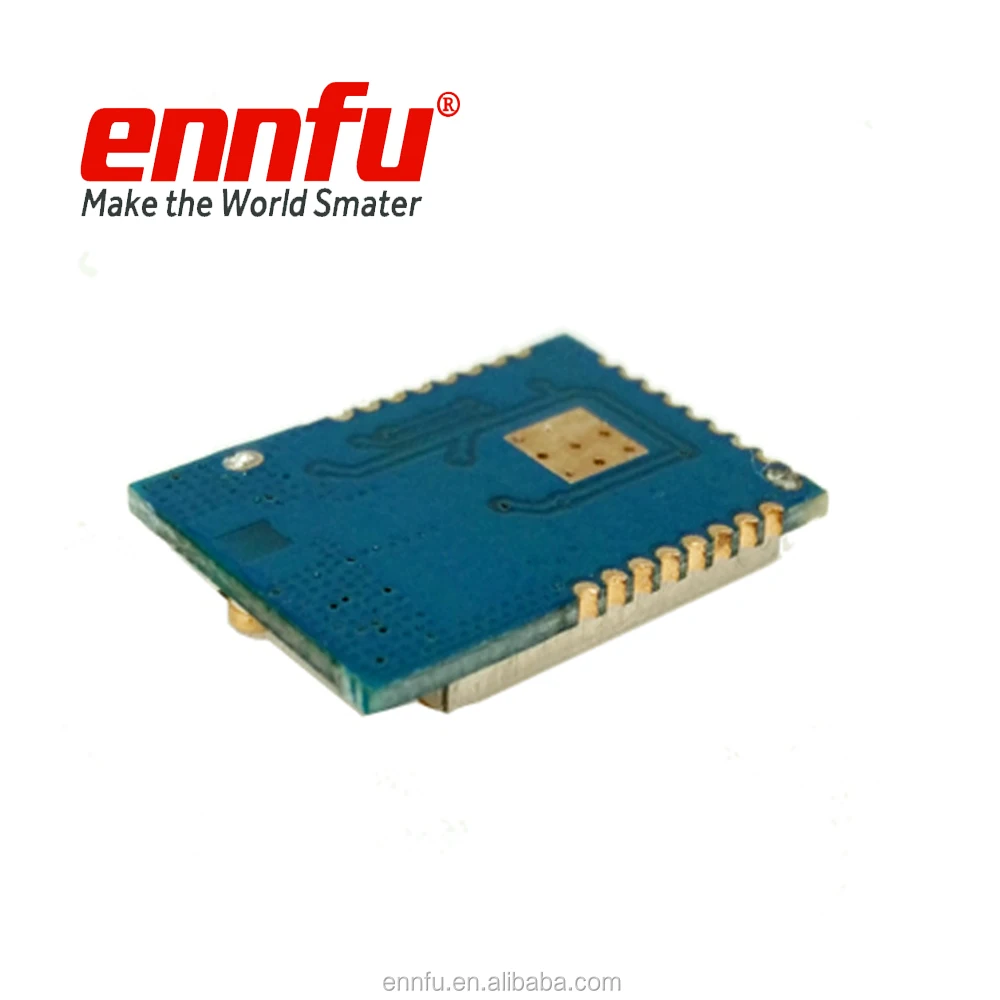

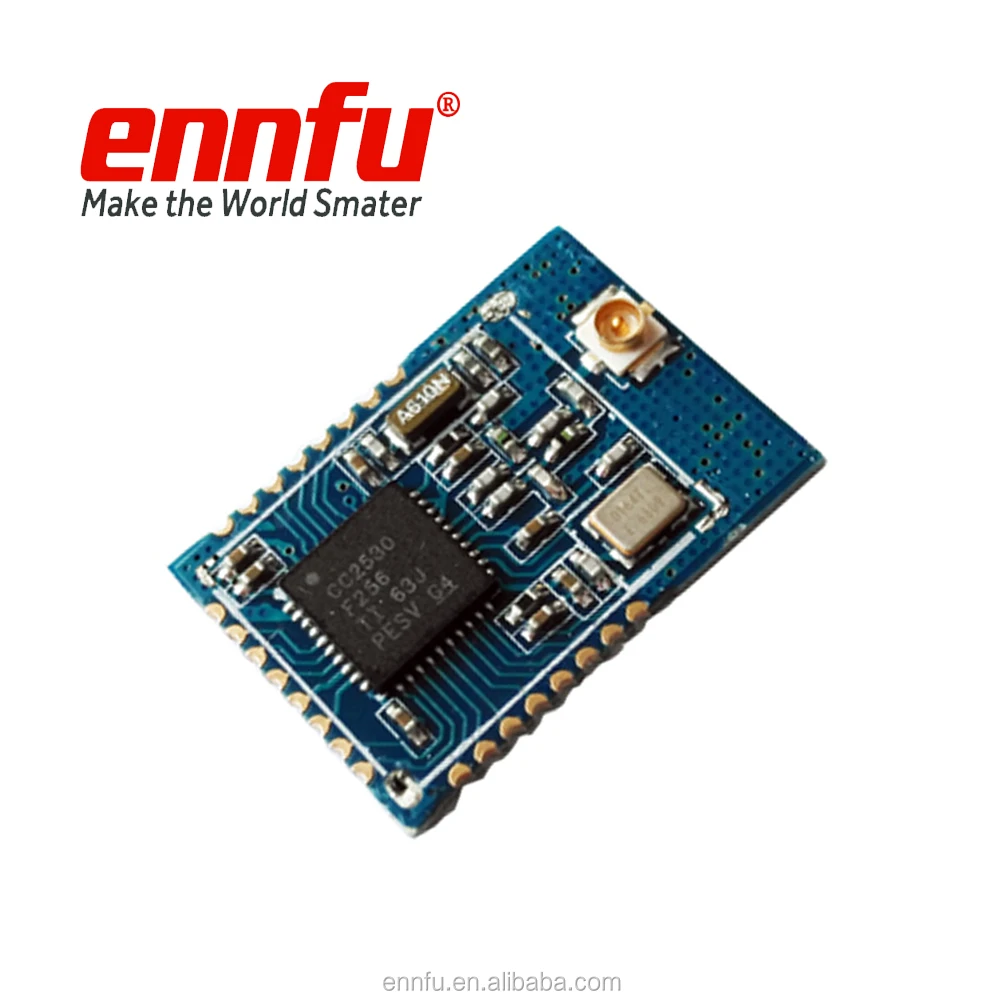

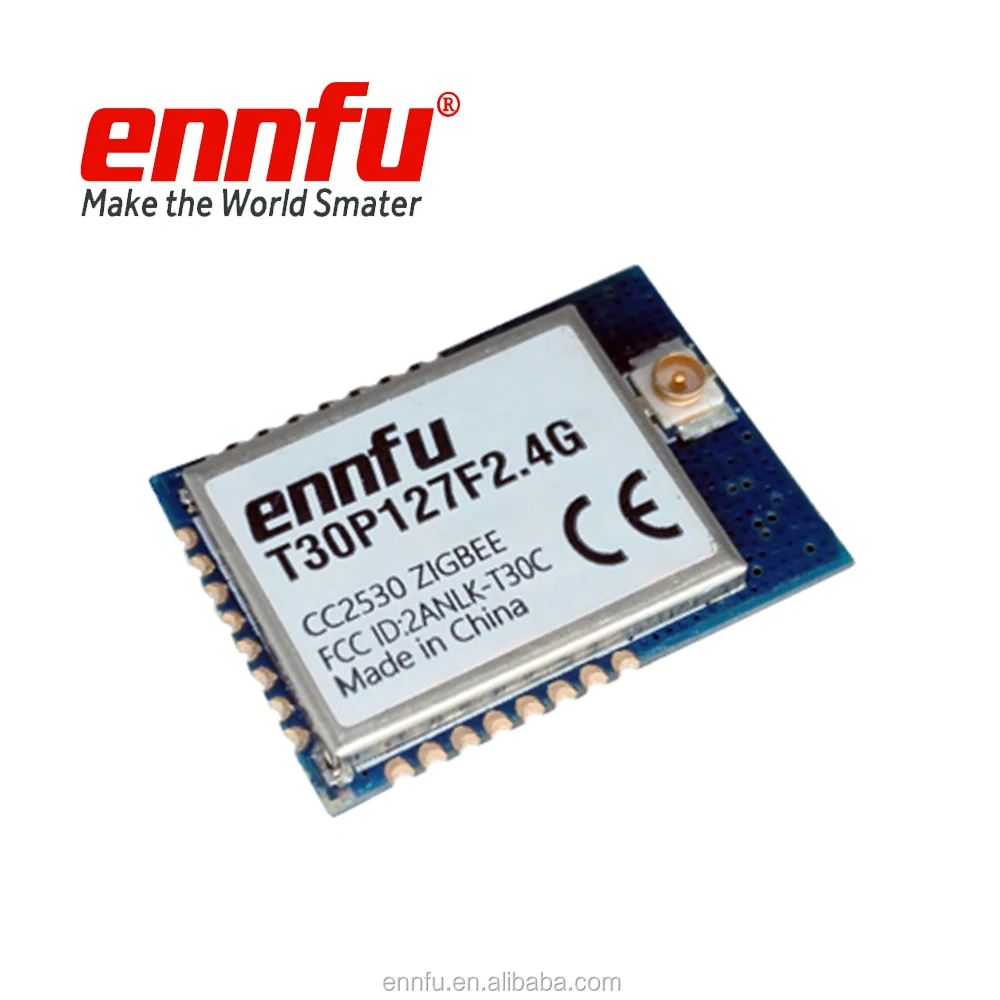

T30P127F2.4G is a tiny volume integrated 2.4GHz zigbee wireless module,which was based on TI CC2530 Zigbee RF chip technology, adopted standard IEEE 802.15.4 protocol.
2) Technical Parameters:
1 RF IC TI CC2530 2 Module Size 14.6*20.45*2.7mm, Including IPEX 3 Module Weight 1.2mg, Including IPEX 4 Working Frequency 2405~2480MHz 2.4GHz, IEEE 802.15.4 Protocol 5 Craft Immersion Gold SMT,ROHS 6 Interface Mode 3*8*1.27mm Pitch SMD 7 Supply Power: 2.0~3.6V DC 8 Communication Level +0.7V~+5V 9 Max.actual test distance ≈390m
Speed Rate:250K. Power: 2.5mW) 10 Air Ratio 250Kbps 11 Send Power 4dBm 12 Shut Current 1.2uA 13 Send Current 28mA@4dBm 14 Receive Current 27mA 15 Communication Interface I/O MCU sleep,Wireless shut,Voltage:3.3V 16 Send Length: 1~103Bytes Power supply must exceed 100mA 17 Receive Length: 1~103Bytes Average current 18 RSSI Support Support All I/O pins of MCU, please see IC manual for detail. 19 Antenna Interface IPEX Single data packet 20 Working Temperature -40℃~+85℃ Single data packet 21 Relative Humidity :10%~90% Please see IC manual. 22 Storage Temperature: -40~+125℃ Antenna external 23 Receive Sensitivities: 97dBm@250Kbps Industrial grade
3) Applications:
• Industrial Control and Data Monitoring • Environmental and Health Monitoring • Home Automation, Entertainment and Toys • Security, Location and Asset Tracking • Emergency and Disaster Response • Military/Battlefield Applications

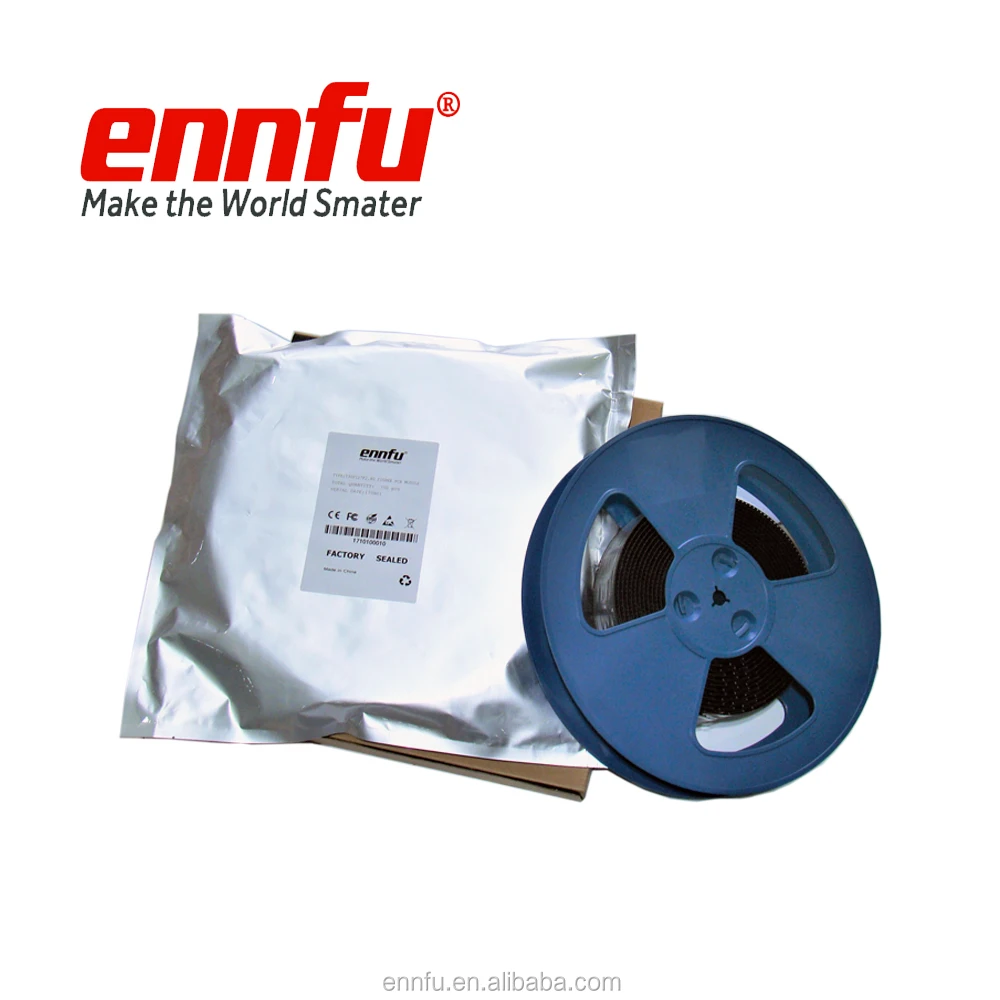

Package:
