Автоматическая бумага соломинки машина для одноразового поддона для бумага соломинки для изготовления
- Category: Straw Making Machines >>>
- Supplier: Wenzhou Unitely Imp And Exp Co. Ltd.
Share on (60746130506):
Product Overview
Description
Product Description
automatic paper drinking straw machine for disposable paper drinking straws making
1. description

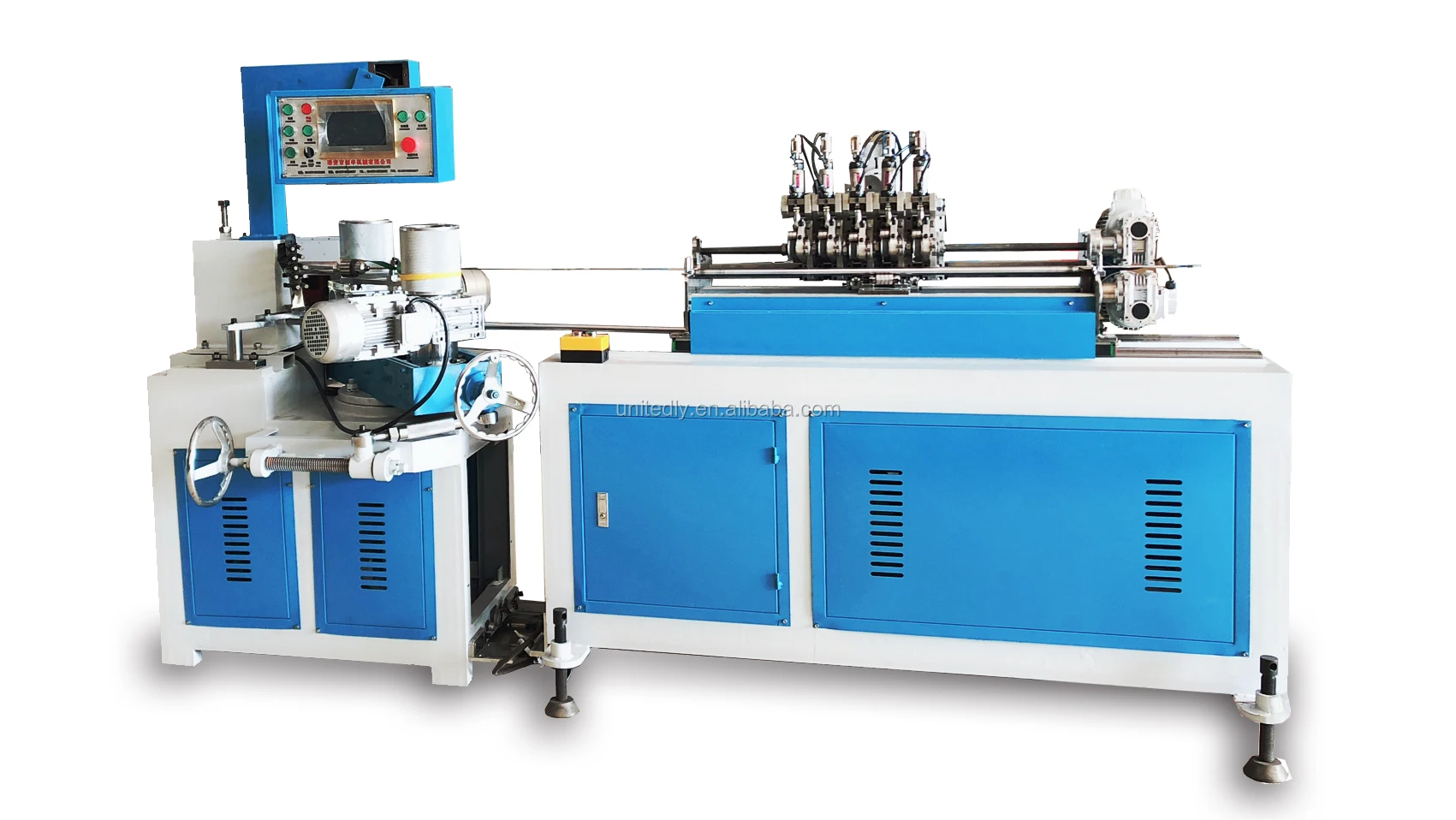

UNL-XG50 Paper Drinking Straw Making Machine is special for paper drinking straws production.

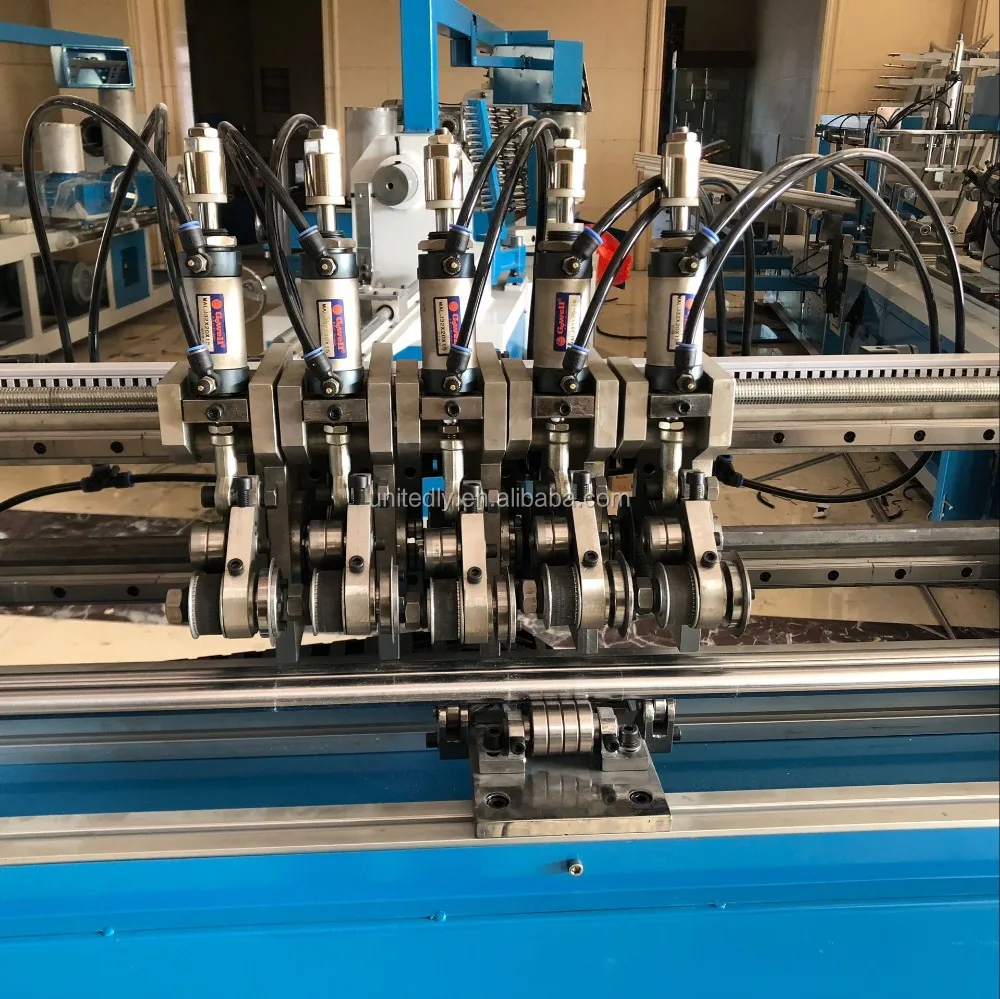

Equipped with Numerical and Multi-blades Cutting System.
PLC controlling system with automatic operation.
Synchronous cutting system controlled by servo motor.
It means the cutting part moves together with paper tubes and cutting in a high precision.
Technology
2.Main technical datas
1) | Paper Layer | 2-5 layers |
2) | Inner Diameter | 5-12mm |
3) | Wall Thickness | 0.5-2mm |
4) | Winding Speed | 0-30 meters/min |
5) | Cutting System | Multi-blades (5 pcs) |
6) | cutting system | Servo motor synchronism tracking cut |
7) | Gluing Way | Single/Double sides |
8) | Operator | 1-2 person |
9) | Speed Control | By Inverter |
10) | Power Supply | 380V/3Phase/50Hz |
11) | Measurement | 3500*1500*1200mm |
12) | Working Space | 7000*5000mm |
13) | Weight | 1300kgs |
3.
4.
5.
Packaging & Shipping
6.shippment
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Please don't be hesitate to Contact Us for any questions,your inquiry will be on our priority attention and fastest reply!
Wenzhou unitely machinery I/E co.,ltd
Add : wangzi flower garden ,zhenglin west road , wan quan town , pingyang county , wenzhou city ,zhejiang ,china
Tel/ Fax no.: 0086 0577 63703568 Mob:0086 18868261339
wechat/whatsapp/imo : 008618868261339
skype :chelseachen1229
