Quanshun QS Motor 8000W 13inch 50H V2 electric hub motor for motorcycles and scooters
Application SPEC - Electric Scooter(tested)
Curb Weight: 100kg
Motor: 1piece X 8000w brush-less in wheel hub motor
Top speed: 40Km/hour @ 48V(optional)
Product Description
Motor Specification
1. Motor Type: BLDC PMSM Outer Rotor Scooter Hub Motor(air cooling)
2. Axle configuration: Double Axle
3. Stator diameter: 273
4. Magnet Height: 50mm V2
5. Pole Pairs: 28
6. Rated Power: 8000W
7. Peak Power: 10523W(in few seconds)
8. Volt & Speed: 72v 566.7rpm (KV10.14,others are optional)
9. Max. Torque: >256.6N.m(denpends on speed)
10. Temp Sensor: no including for small power hub motor
11. PCD&CB of brake: 3*80mm, 58mm
13. Hall: One Hall, waterproof/normal optional
14. Cross Section of Phase Wire: 16mm²
15. Sugget Peak Battery Current: 212.8A(depends on voltage)
16. Suggest Peak Phase Current: 561A(depends on winding)
17. Efficiency:88%
18. Color:Black
19. Logo: With ”QSMOTOR” logo(OEM available)
20. Customzied tems: phase wire length, LOGO, Hall, drop-outs, speed etc.
21. Package size: 34cm*34cm*33cm
22. Application:electric scooter etc.
Drawing of 13inche-scooter hub motor(air cooling)
We have different dimension for your choice, and pls. contact with sales first when make order, some drawing will be updated accordingly.

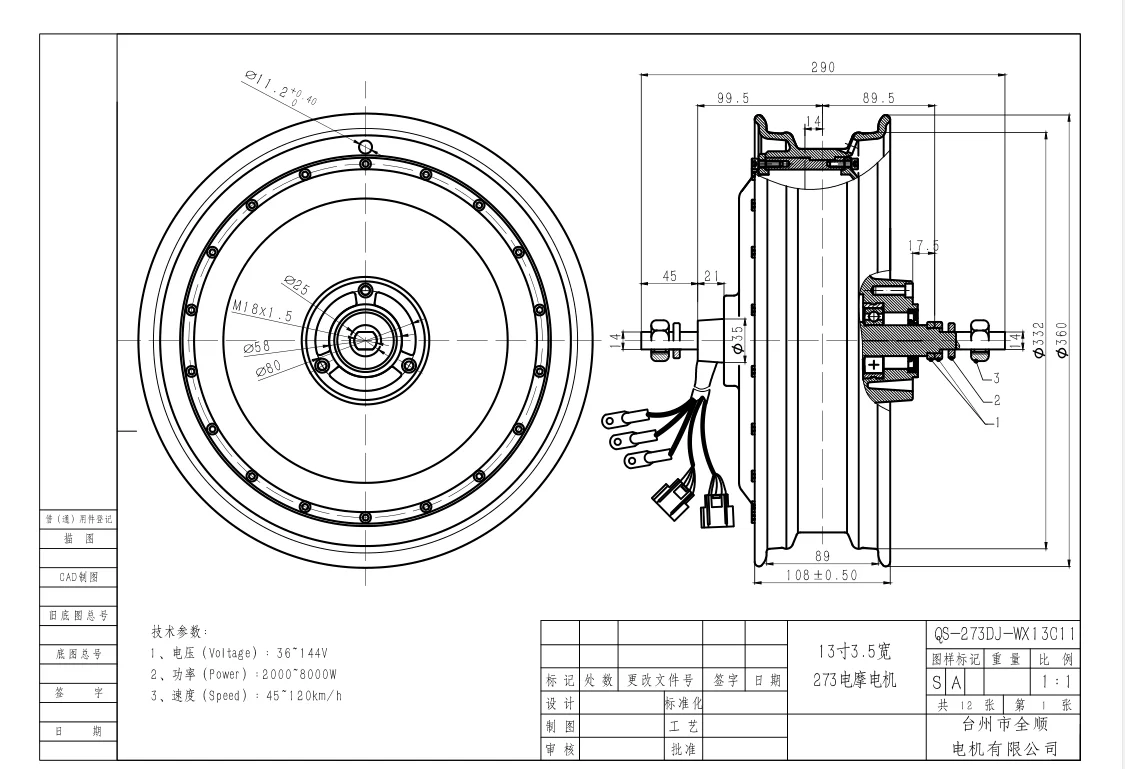

(1) 13x3.5inch installation dimension demonstration:

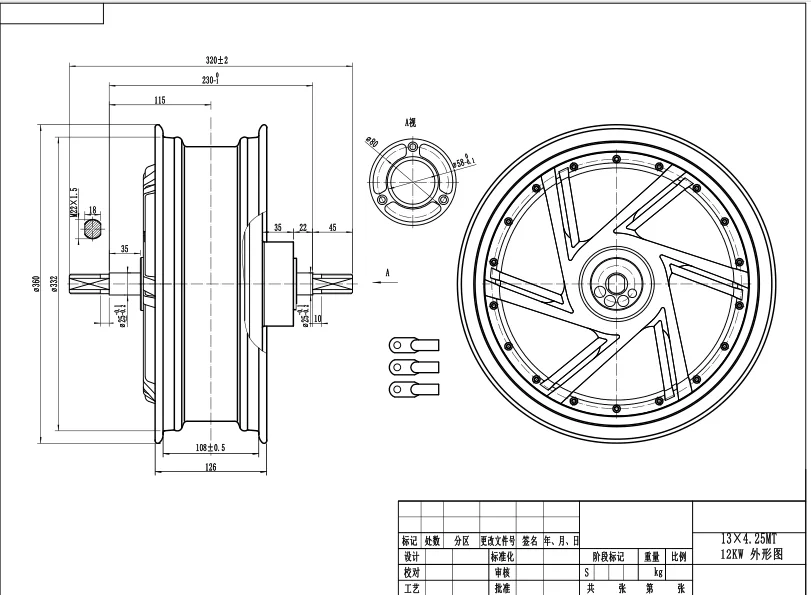

(2) 13x4.25 drop out:

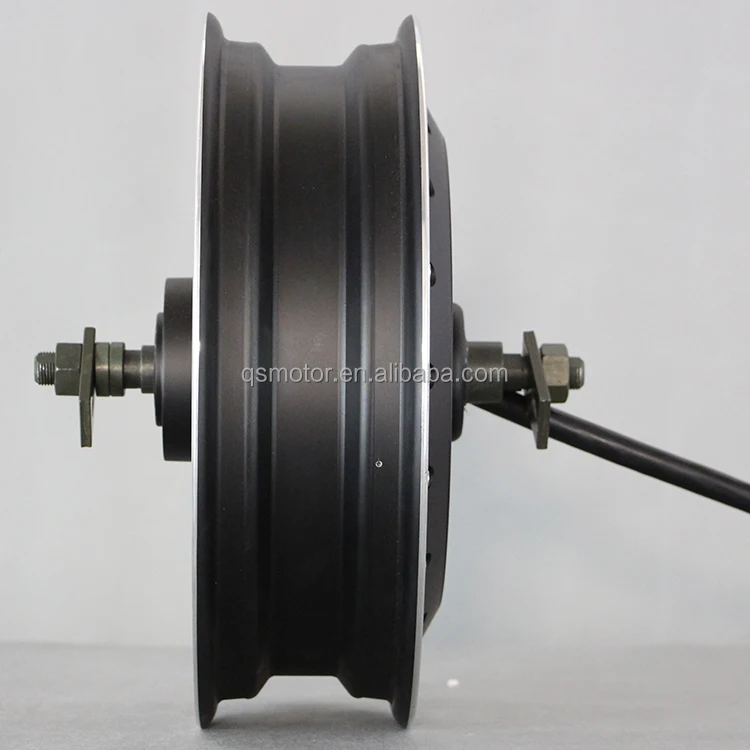

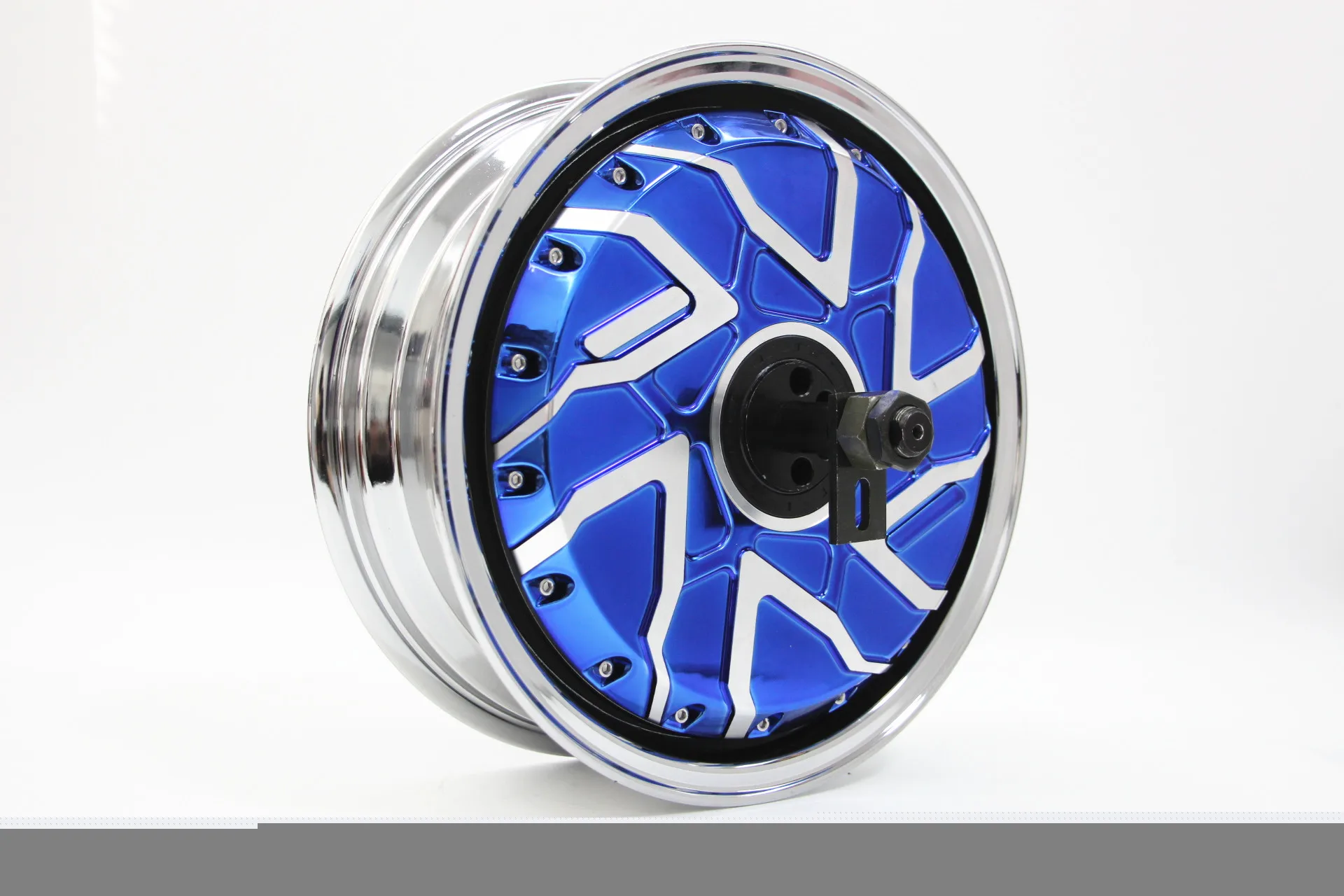

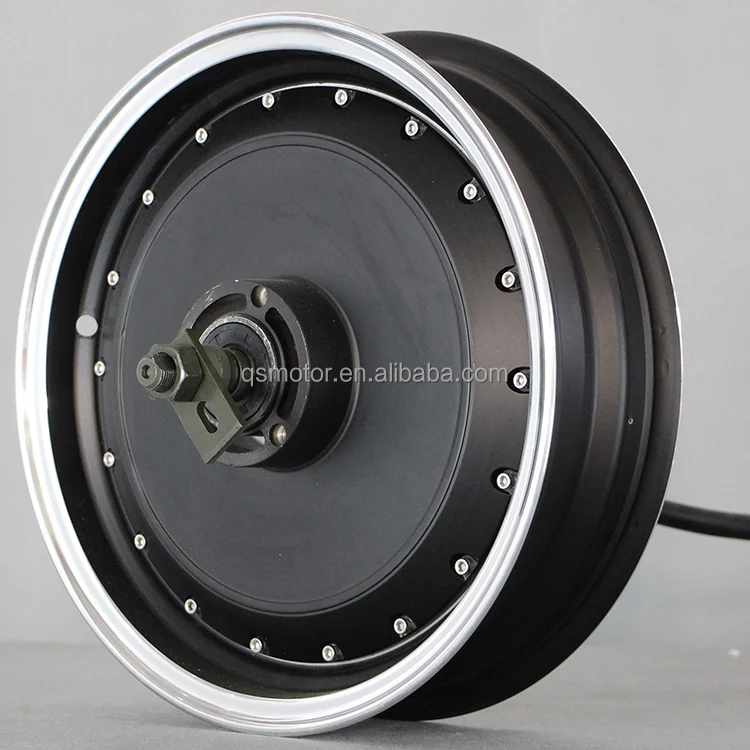

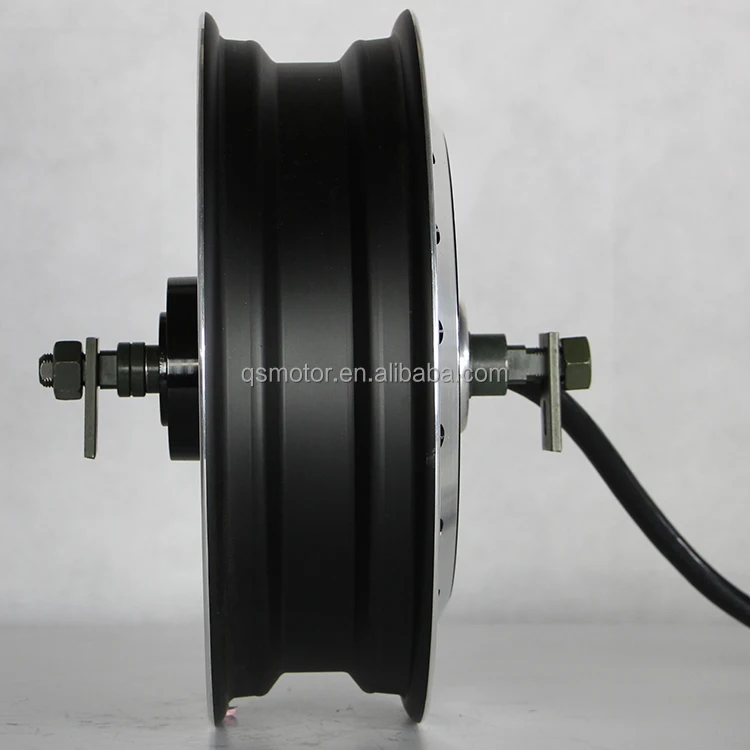

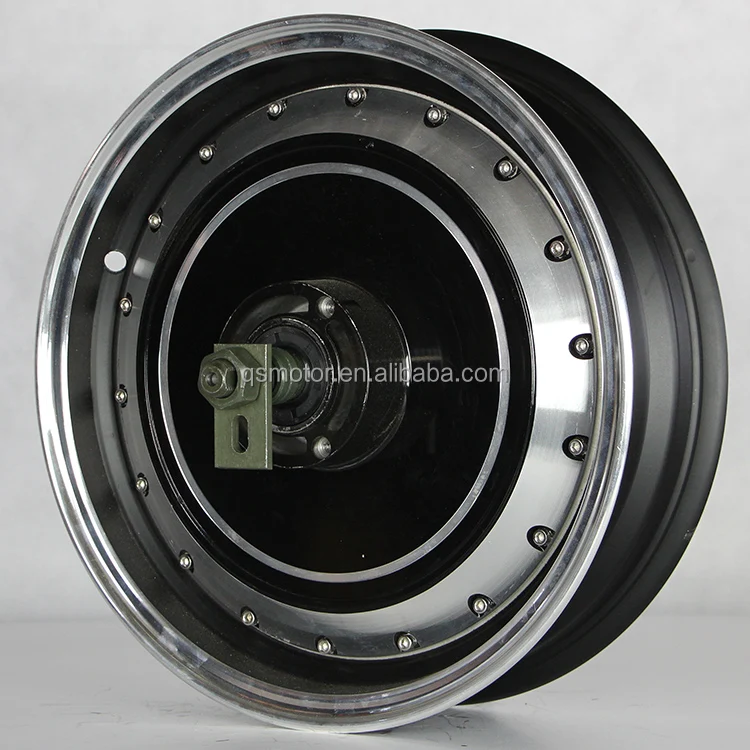

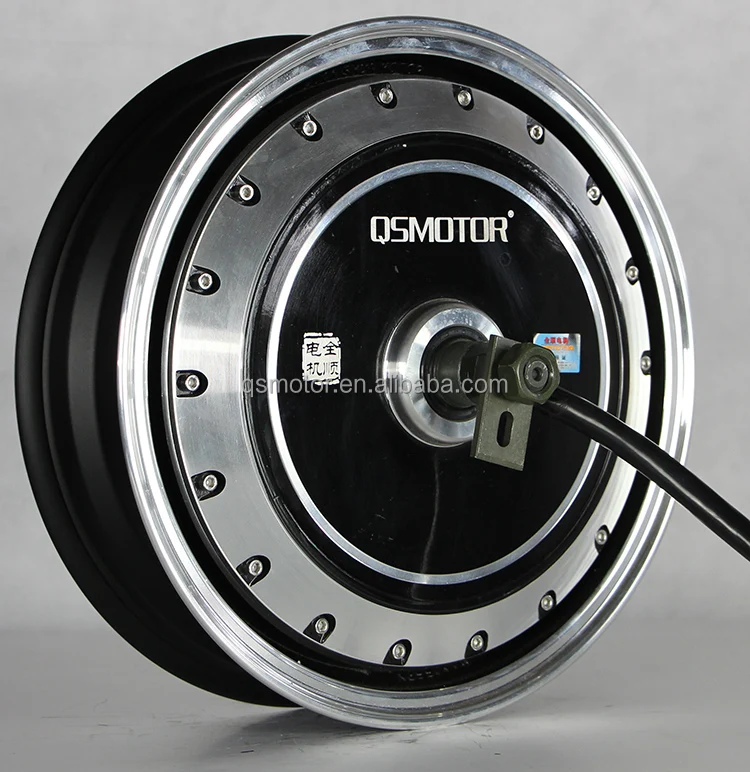

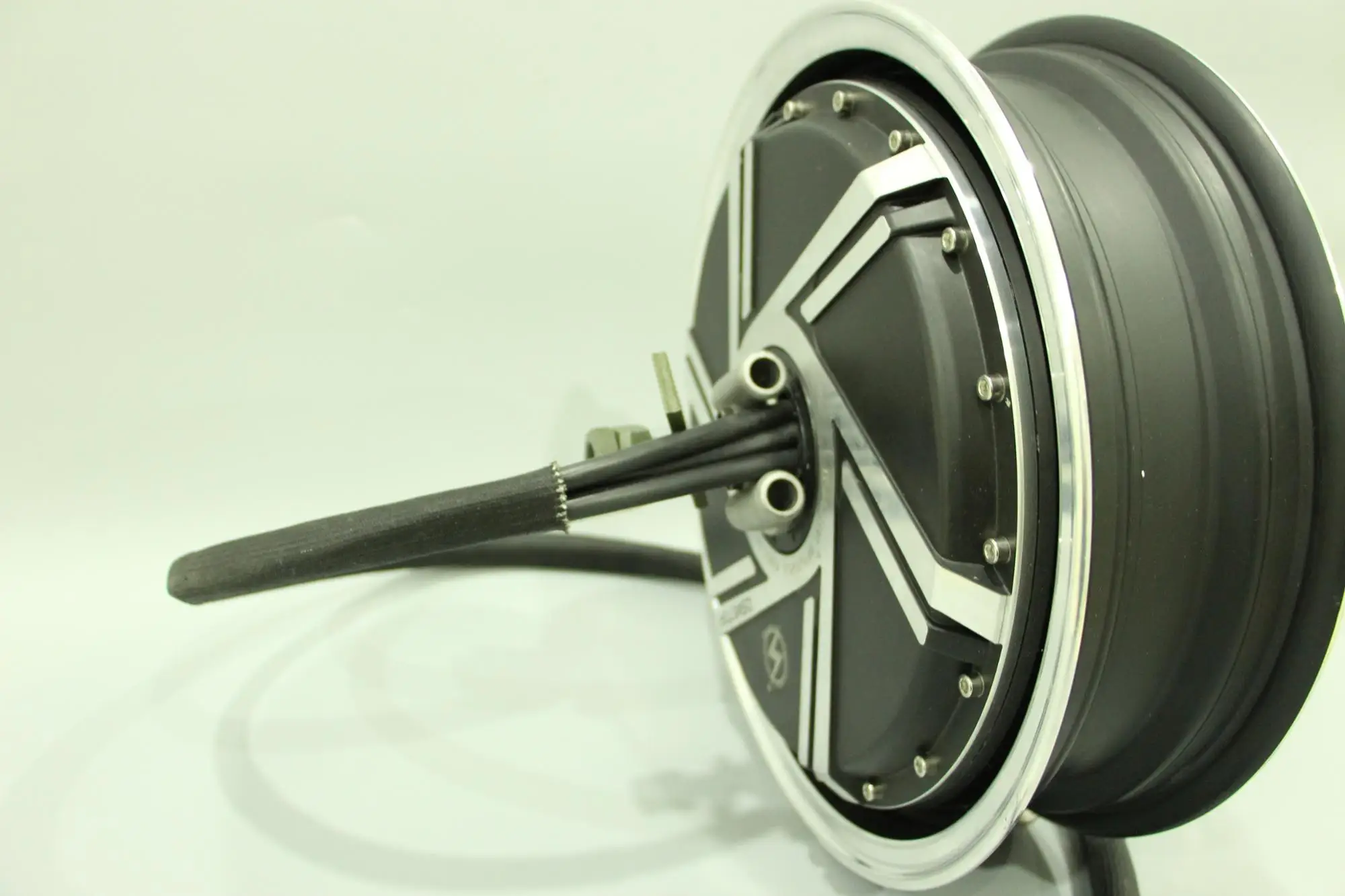

Motor Pictures
Motor Inner Configuration
There are three types, Normal/V1 type (low cost), Export/V2 type (Cost-effective) and Extra/V3 type (Best Performance).
1. Comparison between V1 and V2.
Holder: Iron(V1), Aluminum (V2) Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2) Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage. Magnetic Steel Grade: V2 ≥ V1 Efficiency: 84~87%(V1) 86~88%(V2) In short, normal type is standard configuration, while export type is high configuration. The price differs because of the cost of raw materials.
2. Comparison between V2 and V3.
The raw materials are alike, main difference in inner construction. For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire/phase wire and thicker Cross-sectional area section, bear more current in usage. Magentic Steel: V3 is wider and thicker. Efficiency: 86~88%(V2) 88~92%(V3) Thus, V3 have best performance.

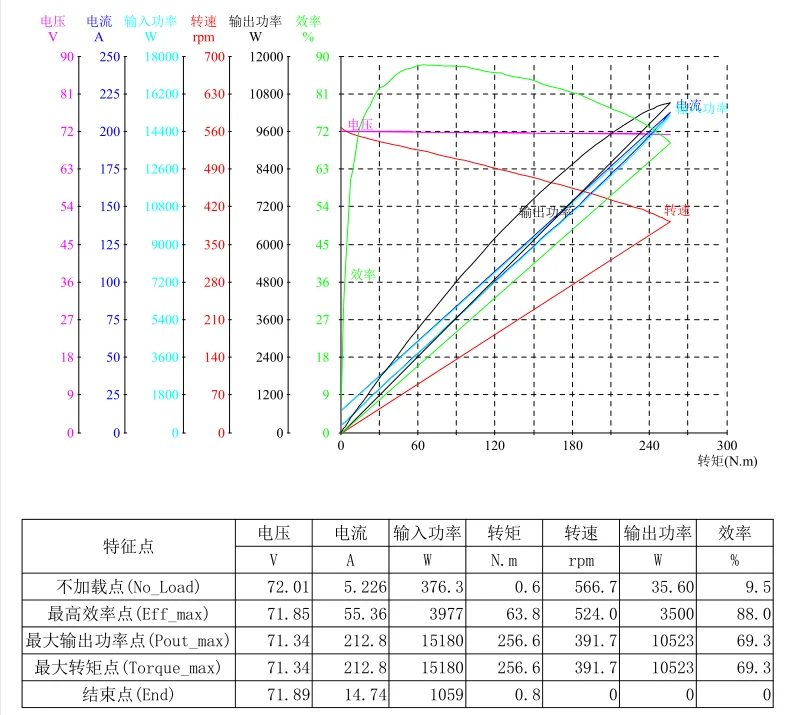

Test Report
This test report for 13inch 273 72v 8000w V2 motor.
Related Products
motor kits Matched Controller speedometer Disc brake assembly

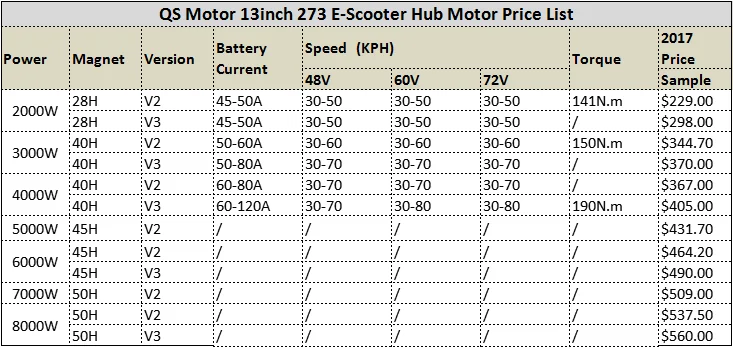

Full power list of 13inch electric scooter motor.
Why Choose Us
QSMOTOR are noted for their electric driving system throughout the world. At QSMOTOR they also happen to be our specialty, so you can rest assured that convert your gasoline vehicle to electirc/hybrid type, or building your electric vehicle(bicycle, scooter, motorcycle, tricycle, car etc.)– we guarantee it!
Our professional team of technicians is backed by over 18 years of experience with motors, controllers, brakes and electrical work. Always feel confident that the interior and exterior of your vehicle will be developed in best performance. It’s all part of our high quality and solution to handle your vehicle!
QSMOTOR is conveniently located on the Taizhou City(P.R.C), just a 30 minute drive from Taizhou Airport. We provide a clean and pleasant conference room to waiting for you. Make an appointment today or come by for a visit and we’ll show you why we make a difference.
Buying Guides
In order to recommend you suitable motor kits, would you like to confirm me below ponits firstly?
1. Your scooter weight and loading weight?
2. Voltage and max. speed?
3. Climbing performance?
4. Your wheel size and tire perimeter?
5. Other requirements?
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
