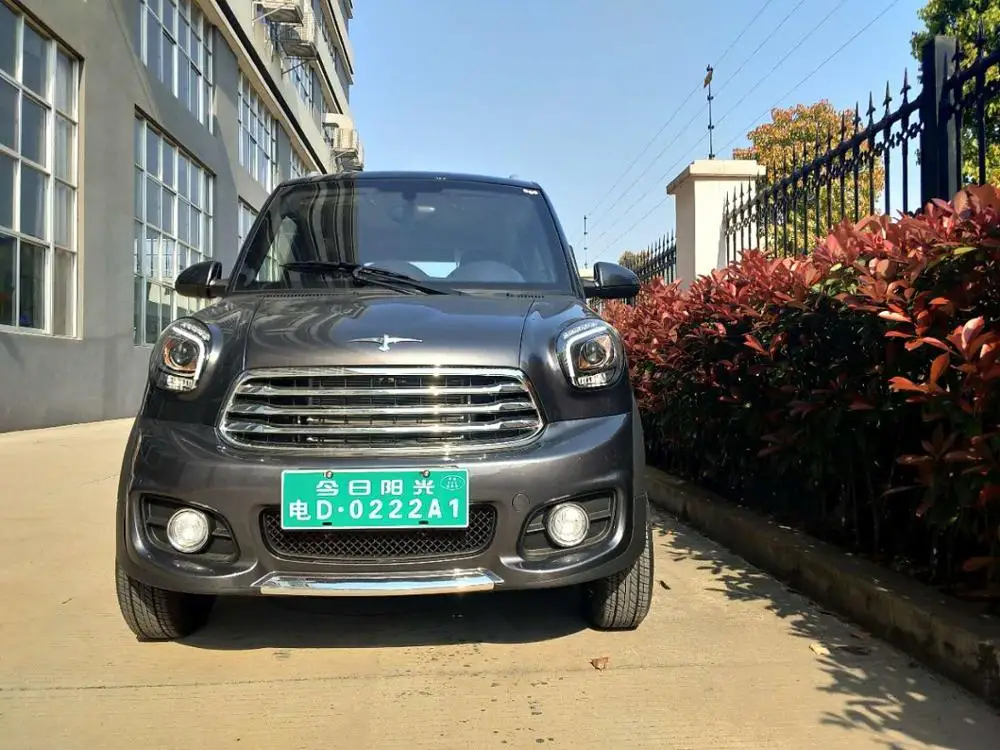

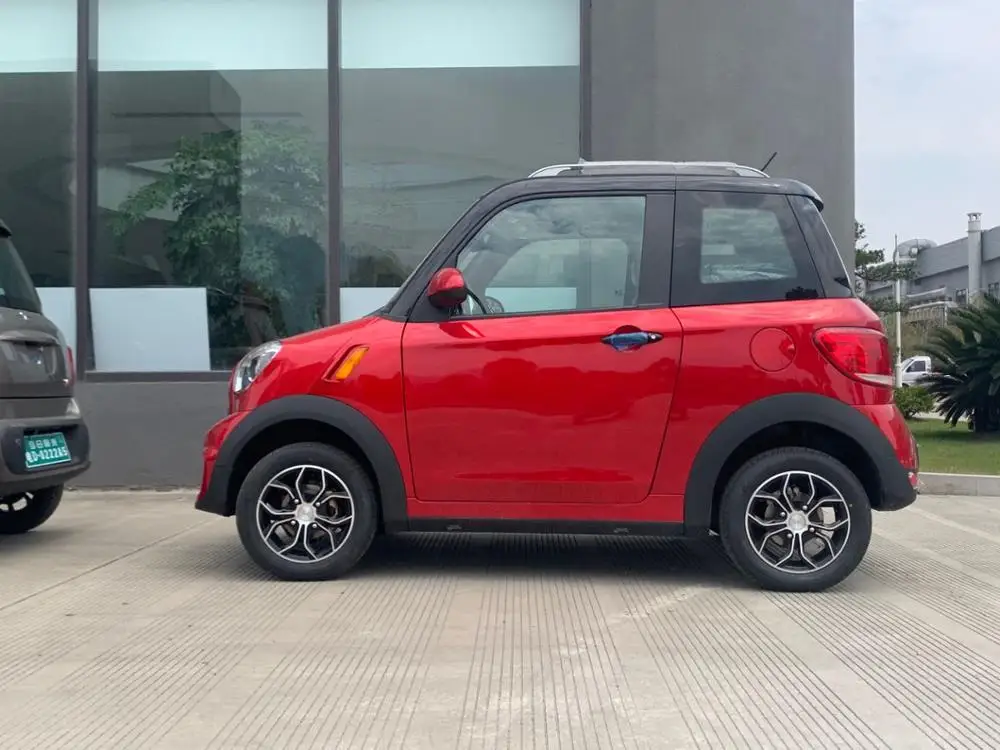

City electric vehicle with navigation

Product Overview

Description

LEAD ACID BATTERY (72V DC STANDARD)

Central control system                                                3-point safety belt

Copilot safety handle                                                  Load bearing frame structure

LED lights                                                                  4 wheel disc brake

Macpherson front suspension                                      Tailing arm rear suspension

Heater                                                                       Electric doors and windows

Intelligent charging system                                          Radio





	ITEMS	72V DC Standard Congiguration	72V DC Full  Congiguration	72V AC Standard Congiguration	72V AC Full  Congiguration
Power/  Performance	motor type	PMSM	PMSM	AC Asynchronous	AC Asynchronous
	rated power(KW)	4.5	4.5	4	4
	peak power(KW)	9.2	9.2	8	8
	intelligent protection of controller	Y	Y	Y	Y
	failure indication of driving system	Y	Y	Y	Y
	power output mode	Economic/sporty	Economic/sporty	Economic/sporty	Economic/sporty
	speed ratio of reducer	10:01	10:01	10:01	10:01
	maximum speed	50	50	50	50
	max.endurance mileage(km)	150	150	140	140
	gradeability	>22%	>22%	>25%	>25%
	Prevent slipping	Y	Y	Y	Y
	power consumption(kw.h/100km)	12	12	12	12
	charging time ( h)	8~10	8~10	8~10	8~10
