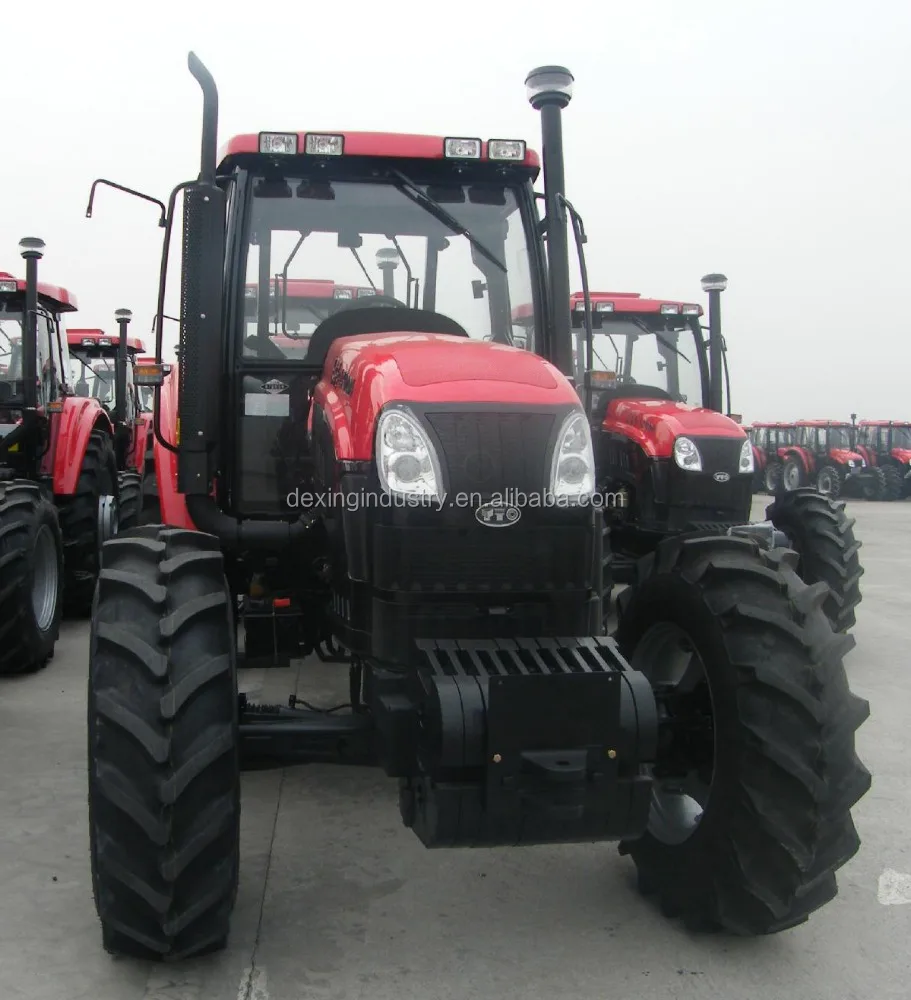

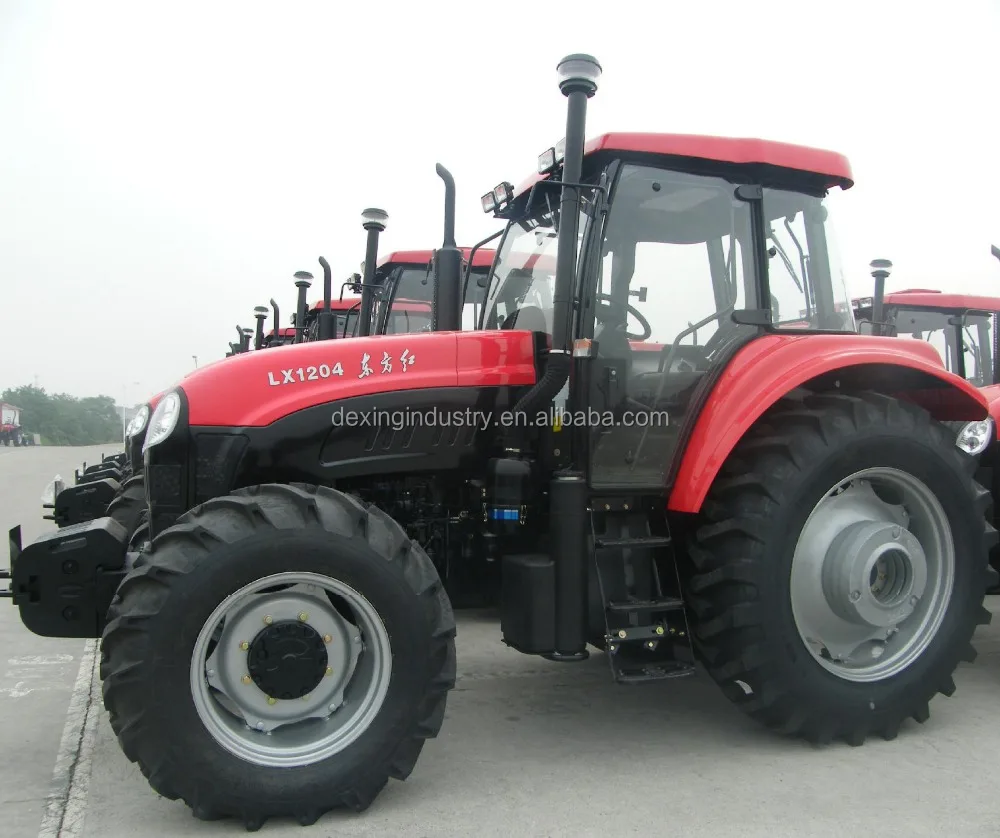

Factory supply best quality YTO 1204 120hp tractor with 6 cylinder diesel engine

Product Overview

Description

Factory supply best quality YTO 1204 120hp tractor with 6 cylinder diesel engine



Main Features

    1.Adopting Dong fang hong famous diesel engine,good reliability,large torque reserve,low fuel consumption, high economic benefits;

    2.Adopting 13 inch double clutch ,high transfer ability,reliable effect,operation more comfortable;

    3.Gear box use 4X(3+1),12 forward gears,4 reverse gears, gear are reasonable,high working efficiency;

4.Adopt independent power output device,steady transmission,large bearing capacity;

    5.Using independent oil hydraulic steering system operation,flexible operation,reliable energy saving;

    6.Using disc brakes,large braking torque,good braking effecting;

    7.Using forced type lifter, reliable use, convenient maintenance;

    8.Final drive adopts planetary reduction structure,compact structure, large reduction ratio;

    9.New streamlined appearance, greaceful ,HY,fashion;





Main technical parameters



model		YTO-X1204
type		4X4
Overall dimension	Length	5040
	Width	2255
	High	2870
Wheelbase(mm)		2688.5
Front wheel tread(mm)		1672-2003(1760)
Rear wheel tread(mm)		1662-2262(1662)
Min.ground clearance(mm)		470
Min.turning radius(m)		7.0
Min.using mass(kg)		4850(with cab)
Gear box		F12/R4
Speed(km/h)	going(km/h)	2.19-29.63
	retread(km/h)	4.72-13.83
Engine	model	LR6B5-23
	Rated power(kw)	88.2
	Rated speed(r/min)	2300
Tyre type	Front tyre	14.9-26
	Rear tyre	18.4-38
Steering system type		All hydraulic front wheel steering
Max.lift-off weight(KN)		≥28
PTO type		Rear-mounted semi-detached or detach
PTO speed(r/min)		540/1000
PTO power(kw)		71.25
Roots in control mode		Height adjustment,floating control
Max.traction(KN)		27
Counterweight quality(kg)	front	500
	rear	300
