12x zoom vertical screen live broadcast ptz USB Type C video conference camera
- Category: >>>
- Supplier: TCHD Digital Video Technology Development (Beijing) Ltd.
Share on (60746185914):
Product Overview
Description
12x zoom vertical screen live broadcast ptz USB Type C video conference camera hdmi output
Introduction
| Model | 880U | |
| Name | USB3.0 HD Video Conference Camera | |
| Camera | ||
| Video System | 1080P, 720P, 540P, 480P, 360P, 240P etc. | |
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M | |
| Scanning Mode | Progressive | |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | |
| Digital Zoom | 16x | |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual | |
| Backlight Compensation | Support | |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction | |
| Video S/N | ≥55dB | |
| Horizontal Angle of View | 72.5° ~ 6.9° | |
| Vertical Angle of View | 44.8° ~ 3.9° | |
| Horizontal Rotation Range | ±170° | |
| Vertical Rotation Range | -30° ~ +90° | |
| Pan Speed Range | 2.7° ~ 35.7°/s | |
| Tilt Speed Range | 2.7° ~ 31.5°/s | |
| H & V Flip | Support | |
| Image Freeze | Support | |
| Number of Preset | 255 | |
| Preset Accuracy | 0.1° | |
| USB Featured | ||
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | |
| Color System / Compression | YUV 4:2:2 / H.264 / MJPEG | |
| Video Format | YUY2 (BULK): max to 1080P@30fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@30fps H.264 SVC: max to 1080P@30fps MJPEG: max to 1080P@30fps | |
| Audio on USB | Support | |
| USB Video Communication Protocol | UVC 1.1~1.5 | |
| UVC PTZ | Support | |
| Input/Output Interface | ||
| USB Interface | 1xUSB3.0: Type B female jack | |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V)/USB B type(DC IN 5V) | |
| Generic Specification | ||
| Input Voltage | DC 12V/DC 5V | |
| Current Consumption | 1.0A (Max) | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) | |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) | |
| Power Consumption | 12W (Max) | |
| MTBF | >30000h | |
| Size | 144mm x 144mm x 167.9mm | |
| Net Weight | 1.285KG | |
1.1 Features
l Full Function USB Interface
Full function USB interface, compatible with USB 3.0 and USB 2.0, support audio and encoding output, and support the UVC
V1.1 protocol.
l 1080P Full HD
High-quality HD CMOS sensor with 2.07 million effective pixels for high-quality images up to 1920x1080.
l 72.5° Wide-angle-lens +16x Digital Zoom
The exclusively customized 72.5° high-quality ultra-wide-angle lens, support 12x optical zoom and 16x digital zoom.
l Low Illumination
The new CMOS image sensor with ultra-high SNR can effectively reduce the image noise under low illumination. The application of 2D and 3D noise reduction algorithm greatly reduces the image noise even under the condition of ultra-low illumination, it keeps the picture clean and clear, and the SNR of image is as high as 55dB.
l PoE
The wired network supports PoE power supply, the control, power supply, video and audio can be completed with a network cable.

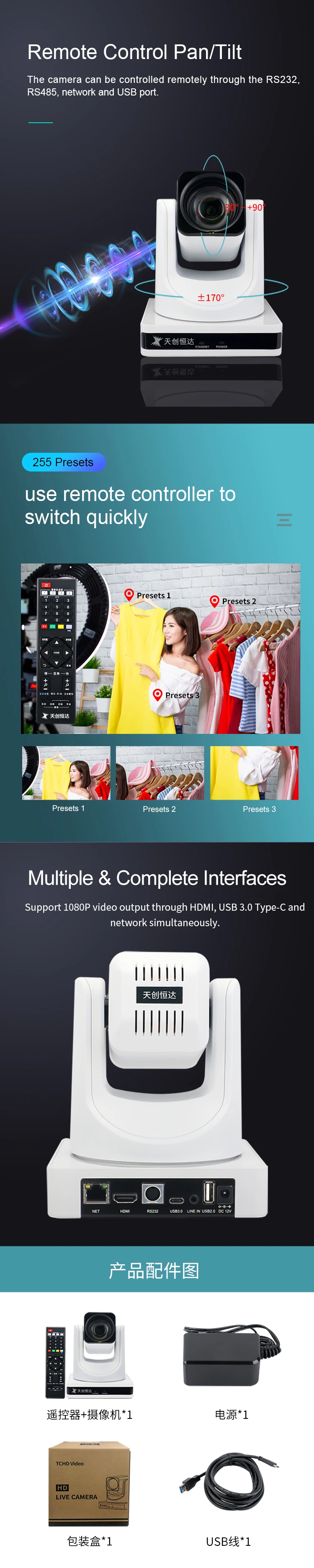

l Remote Control
The camera can be controlled remotely through the RS232, RS485, network and
USB port.
l H.264 Slice/H.264 SVC
The H.264 stream supports Slice and SVC encoding modes, and suitable for high-end USB conference video applications.
l Dual Stream
Support two stream output (YUY2, MJPEG, H.264 each of both) to reduce the host codec pressure.
l Multiple & Complete Interfaces
Support 1080P video output through HDMI, USB 3.0 and network simultaneously.
l Three Power Supply Modes
Simultaneously support USB 5V, 12V power adapter and PoE power supply.
l High Frame Rate
1080P output frame rate up to 60fps.
