TBI Ball Nut 8mm Solid Ball Spline SLF008 Hollow Spline Shaft Coupling
- Category: >>>
- Supplier: Nanjing Shengkaite Bearing Co. ltd
Share on (60746191901):
Product Overview
Description
Product Description
Basic Structure of TBI Ball Spline
The Design of TBI Ball Spline is to utilize the friction force through the contact of steel balls within in the Spline Nut and the grooves on the Spline Shaft. With TBI MOTION’s unique 40° angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibrates, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bushing in the like dimensioned but with a compact profile. Namely, Durability and reliablility is the reason for choosing TBI Ball spline in your application.
TBI MOTION Ball Spline Feature
- High Load-Carrying Capacity
- Zero Angular clerance/backlash
- High Sensitivity
- High Rigidity
- EZY Mount on Design
| TBI Ball Spline SLF008 Details | |
| Name | Ball Spline |
| Structure | Ball Type |
| Brand | TBI, HIWIN, THK, PMI, IKO, ABBA |
| Modele | SLF008 |
| Nut Type | SLF |
| Size: | following list |
| Minimum quantity: | 1 piece ball nut and 1pcs Screw |
| Precision: | N, H, P |
| Preload | P0, P1, P2 |
| Lubrication: | Grease,Oil |

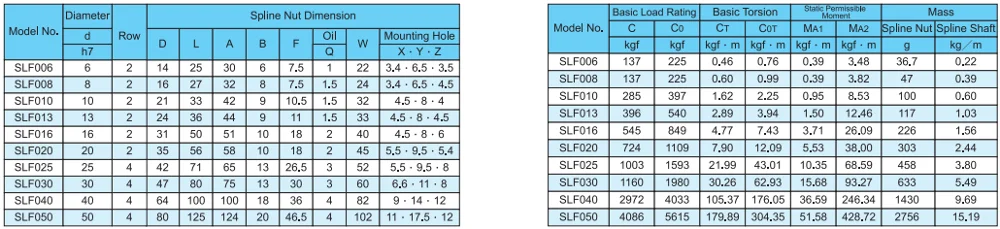

Drawing:

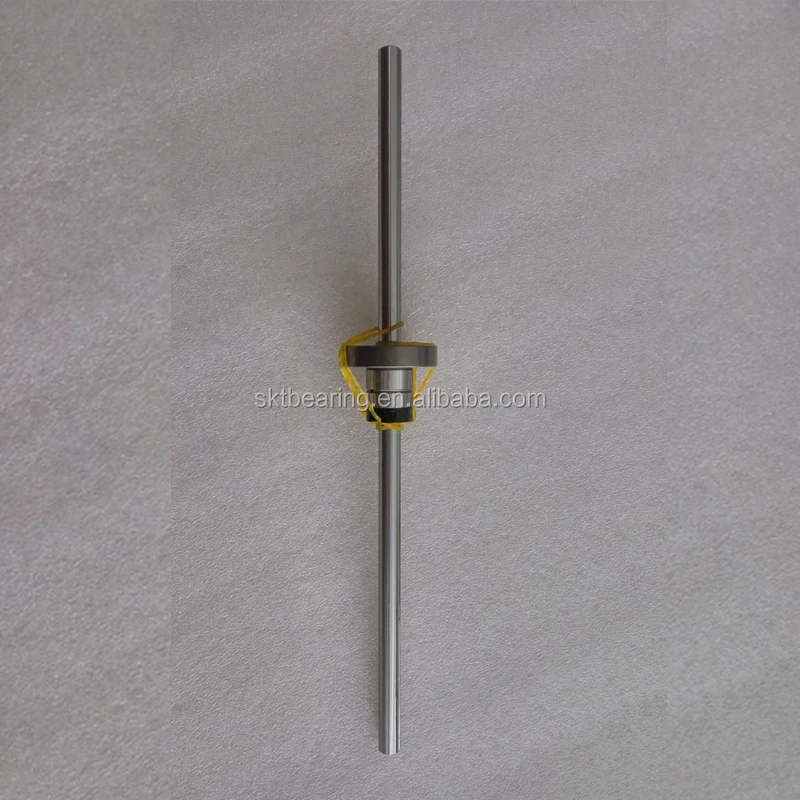

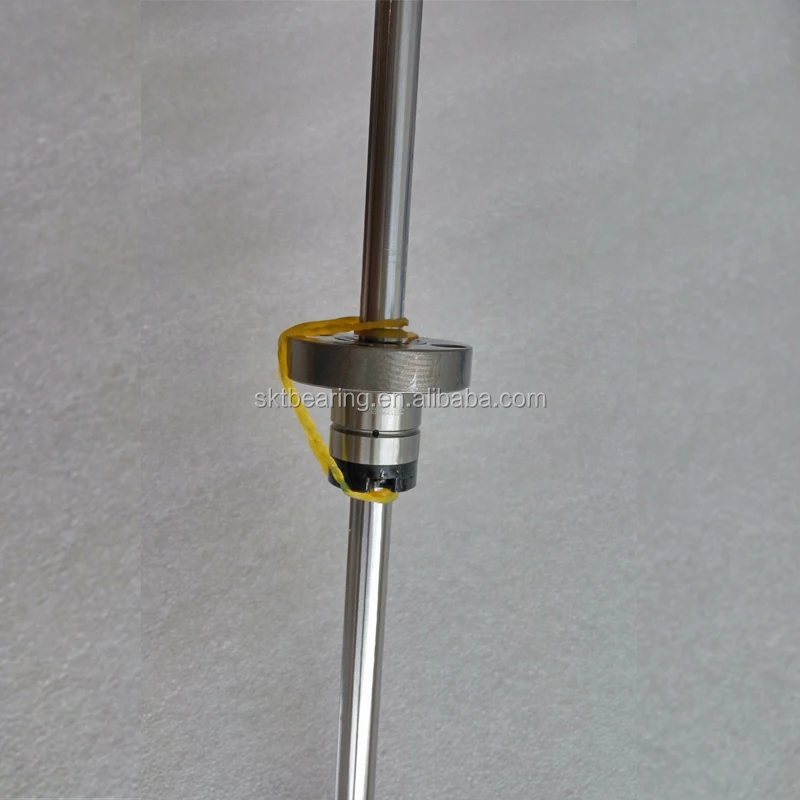

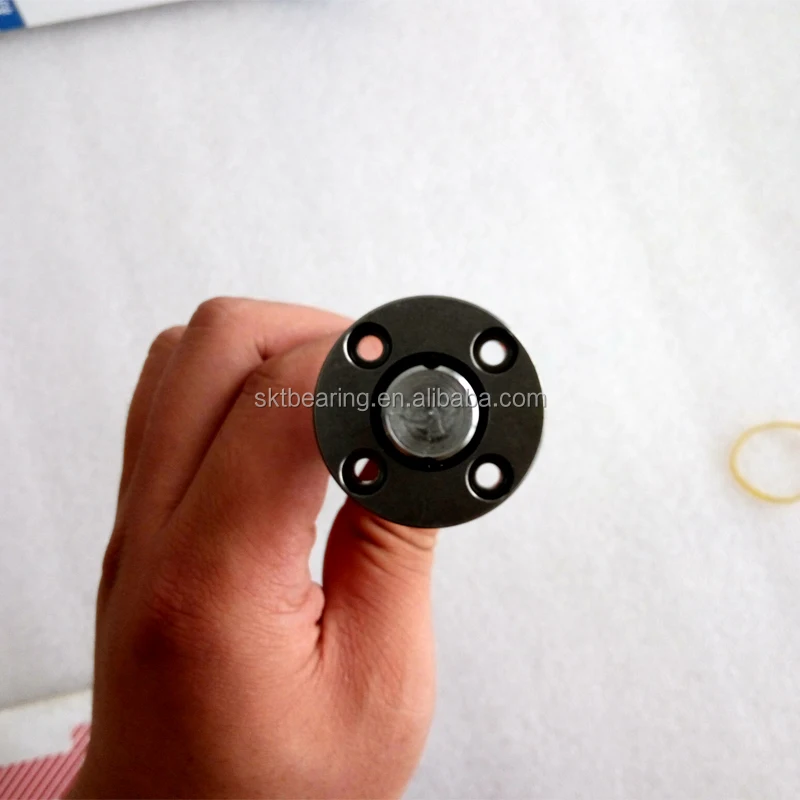

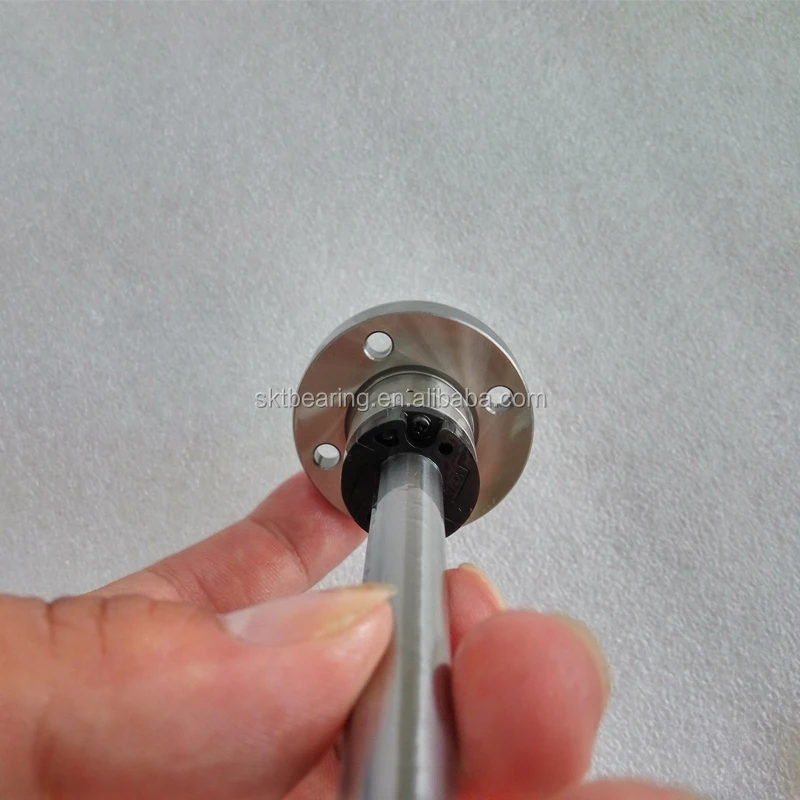

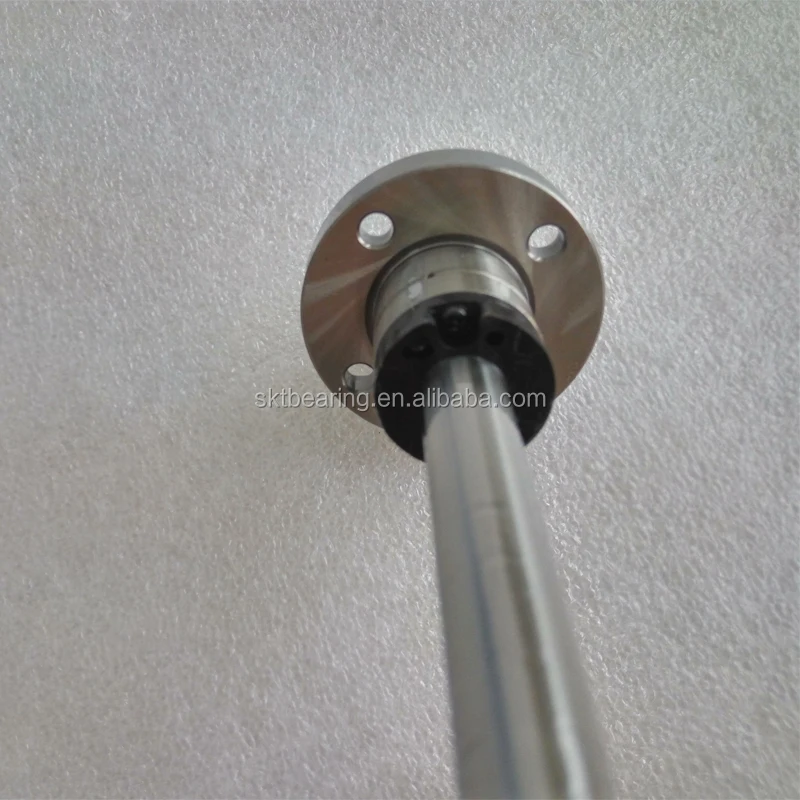

Picture Show
Our Services
| Shipment | For small orders,we send by express UPS,DHL,FEDEX, or EMS with Thracking number. For big quantity, we will ship by air or by sea. |
| Delivery date | Normally ready goods and stock within 4-15 days. Bulk quantity within 30-45days. |
| Payment terms | 1. We can accept PAYMENT terms: T/T L/C |
| 2. For small amount, we accept Western Union | |
| Samples Policy : | sample cost needed and freight collected. We will reduct this part expense from the total value when place order. |
| Package | 1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton |
| 2. Commercial packing: 1pc/plastic bag + color box + carton | |
| 3. As the clients' requirement | |
| Service: | We are 100% manufacture. We can supply you technical support. |
| We have strict quality control processes. We supply high quality bearings with fair price. | |
| We accept small quantity. | |
| We may supply other globle brand bearings and offer buyer labels. | |
We can manufacture any bearings according to customer's drawings and samples.
|
Company Information
Nanjing ShengKaiTe Bearing Co., Ltd., was founded in May 2008, registered trademark for NJSKT, mainly producing Tapered Roller Bearings, Pillow Block Bearing, Automobile Hub Bearings, Agricultural Machinery Bearings, Angular Contact Ball Bearings, Spherical Roller Bearings, Cam Follower Needle Roller Bearings,Eccentric Bearings etc and Agent for HIWIN, CPC, PMI etc. on a commission basis, the minimum width of them is 3mm, and the maximum width of them is 85mm , having adequate stocks in ball and roller guide rail series.
