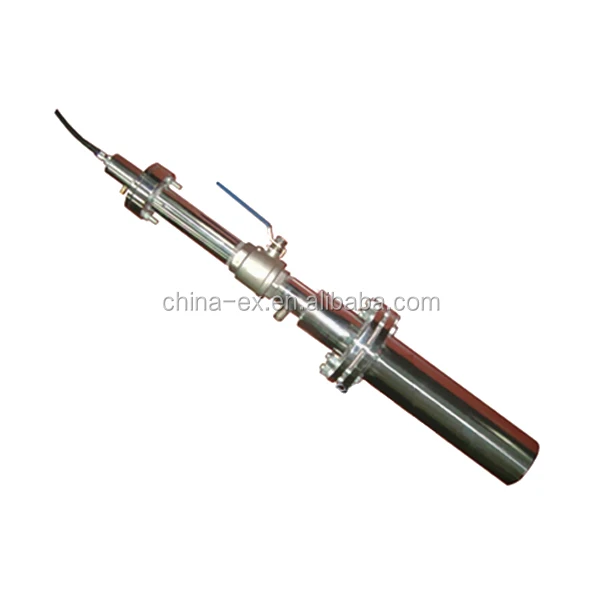

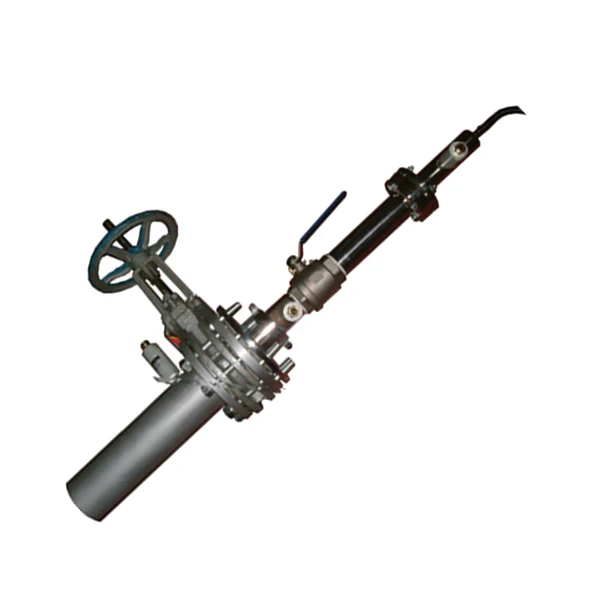

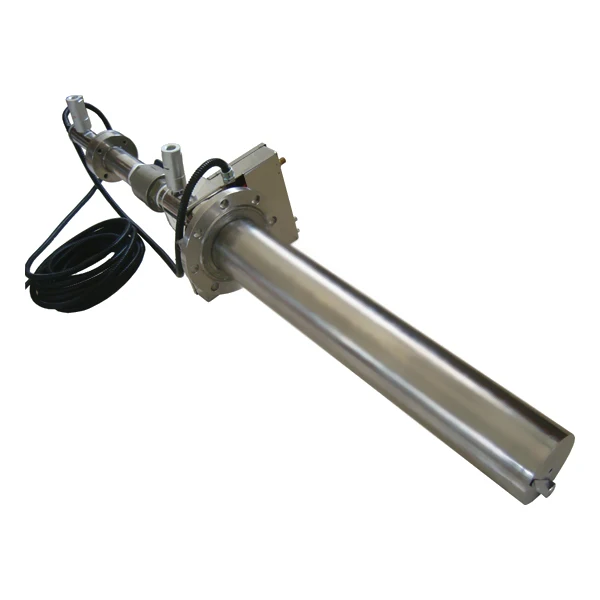

Experience manufacturer supply rotary furnace camera high temperature camera
Product Description
Electric furnace high temperature cctv camera is a special closed-circuit television equipment used in high temperature environment. Widely used in metallurgy/electricity/glass/building materials industry,s industrial high temperature furnace.
Endoscopic high temperature industrial TV is a special closed circuit television equipment used in high temperature environment. It can be widely used in heating furnaces, steam boilers, glass melting tanks, sintering furnaces and other industrial high temperature furnaces in metallurgy, power, building materials, light industry, chemical machinery and other industries.
The system can extend the camera lens directly to the observation hole of the furnace wall to observe the operation of the workpiece, material and flame shape in the furnace. If the system is powered off, it can automatically withdraw or manually withdraw from the site under the protection of UPS power supply to protect the safety of the equipment. The equipment adopts two-stage automatic filtering mode, the primary uses a large filter box, and the secondary filtering uses a precision filter with automatic dewatering and deoiling, which is convenient and efficient.
Furnace Temperature | ≤2000℃ |
Ambient temperature | automatic extension device≤90℃,Control system ≤70℃ |
Compressed air | inlet pipe diameter G1/2 " pipe diameter G1" |
Power | 220V 50Hz |
Power consumption | <120W |
Gas pressure | 0.2~0.7MPa |
Air flow | 0.1~0.4M3/min |
Entrance temperature of compressed air | ≤40℃ |
Lens | Special high temperature and corrosion resistant pinhole imager. |
Image Resolution | > 580 TVL |
SNR | ≥42db |
View of angle | Diagonal 110° |
Furnace Wall Opening
| 120° Horn Hole in the Internal Wall of φ80mm Furnace Wall |
Automatic withdrawal function | probe can automatically withdraw from furnace when power failure, gas failure and overtemperature occur (UPS power supply is needed to realize power outage withdrawal) |
Auto extension retreat device dimension | 1320(H)×225(W)×380(H)mm |
Control system | 530(H)×300(W)×1290(H)mm |
Auto extension retreat device weight | 40kg |
Furnace wall sleeve | 40kg |
Installation distance between automatic extension retreat devices and control system | ≤2M |
Between the Control Systems of Operators | AVPV7×0.5mm |
Video cable | SYV75-5-2 |
Power supply wiring | AVV3×1 |
Application Field
Application of explosion proof camera:
Company Information
Our company is a professional enterprise of designing and manufacturing explosion-proof monitoring equipment and high-temperature industrial television systems.Our main products including: Explosion-proof infrared camera, Explosion-proof pan/tilt , Explosion-proof speed dome camera, Explosion-proof integrated camera, Explosion-proof hemisphere camera and other explosion-proof monitoring equipment.We already got the < Explosion-proof certification>,and our items have the signs of Ex d ⅡC T6 Gb/DIP A20 TA,T6.They are widely use in petroleum,chemical,natural gas,non-coal dust etc. special industry.
Certificates
Certificates of explosion proof camera:
Related Products
Related products of explosion proof camera:
FAQ
Q1: What about the warranty?
A1: All products from us enjoy 1 year warranty.
Q2: Can I get your price list?
A2: Yes, please tell us the products and order quantity, then we will offer the price by e-mail.
Q3: What terms of payment do you use?
A3: We accept L/C,T/T,D/A,D/P,MoneyGram,Western Union,Paypal.
Q4: What the main features of your products?
A4: Explosion-Proof/ Anticorrosive/High Temperature Resistance.
