3 in 1 Car Seat Cover Flame Laminating Machine Flame Machine

The machine uses sponge as adhesive to bond other materials together ,such as non-woven fabrics,woven fabrics, synthetic leather,PU,PVC,etc,.Its working principle is  through  flame  burning the sponge  of which surface will appear one layer of sticky stuff, then quickly laminating with other materials.

Large scale flame laminating equipment provides continuous mass production for the automobile interior manufacturers.

Equipped with imported burner, it adopts the most advanced servo control system in the world, intelligent operating system, constant tension accumlator mechanism, Fabric tension control system, gas constant pressure mechanism, edge position control system.

Main technical specifications:

(Remark:       For instance, if you are going to laminate non-woven + sponge + artificial leather for car seat cover.

                     So if it were single burner,you need to two-step laminate,but it were double burner ,only can be one-step laminated.)

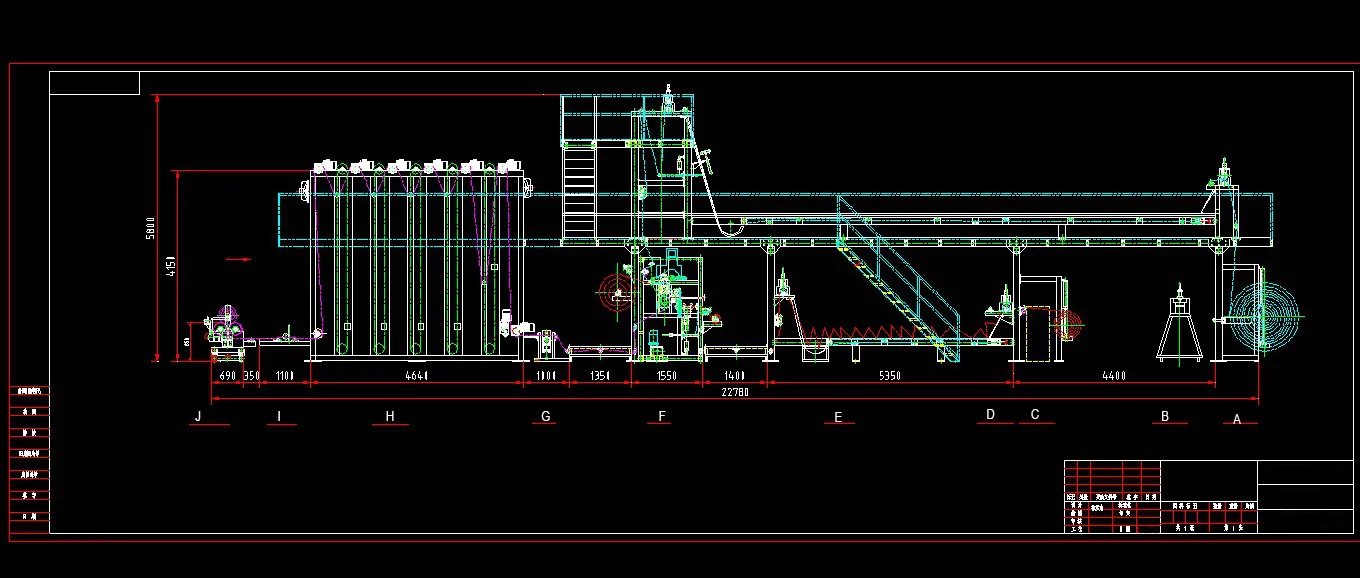

Main technology:

A. Material 1. Uwinding device

B. Fabric Jointing Machine

C. Material 2. Uwinding device

D. Traction device

E. Convenyor type accumulator for Material 2.

F. Host of Flame Laminating

G. Final product side trimming

H. Accumlator

I. Counter

J. Rewinding device for final product

Key Features:

1.The whole production line is controlled by the most advanced servo system at present. The whole machine drives without any noise, synchronization is accurate, and energy consumption is very low.

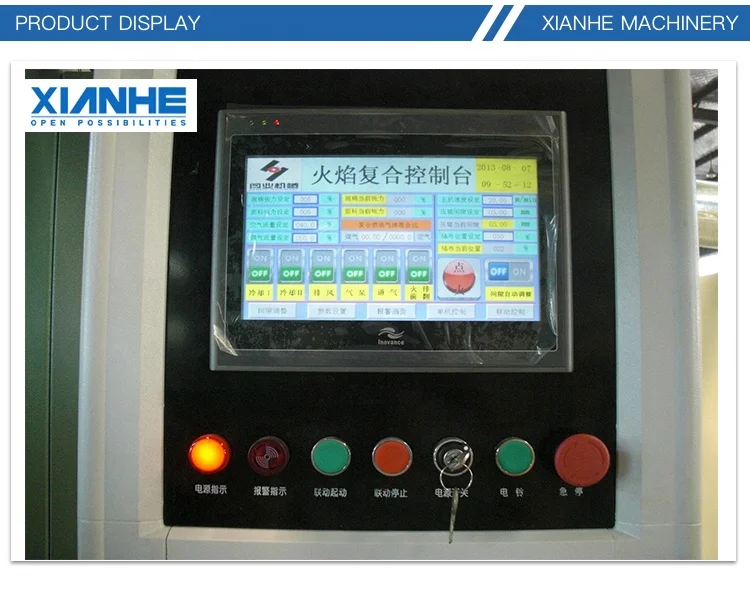

2.Intelligent operating system, PLC touch screen control,easy to operate and save labor coats.

Working speed can be controlled with the touch screen, stepless speed regulation can be achieved; the gap of pressure rollers can be adjusted according to different materials, different air and gas mixing ratio can be set, and  tension can also be set according to different materials to avoid the phenomenon of bending and wrinkling.

3.Constant tension accumlator device:Automatic seting the different tension to ensure the effect of fabric laminating.

4. Gas constant pressure mechanism and gasifier are added in this machine to ensure the gasification and constant pressure of liquefied gas in winter, thus ensuring the uniformity and stability of fire exhaust combustion.

5.Fabric alignment control has been added to protect  the materials from running off.

6.The roller increases to three rollers and can drive independently.Adjust the speed of three roller, can avoid the phenomenon  of  wrinkles, bending and  tension  because of the different fabrics during running.

7. Traction device

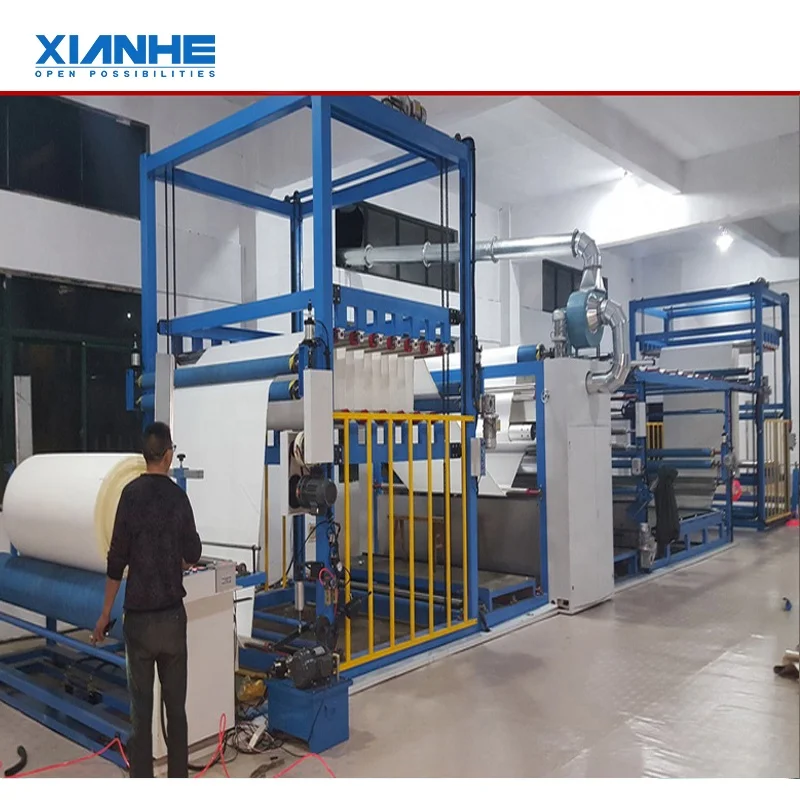

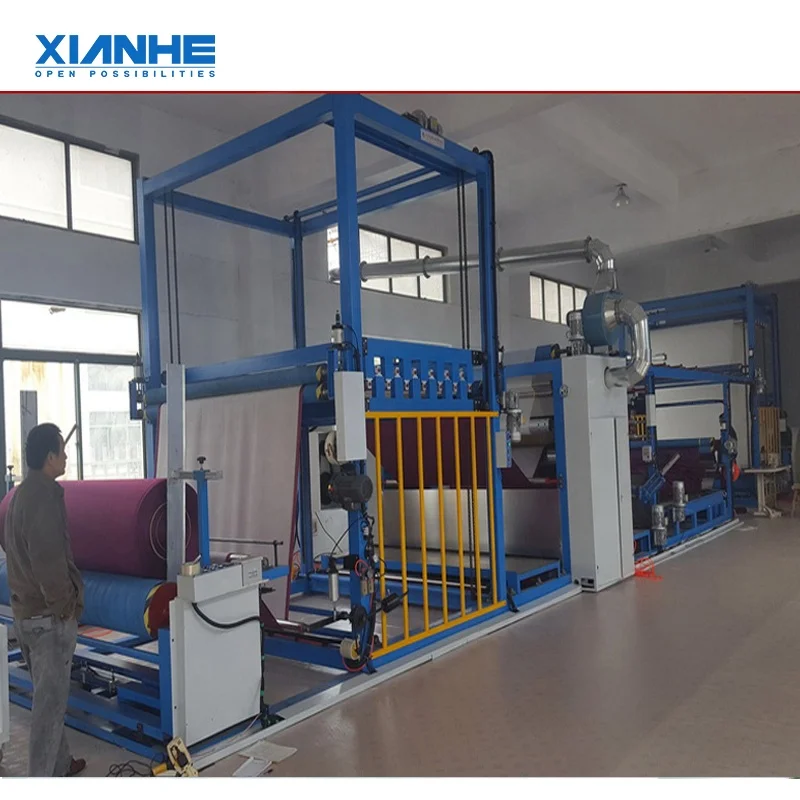

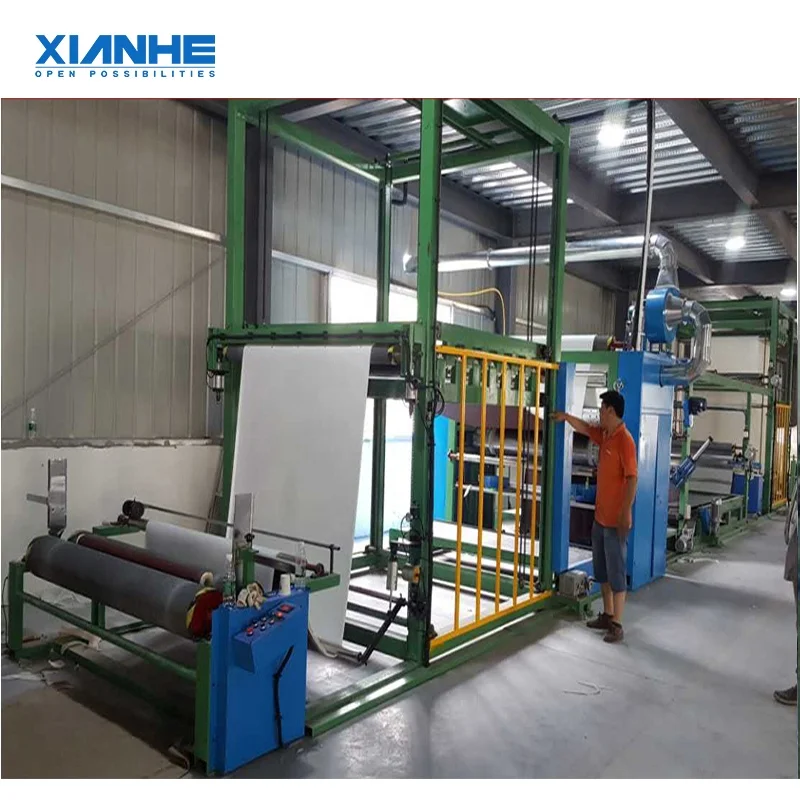

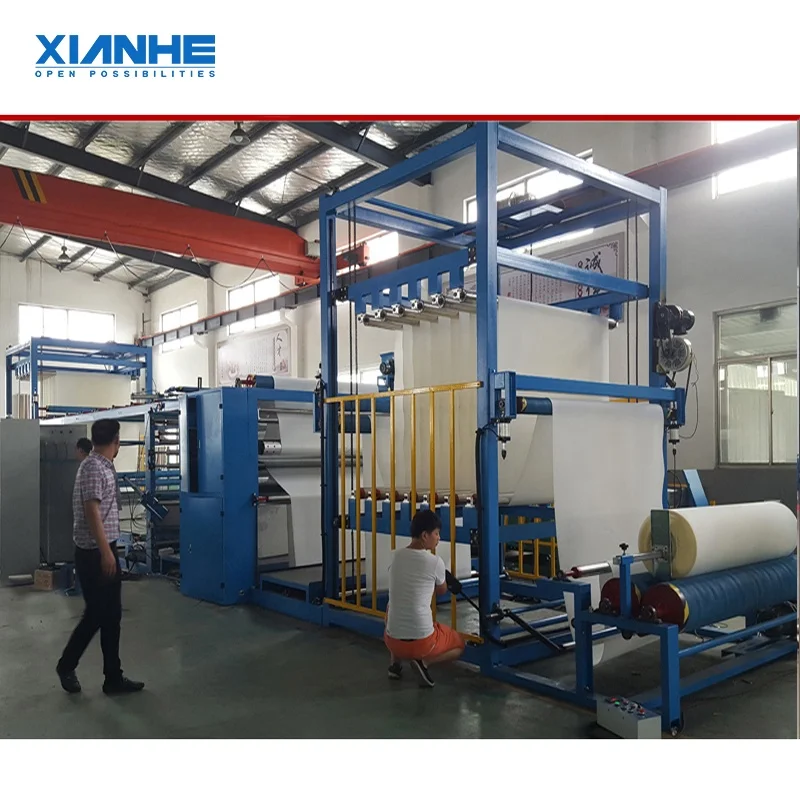

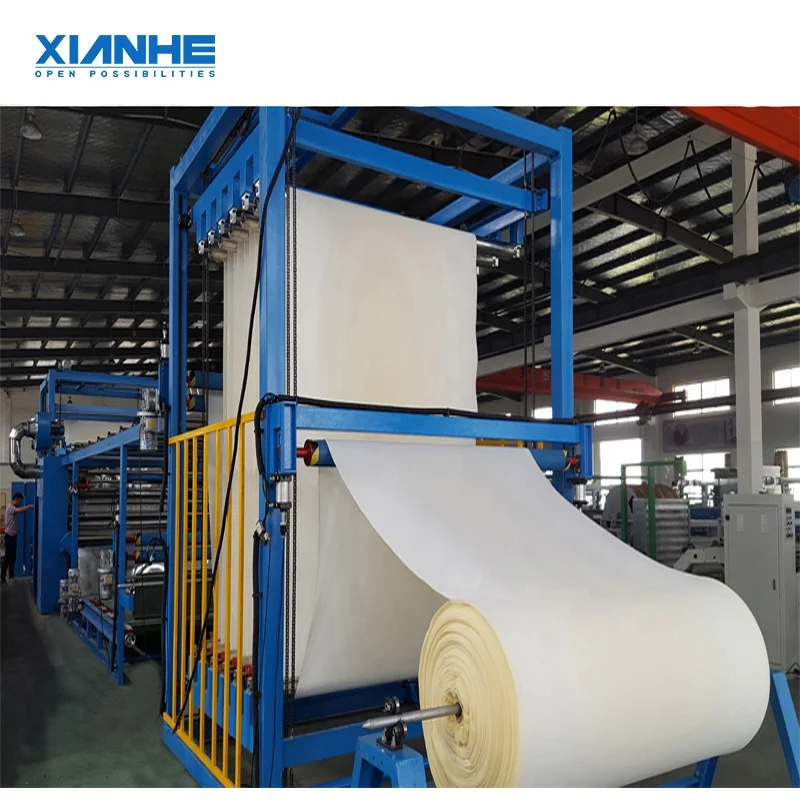

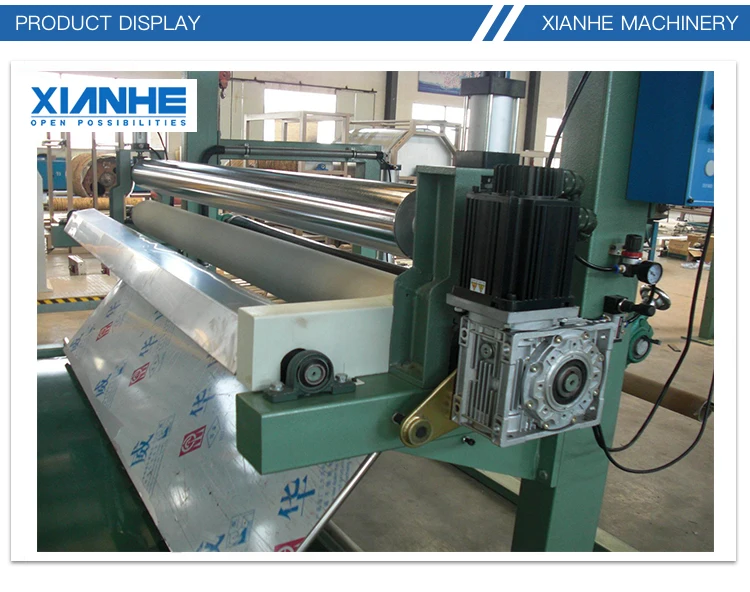

Machine Pictures:
